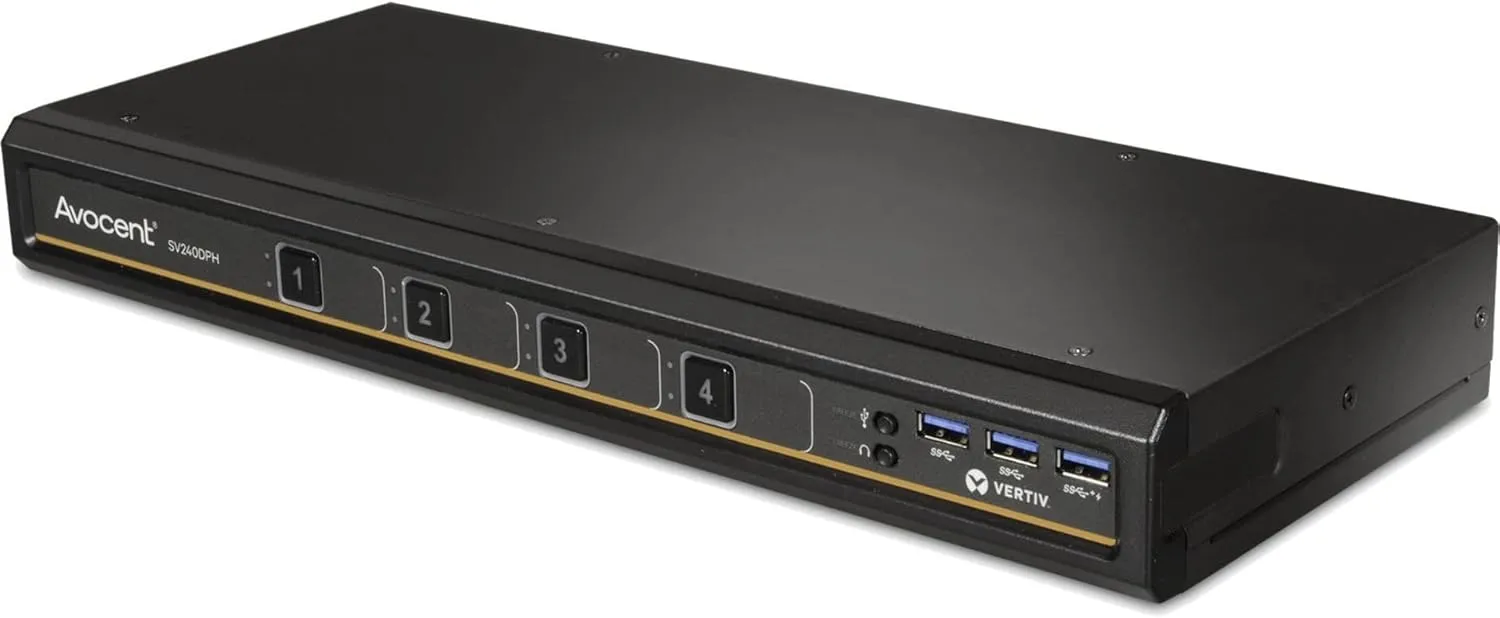

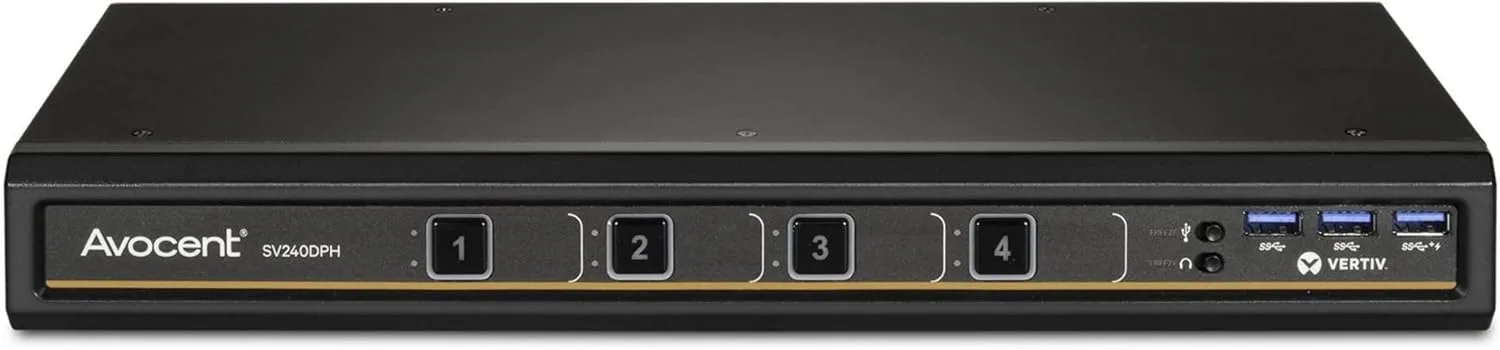

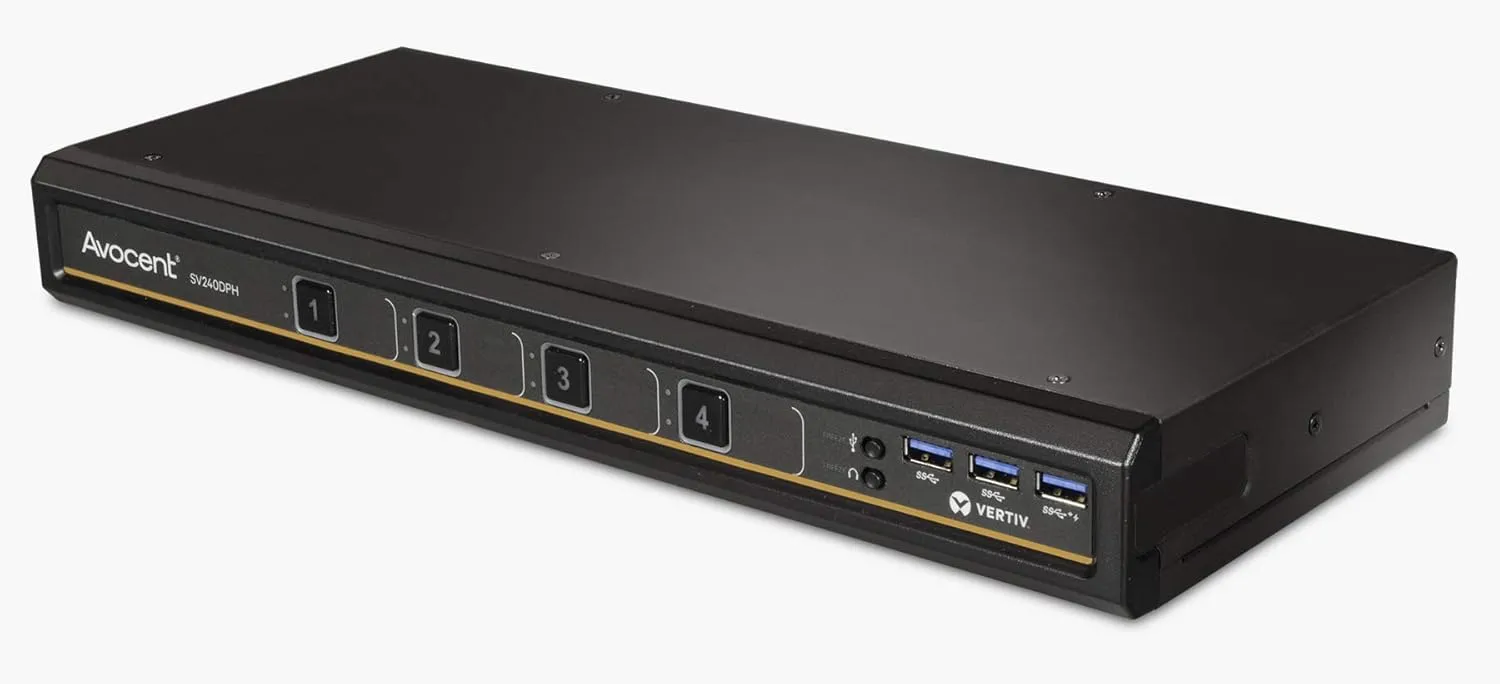

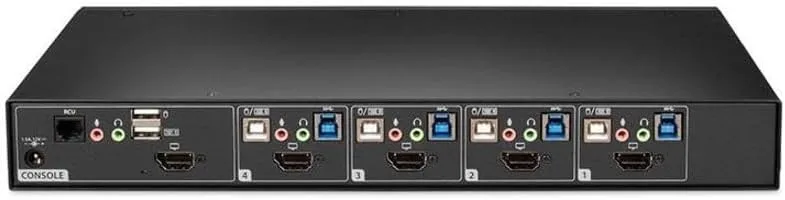

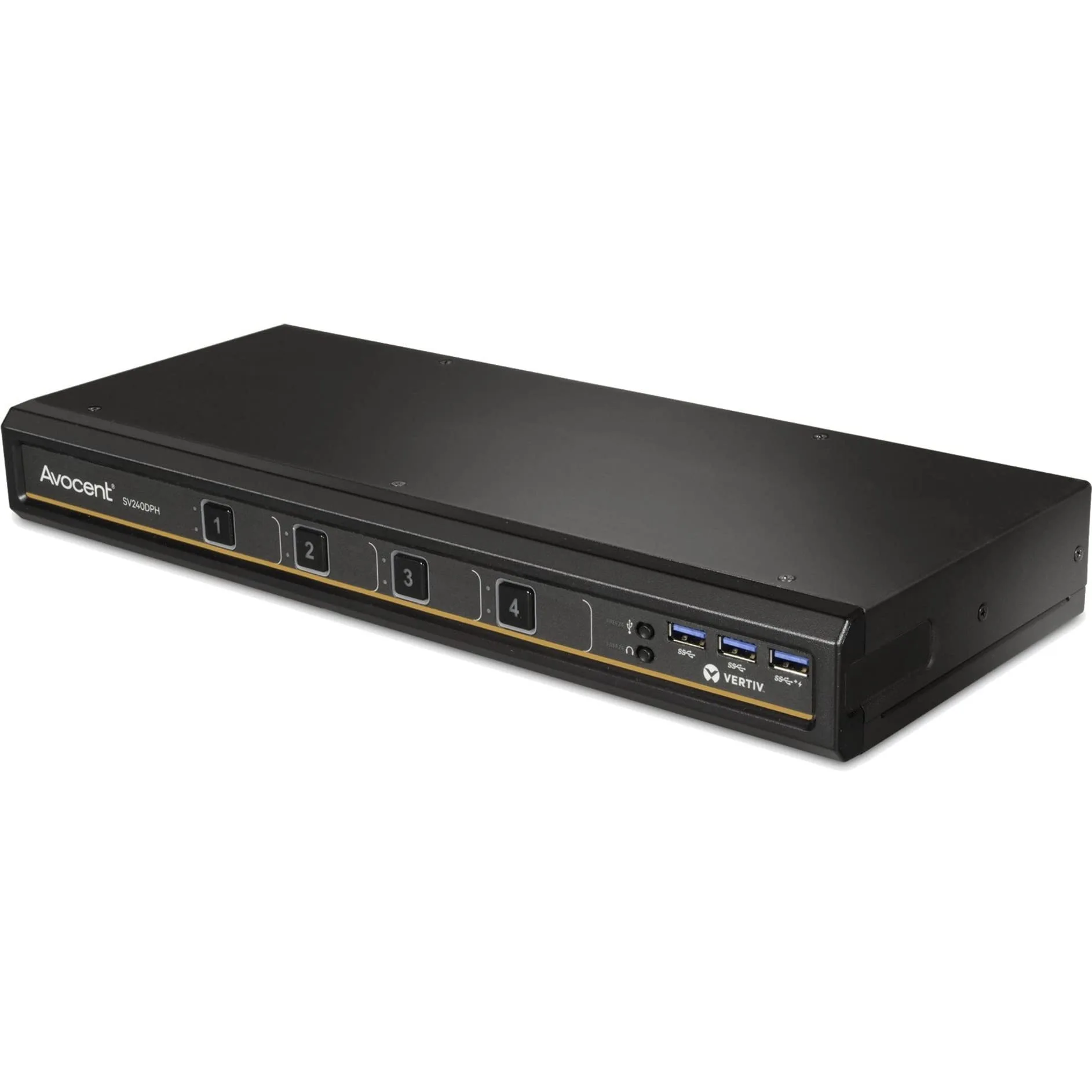

Vertiv Avocent SV240DPH-400 4-Port DP/HDMI KVM Switch, Single Head
Customize
The Vertiv Avocent SwitchView SV240DPH-400 is a robust 4-port, single-head desktop KVM switch designed for reliable multi-system desktop control. It supports DisplayPort/HDMI universal video connectivity and up to 4K UHD video, while providing independent audio and USB switching, USB 3.0 accessory ports for high-speed data transfer and high-speed charging, and seamless cursor navigation switching for intuitive multi-computer control. The unit offers hot-key switching with zero-delay, managed copy-and-paste between systems, and is built in a metal enclosure for durable deployment. Ideal for IT workstations, lab benches, and control rooms where switching between multiple PCs quickly and securely is required. Includes support features such as ON-ON operation mode, 48 V DC operating voltage, 0.29 A current rating, IP40 protection, and a compact desktop footprint.
- INDEPENDENT AUDIO & USB SWITCHING: Easily switch audio and USB peripherals to freeze audio while simultaneously working on a separate system.
- USB 3.0 PORTS: Multiple USB 3.0 accessory ports provides easy connectivity to external USB devices for quick data transfer.
- COPY AND PASTE: Simplify work with managed copy and paste of text between computers for enhanced usability.
- 4K UHD SUPPORT: Universal video with advanced support for DP, HDMI, and DVI-I up to UHD 4K assures image quality is highly accurate and video plays at the highest definition possible.
- CURSOR NAVIGATION SWITCHING: CNS seamlessly transitions keyboard and mouse control between computers when moving the cursor across screen borders.
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Metal |
| Outer Material | Metal |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Connectivity Protocol | Usb |
| Connector Type | 1 X Dp / Hdmi Universal Port |
| Contact Material | Metal |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 0.29 Amps |
| International Protection Rating | IP40 |
| Item model number | SV240DPH-400 |
| Number of Positions | 1 |
| Operating Voltage | 48 Volts (DC) |
| Operation Mode | ON-ON |
| Series | Vertiv Avocent SwitchView KVM | 4 Port | TAA Compliant (SV240DPH-400) |
| Wattage | 13.92 watts |
| Sizing & Dimensions | |
| Height | 3.2 inches |
| Length | 16.3 inches |
| Product Dimensions | 13.7 x 5 x 1.7 inches |
| Weight | 3 pounds |
| Width | 9.6 inches |
| Technical Specifications | |
| Current Rating | 0.29 Amps |
| International Protection Rating | IP40 |
| Lower Temperature Rating | 14 Degrees Fahrenheit |
| Number of Items | 1 |
| Operating Voltage | 48 Volts (DC) |
| Unit Count | 1.0 Count |
| Upper Temperature Rating | 140 Degrees Fahrenheit |
| Wattage | 13.92 watts |
