CyberPower PDU41003 Switched PDU, 120V/30A, 16 Outlets, 2U Rackmount
Customize

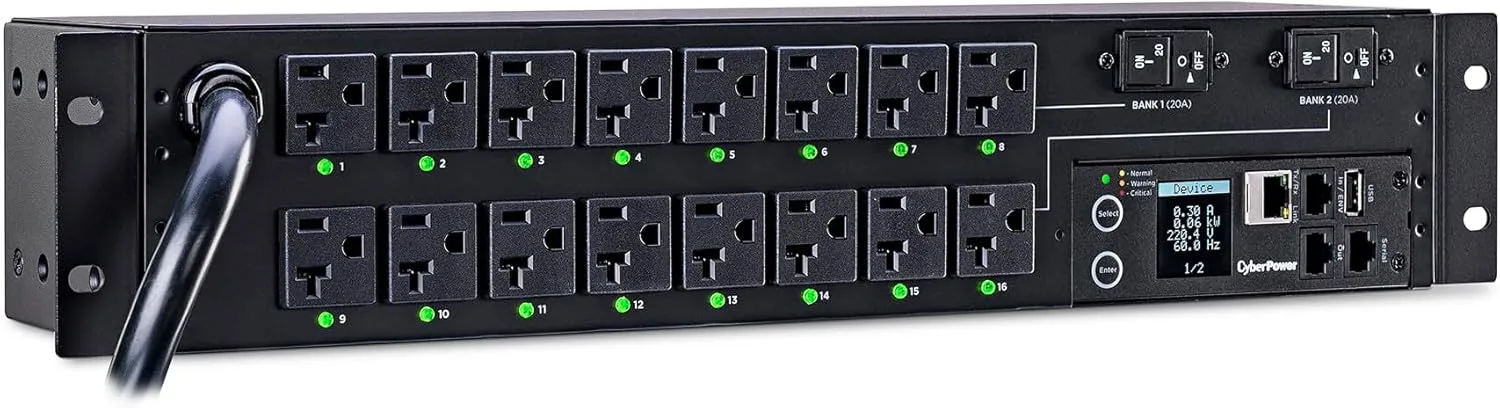

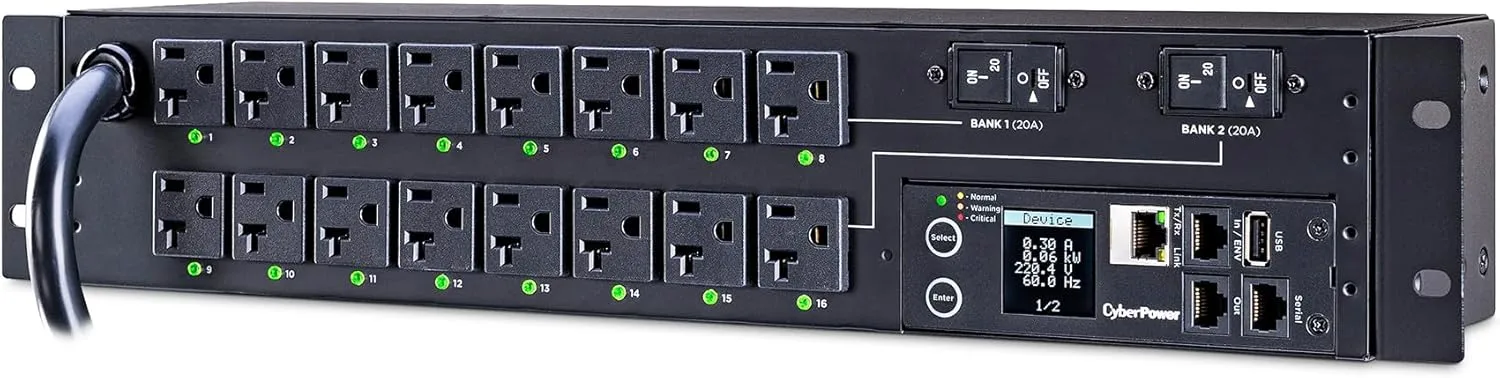

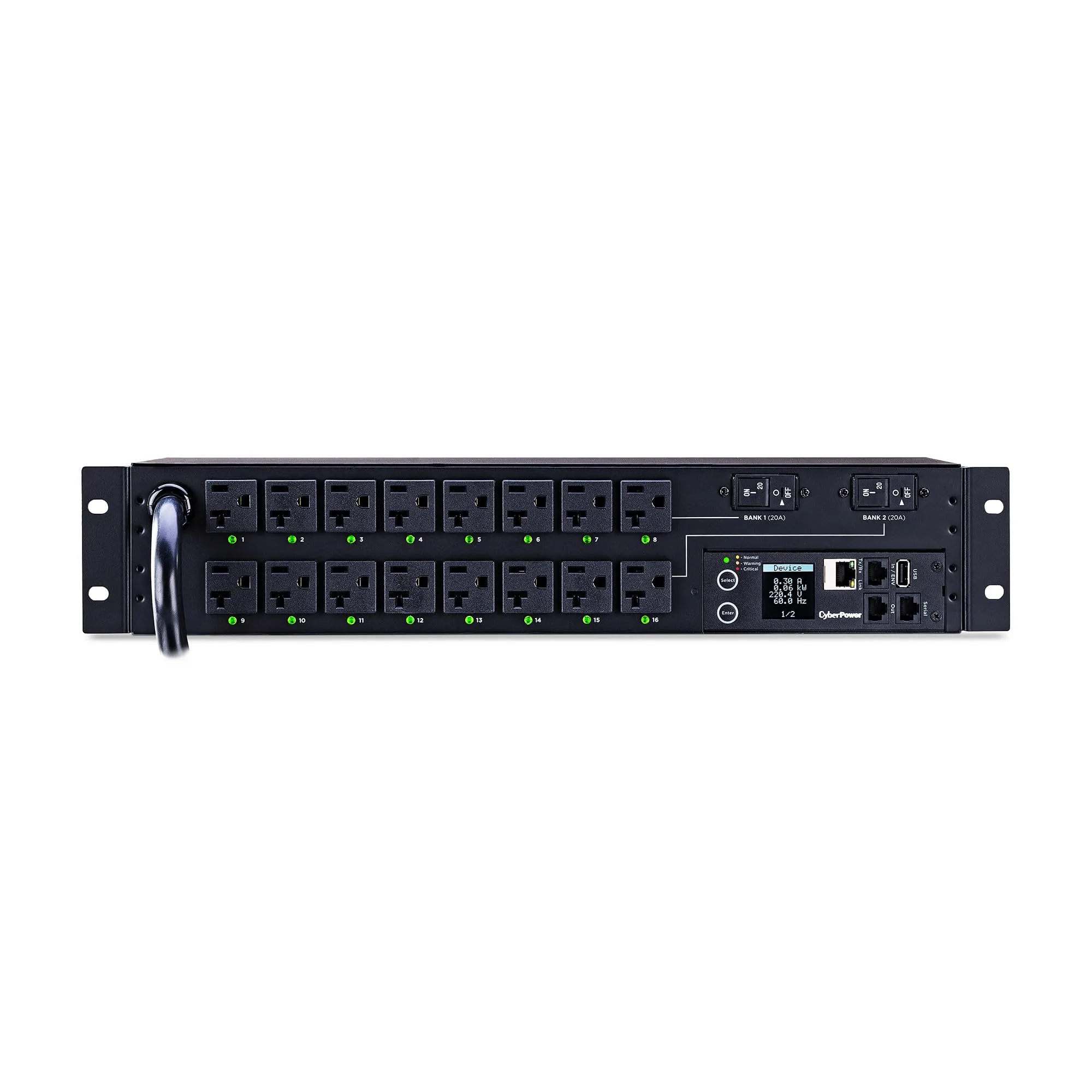

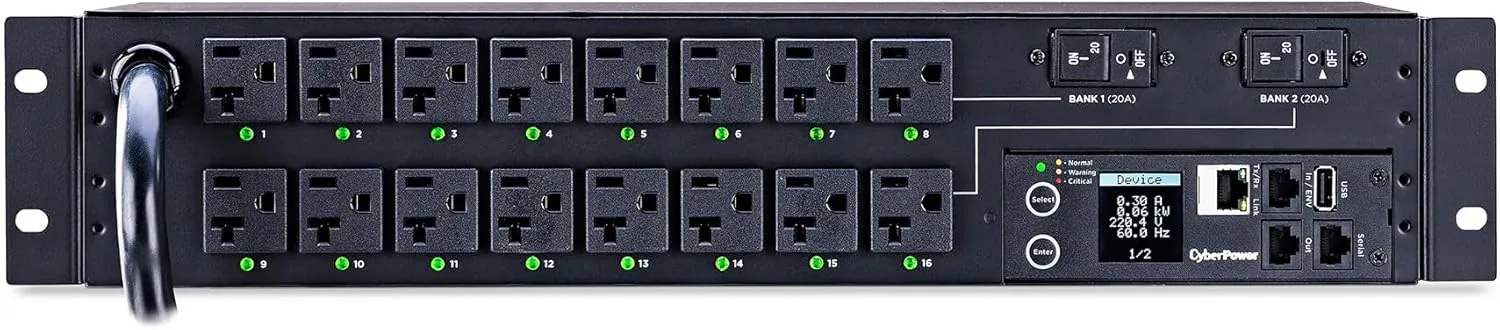

The CyberPower PDU41003 is a 2U rackmount switched power distribution unit (PDU) designed for data center and IT rack power management. It provides 100-120Vac, 30A input via a NEMA L5-30P plug and supplies sixteen (16) NEMA 5-20R receptacles. The unit supports individual or group outlet switching over the network via SNMP and a web management console and includes an RJ45 Ethernet port for network connection. Key features include a multifunction LCD screen displaying amperage, voltage, kW, IP address and other PDU conditions; 12 ft power cord; monitored PDU type; rack- and wall-mountable design; overload protection; and a 3-year limited warranty. Environmental compliance includes RoHS. Rack height is 2U and mounting orientation supports horizontal or vertical installation.

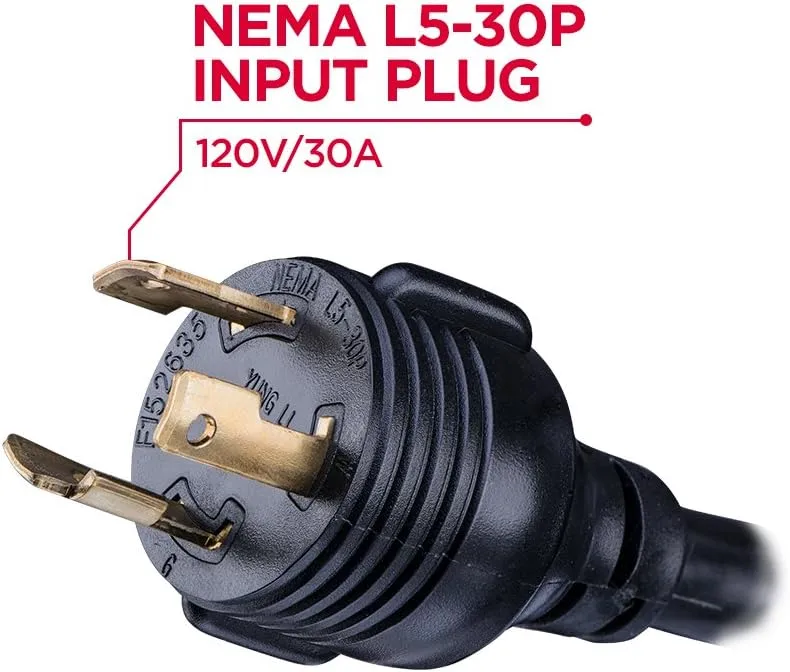

- INPUT: NEMA L5 30P straight plug with 12 foot power cord
- 3 YEAR LIMITED WARRANTY
- MULTIFUNCTION LCD SCREEN: Displays immediate, detailed information on PDU conditions, including: amperage, voltage, KW, IP Address, etc
- 16 SWITCHABLE NEMA 5 20R OUTLETS: Provides local and remote control for individual and multiple outlets
- 120V/30A Switched Power Distribution Unit
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Cord Length | 12 ft |
| Design | Non-Modular |
| Energy Star | No |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Input Voltage Range | 100 V Ac - 120 V ac |
| Maximum Input Current | 30 V |
| Model | Pdu41003 |
| Mount Type | Rack-Mountable; Wall-Mountable |
| Mounting Orientation | Horizontal/Vertical |
| Network (Rj-45) | Yes |
| Output Voltage Range | 100 V Ac - 120 V ac |
| Overload Protection | Yes |
| Pdu Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Detail | 1 X Nema L5-30p |
| Plug/Connector Type | Nema L5-30p |
| Rack Height | 2u |
| Receptacle Detail | 16 X Nema 5-20r |
| Receptacle Type | Nema 5-20r |
| Total Power Outlets | 16 |
| Voltage | 125 Volts |
| Warranty | 3-Year Limited |

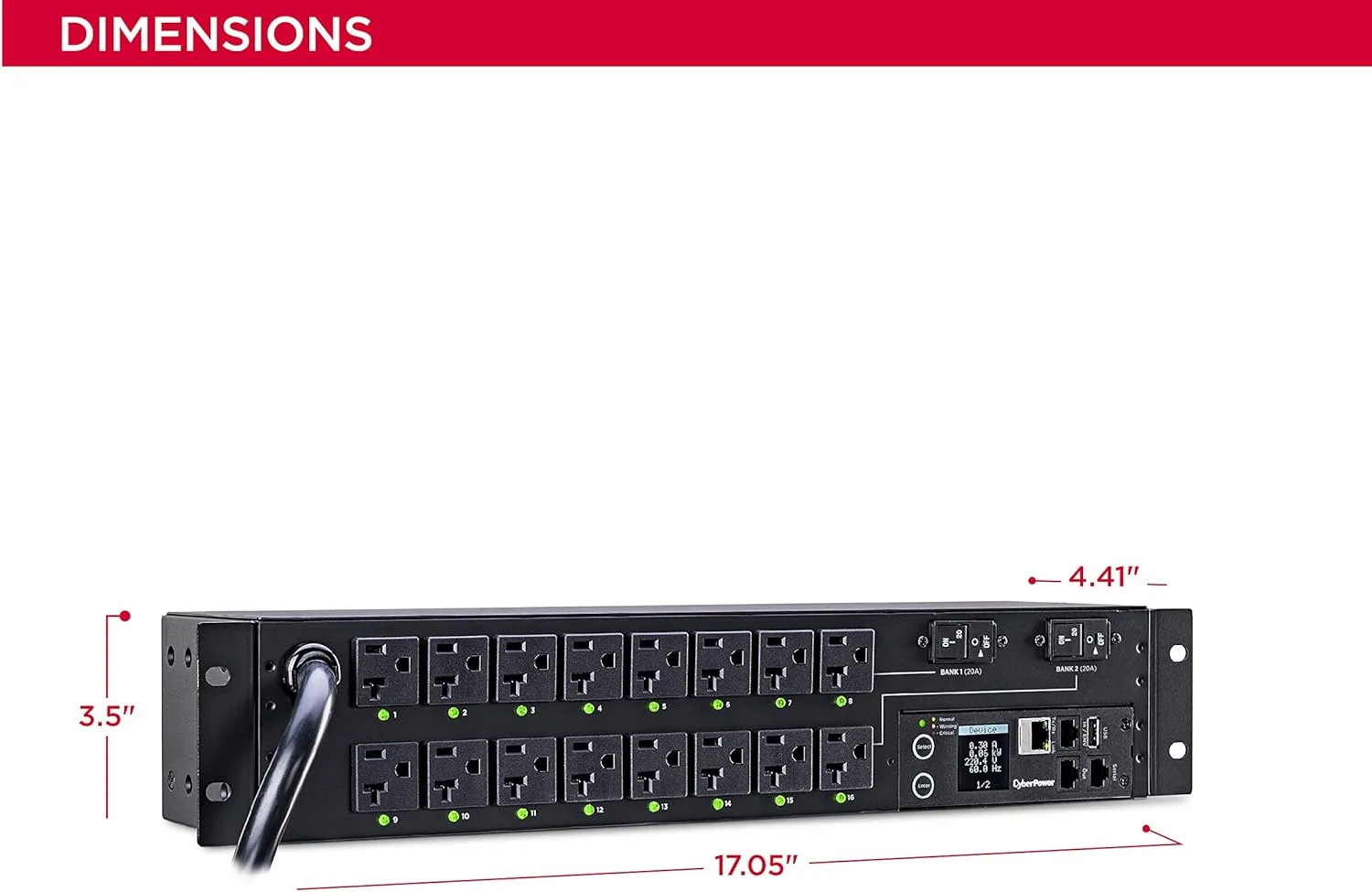

| Sizing & Dimensions | |
| Height | 3.5 inches |
| Length | 4.41 inches |
| Product Dimensions | 4.41 x 17.05 x 3.5 inches |
| Weight | 7.3 pounds |
| Width | 17.05 inches |
| Technical Specifications | |
| Special Feature | Mountable |
| Total Power Outlets | 16 |
