StarTech.com 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal, DIN/Surface/Rack Mountable, Dual-Host Hub/Switch, TAA
Customize
The 16-Port Industrial USB 5Gbps hub with 5Gbps of shared bandwidth features a 2-port host switch, enabling users to switch between two host devices. This USB hub is built for industrial environments. It features a rugged steel housing. It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings. This also enables the hub to be used for daisy chaining to connect multiple Hubs together to support more devices. The 16-Port USB Hub offers three mounting options. The 19" rackmount rails are compliant with EIA-310 standards to install into 1U of rack space. The surface mount is ideal for workstations, desks, or walls. The standard DIN-rail (Top-Hat/TH) mounting hardware is ideal for installation in industrial equipment. This USB Hub features an included 160W power adapter. Power can be inputted using the 2-wire terminal block, and optional redundant power can be connected to a separate barrel power input (12-24V). With a power source connected the hub supports USB Battery Charging Specification 1.2 (BC 1.2), enabling each port to provide up to 1.5A. This USB Hub is OS independent supporting all operating systems, including Windows, macOS, and Linux. A USB Event Monitoring utility is also available for download.
- DUAL-HOST SWITCH: With a 2-port host switch, this USB hub can connect to two separate desktop or laptop computers and seamlessly switch between primary host devices, using the manual rocker switch
- POWER & CHARGE: When connected to the power adapter, the multiport USB expansion hub supports BC 1.2 charging; 120W is shared across all ports with 16 ports simultaneously charging at max 1.5A/7.5W per port, or up to 8 ports at max 2.0A/10W charging

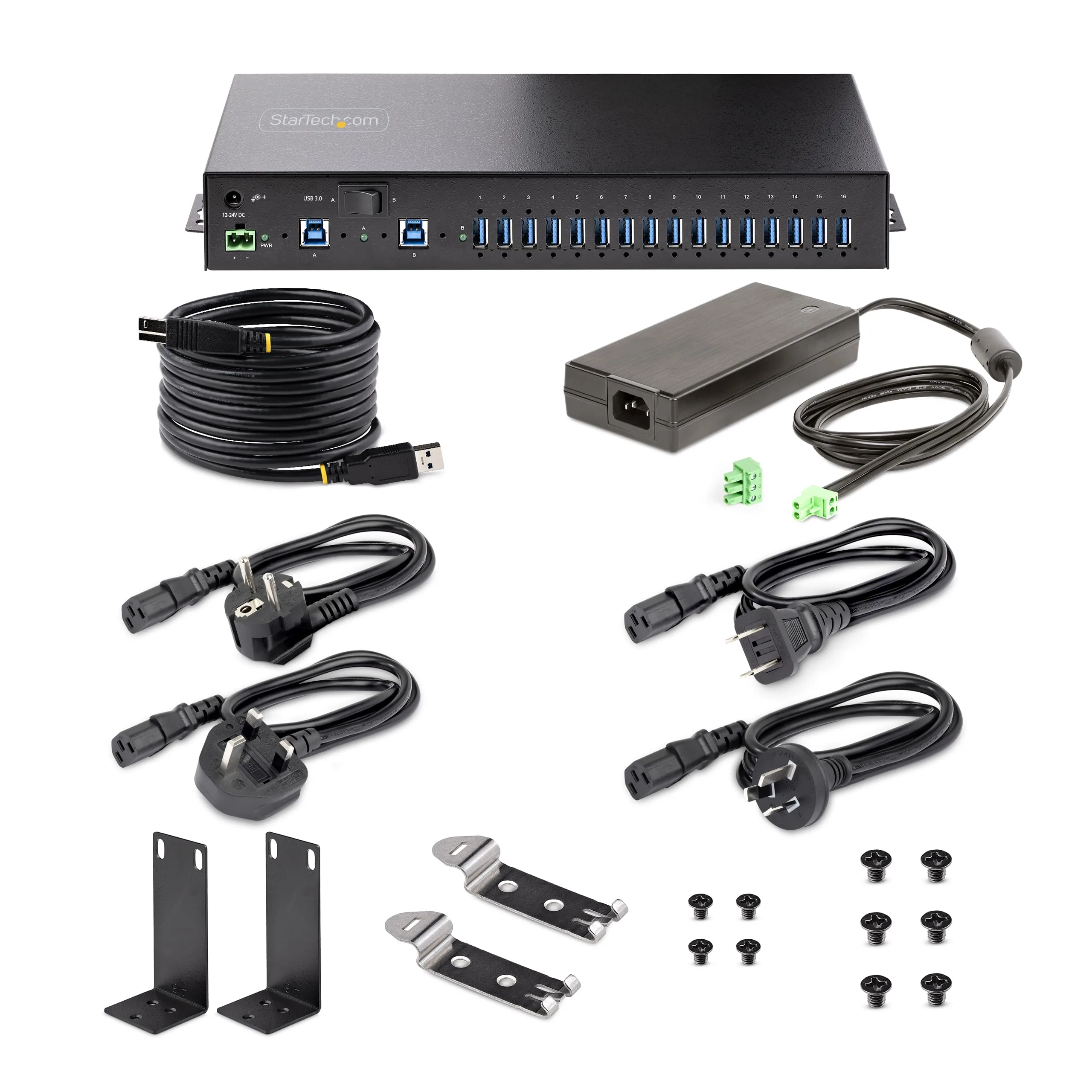

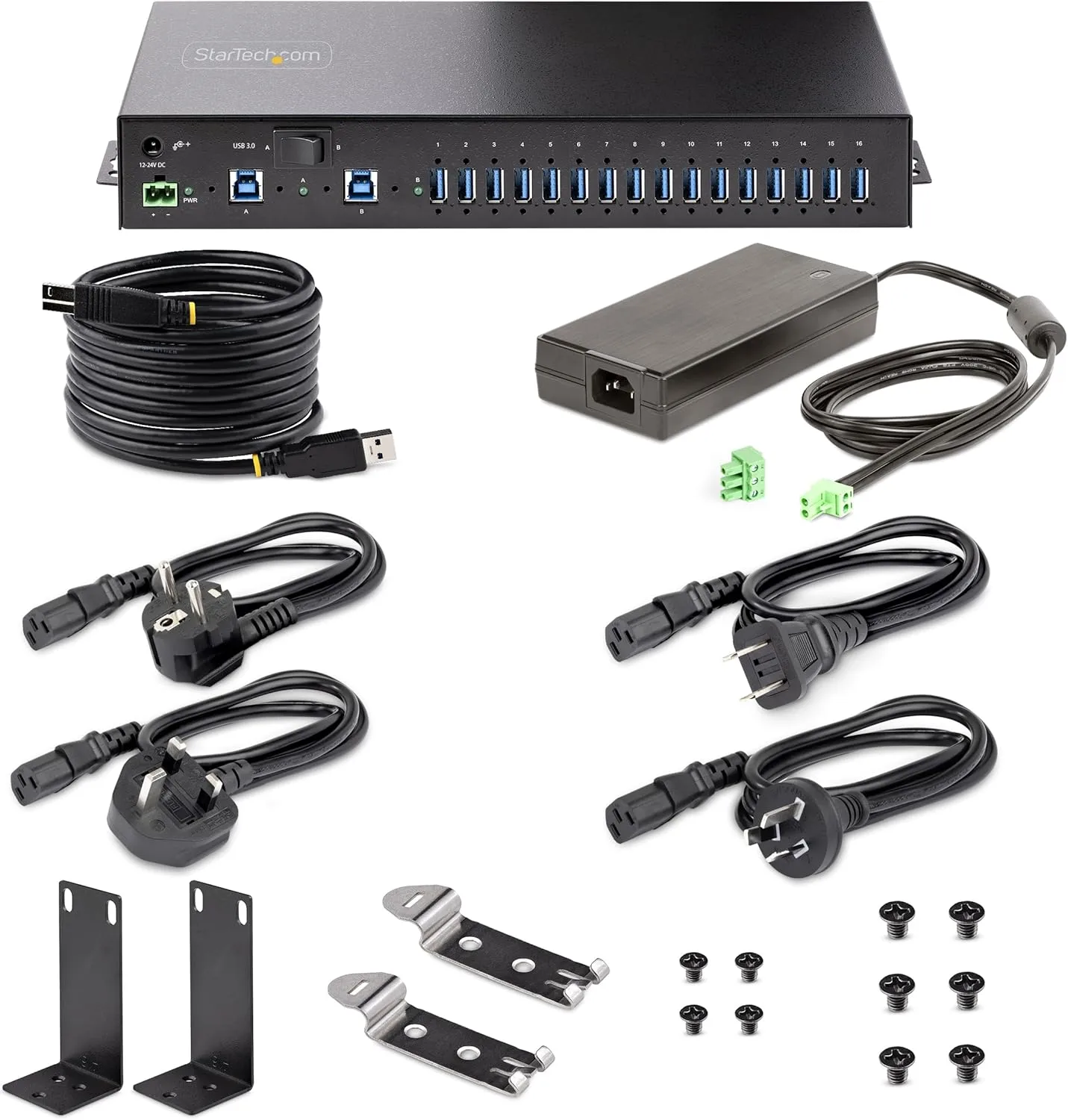

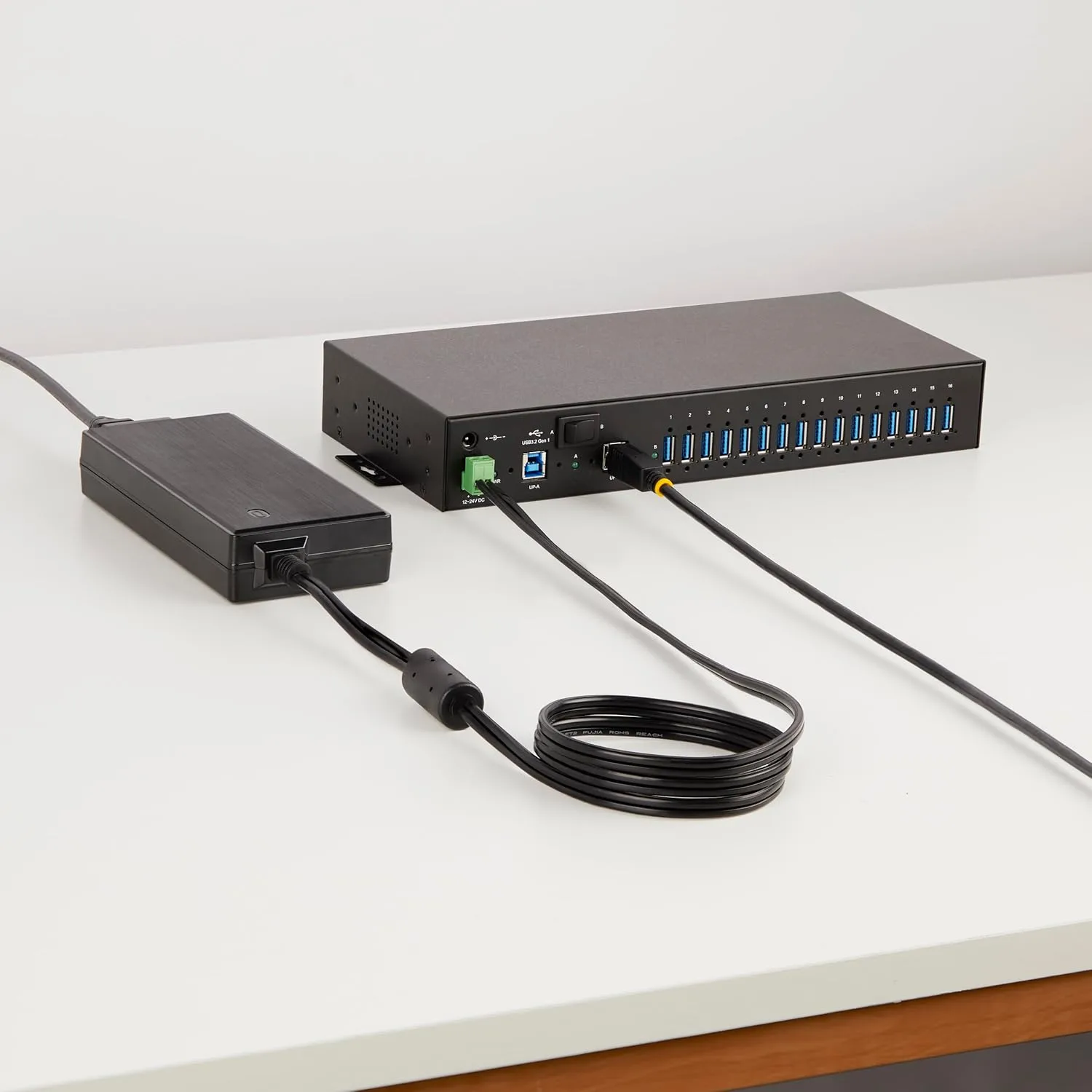

- INCLUDED 160W POWER ADAPTER: The rugged USB Hub is powered by the included power adapter using the built-in DC 2-wire terminal block; Overcurrent protection protects connected devices from overdrawing power; DC barrel jack for optional power redundancy

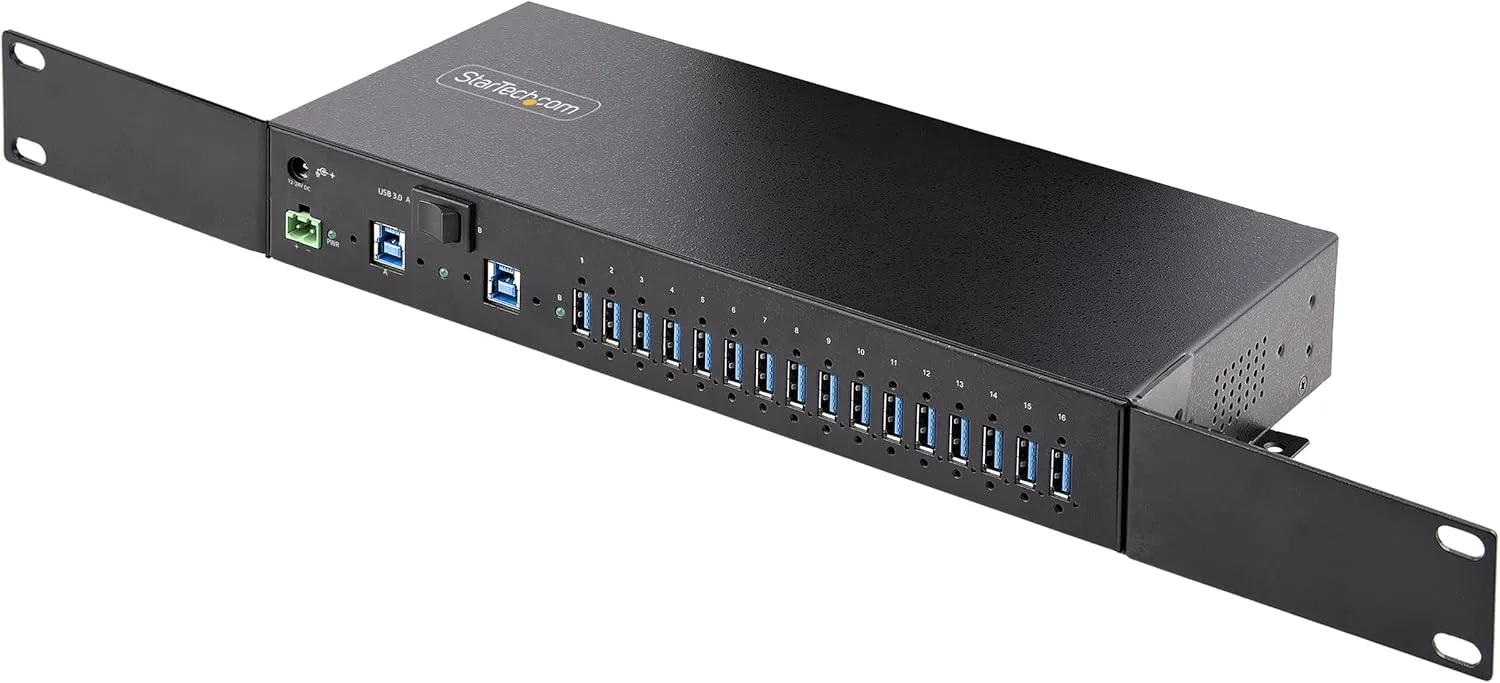

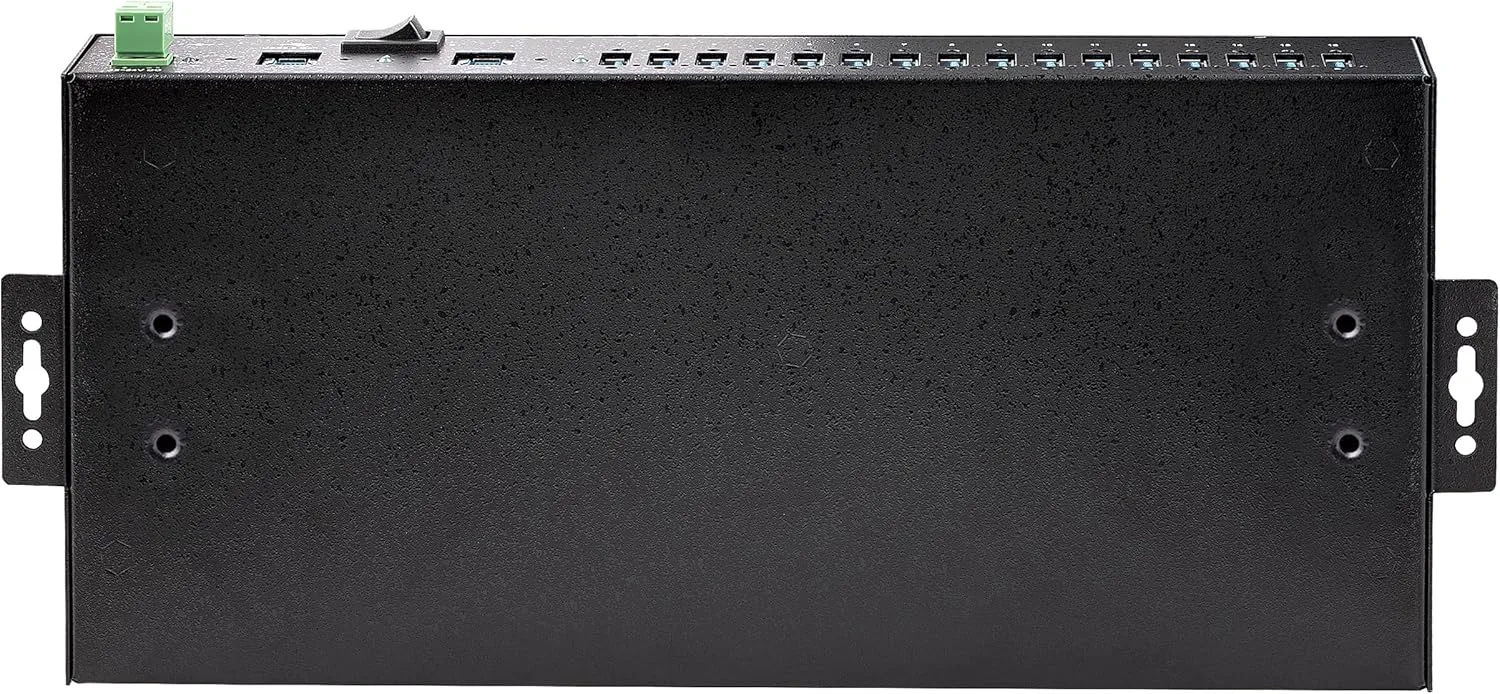

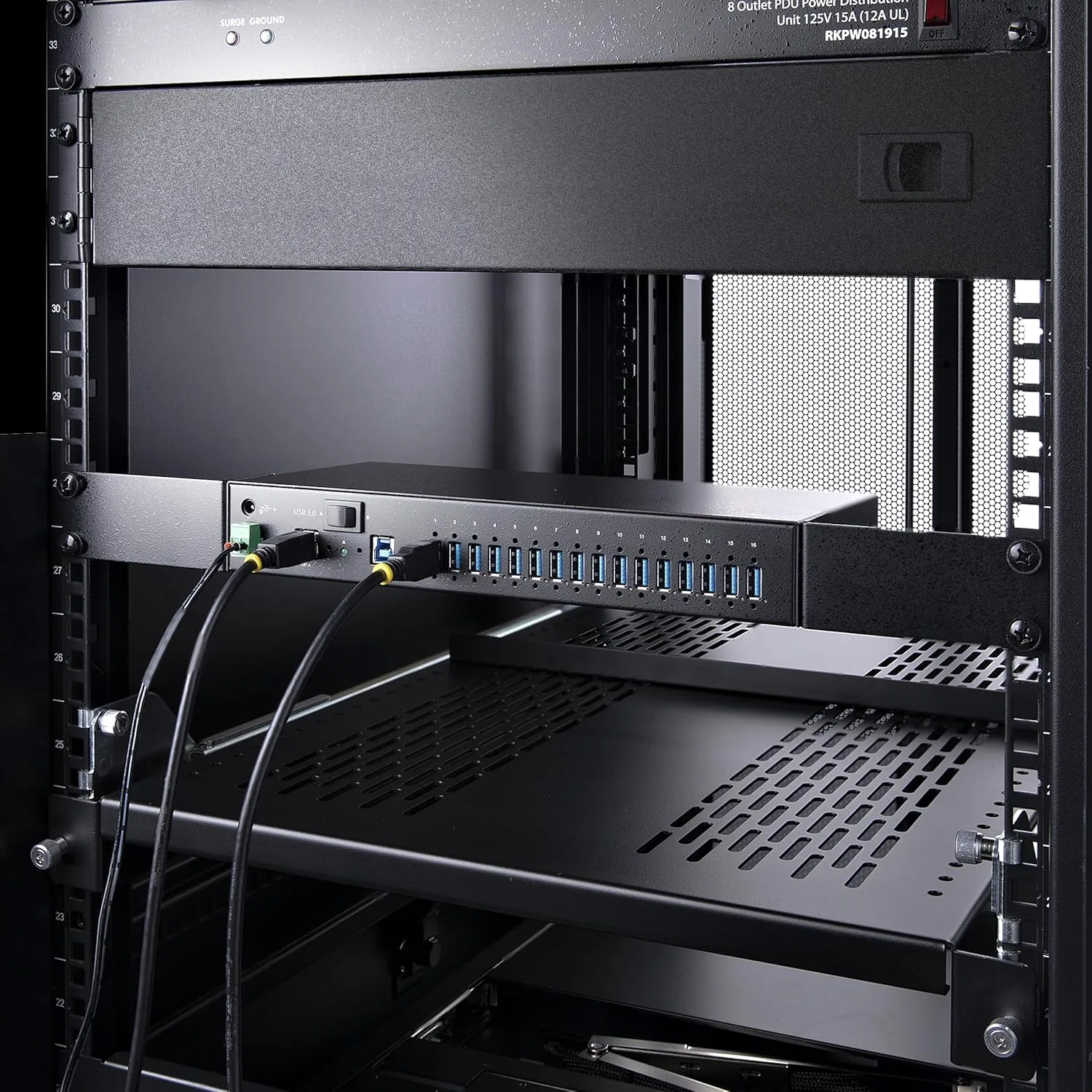

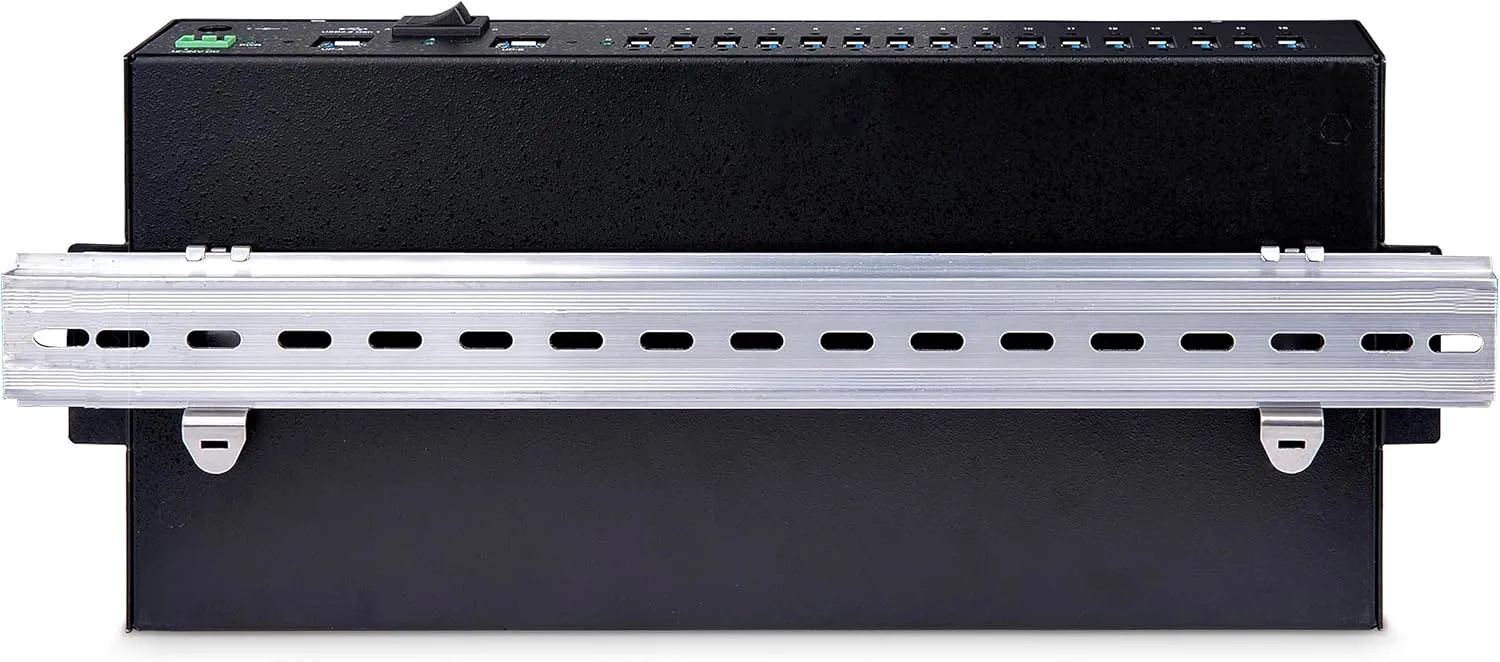

- FLEXIBLE MOUNTING OPTIONS: EIA-310 compliant mounting brackets for 1U 19" rackmount installation; Built-in mounting ears for wall/desk installation; DIN-rail mounting hardware; Screw-lock-enabled connectors on all ports facilitate reliable connections

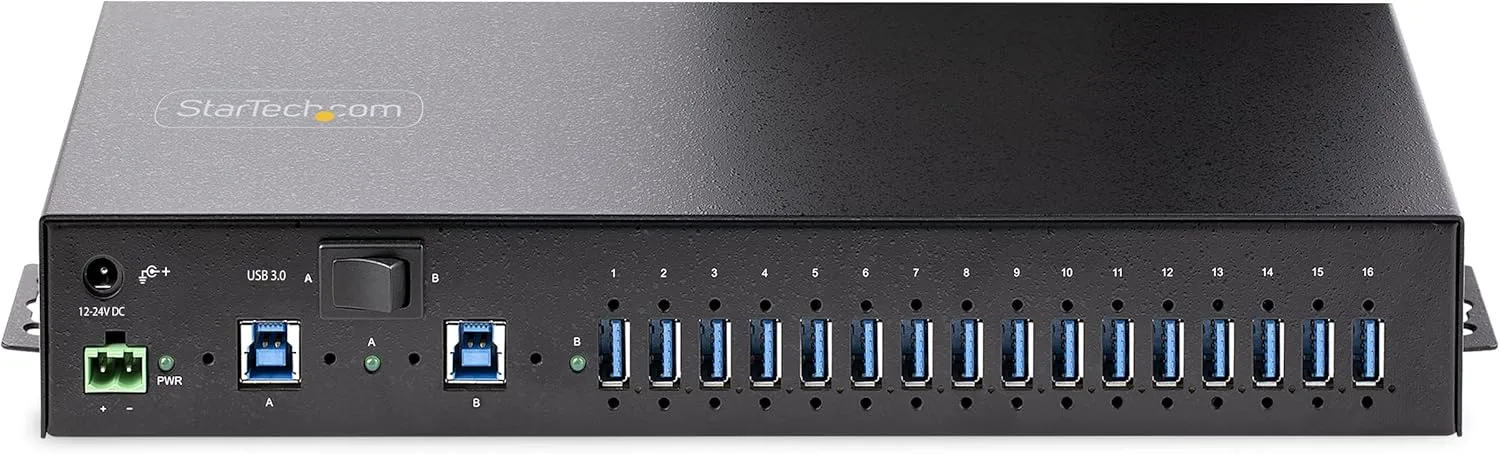

- 16-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 hub w/metal housing for durability in harsh environments & Level 4 ESD protection (15kV air/8kV contact); 16x USB-A Ports; 5Gbps shared; 10ft long host cable; USB Event Monitoring utility (available for download)
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Steel |
| Outer Material | Steel |
| Product Details | |
| Cable Included | Yes |
| Color | Black |
| Compatible Devices | Desktops, Laptops |
| Cord Length | 3/64 ft |
| Data Transfer Rate | 671088640 |
| Hardware Interface | USB 3.0 |
| Model | 16-Port Industrial Usb 5gbps Hub With Power Adapter, Metal Enclosure, Mountable, Esd Protection, Terminal Block Power, Usb Charging, Dual-Host Switch - Taa |
| Number Of Ports | 16 |
| Operating System | OS Independent, No additional drivers or software required |
| Product Material | Steel; Metal |
| Special Feature | Fast Charging, Powered |
| Usb Connector Type | Type-A; Type-B |
| Usb Version | 3.2 Gen 1 |
| Warranty | 2-Year Limited |
| Sizing & Dimensions | |
| Height | 0.2 inches |
| Length | 0.5 inches |
| Product Dimensions | 0.5 x 1.2 x 0.2 inches |
| Weight | 2.42 pounds |
| Width | 1.2 inches |
| Technical Specifications | |
| Data Transfer Rate | 671088640 |
| ESD Protection | Level-4 ESD protection (15kV air/8kV contact) |
| Included Power Adapter | 160W power adapter (DC terminal block and optional DC barrel jack) |
| USB Charging Spec | BC 1.2 (up to 1.5A per port, power dependent) |
