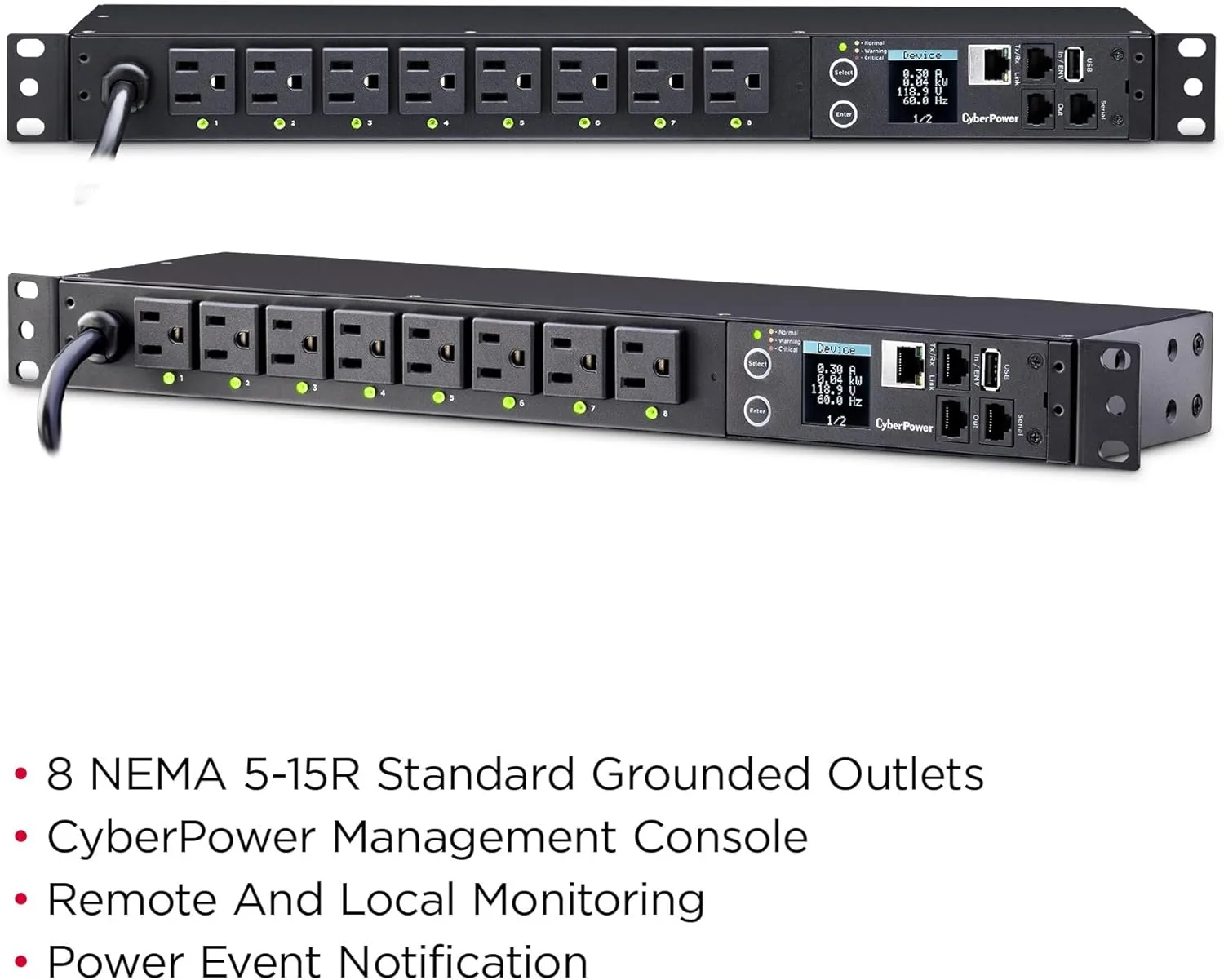

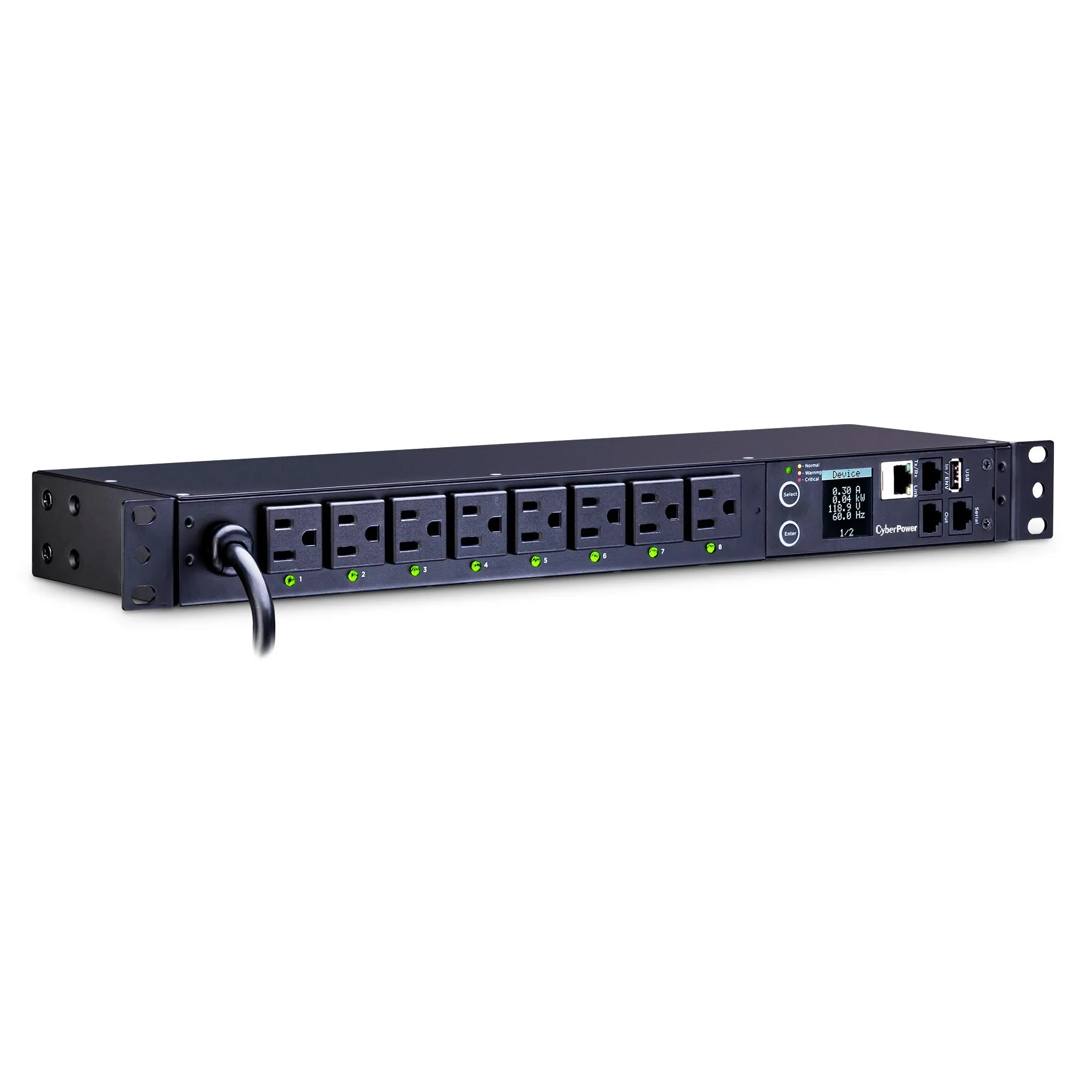

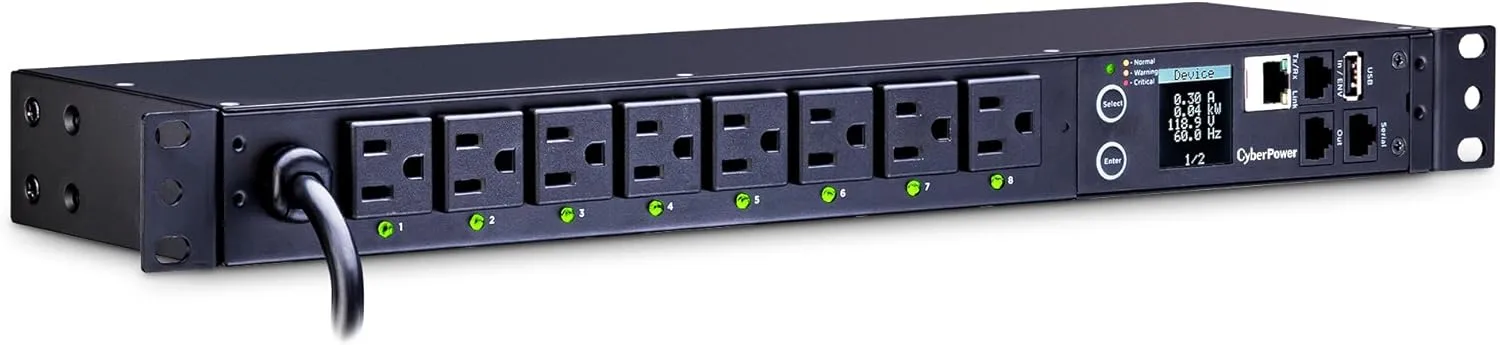

CyberPower PDU81001 Switched Metered-By-Outlet PDU, 100-120V/15A, 8 Outlets, 1U Rackmount
Customize
The CyberPower PDU81001 is a switched, metered-by-outlet power distribution unit designed for data centers and network closets. It supports 100-120V input and up to 15A (derated to 12A) and provides outlet-level power monitoring and individual outlet control for remote reboots, load shedding and scheduled power cycling. The unit features eight (8) front NEMA 5-15R switchable outlets, a NEMA 5-15P input plug with a 12 ft power cord, an interactive digital LCD display for amperage, voltage and other vitals, and remote management via RJ-45 Ethernet. Rack-mountable at 1U height with durable metal housing, built-in web interface, upgradeable firmware, and automatic event notifications (email, SMS, SNMP). Environmental compliance: RoHS. Protected by a three-year limited warranty. Key specs include: Output wattage 1800 W, connector type NEMA 5-15P, cooling method: air, form factor: PDU.
- 1U RACKMOUNT: With durable metal housing; UPGRADEABLE FIRMWARE: allows users to download firmware updates to programs that run the PDU; 3-YEAR LIMITED WARRANTY
- REMOTE AND LOCAL MONITORING: User can track PDU vitals both offsite and onsite; Provides control to turn on/off individual outlets or circuits; AUTOMATIC EVENT NOTIFICATIONS: Provides immediate updates about power events via email, SMS, or SNMP traps
- SWITCHABLE OUTLETS: Provides local and remote control for individual and multiple outlets; Local control: turn on/off outlets, disable unused outlets; Remote control: restart outlets and devices, turn on/off, schedule power on/off, disable unused outlets
- 8 FRONT NEMA 5-15R SWITCHABLE OUTLETS; INPUT: NEMA 5-15P input plug with 12 foot power cord; PER OUTLET POWER METERING: Provides info on the amount of power drawn from each outlet, circuit, and the PDU as a whole
- 100-120V/15A (Derated to 12A) Switched Metered-by-Outlet Power Distribution Unit (PDU) delivers AC power to servers, data centers, and network closets; DIGITAL DISPLAY: Provides easy-to-read information about amperage, voltage, KW, IP address, and more
Specifications:
| Materials & Construction | |
| Cooling Method | Air |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Plug/Connector Type | Nema 5-15p |
| Receptacle Detail | 8 X Nema 5-15r |
| Product Details | |
| Cord Length | 12 ft |
| Depth | 4-13/32 In. |

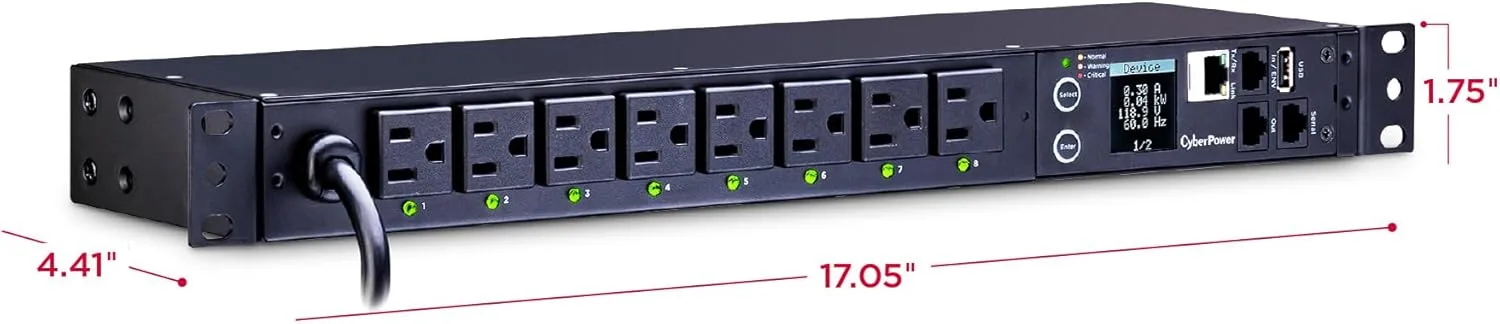

| Dimensions | 1-3/4 In. X 17-3/64 In. X 4-13/32 In. |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Maximum Input Current | 15 V |
| Mount Type | Rack-Mountable |
| Network (RJ-45) | Yes |
| Plug/Connector Type | Nema 5-15p |
| Rack Height | 1u |
| Receptacle Detail | 8 X Nema 5-15r |
| Receptacle Type | Nema 5-15r |
| Warranty | 3-Year Limited |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 17 x 2 inches |
| Product Weight | 7.95 pounds |
| Size | 4 x 17 x 2 inches |
| Weight | 5.7 pounds |
| Width | 17 inches |
| Technical Specifications | |
| Connector Type | NEMA 5-15P |
| Form Factor | PDU |
| Maximum Input Current | 15 V |
| Output Wattage | 1800 Watts |
| Wattage | 1800 watts |
