CyberPower PDU15B2F10R Basic 12-Outlet 1U Rackmount PDU
Customize
The CyberPower PDU15B2F10R is a rugged, industrial-grade basic power distribution unit designed for data centers and demanding IT environments. It provides 12 NEMA 5-15R network-grade outlets (2 front, 10 rear) fed from a single NEMA 5-15P input with a 15-foot power cord. The 1U rackmount unit supports horizontal or vertical mounting and features a cord retention tray and switch-free design to prevent accidental shutdowns. Rated 100-125V, 15A (derated to 12A), the unit includes overload protection, RoHS compliance, and a limited lifetime warranty. Dimensions are compact for rack installation (Product Dimensions reported as 2.25"D x 17.5"W x 1.75"H / 7.08 x 2.55 x 20 inches in various data sources). Mounting orientation and rack height (1U) support standard rack installations. Manufacturer model PDU15B2F10R is commonly listed across sources as a reliable basic PDU option for servers, network, and telecom equipment.
- LIMITED LIFETIME WARRANTY
- 1U RACKMOUNT: Rugged industrial-grade metal housing, horizontal and vertical mounting brackets
- CORD RETENTION TRAY: Secures power cords, keeping them organized and accessible; SWITCH-FREE DESIGN: Safeguards against accidental power shutdown

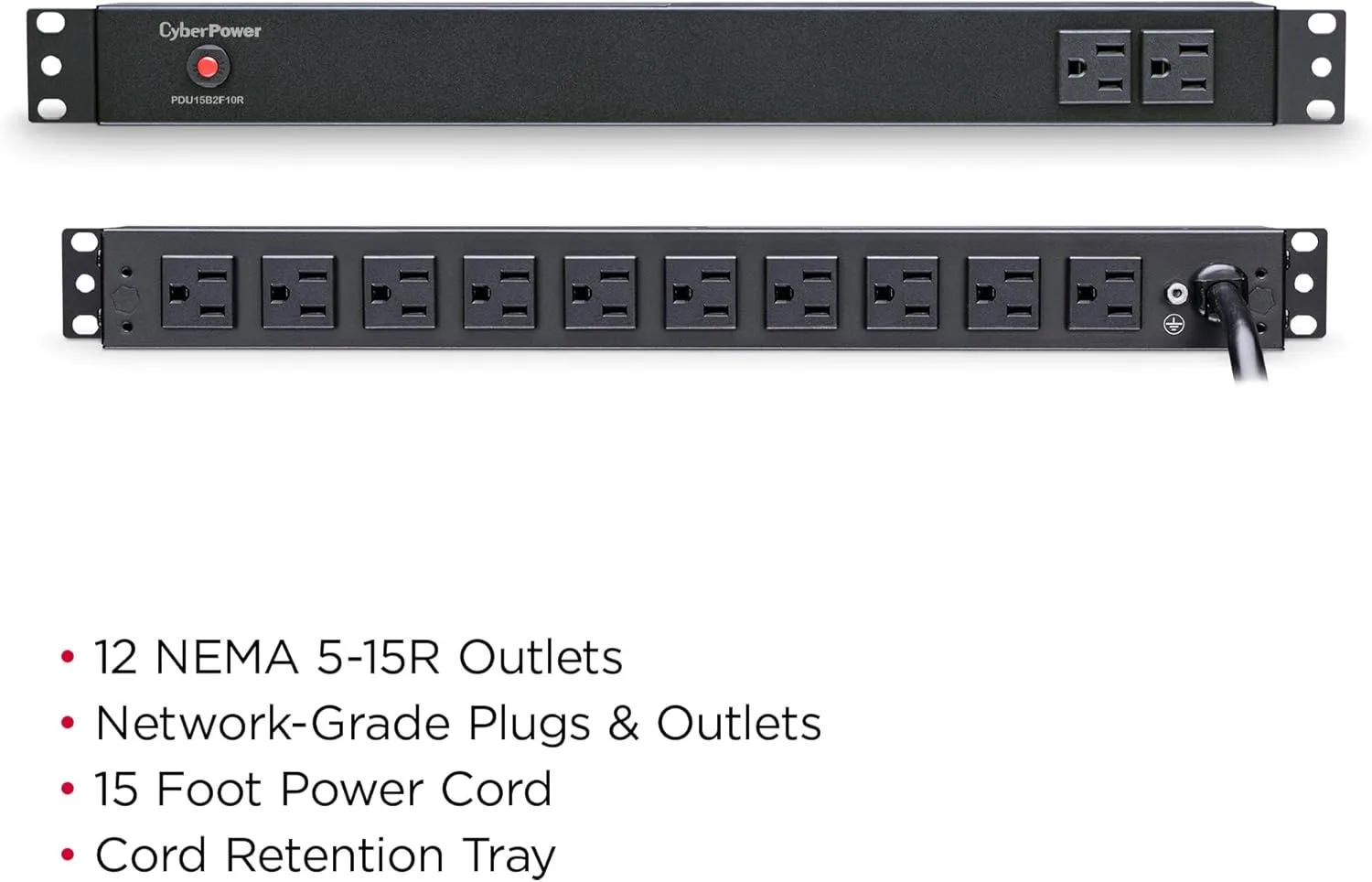

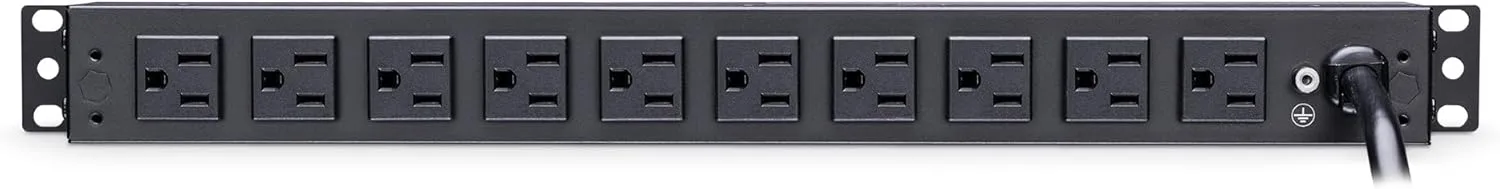

- 12 NETWORK-GRADE OUTLETS: Two front NEMA 5-15R and 10 rear NEMA 5-15R outlets ensure efficient distribution of power in demanding IT or industrial environments; INPUT: NEMA 5-15P plug with 15 foot power cord allows the PDU to be placed where it is needed
- 100 - 125V/15A (Derated to 12A) Basic Power Distribution Unit (PDU) delivers reliable AC power to servers, equipment, and network/telecom devices
Specifications:
| Product Details | |
| Energy Star | No |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Model | Pdu15b2f10r |
| Mount Type | Rack-Mountable |
| Mounting Orientation | Vertical |
| Overload Protection | Yes |
| Pdu Type | Basic |
| Plug/Connector Type | Nema 5-15p |
| Rack Height | 1u |
| Receptacle Detail | 12 X Nema 5-15r |
| Warranty | Limited Lifetime |
| Sizing & Dimensions | |

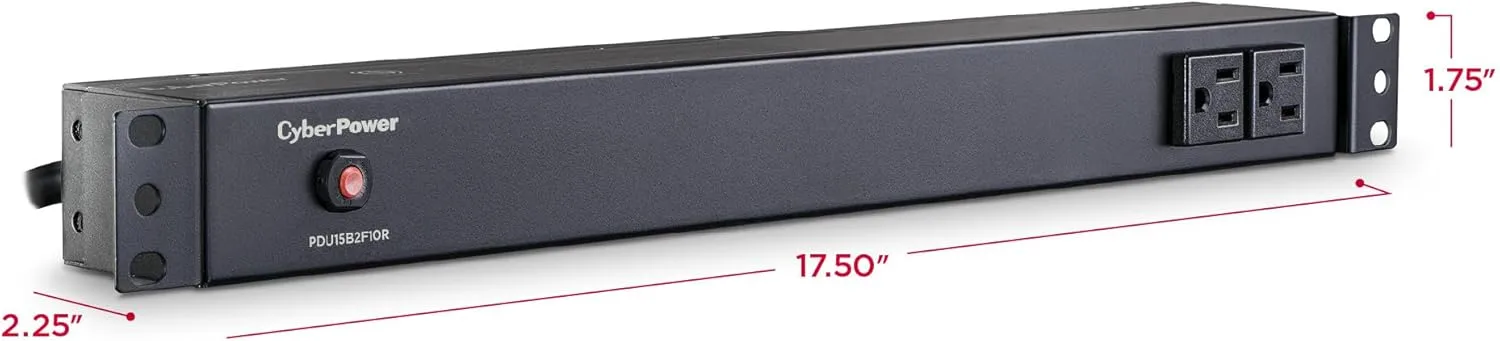

| Dimensions | 1-3/4 In. X 17-1/2 In. X 2-1/4 In. |
| Height | 3.0000 inches |
| Length | 20.0000 inches |
| Product Dimensions | 2.25"D x 17.5"W x 1.75"H |
| Weight | 6.0000 pounds |
| Width | 7.0000 inches |
| Technical Specifications | |
| Input Voltage Range | 100 V Ac - 125 V ac |
| Maximum Input Current | 15 V |
| Output Voltage Range | 100 V Ac - 125 V ac |
| Phase | Single Phase |
| Voltage | 125 Volts |
