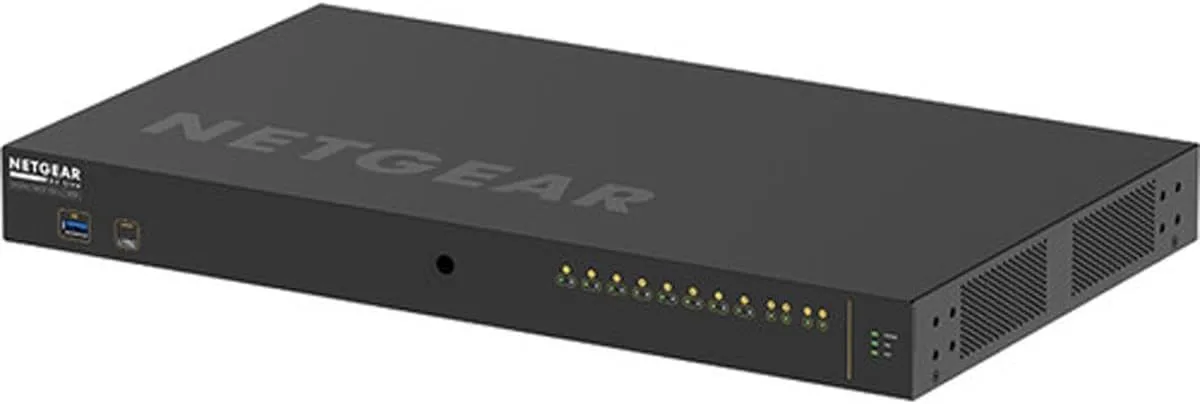

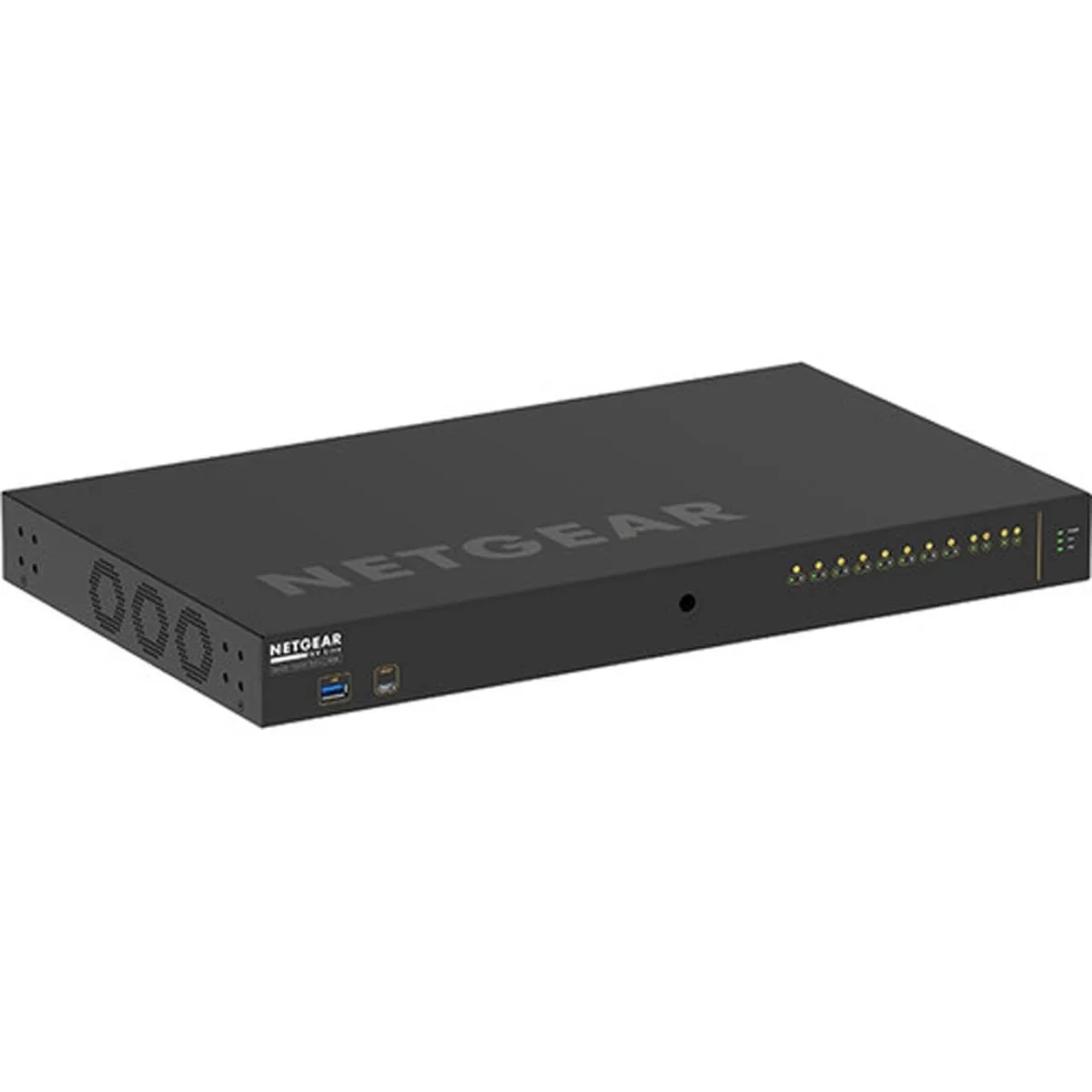

NETGEAR M4250-10G2XF-PoE++ 10-Port Managed AV Ethernet Switch
Customize
Switching Engineered for AV over IPThe NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.NETGEAR M4250 series key features: Ranges from 8 to 16 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W, 30W, 60W, 75W and 90W AVoIP endpoints Uplink options include 1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments Also includes 12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology Designed for a clean integration with traditionalrack-mounted, AV equipment The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back Reversed mounting is possible when ports are desired on the front of the rack A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mountingoptionsoutside the rack as well NETGEAR M4250 series AV software features: Pre-configured for audio and video over IP out of the box, the M4250 switches enable encoders and decoders to be connected with zero configuration When more configuration is required, an AV web-based GUI is available at the switch IP address:8080 This interface has been specially designed for AV installers with specific AV-related controls made more accessible and with port-based profiles For audio, profiles for Dante, Q-SYS and AES67
- Port/Expansion Slot Details: 2 x 10 Gigabit Ethernet Expansion Slot
- Port/Expansion Slot Details: 2 x Gigabit Ethernet Network
- Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE++
- Modular: Yes
- Total Number of Network Ports: 10
Specifications:
| Materials & Construction | |
| Case Material | Metal |
| Color | black |
| Platform | Not Machine Specific |
| Product Details | |
| Eco Label Standard | Rohs; Reach |
| Energy Efficiency Compliance | Energy-Related Products Directive (Erp) |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs); Waste Electrical And Electronic Equipment Directive (Weee); Registration, Evaluation, Authorization And Restriction Of Chemicals (Reach) |
| Included Components | dvd |
| Interface Type | PoE |
| Maximum Power | 7.2E+2 Watts |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Model | M4250-10g2xf-Poe++ |
| Model Number | GSM4212UX-100NAS |
| Number of Layers | 1 |
| Number Of Ports | 10 |
| Power Plug Type | Type C |
| Quality Of Service (Qos) Management | Yes |
| Shared Sfp Slot | No |
| Switch Type | Managed |
| Total Number Of Expansion Slots | 2.0 |
| Warranty | Limited Lifetime |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 21 inches |

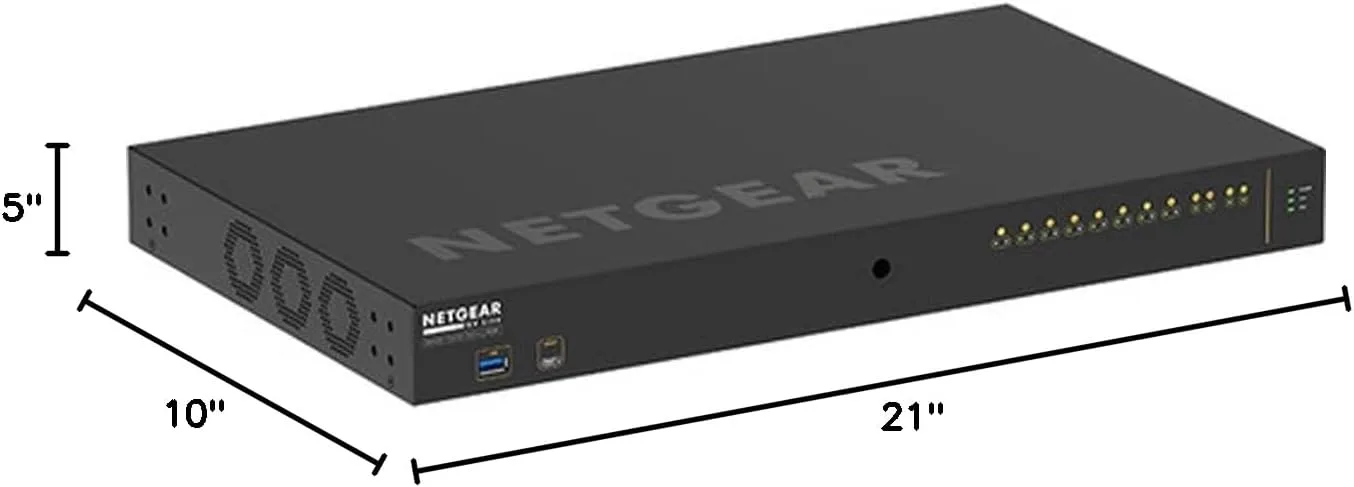

| Product Dimensions | 21"L x 10"W x 5"H |
| Product Weight | 11.92 pounds |
| Weight | 11.81 pounds |
| Width | 10 inches |
| Technical Specifications | |
| Interface Type | PoE |
| Maximum Power | 7.2E+2 Watts |
| Number of Layers | 1 |
| Total Number Of Expansion Slots | 2.0 |
