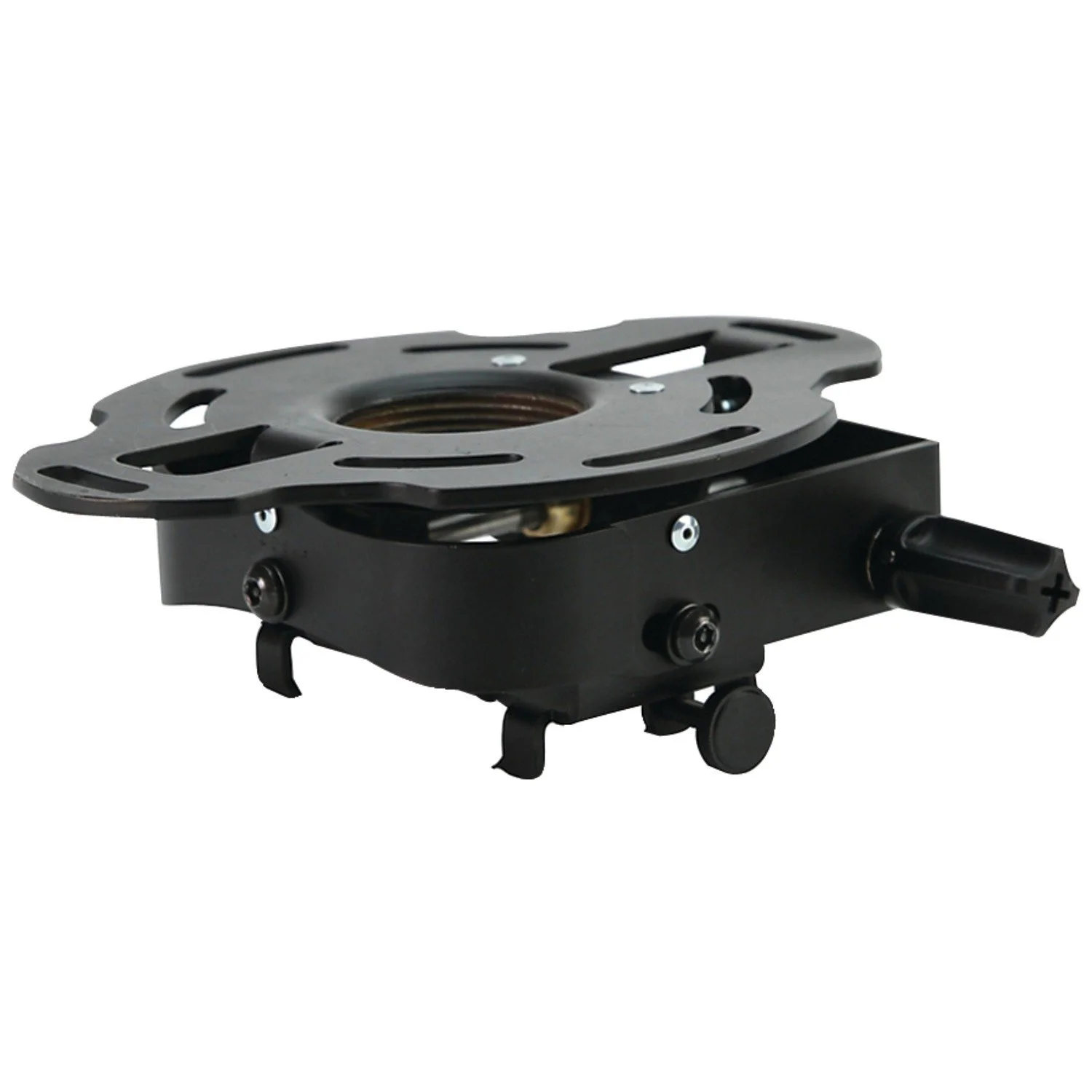

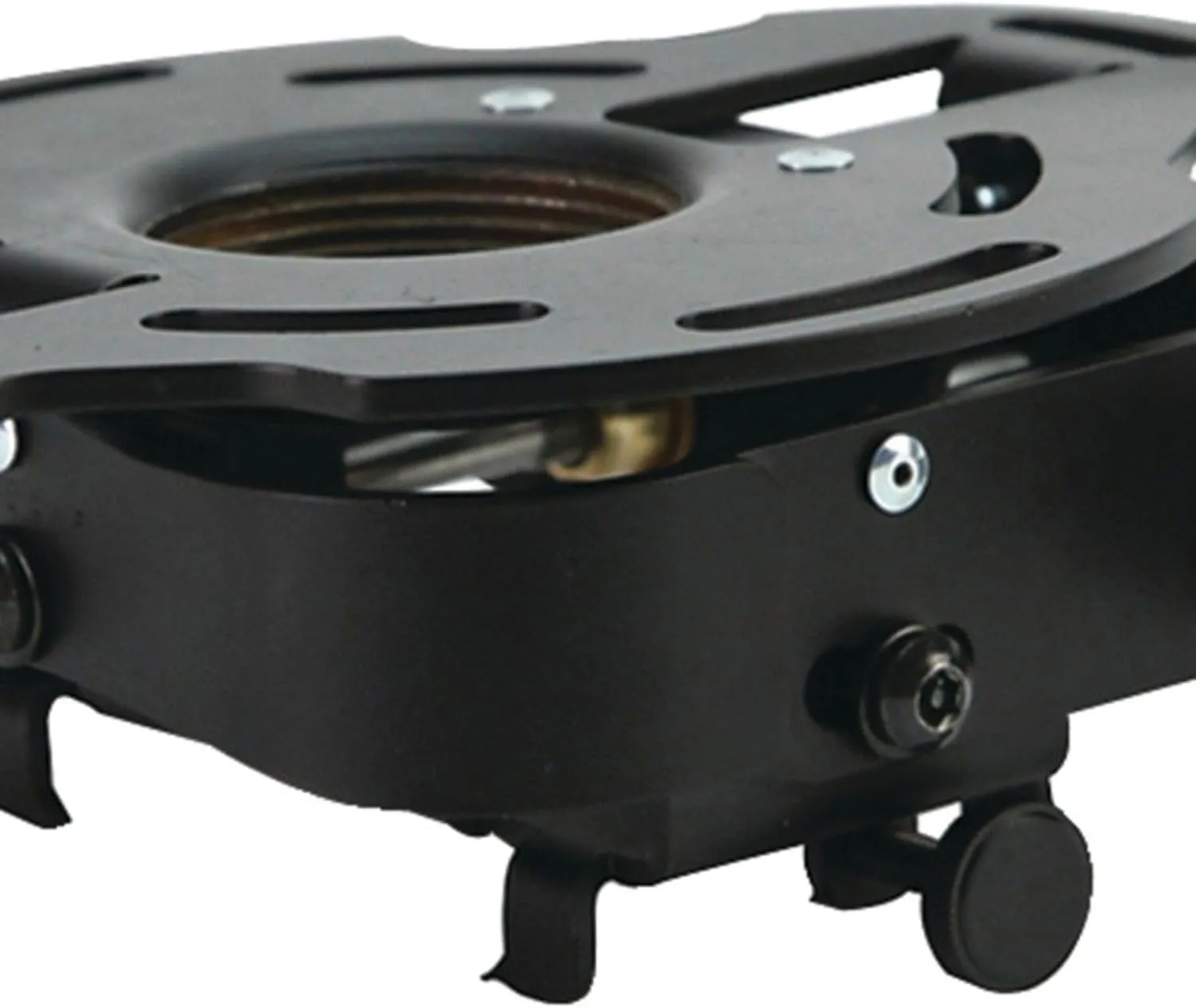

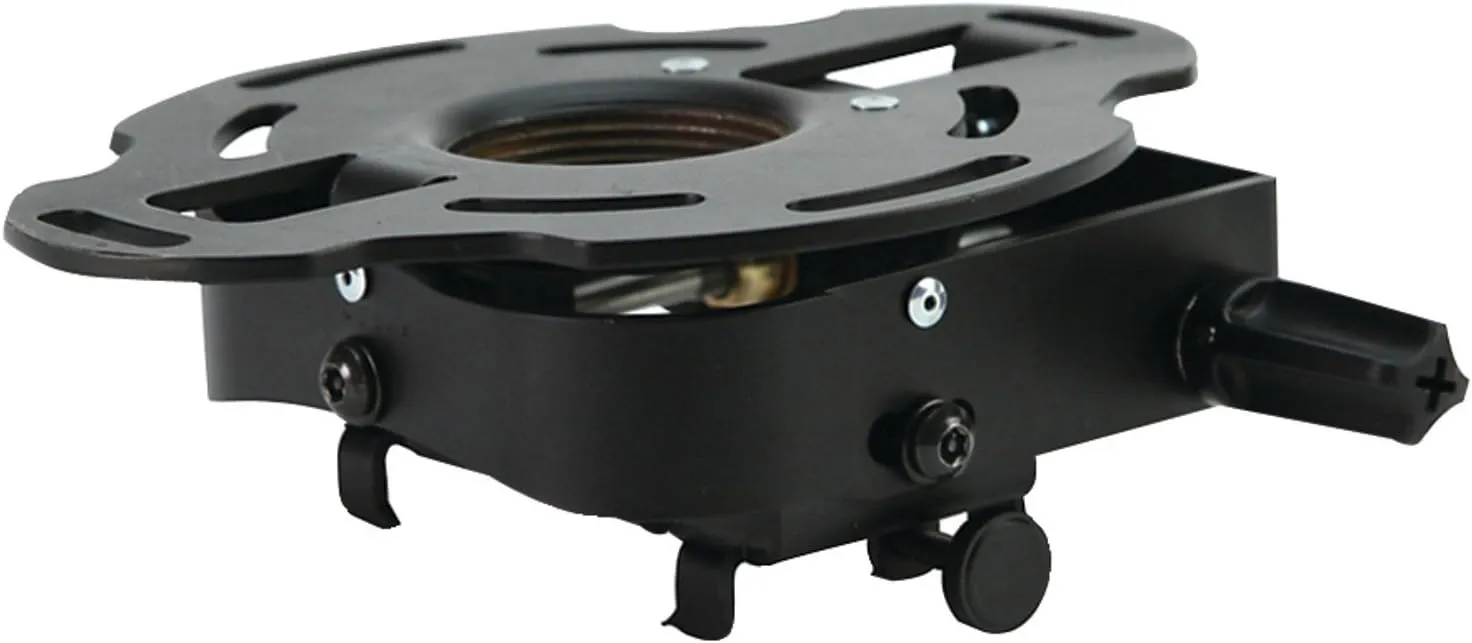

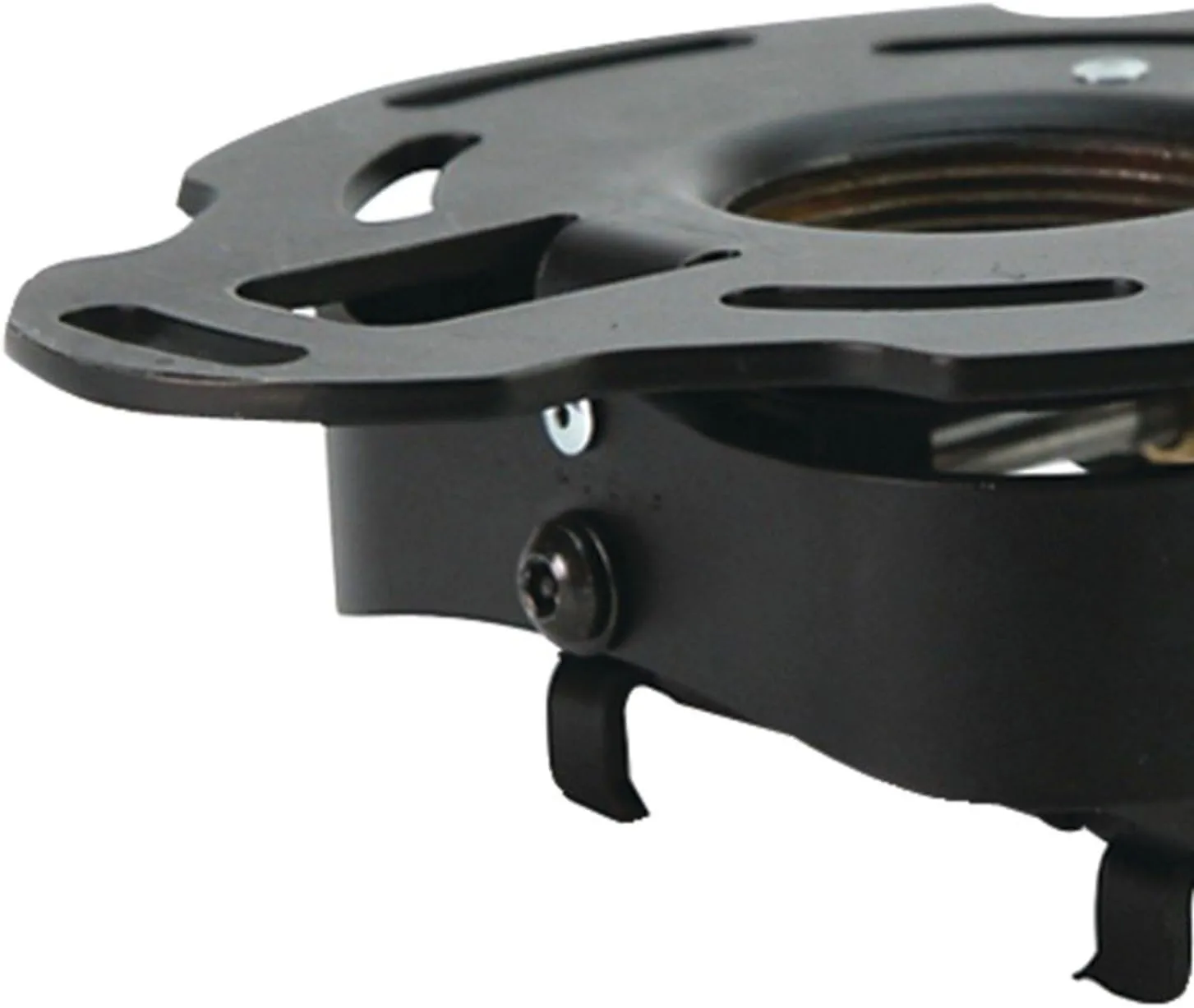

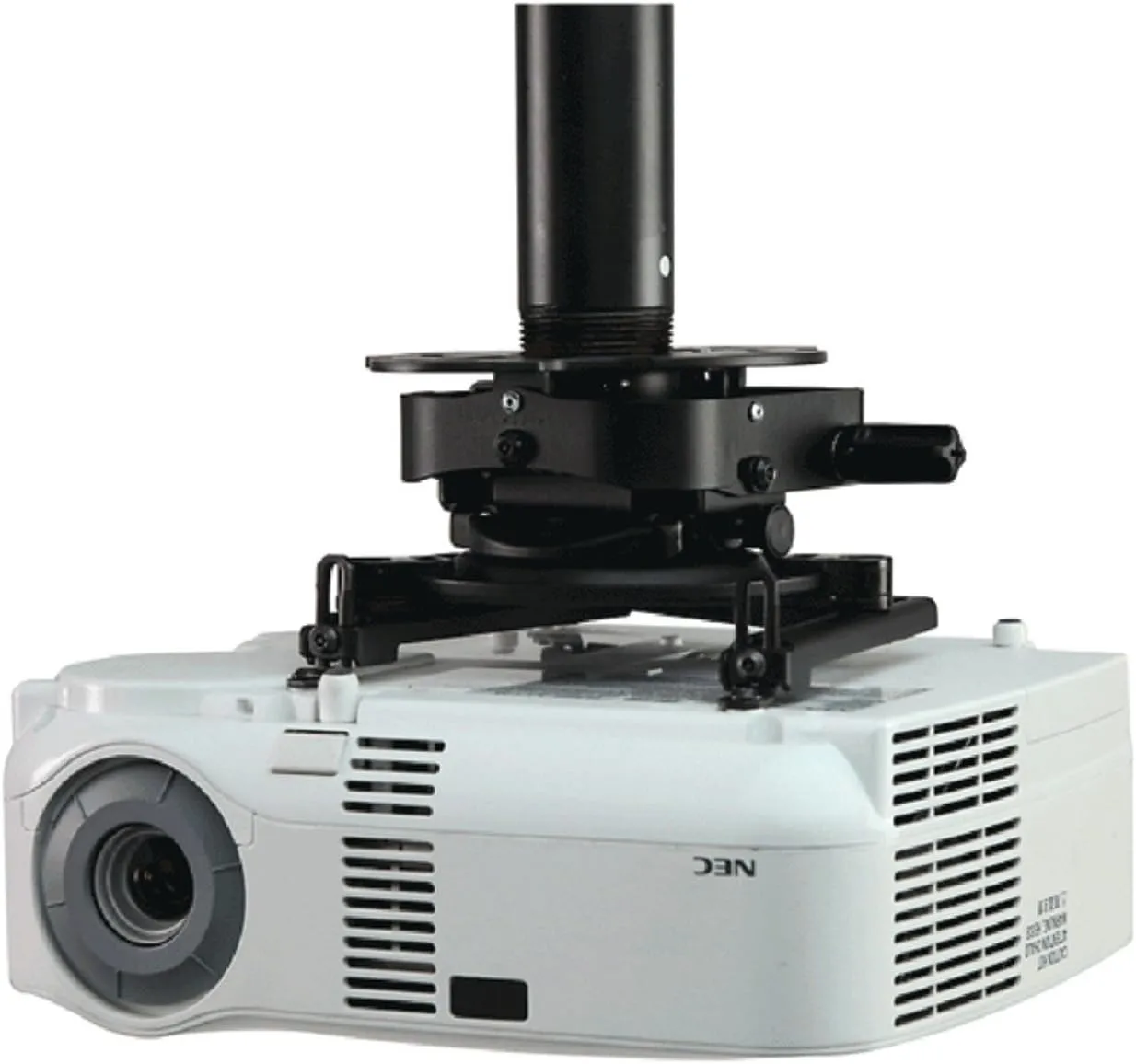

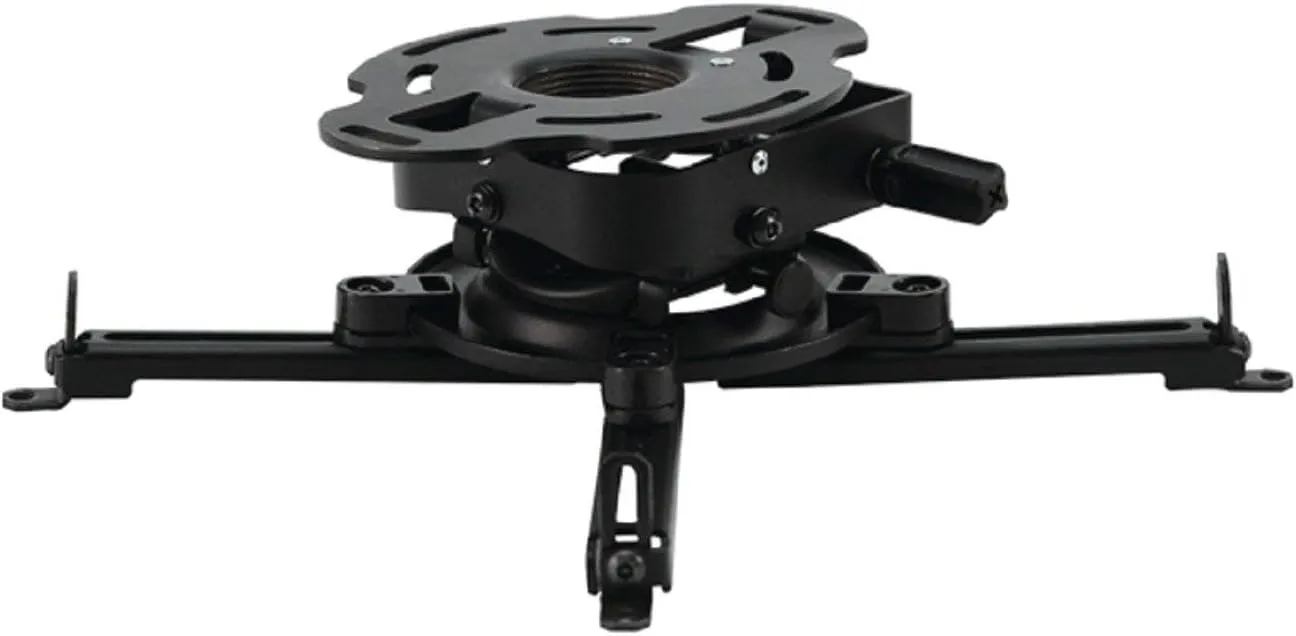

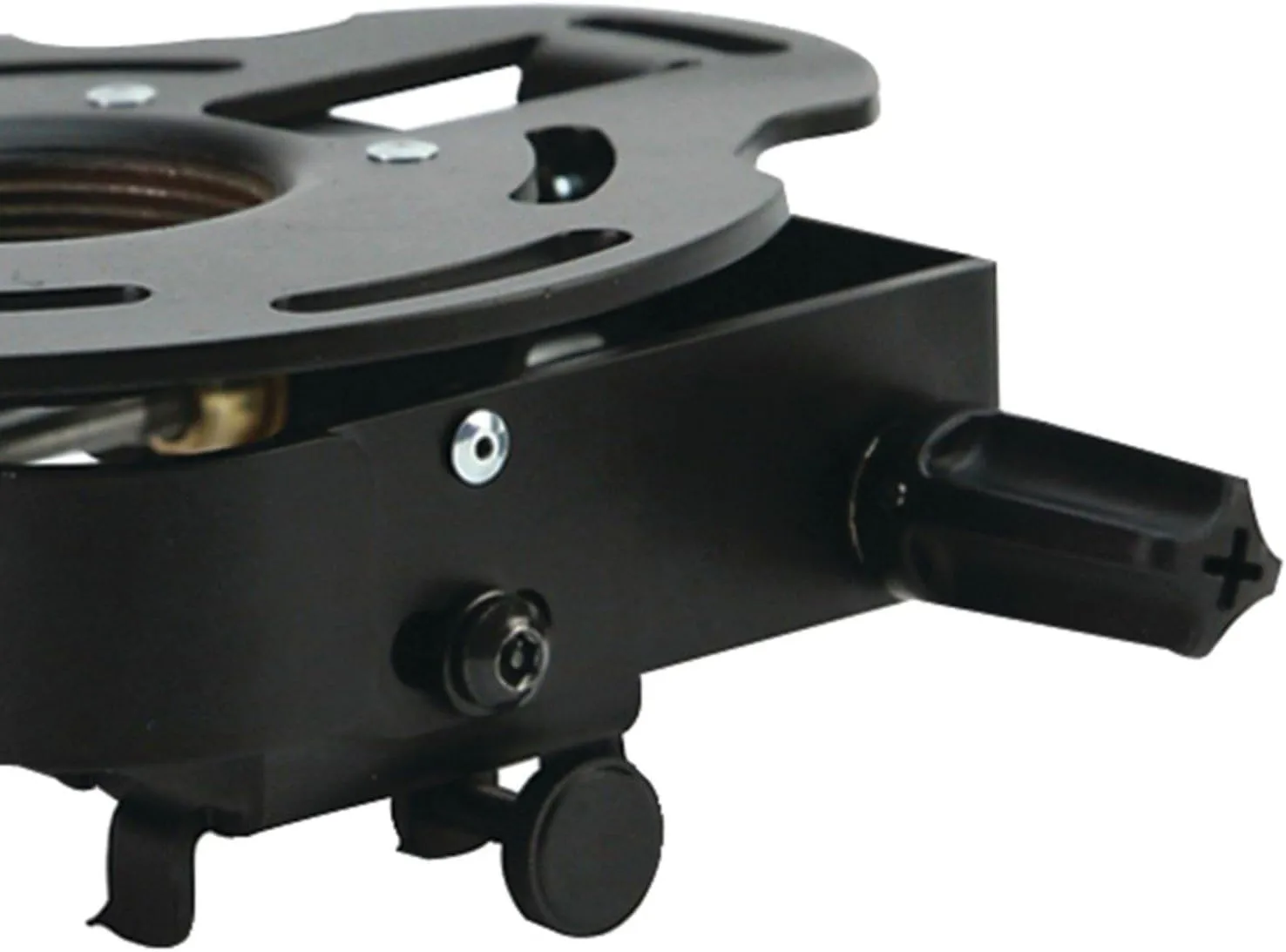

Peerless PRGS-UNV (PRGS-UNV) universal projector mount designed for projectors up to 50 lb (22 kg). The open-frame assembly provides easy cable routing through the mount and the low-profile design allows the projector to sit flush with the ceiling. Two adjustment knobs control tilt and roll image alignment; pitch range +15°/-20°, roll ±5°, and swivel 360° during installation. The Spider universal adaptor plate extends up to 17.63 in (448 mm) to fit most projector models. Pre-installed security screws offer tilt and roll locking to prevent tampering, and a quick-release thumbscrew enables easy removal and servicing of the projector. Powder-coated black finish provides durability and RoHS environmental compliance. Motion type: Tilts; Mount profile: Low Profile; Mount surface: Ceiling; Mounting pattern: 448.0000448. Weight capacity: 48.5 lb. Assembly required.
| Materials & Construction | |
| Color | Black |
| Finishing | Powder Coated |
| Product Details | |
| Assembly Required | Yes |
| Durability | Tamper Resistant |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Finishing | Powder Coated |
| Maximum Swivel Angle | 360 |
| Maximum Tilt Angle | 5 |
| Minimum Adjustable Depth | 215.9 |
| Minimum Tilt Angle | -5 |
| Motion Type | Tilts |
| Mount Function | Tilt; Swivel; Cable Management |
| Mount Profile | Low Profile |
| Mount Surface | Ceiling |
| Mounting Pattern | 448.0000448 |
| Mounting Type | swivel, tilt |
| Special features | Adjustable |
| Style Name | PRGS-UNV |
| Sizing & Dimensions | |
| Height | 3.0 inches |
| Length | 14.2 inches |
| Product Dimensions | 14 x 7 x 3 inches |
| Product Weight | 4.9000 |
| Weight | 4.9 pounds |
| Width | 6.6 inches |
| Technical Specifications | |
| Maximum Swivel Angle | 360 |
| Maximum Tilt Angle | 5 |
| Minimum Adjustable Depth | 215.9 |
| Weight Capacity | 48.5 lb |
