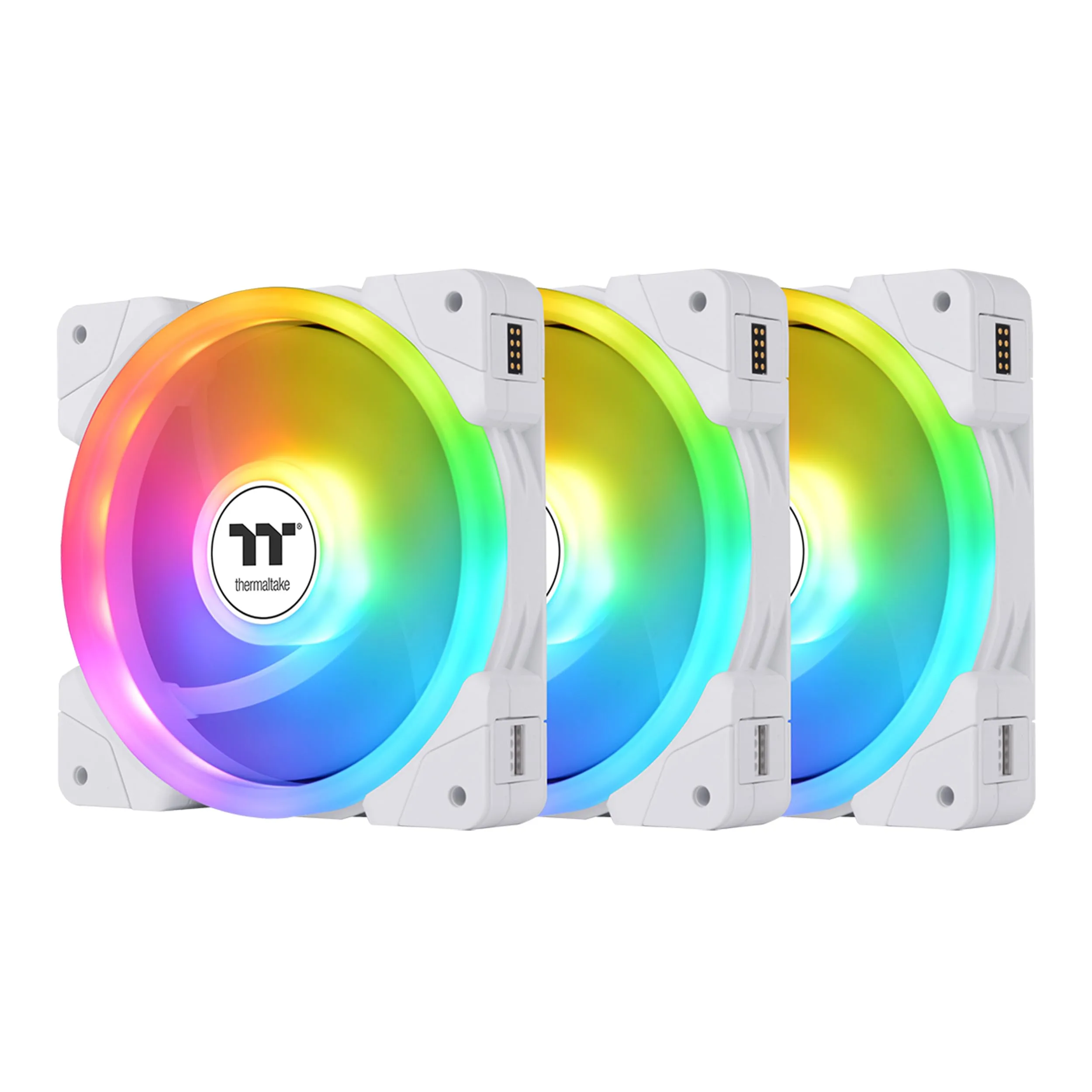

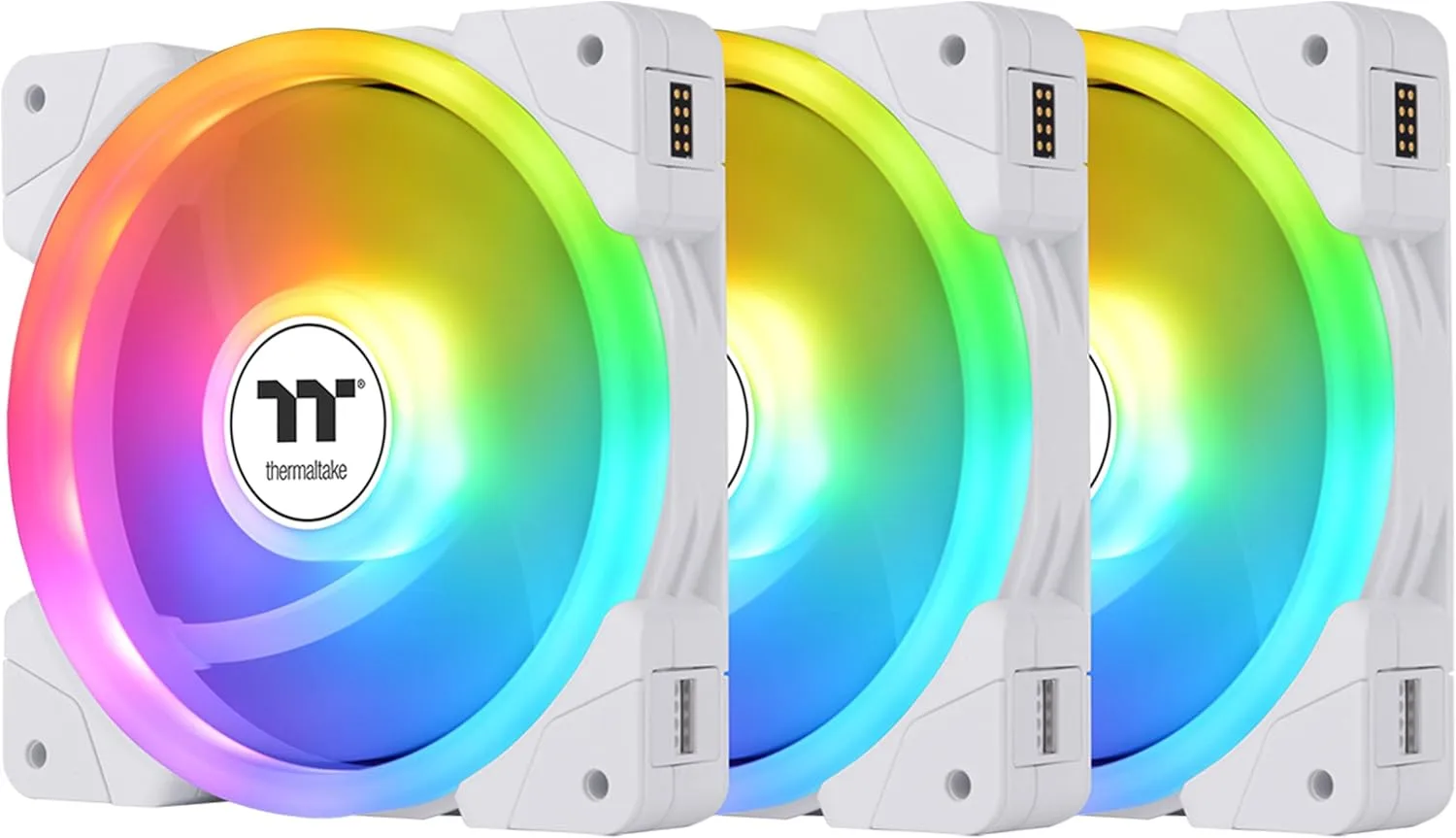

Thermaltake SWAFAN EX 12 ARGB 120mm 3-Pack White PWM Cooling Fans
Customize

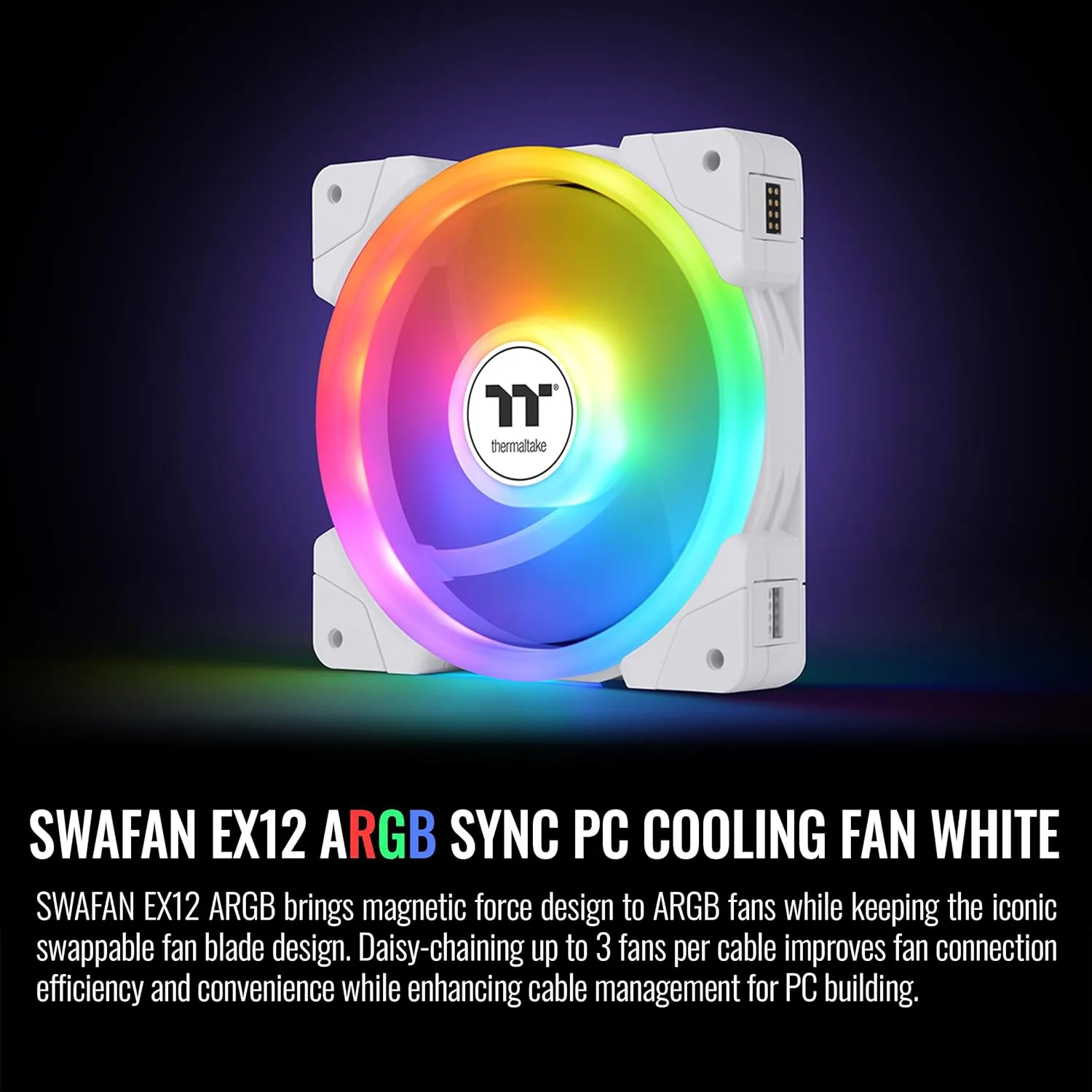

SWAFAN EX12 ARGB White brings magnetic force design to ARGB fans while keeping the iconic swappable fan blade design. Daisy-chaining up to 3 fans per cable improves fan connection efficiency and convenience while enhancing cable management for PC building. This design keeps the assembly process simple while reducing installation time, making this fan more user-friendly and bringing extra fun while building your PC. Besides, it opens the door for you to have control over its lighting effects by 5V motherboard-controlled software. •P/N: CL-F169-PL12SW-A •DIMENSION: 120 x 120 x 25 mm •INTERFACE: 2510-4 PIN PWM, 5V ARGB header-3PIN •FAN STARTED VALTAGE: 9.0 V •FAN RATED VOLTAGE: 12 V & 5V •RATED CURRENT: 12 V - 0.27 A , 5 V – 0.72 A (one fan) •POWER INPUT: 12 V – 3.24 W , 5 V – 3.6 W (one fan) •FAN SPEED: PWM 500 ~ 2000 R.P.M •MAX AIR PRESSURE: Standard Fan Blade : 2.39 mm-H2O (one fan) ; Reverse Fan Blade : 2.02 mm-H2O (one fan) •MAX AIR FLOW: Standard Fan Blade : 57.11 CFM (one fan) ; Reverse Fan Blade : 56.26 CFM (one fan) •NOISE: Standard Fan Blade : 30.6 dB-A (one fan) ; Reverse Fan Blade : 32.5 dB-A (one fan) •BEARING TYPE: Hydraulic Bearing •LIFE EXPECTATION: 40,000 hrs,25℃ •OTHER: Fan Frames x 3 ; Standard Fan Blade x 3 (Pre-installed) ; Reverse Fan Blade x 3 ; Cable x 3
- ARGB lighinting effects controlled by Motherboard Sync software
- Includes: 3 120mm PWM Fans, 3 Reversable Blades, 3 Mag-cables and accessories
- Supports up to 2000 RPM (Standard|Reverse) with up to 57 CFM for airflow
- Connect multiple fans with only one cable

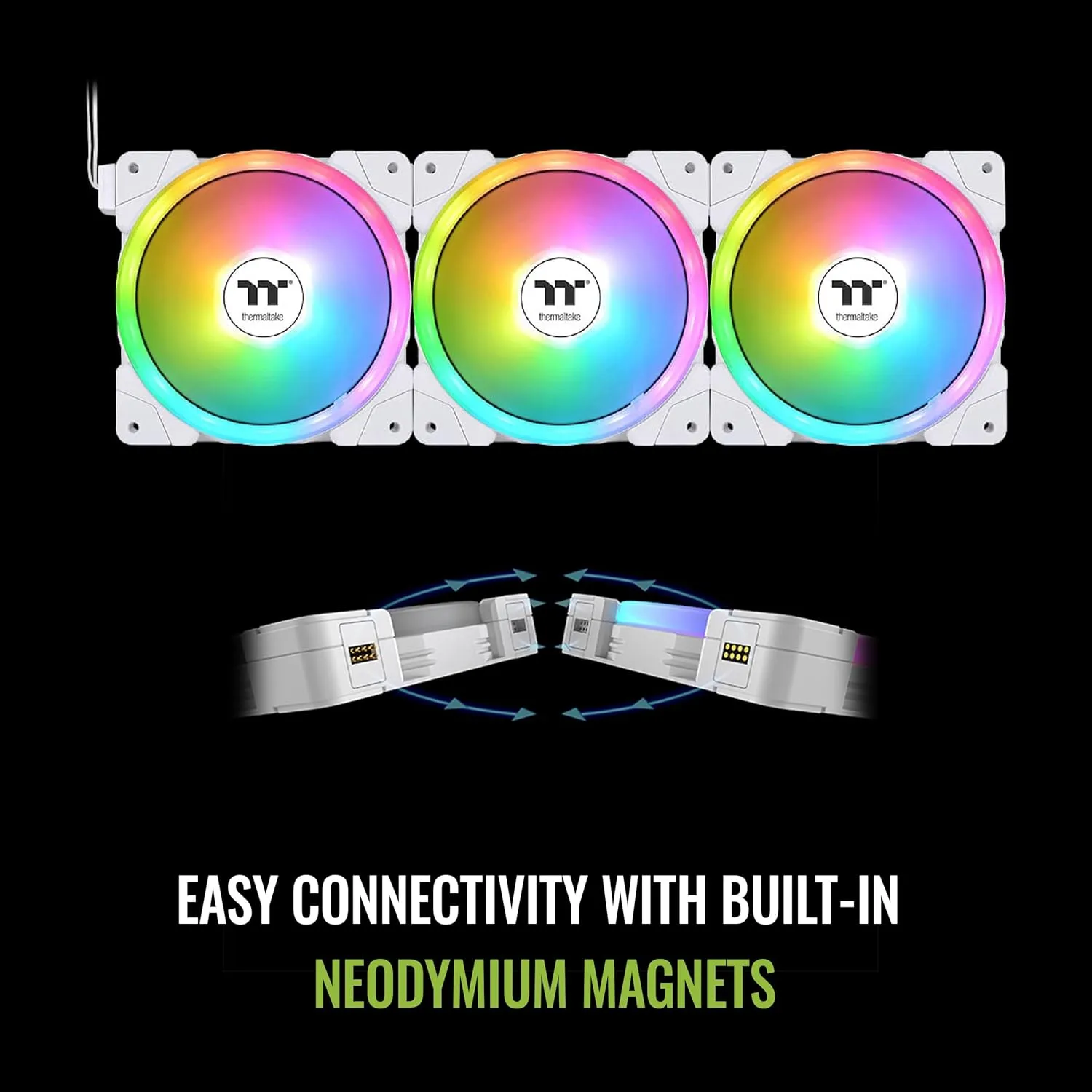

- Swappable Fan Blade Design and Neodymium Magnetic Connection
Specifications:
| Materials & Construction | |
| Material | neodymium |
| Product Details | |
| Compatible Devices | Desktop |
| Cooling Method | Fan |
| Item model number | CL-F169-PL12SW-A |
| Number of Items | 1 |
| Power Connector Type | 4-Pin |
| UPC | 841163089385 |
| Voltage | 12 Volts |
| Wattage | 3.6 watts |
| Sizing & Dimensions | |
| Height | 4.72 inches |
| Length | 4.72 inches |
| Product Dimensions | 4.72"L x 0.98"W x 4.72"H |
| Weight | 2.2 pounds |
| Width | 0.98 inches |
| Technical Specifications | |
| Air Flow Capacity | 57 Cubic Feet Per Minute |
| Maximum Rotational Speed | 2000 RPM |
| Noise Level | 32.5 Decibels |
