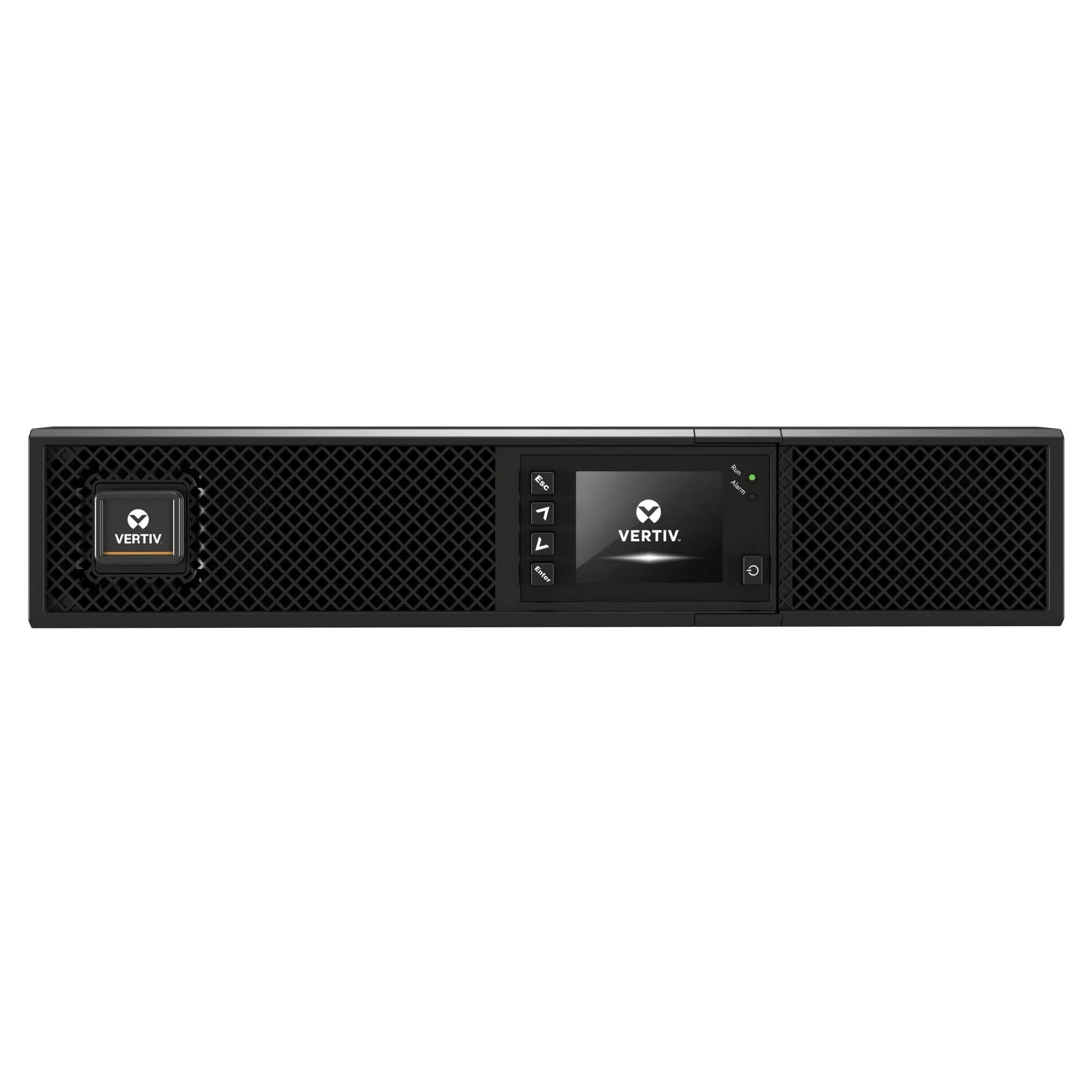

Vertiv Liebert GXT5 UPS 2000VA/1800W 120V, 2U Rack/Tower, Energy Star
Customize
The Vertiv liebert GXT5 UPS, with a capacity of 2000VA/1800W, is a 2U compact and efficient UPS solution for ensuring the health and availability of it infrastructure. With online, double conversion technology, the Vertiv liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is energy Star 2.0 certified and offers leading normal mode power efficiency and eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.
- It is 2019 energy Star 2.0 certified and has higher operating efficiency in standard and eco-mode.

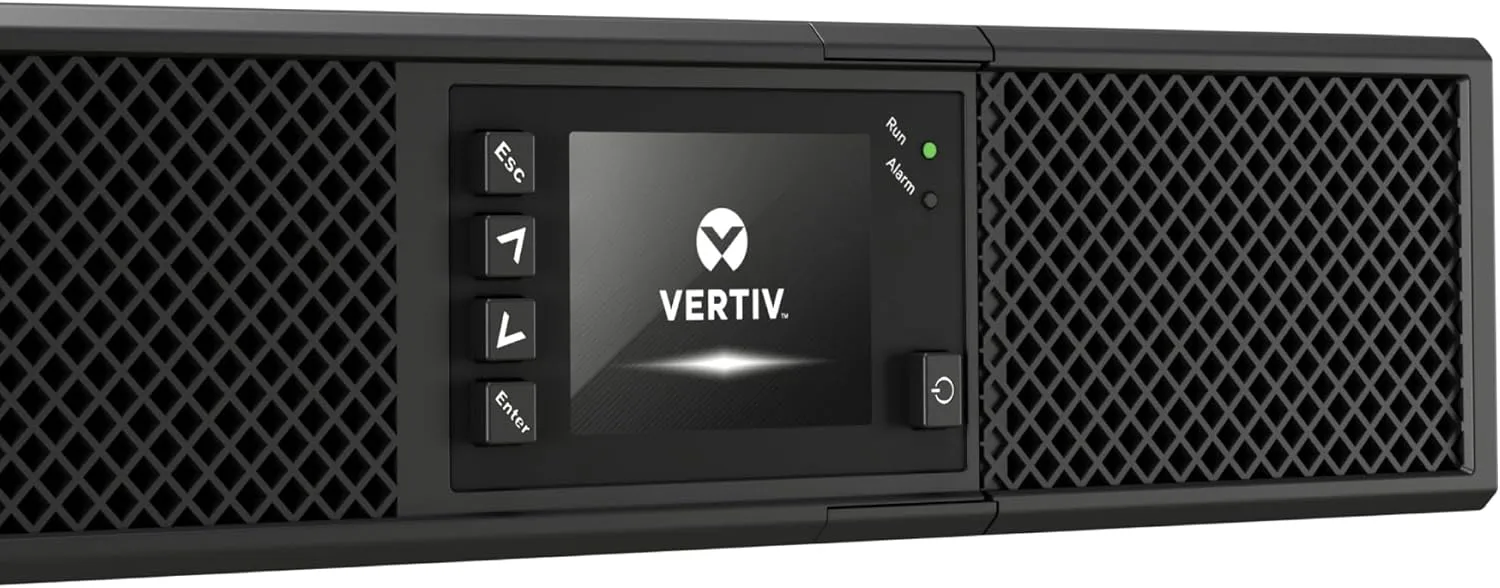

- Its user-friendly interface includes color graphic display with gravity sensing feature.
- Four individual programmable output receptacle for device control and management for optimum battery usage.
- Highest power factor available on standard input connections.
- UPDATED FIRMWARE: New firmware now available to reduce fan speed and noise issues
Specifications:
| Materials & Construction | |
| Battery Cell Composition | Sealed Lead Acid |
| Color | Black |
| Material | Metal |
| Product Details | |
| Backup/Run Time With External Battery Cabinet (Full Load) | 1020 |
| Backup/Run Time With External Battery Cabinet (Half Load) | 2520 |
| Battery Run Time | 3 Min |
| Cable Included | Yes |
| Charge Time (Approx) | 3 hr |
| Cord Length | 10 ft |
| Eco Label Standard | Energy Star |
| Eco-Conscious | Energy Efficient; Helps Save Energy |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs); Registration, Evaluation, Authorization And Restriction Of Chemicals (Reach); Waste Electrical And Electronic Equipment Directive (Weee); Restriction Of Hazardous Substances (Rohs) 2 |
| Environmental Sensors | Leak Detection Sensor; Temperature Sensor; Humidity Sensor |
| Hot Pluggable | Yes |
| Load Capacity (Watt) | 1800 |
| Number Of External Battery Cabinets | 1 |
| Output Current | 16.7 |
| Power Capacity | 2000 va |
| Rack Mountable | Yes |
| Ul Listed | Yes |
| Ups Battery Type | Lead-Acid |
| Ups Type | Online |
| User Selectable Output | <p><b>typical 120v User Selectable Output: </B>110/115/120vac (User-Configurable); ±3%</P> |
| Utility (Ac) Mode Overload | <ul> <li>>200% For 250ms</Li> <li>150- 200% For 2 Seconds</Li> <li>125- 150% For 50 Seconds</Li> <li>105-125% For 60 Seconds</Li> </Ul> |
| Vertical Rack Space | 2u |
| Vga | No |
| Warranty | 3-Year Limited |
| Sizing & Dimensions | |
| Height | 3.3 inches |
| Length | 18.6 inches |
| Product Dimensions | 18.6 x 16.9 x 3.3 inches |
| Product Weight | 58.7 pounds |
| Weight | 61.16 pounds |
| Width | 16.9 inches |
| Technical Specifications | |
| Load Capacity (Va) | 2000 |
| Load Capacity (Watt) | 1800 |
| Voltage (Input) | 120 V |
| Voltage (Output) | 120 V |
