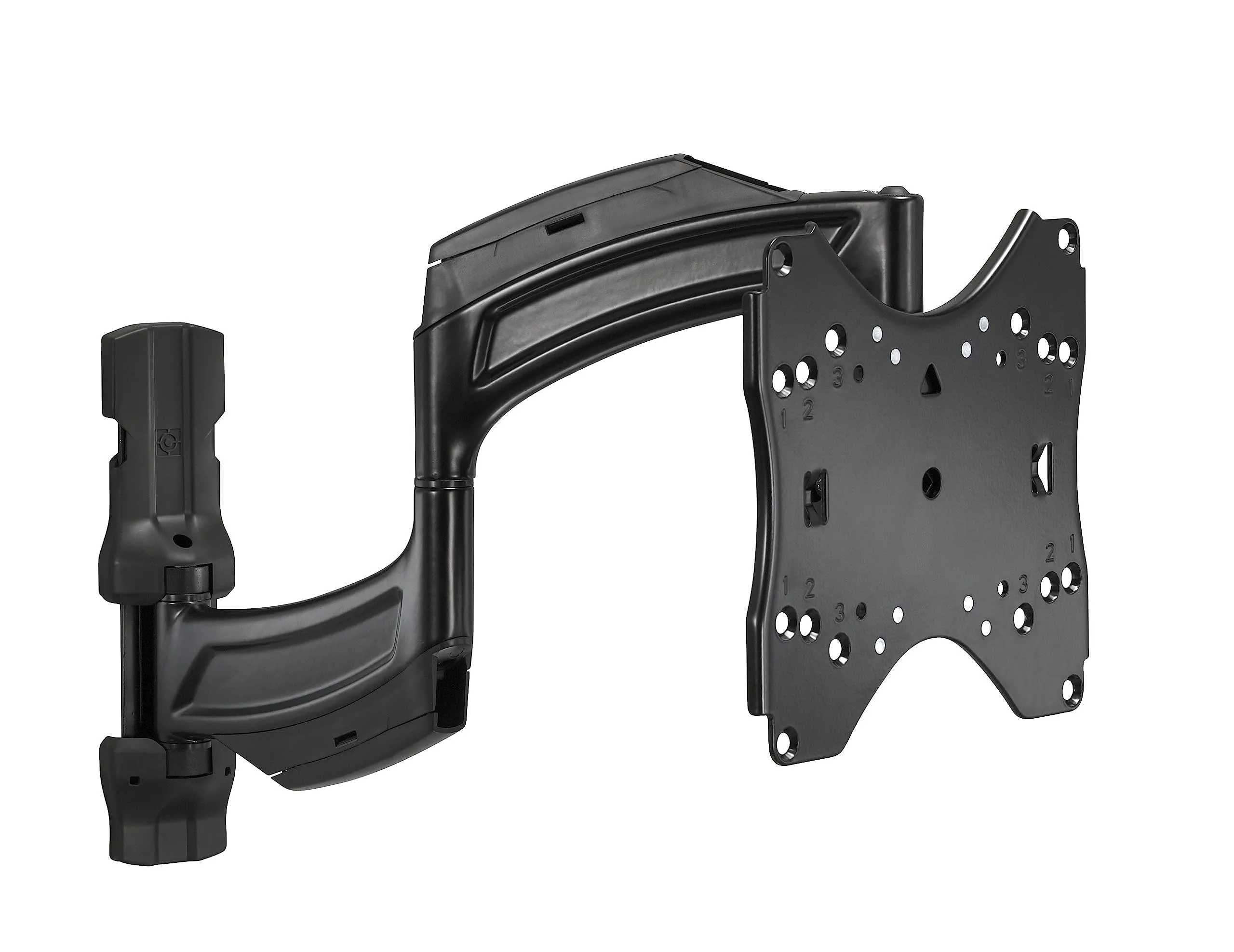

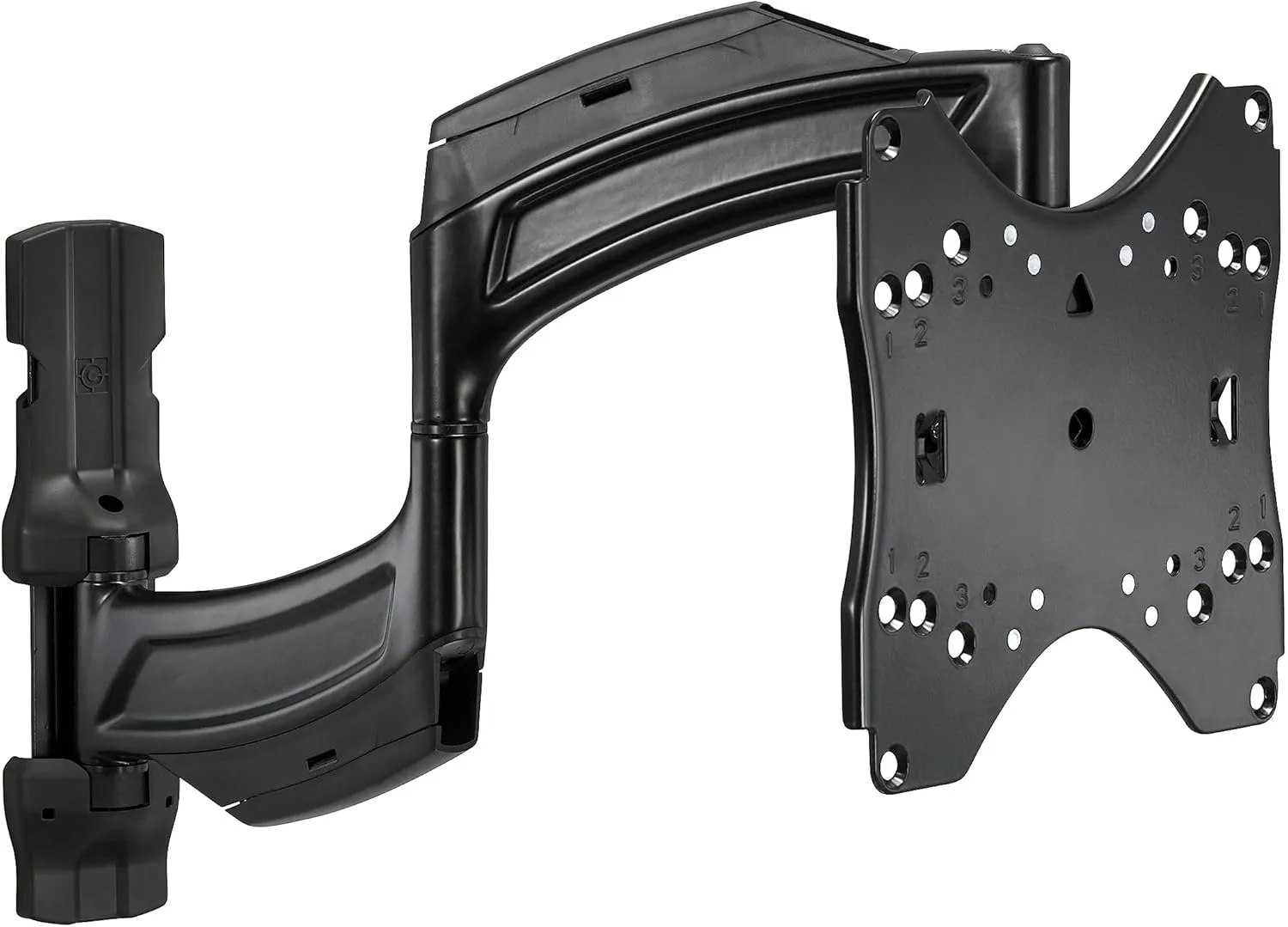

Chief TS218SU ThinInstall Dual Swing-Arm Wall Mount - 18 Inch Extension
Customize
The Chief TS218SU ThinInstall Dual Swing-Arm Wall Mount delivers a low-profile mounting solution with a full 18" extension for flexible viewing. Designed for 26"–47" flat-panel displays and supporting up to 75 lb, the TS218SU provides up to 12° of fingertip tilt, up to 180° pivot depending on screen width, and 1" of post-installation height adjustment for perfect alignment. The mount collapses to an ultra-low profile (1.5"/38 mm) and includes enclosed, tool-free cable covers for integrated cable management. Constructed of metal with a sleek black finish, it features a low-profile mount design, certified frustration-free packaging, and multiple VESA mounting patterns (100 x 100 to 400 x 400mm). Eco-conscious design includes recycled content (30% post-consumer). Backed by a 10-Year Limited warranty, the TS218SU supports easy installation and secure, adjustable display positioning for home or professional AV installations.
- Provides up to 1" height adjustment
- Provides up to 180 degree pivot adjustment
- Provides -12 to 0 degree tilt adjustment
- 100 x 100 to 400 x 400mm mount pattern
- Supports 26 to 47" displays up to 75 lb.
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Metal |
| Outer Material | Metal |
| Product Details | |
| Cord Management | Yes |
| Eco-Conscious | Recycled Content |
| Item model number | TS218SU |
| Motion Type | Tilts |
| Mount Profile | Low Profile |
| Mounting Pattern | 100.00001; 200.00001; 200.00002; 300.00002; 300.00003; 400.00002; 400.00004 |
| Post Consumer Recycled Content Percentage | 30 % |
| Product Color | Black |
| Style | Dual Swing Arm |
| Total Recycled Content Percentage | 30 % |
| Warranty | 10-Year Limited |
| Weight Capacity | 75 lb |
| Sizing & Dimensions | |
| Height | 20 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 14 x 20 inches |
| Product Weight | 12.5000 |
| Weight | 1.98 pounds |
| Width | 14 inches |
| Technical Specifications | |
| Compatible Devices | LCD, Plasma |
| Is Discontinued By Manufacturer | No |
| Maximum Tilt Angle | 12 Degrees |
| Mounting Type | pivot |
| Movement Type | Tilt |
| Special Features | Swing-Arm Wall Mount |
| Specification Met | certified frustration-free |
