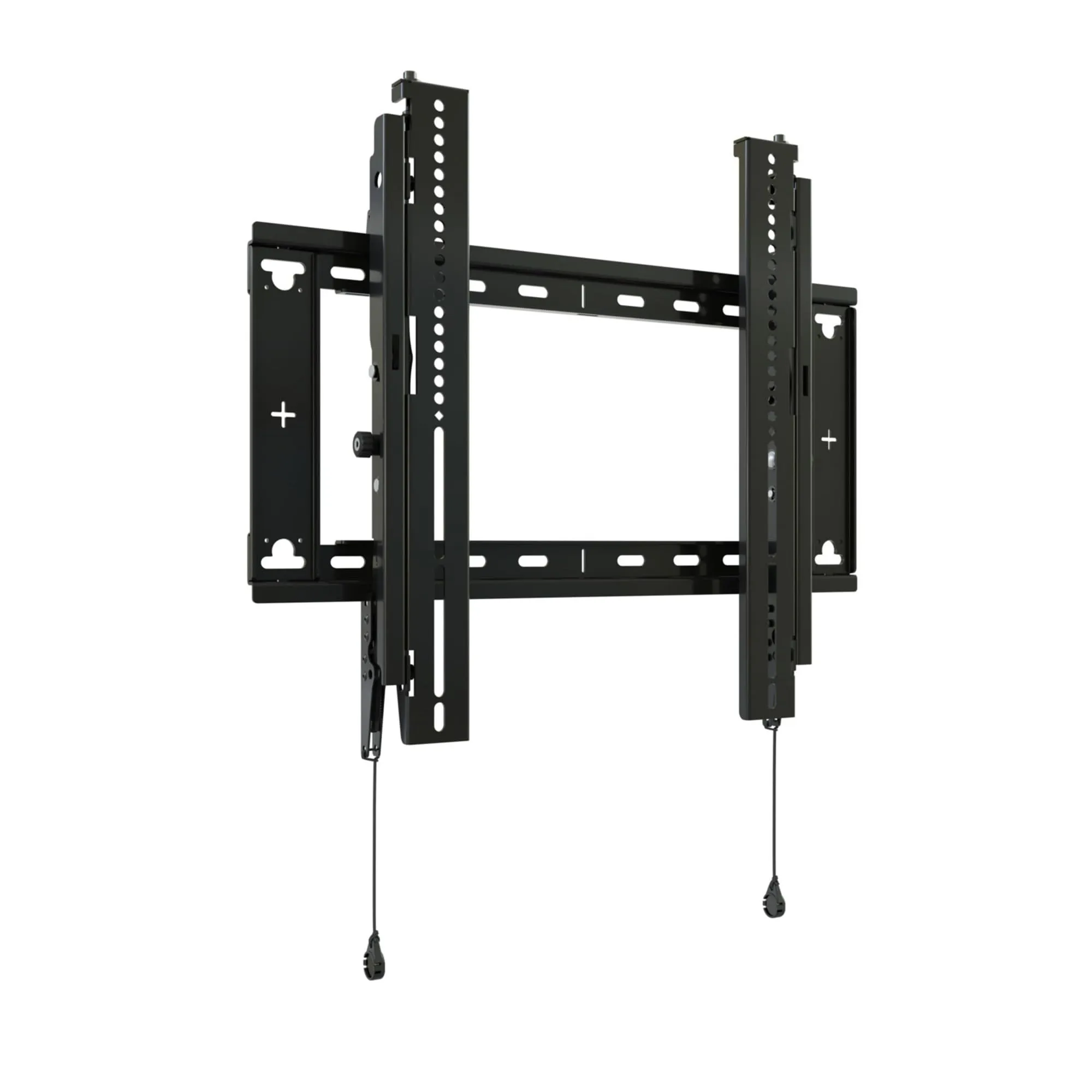

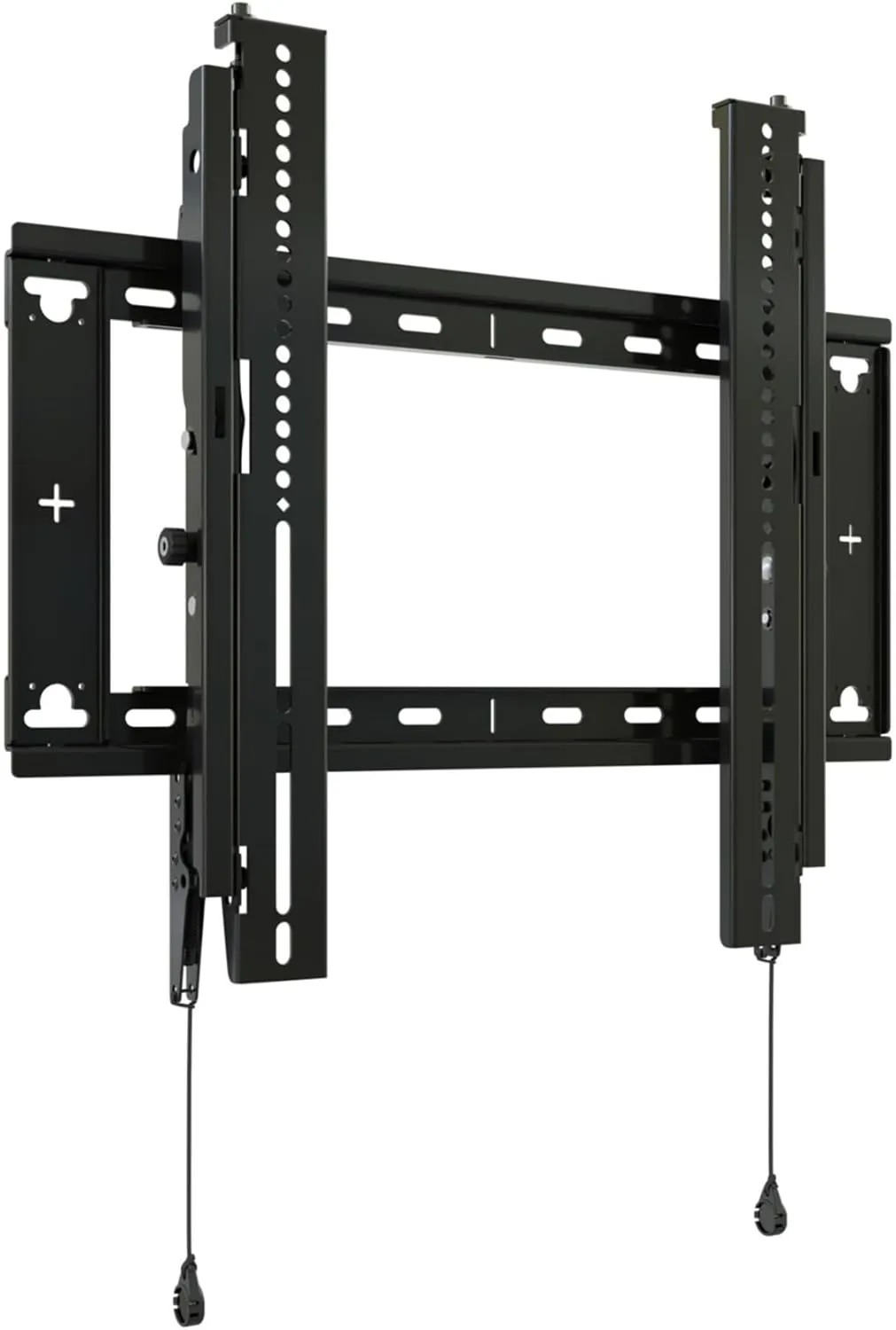

Chief Fit Medium Display Wall Mount - Tilt - for Displays 32-65"
Customize
The Fit series RMT3 is a medium tilt display wall mount for 32" to 65" typical display sizes and supports mounting patterns up to 508 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 125 lbs (56.7 kg), 2" (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals. Chief Fit Medium Tilt Wall Mount (RMT3) offers theft-deterrent security options, a kickstand for easy access to power and signal connections, magnetic quick-store release pullcords, lateral shift with toolless GlideLock for precise placement, and an open wall plate for flexible positioning around power and data wall boxes. Includes 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key. Finish: black. Fits displays 32-65" and supports mounting patterns up to 508 x 450 mm.
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 508 x 450 mm
- Re-designed rigid wall plate supports up to 125 lbs (56.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- Low-profile 2" (51 mm) depth facilitates ADA compliance for typical AV design requirements
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Compatible Devices | Television, Monitor |
| Finish | black |
| Included Components | 0.75" (19 mm) Post-Installation Leveling Screw, 10" (254 mm) Ball End Hex-Key, Medium Fit Tilt Display Wall Mount |
| Item Package Quantity | 1 |
| Maximum Tilt Angle | 12 Degrees |
| Mounting Type | Wall Mount |
| Movement Type | Tilt |
| Style | Tilt |
| Warranty Description | 10 year Manufacturer |
| Sizing & Dimensions | |
| Height | 4.1 inches |
| Length | 24.8 inches |
| Product Dimensions | 24.8 x 4.1 x 12.8 inches |
| Size | 19.2" x 22" x 2" |
| Weight | 14.35 pounds |
| Width | 12.8 inches |
| Technical Specifications | |
| Warranty | 10 year Manufacturer |
