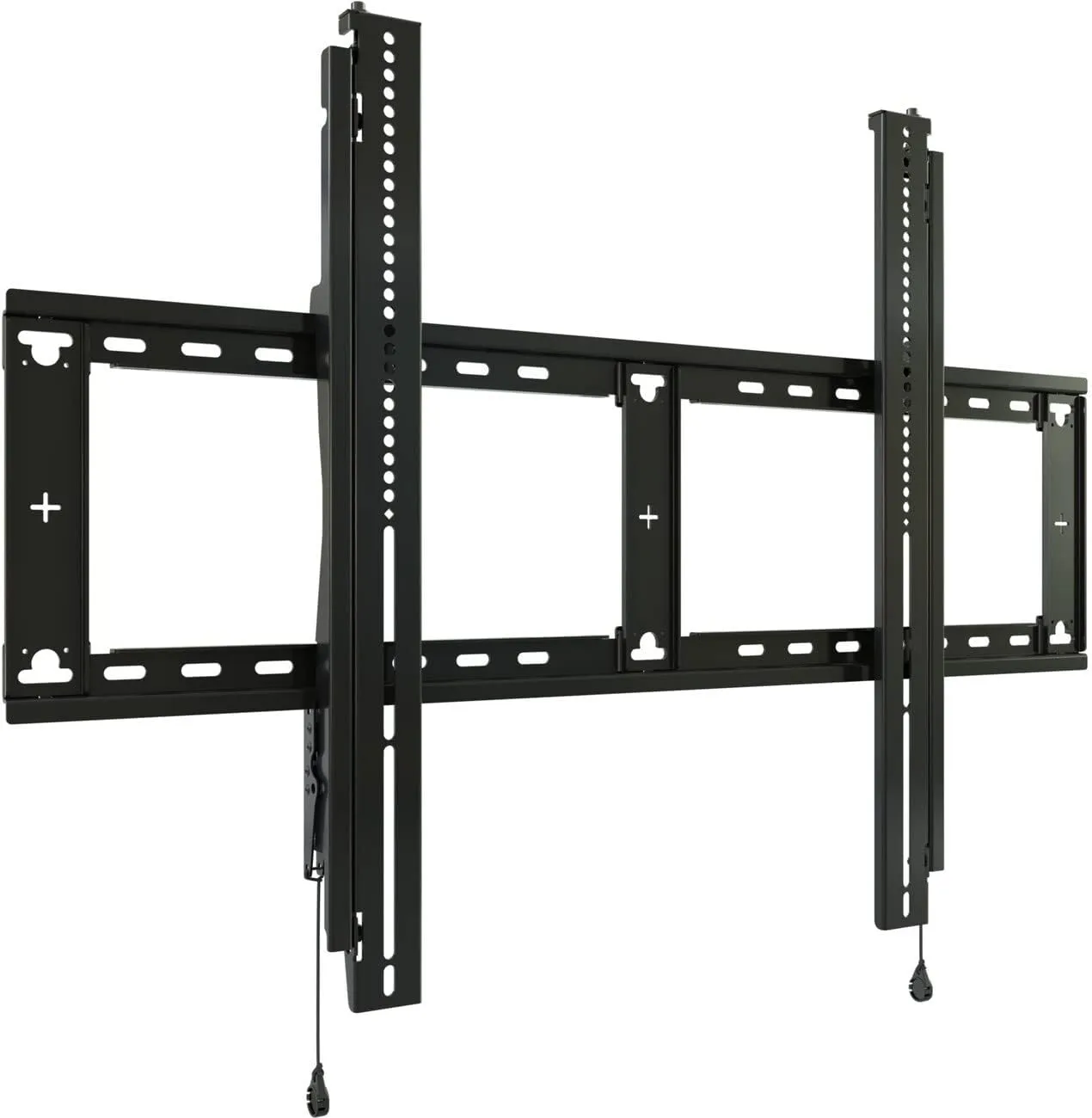

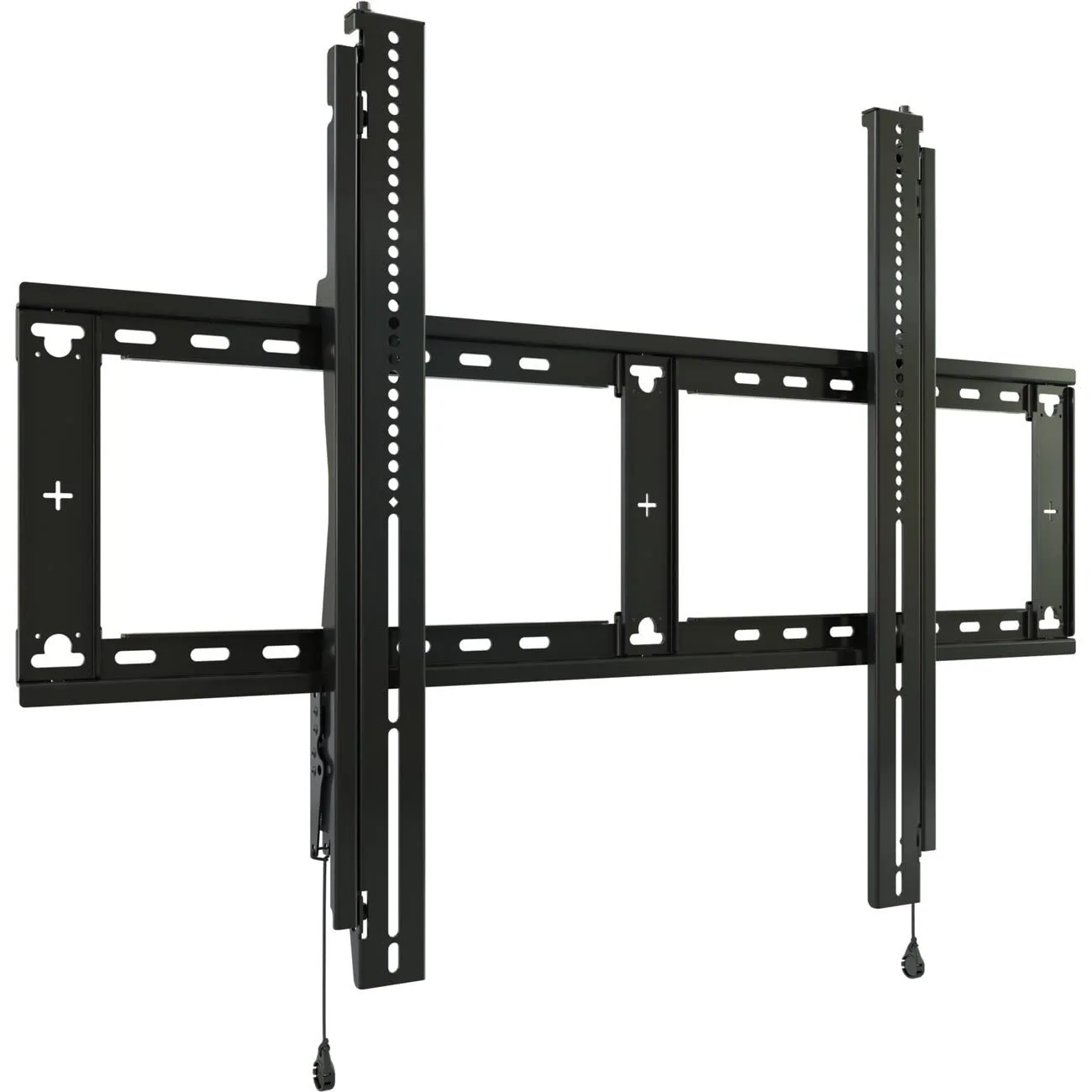

Chief RXF3 Extra-Large Fit Wall Mount, 27.1" x 38" x 1.5", Black
CHIEF RXF3 extra-large fixed wall mount for 49"–98" displays. Black metal construction, supports up to 250 lbs, low-profile 1.5" depth, supports mounting patterns up to 960 x 650 mm.
Non-returnable
$168.00 $210.00
Customize
UPC
841872176680 Available Quantity
7 GSA Item
No GSA Compliant
No Product Details
Chief Extra-Large Fit Fixed Wall Display Mount (RXF3). The Fit series RXF3 is an extra-large fixed display wall mount designed for large displays (49" to 98") and supports mounting patterns up to 960 x 650 mm. Constructed of durable metal in black finish, the mount provides a low-profile 1.5" depth for ADA-friendly installations, robust wall plate support up to 250 lbs (113.4 kg), and post-installation 0.75" (19 mm) leveling. Includes ball end hex-key and leveling screw; open wall plate allows flexible positioning around power and data boxes and additional mounting slots improve installation options.
- UL and TUV safety standards compliant
- Theft deterrent security option (not included)
- Kickstand for easy access to power and signal connections
- Easy access magnetic quick-store release pullcords
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Re-designed rigid wall plate support up to 250 lbs (113.4 kg) and additional mounting slots for improved installation experience
- Supports display mounting patterns up to 960 x 650 mm
- Open wall plate allows for flexible positioning around power and data wall boxes
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Low profile 1.5" (38 mm) depth facilitates ADA compliance for typical AV design requirements
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Metal |
| Product Details | |
| Batteries Included? | No |
| Batteries Required? | No |
| Included Components | Ball end Hex-Key, Extra-Large Fit Fixed Display Wall Mount, Leveling Screw |
| Item model number | RXF3 |
| Item Package Quantity | 1 |
| Mount Compatible Devices | Television, Monitor |
| Mounting Type | Wall Mount |
| Movement Type | Fixed |
| Part Number | RXF3 |
| UPC | 841872176680 |
| Warranty Description | Information Not Available |
| Sizing & Dimensions | |
| Height | 1.5 inches |
| Length | 38.8 inches |
| Product Dimensions | 1.5 x 27.1 x 38.8 inches |
| Size | 27.1" x 38" x 1.5" |
| Weight | 14.2 pounds |
| Width | 27.1 inches |
| Technical Specifications | |
| Supports Weight | Supports up to 250 lbs (113.4 kg) |
