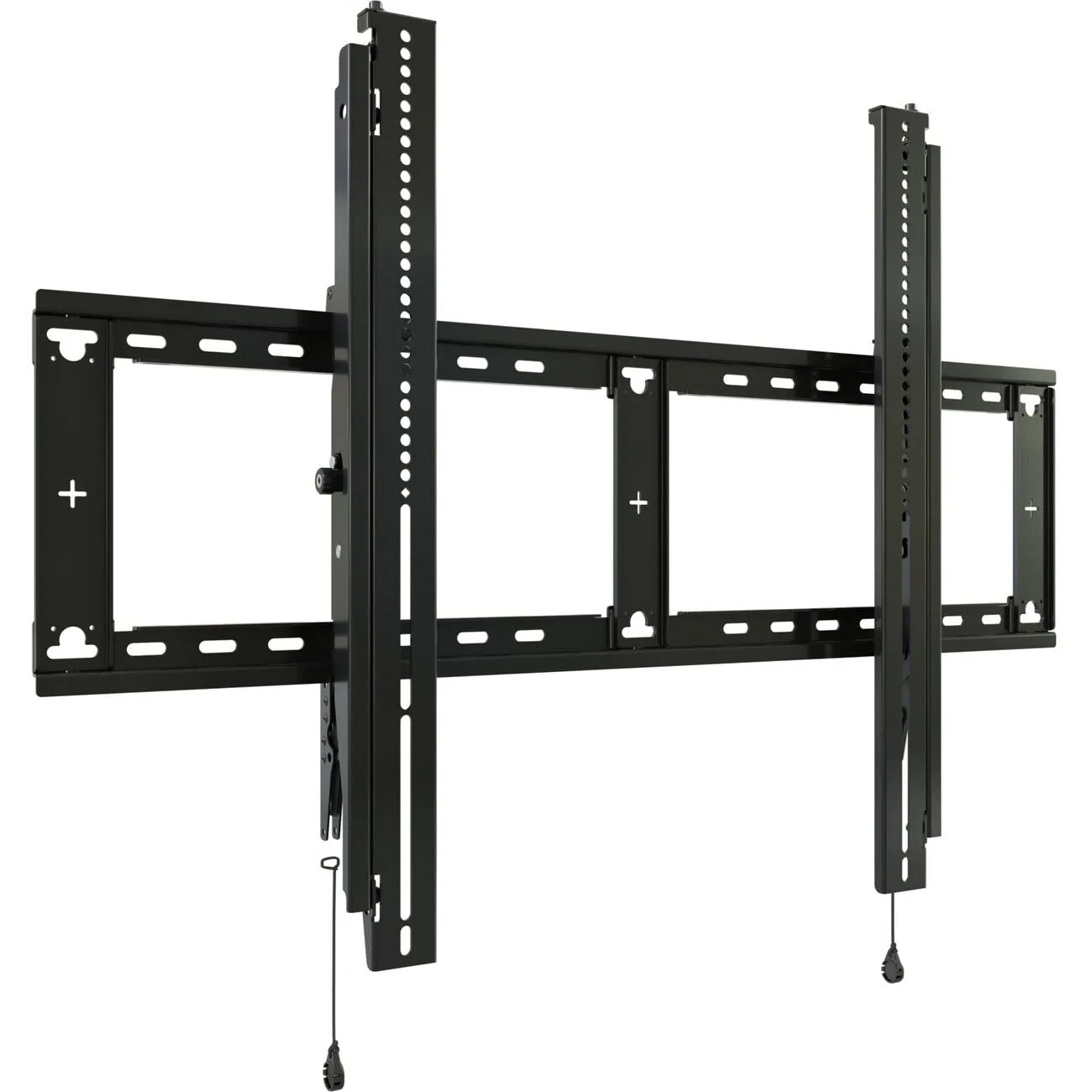

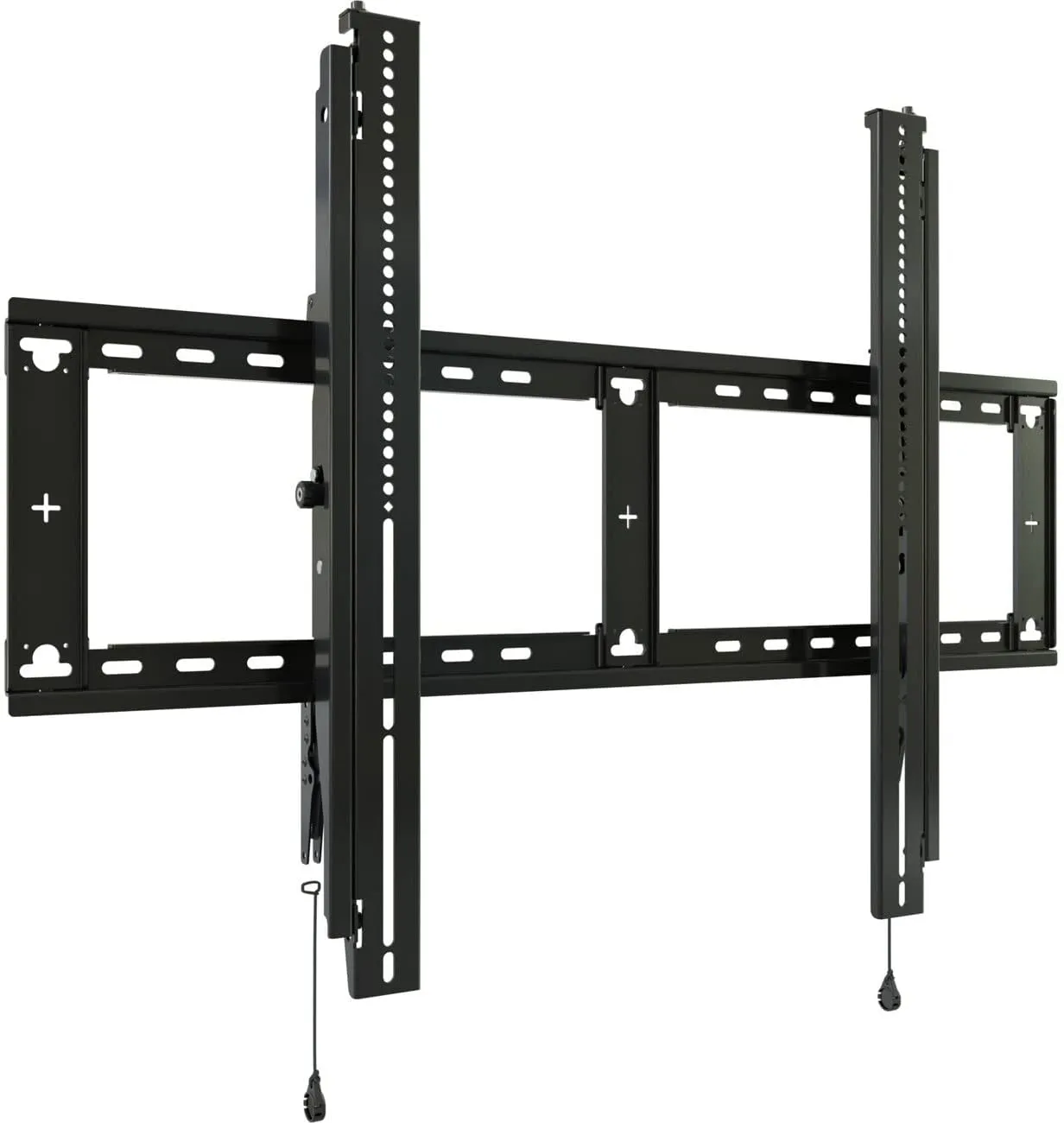

Chief RXT3 Extra-Large Fit Wall Mount, 27.1" x 38" x 2.5", Black
Customize
The Fit series RXT3 is an extra-large tilt display wall mount for 49" to 98" typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5" (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved. Features include theft deterrent security options (not included), a kickstand for easy access to power and signal connections, magnetic quick-store release pullcords, lateral shift with toolless GlideLock for secure positioning, a re-designed rigid wall plate with additional mounting slots, support for mounting patterns up to 915 x 650 mm, open wall plate for flexible positioning around power/data boxes, and included 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key. Warranty: 10 year Manufacturer.
- UL and TUV safety standards approved
- Theft deterrent security options (not included)
- Kickstand for easy access to power and signal connections
- Easy access magnetic quick-store release pullcords
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience
- Supports display mounting patterns up to 915 x 650 mm
- Open wall plate allows for flexible positioning around power and data wall boxes
- Display can be tilted up to 12° to set the optimal viewing angle
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
Specifications:
| Materials & Construction | |
| Color | Black |
| Finish | black |
| Material | Metal |
| Outer Material | Metal |
| Product Details | |
| Compatible Devices | Television, Monitor |
| Included Components | 0.75" (19 mm) Post-Installation Leveling Screw, 10" (254 mm) Ball, Extra-Large Fit™ Tilt Display Wall Mount |
| Item Package Quantity | 1 |
| Mounting Type | Wall Mount |
| Movement Type | Tilt |
| Sizing & Dimensions | |
| Height | 2.5 inches |
| Length | 38 inches |
| Product Dimensions | 2.5 x 27.1 x 38 inches |
| Size | 27.1" x 38" x 2.5" |
| Weight | 16.6 pounds |
| Width | 27.1 inches |
| Technical Specifications | |
| Maximum Tilt Angle | 12 Degrees |
| Warranty | 10 year Manufacturer |
