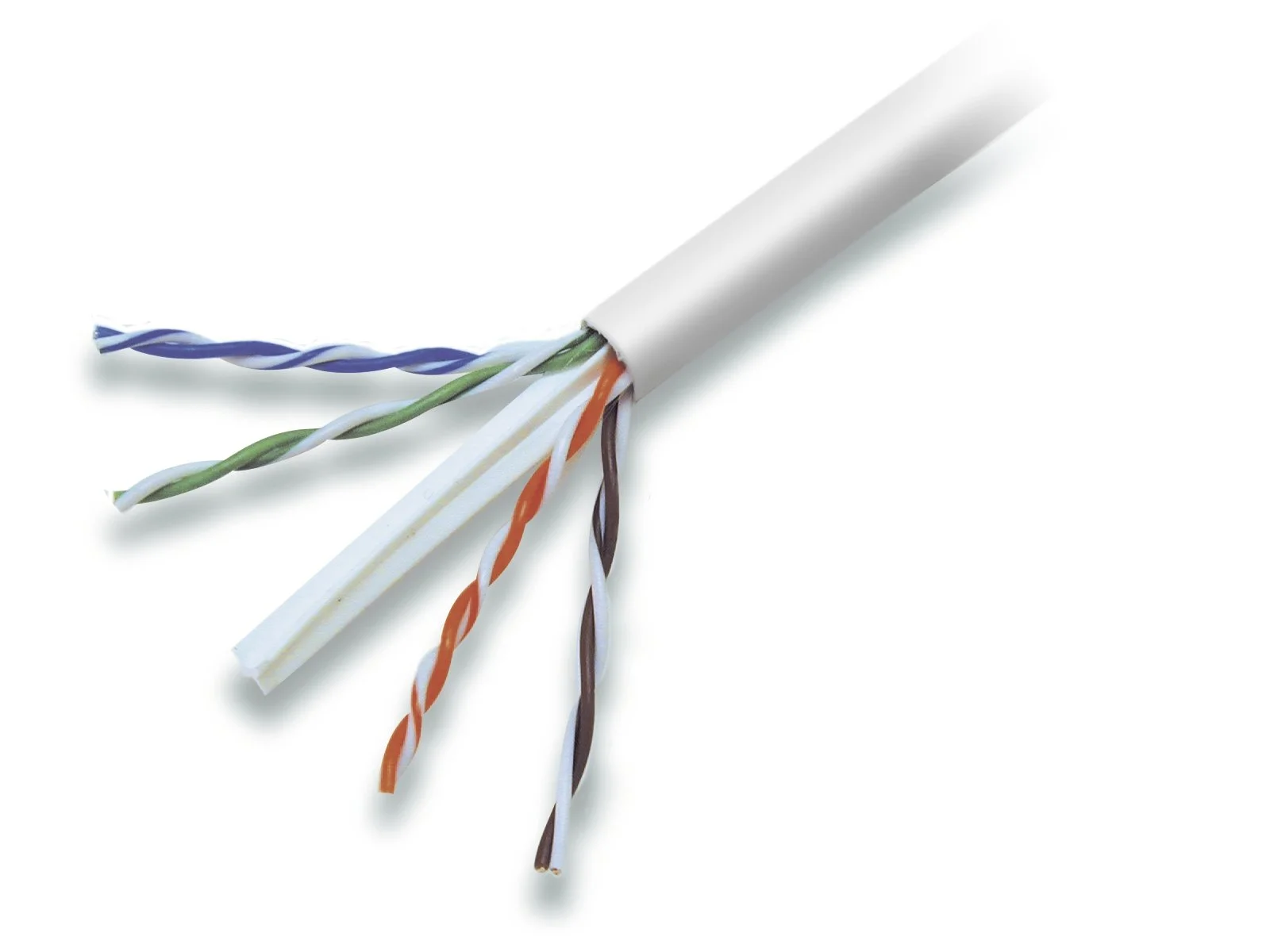

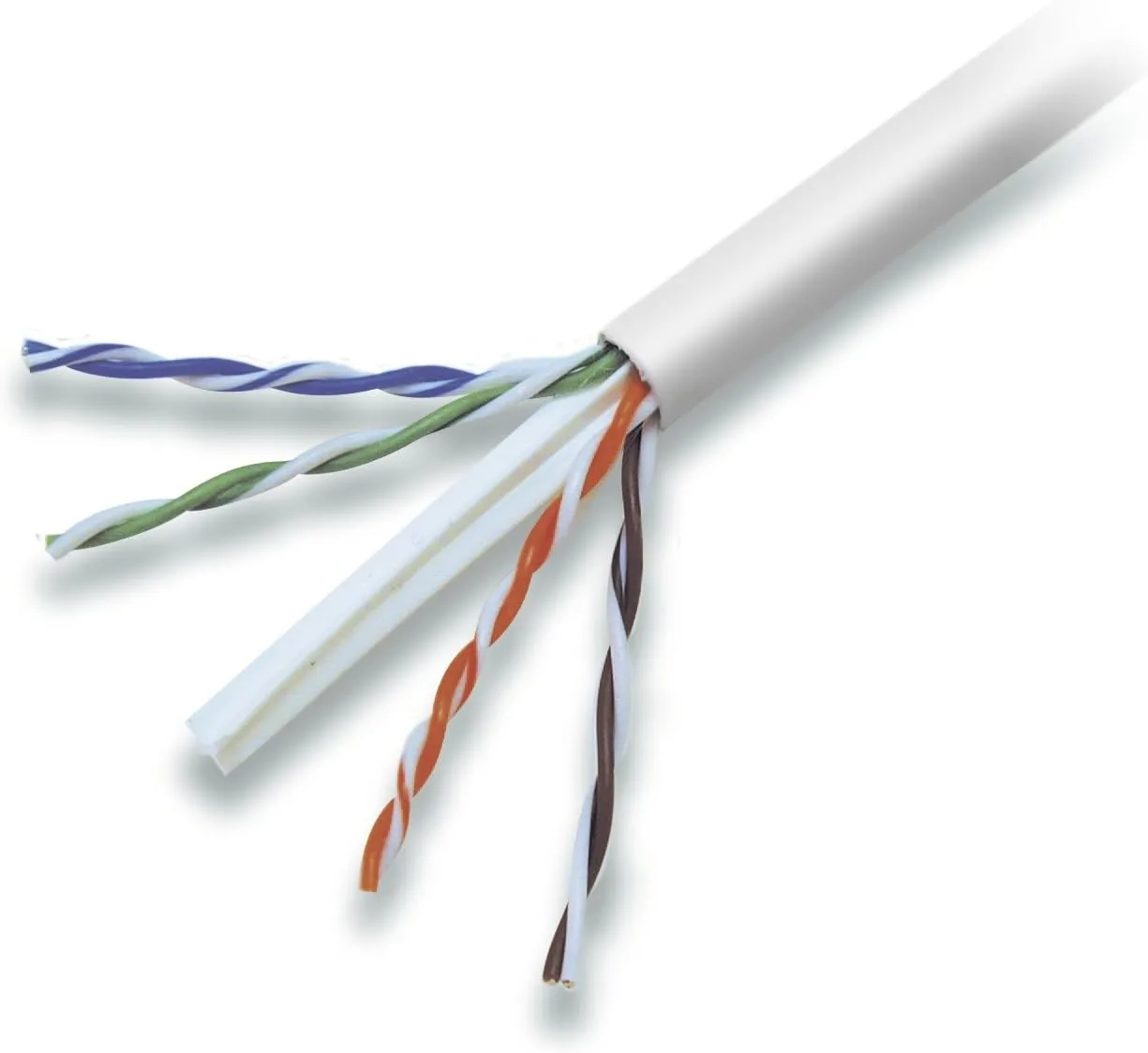

Belkin CAT6 1000-Foot Solid Bulk Cable (White)

Belkin CAT6 exceeds requirements of TIA/EIA-568-B.2-1 and ISO/IEC 11801 and is ideal for high-end solutions such as Gigabit Ethernet, 1.2Gbps ATM, and broadband video. This cable consists of eight solid 24AWG wires and a separator to separate four pairs. Product database listings identify this item as Belkin/A7L704-1000-WHT (1000 ft Cat6 bulk UTP cable, white). Package and product weights and dimensions vary by packaging; ProductDatabase records include product dimensions and package weights used for logistics. The cable features a flame-retardant FRPVC jacket, solid copper conductors, and is suitable for indoor and outdoor data transmission uses.

• Structural Return Loss: 8.6dB min at 550MHz
• Jacket Diameter: 6.000.20mm
• Standards Compliance: ISO/IEC 11801; TIA/EIA-568-B.2-1
• Mutual Capacitance: 56pF/m max. Propagation Delay: 536nS/100m max at 550MHz. Spark Test: 2.5kV
• Flame Retardant Test: CM. Insulation Material: FEP. Jacket Material: FRPVC
• Dielectric Strength: AC 1.5kV/min
• Conductor Construction: Solid Bare Copper. Conductor Resistance: 93.8/km/20 DegreeC max. Conductor Size: 23AWG x 4 pairs
• Characteristic Impedence: 10015 at 1 ~ 550MHz
