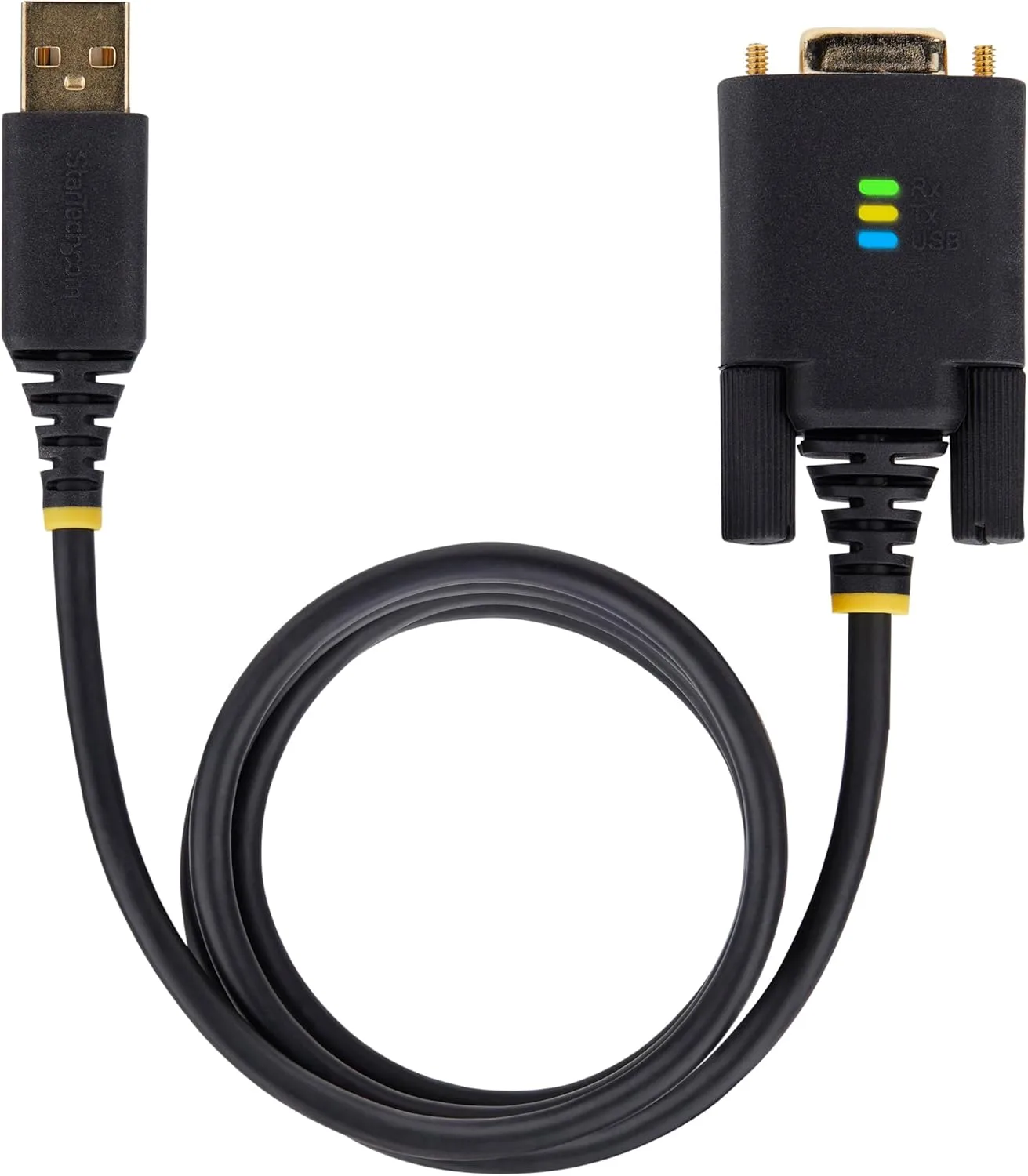

StarTech.com USB to Null Modem RS232 Serial Adapter Cable (USB-A to DB9) - FTDI, COM Retention
Customize

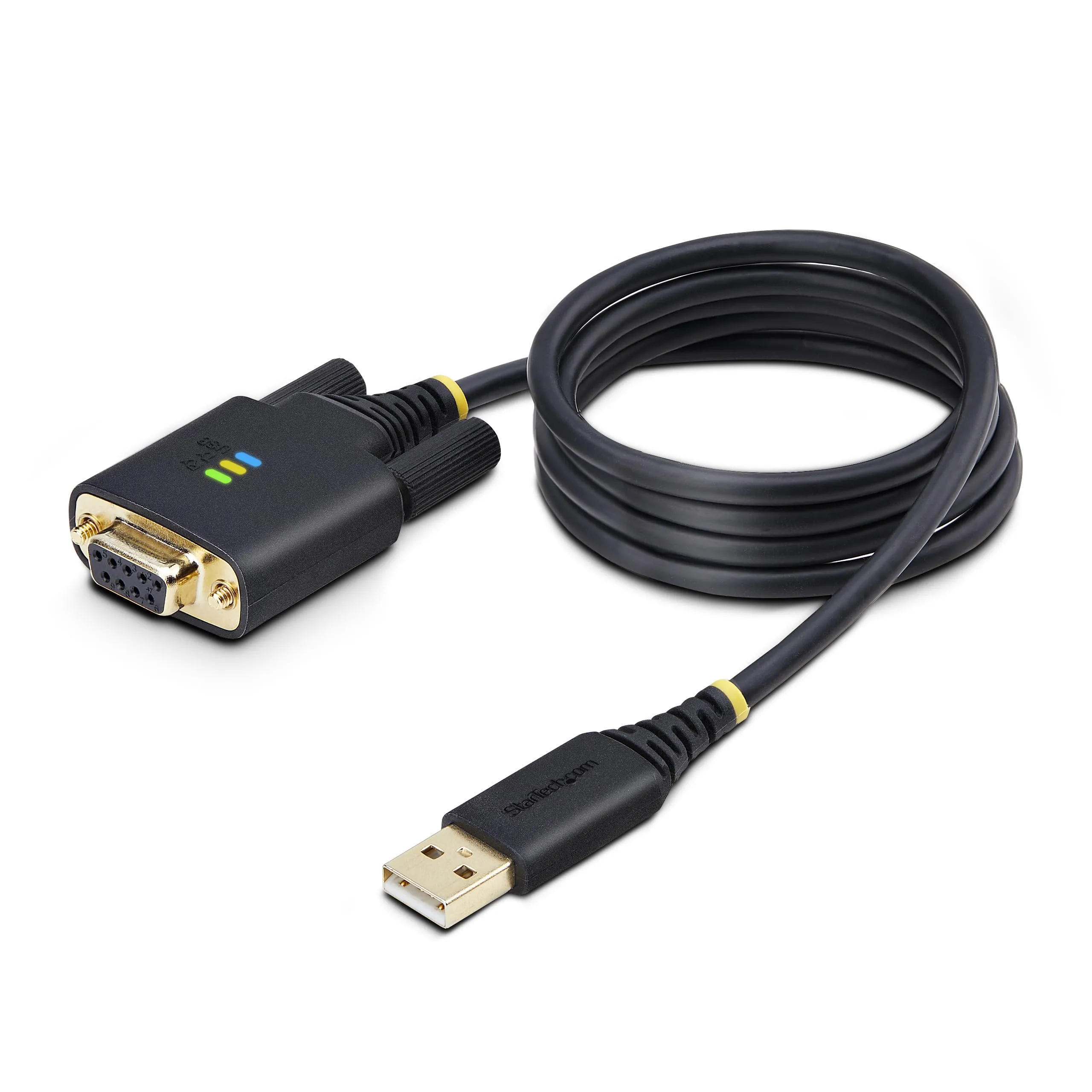

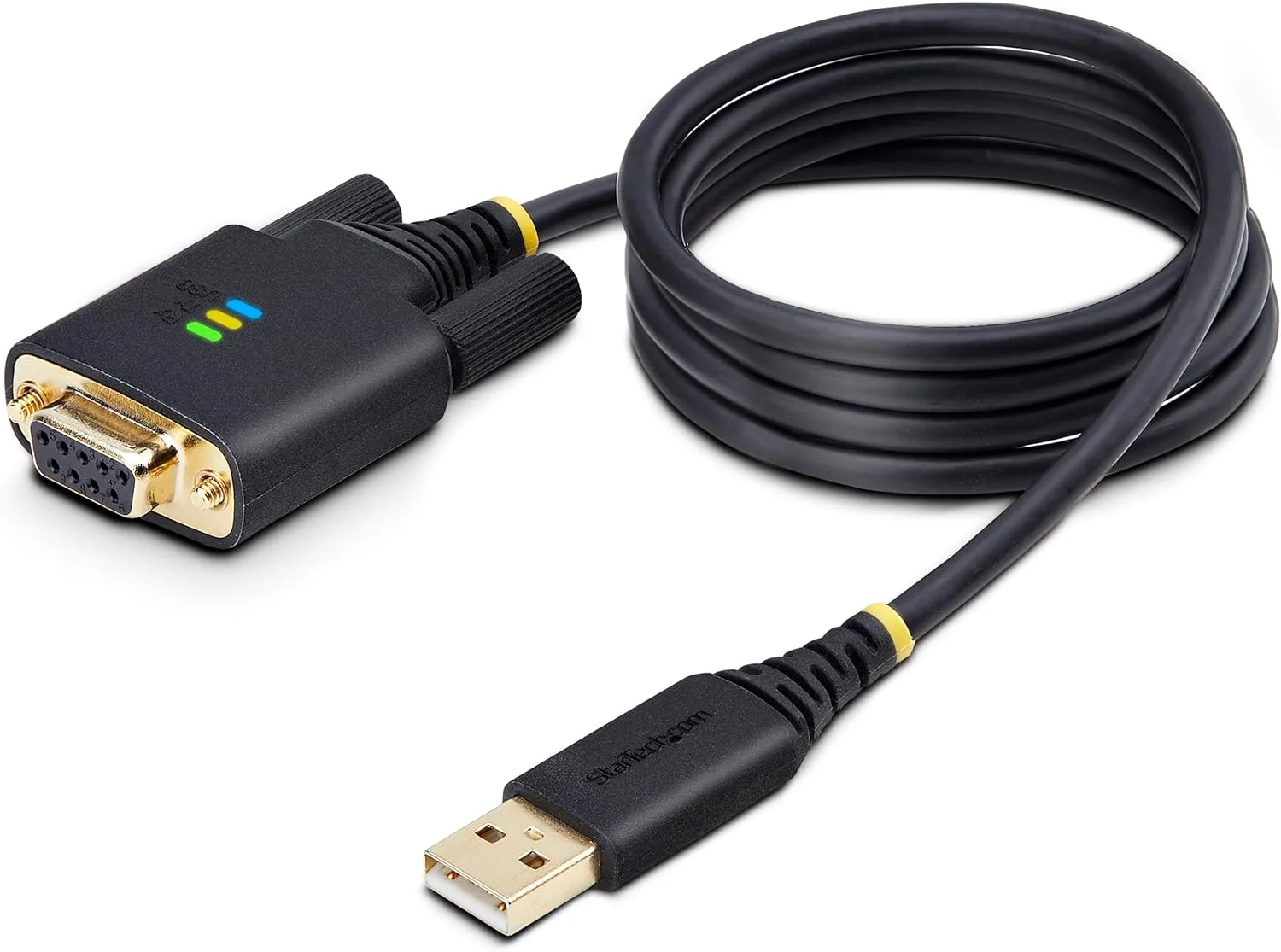

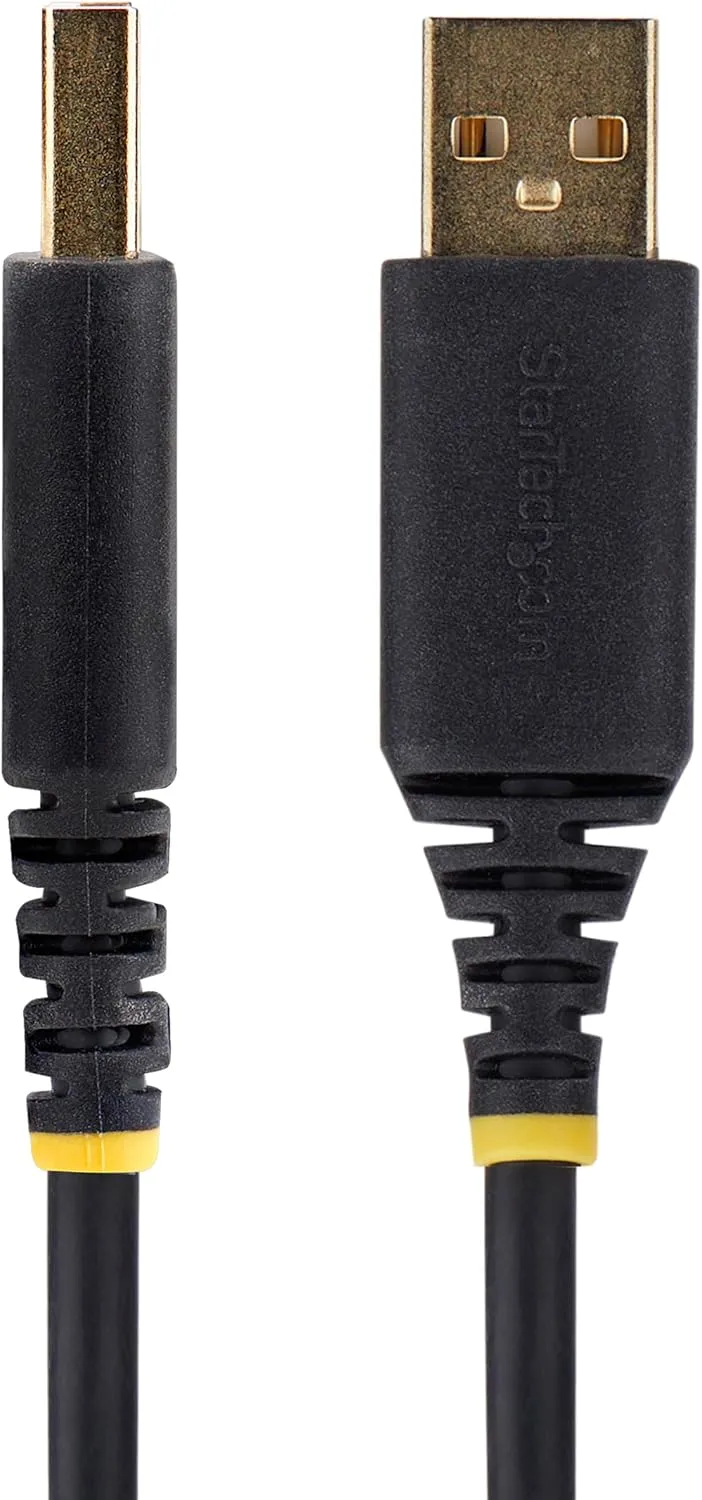

Add RS-232 DCE serial communications support to a desktop or laptop via a USB Type-A port with this StarTech.com Null Modem USB Serial Adapter. Designed to resolve DCE/DTE conflicts without additional cross-wired cables, the adapter delivers a DB9 (DE-9) female serial connection using the FTDI FT232R chipset for stable data transfer. COM retention maintains consistent COM port assignment when disconnected or reconnected. The adapter includes pre-installed and removable slotted D-Sub thumbscrews and DB9 nuts for broad device compatibility, while data transmission, receive and USB LEDs provide real-time port activity diagnostics. Built for reliability, the cable features a molded TPE jacket, Level-4 ESD protection (15kV air / 8kV contact), copper shielding to minimize EMI/RFI, and gold-plated connectors to improve conductivity. Drivers auto-install on Windows 7 and newer, macOS 10.15 and above, and Linux; compatible with ChromeOS. Product is supported by a 2-year limited warranty.

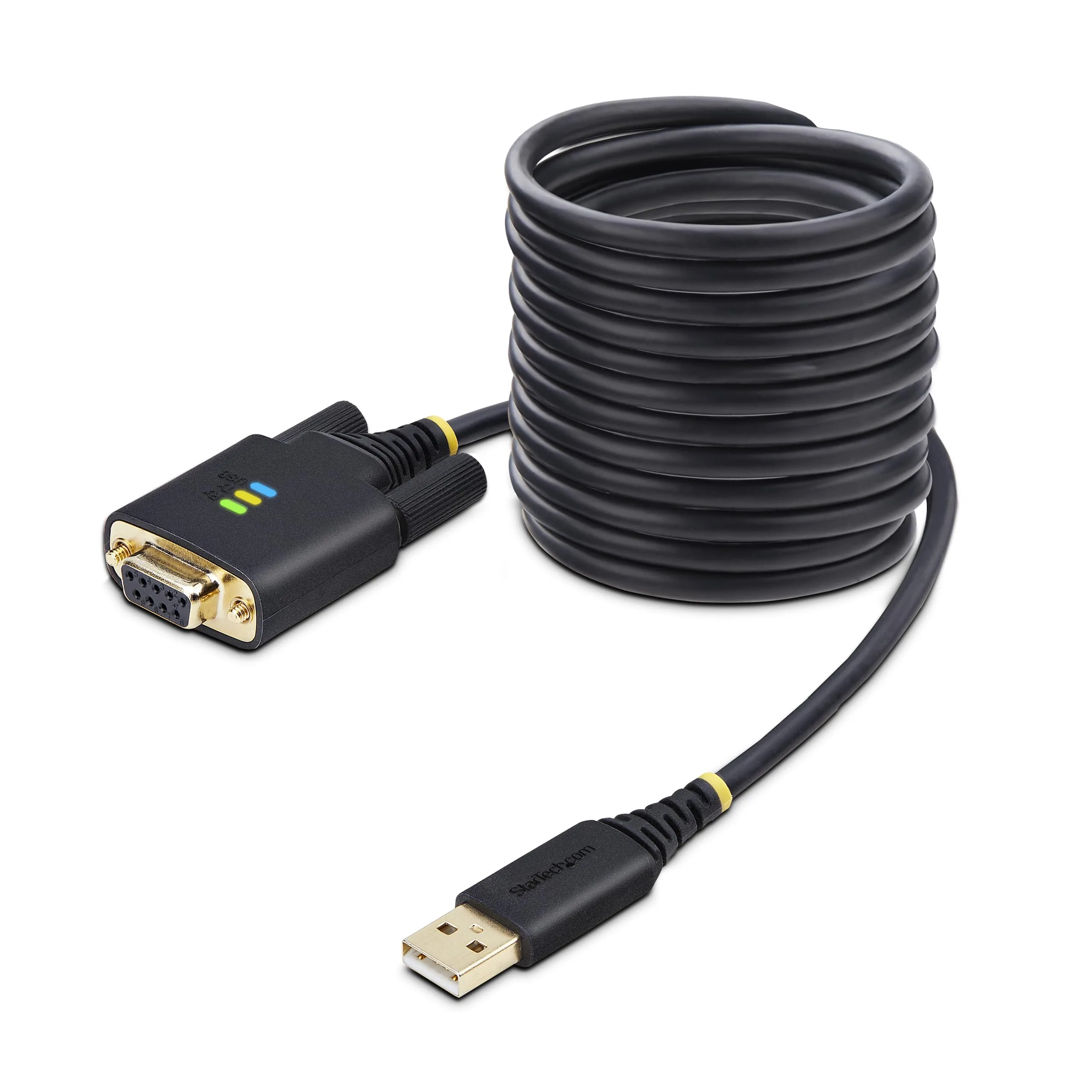

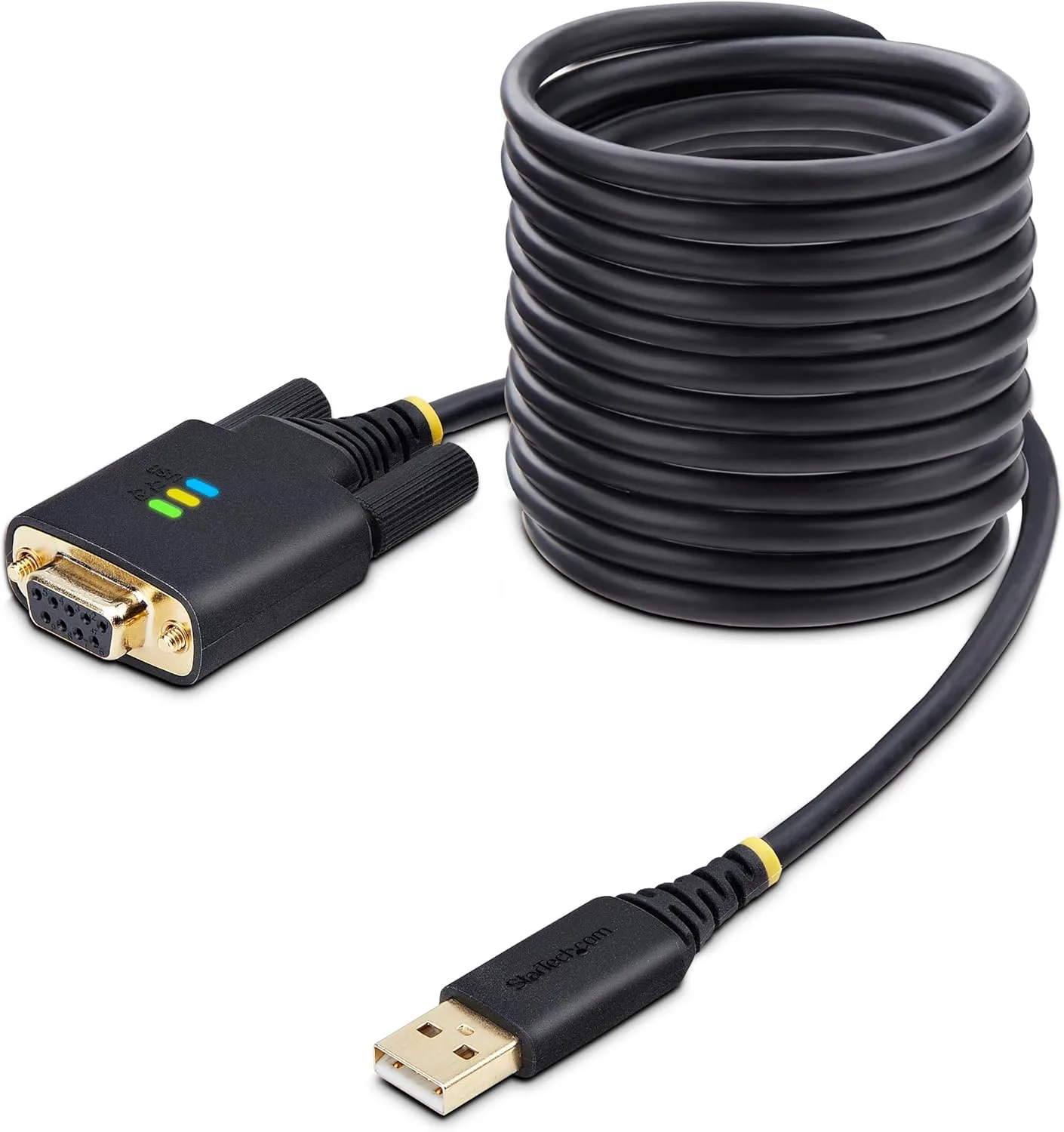

- TECH SPECS: 10ft (3m) Cable Length; FTDI FT232R Chipset; Max Baud Rate: 921.6Kbps; 128 Byte RX and 256 Byte TX FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits
- BUILD QUALITY: Solid one-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Extended operating temperature of -40°C to 80°C
- COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign; Resolve DCE/DTE conflicts without using cross-wired cables/adapters

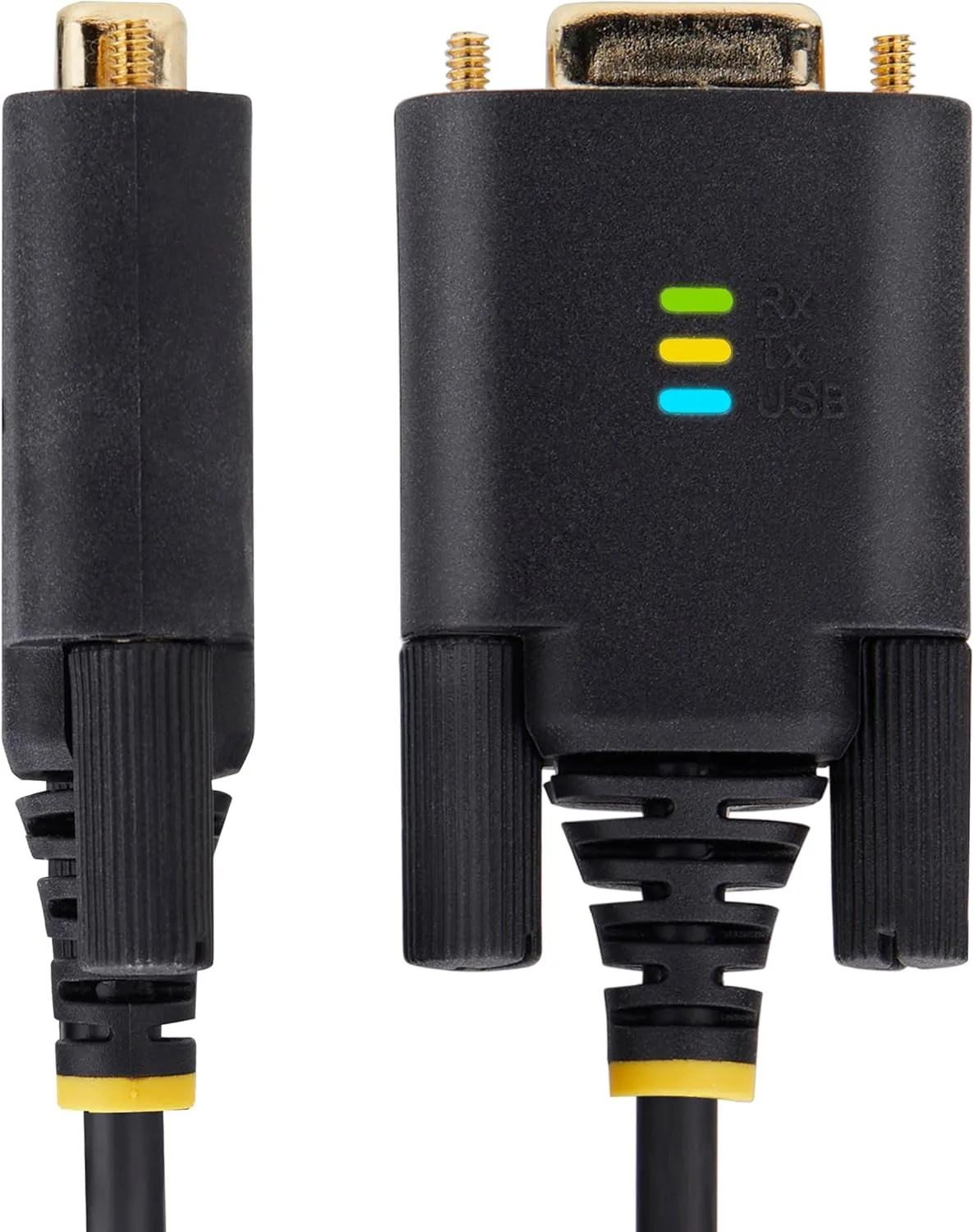

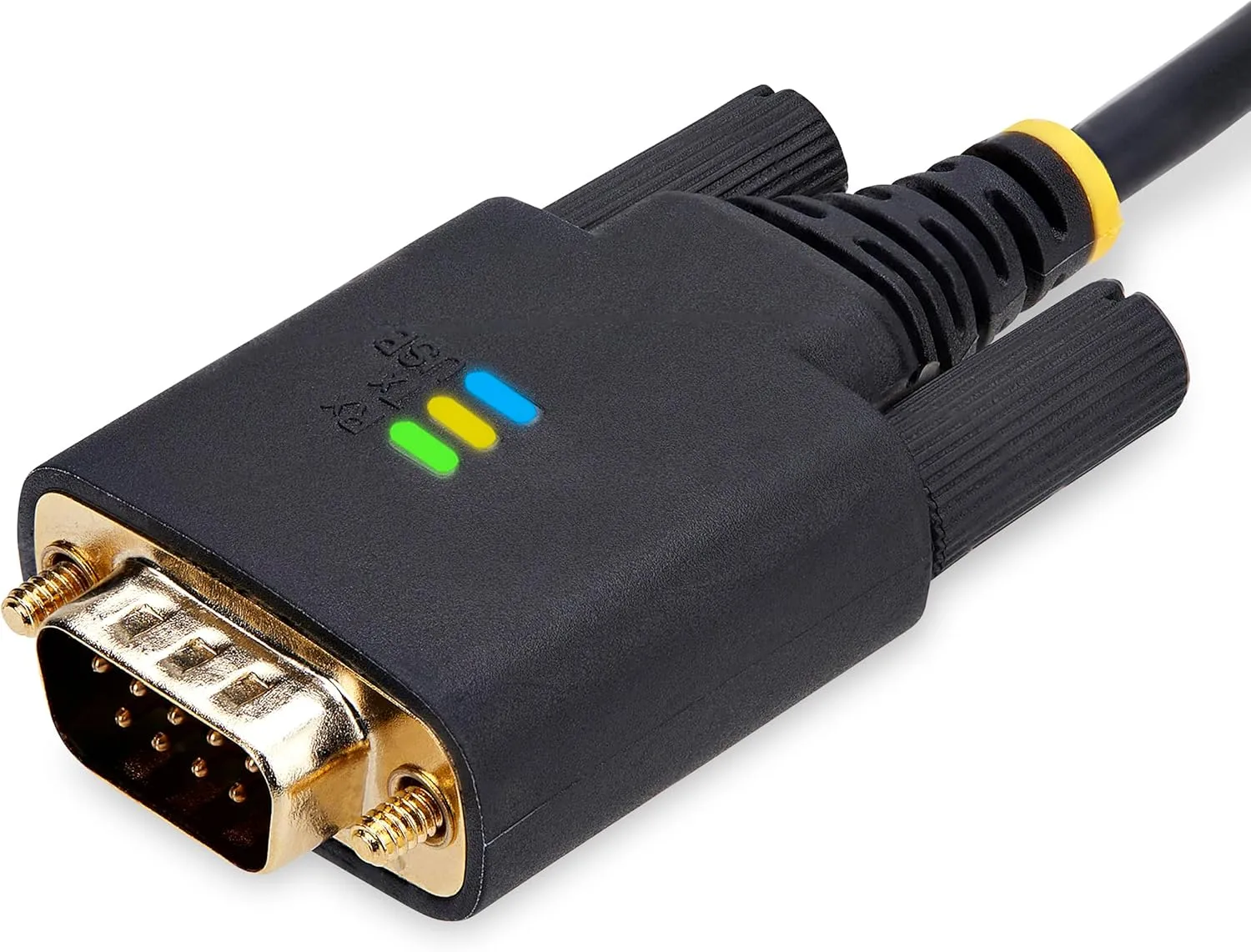

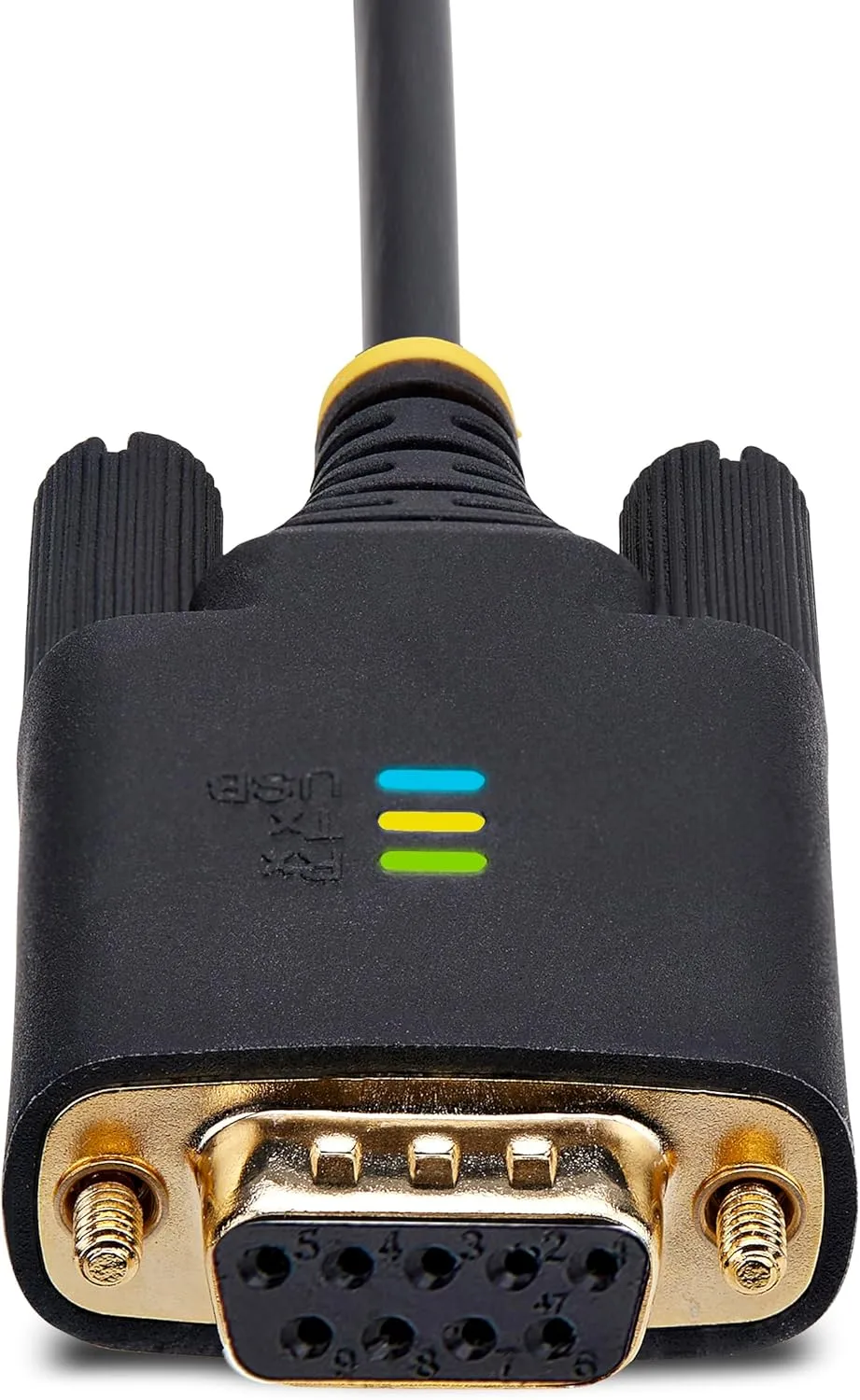

- LED INDICATORS: Transmit and Receive LED indicators offer real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop

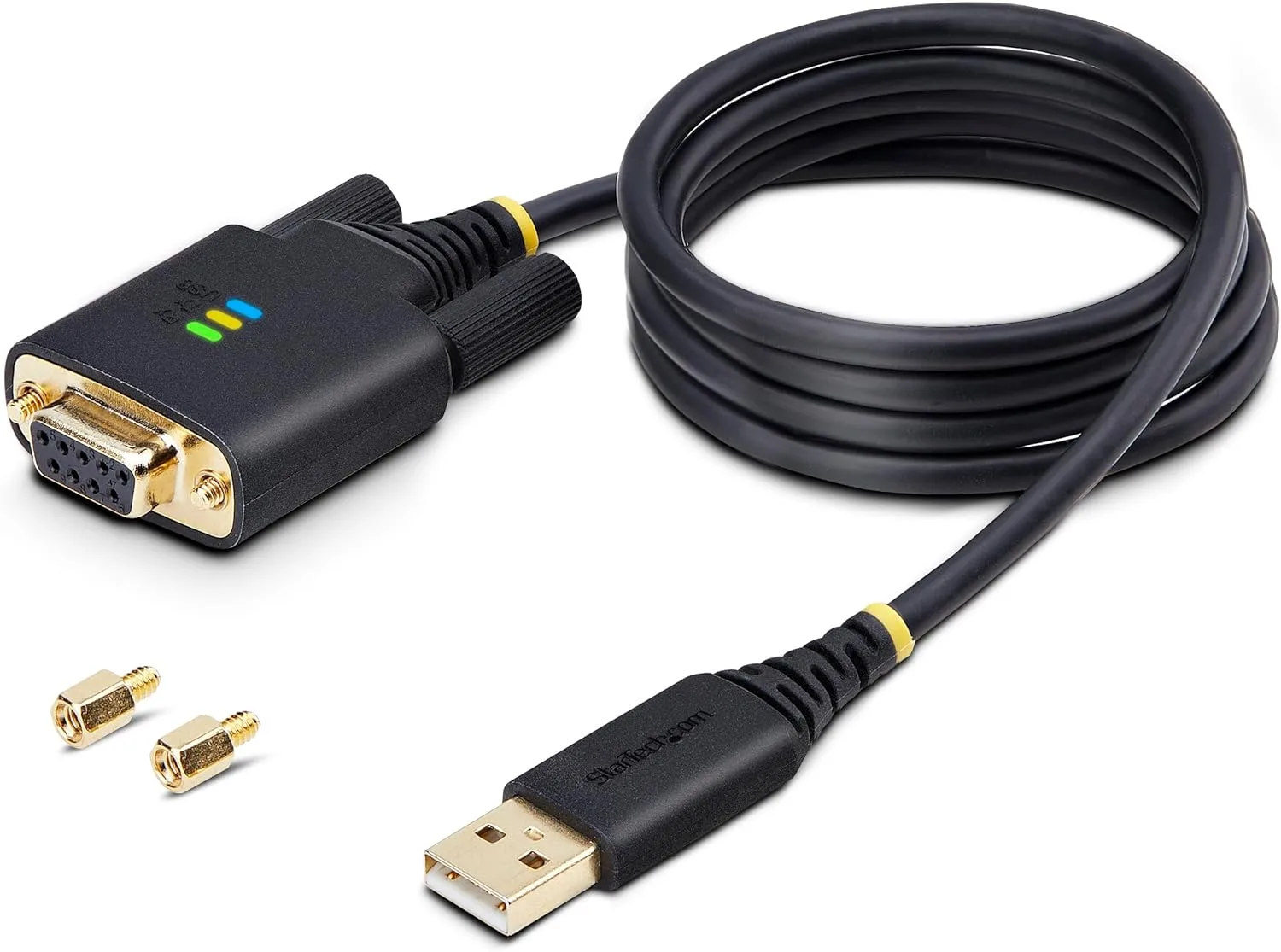

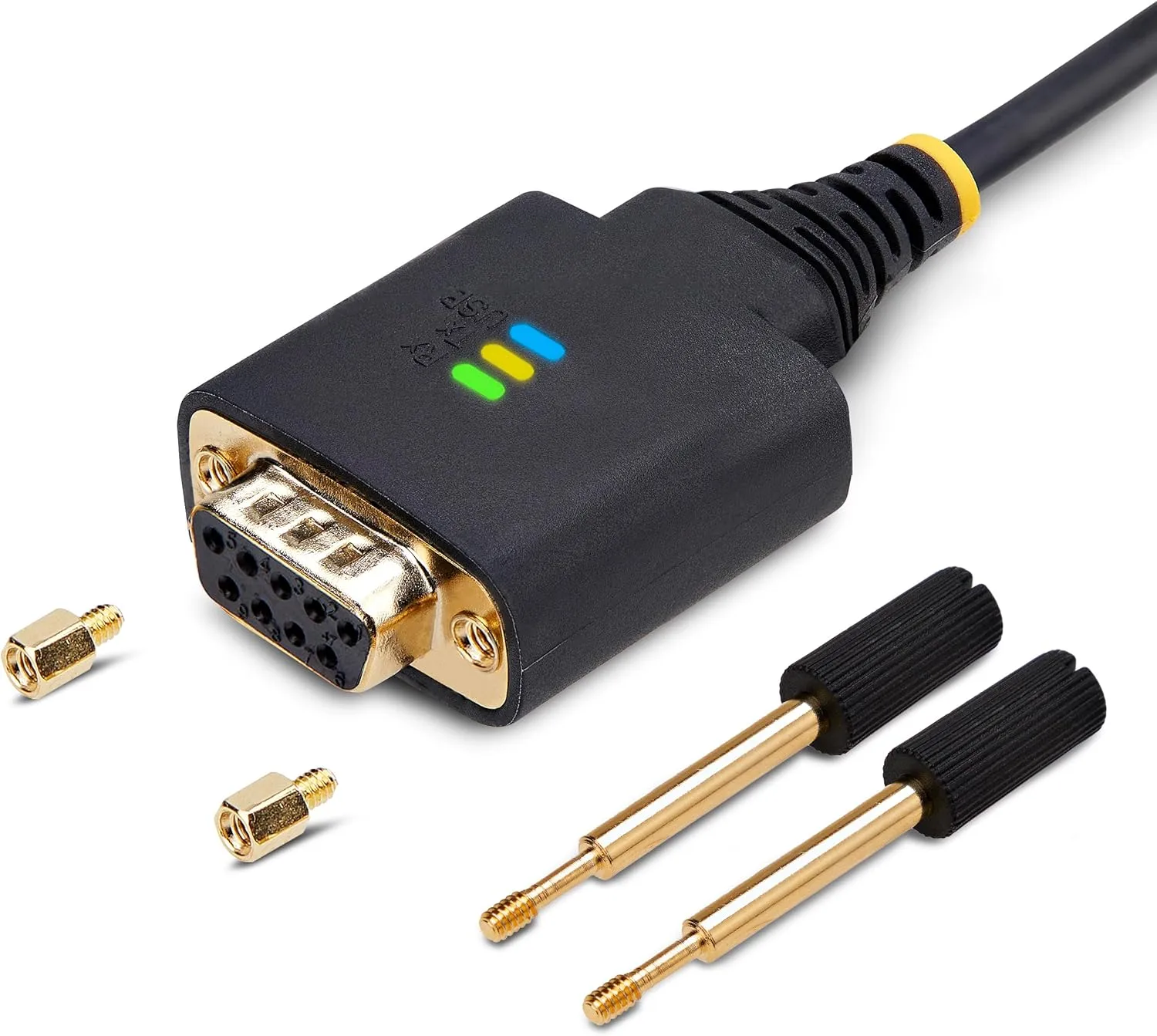

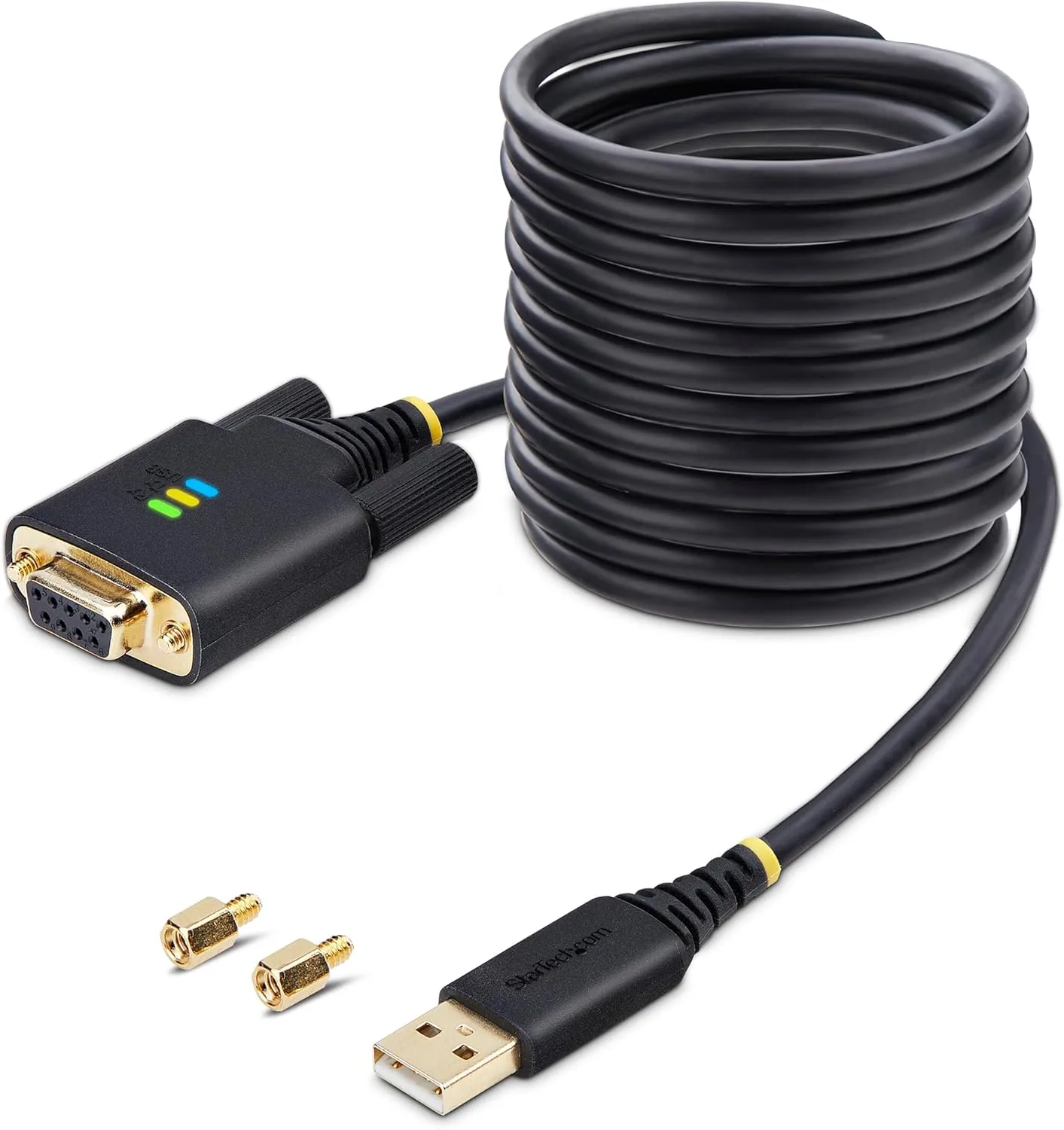

- INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to a serial device using the pre-installed DB9 screws, or install the included DB9 Nuts for compatibility with serial peripheral devices/cables; Add a null modem RS232 port to a computer using a USB-A port
Specifications:
| Materials & Construction | |
| Material (Shielding) | Copper |
| Product Material | Thermoplastic Elastomer (TPE) |
| Shielding | Yes |
| Product Details | |
| Connector Gender | Male-to-Male |
| Connector On First End Details | 1 X 4-Pin Usb 2.0 Type A - Male |
| Connector On Second End Details | 1 X 9-Pin Db-9 Rs-232 Serial - Male |

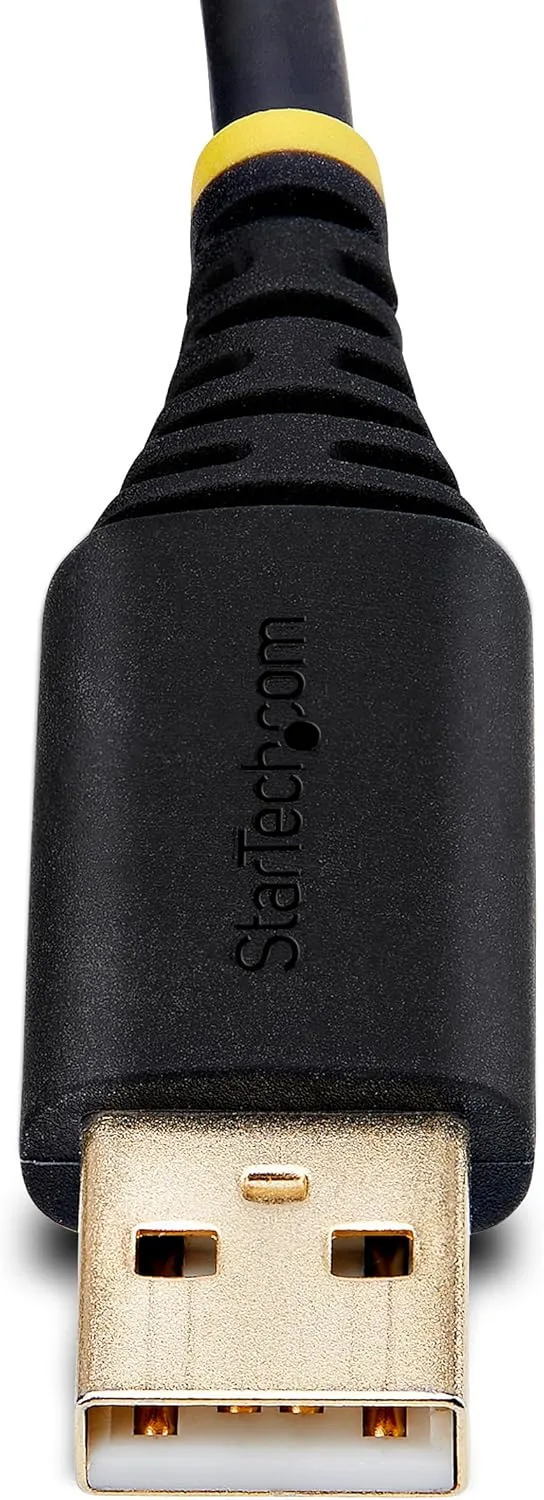

| Connector Type On First End | Usb 2.0 Type A - Male |
| Connector Type On Second End | Db-9 Rs-232 - Male |
| Data Transfer Rate | 3 Megabits Per Second |
| Device Supported | Desktop Computer; Notebook; Peripheral Device; Monitor; Sensor; Barcode Scanner; Receipt Printer; Pos Device; Led; Digital Signage; Computer |
| Gender (End 1) | Male |
| Gender (End 2) | Male |
| Number of Pins | 9 |
| Packaged Quantity | 1 |
| UPC | 065030898355 |
| Sizing & Dimensions | |
| Product Weight | 4.2 ounces |
| Weight | 4.96 ounces |
| Technical Specifications | |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Number of Items | 1 |
| Specification Met | USB-IF |
| Warranty | 2-Year Limited |
