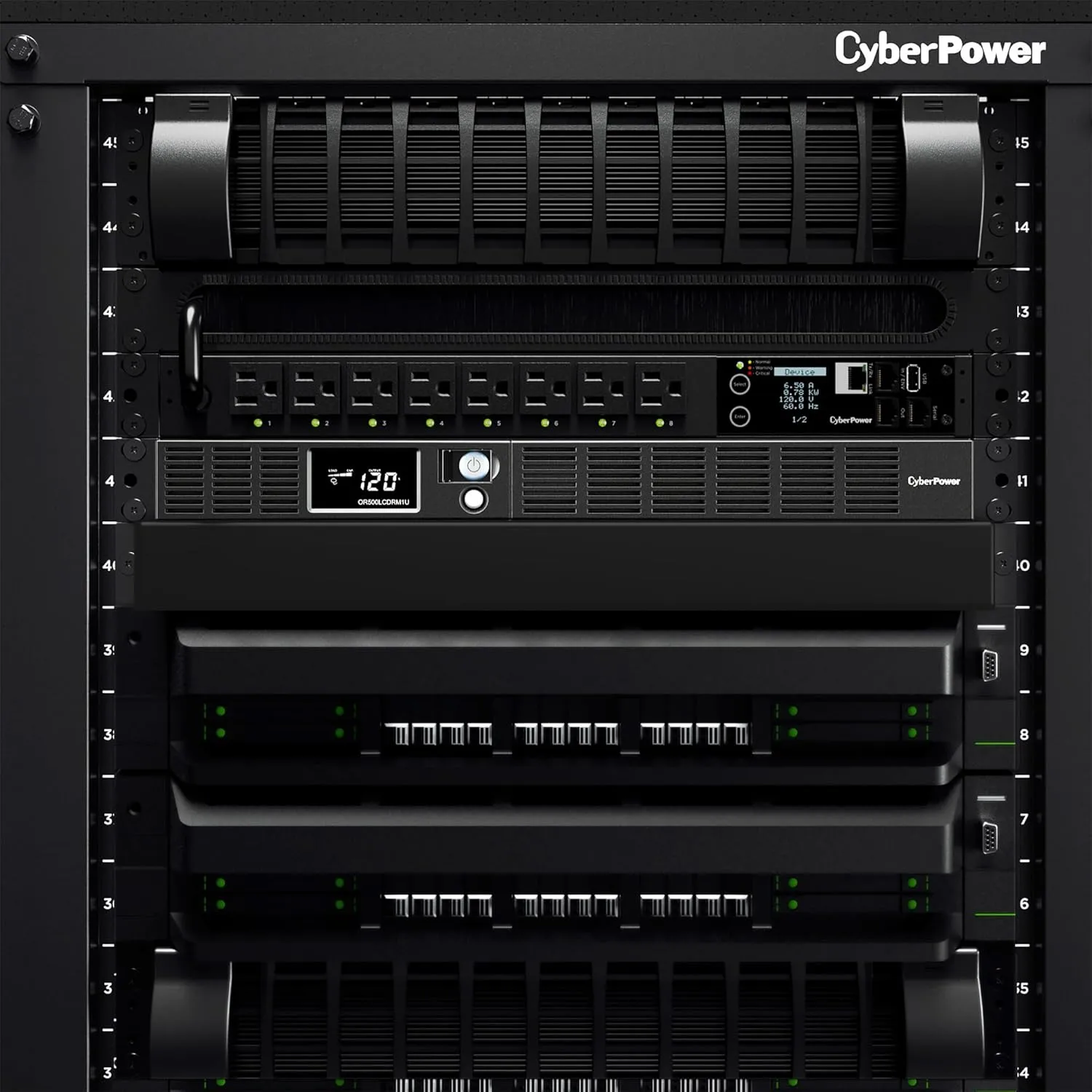

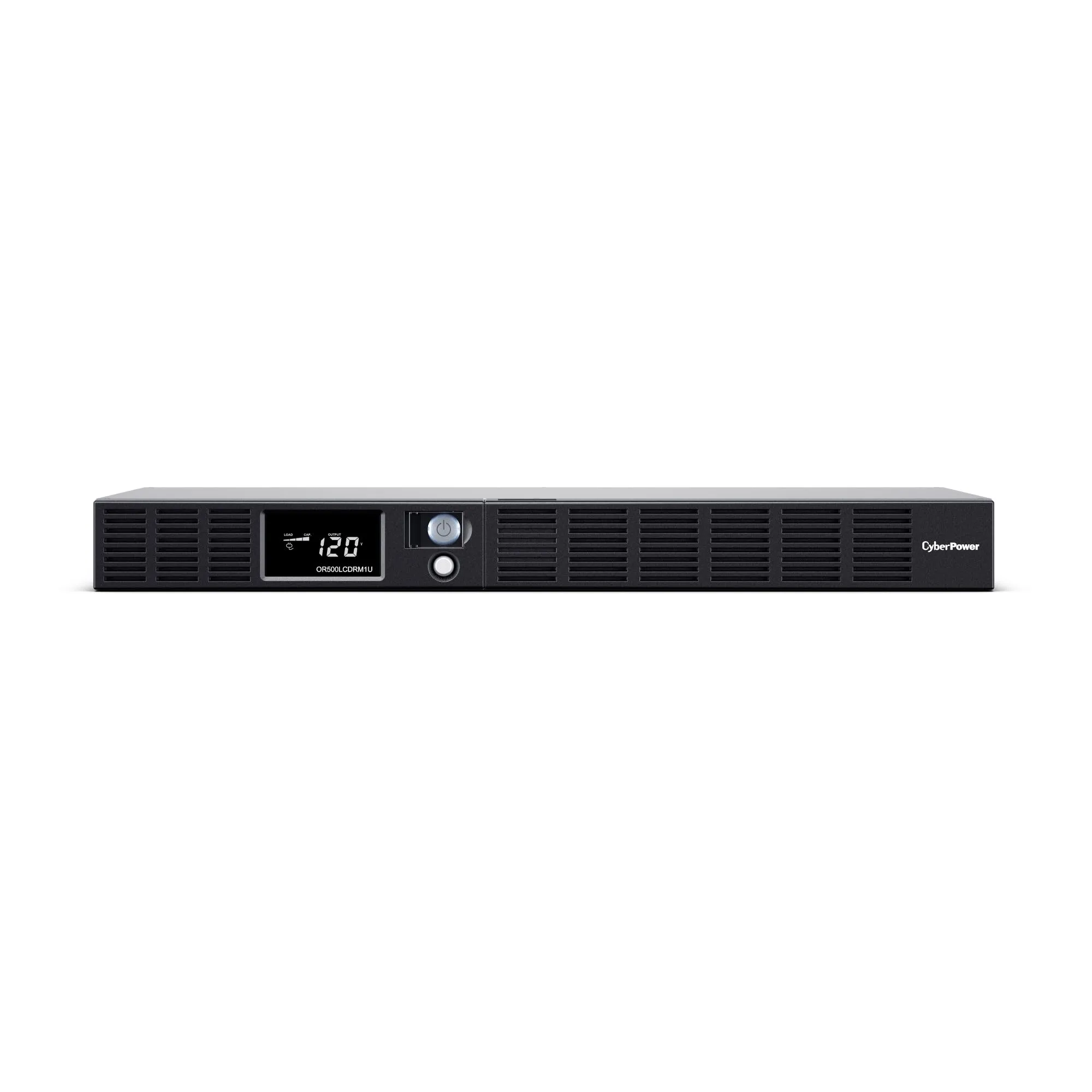

CyberPower OR Smart App LCD 1U Rackmount UPS with AVR
Customize
The CyberPower OR series Smart App LCD 1U rackmount UPS delivers reliable line-interactive battery backup and surge protection for department and workgroup servers, workstations, network devices and telecom installations. Featuring Automatic Voltage Regulation (AVR), the unit corrects minor voltage fluctuations without switching to battery power to help extend battery life. The UPS provides simulated sine wave output, a multifunction LCD panel for runtime, battery status and power condition alerts, six NEMA 5-15R outlets configured with battery backup plus surge and surge-only options, and a 10 ft NEMA 5-15P input cord. Communications include USB and DB-9 serial interfaces, support for PowerPanel Business Edition management software, and optional RMCARD205 for SNMP/remote management on supported models. Units use sealed lead-acid batteries, carry a 3-year limited warranty and include a $300,000 Connected Equipment Guarantee for covered equipment.
- 3-YEAR WARRANTY – INCLUDING BATTERIES; $300,000 Connected Equipment Guarantee and FREE PowerPanel Business Edition Management Software (Download)
- AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery

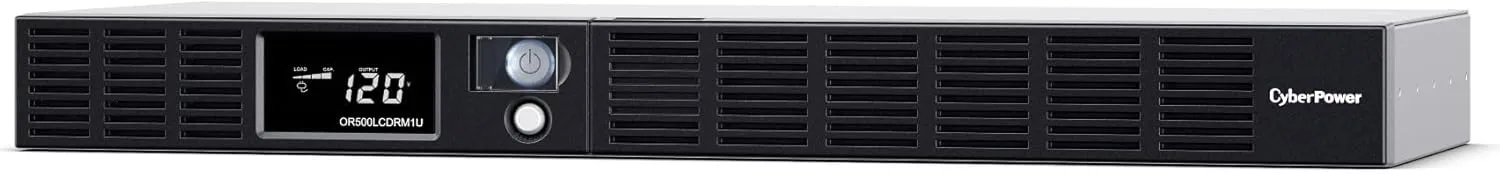

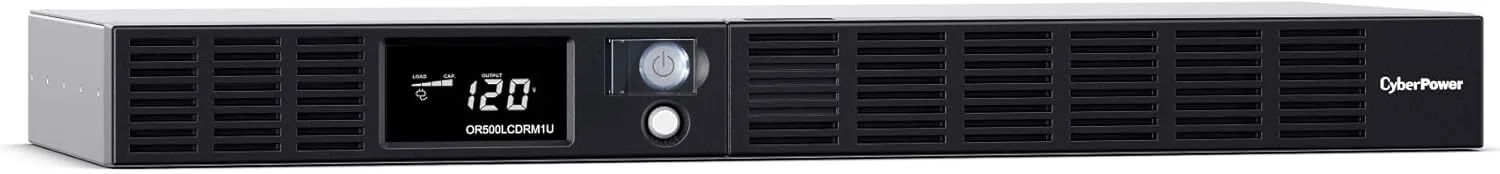

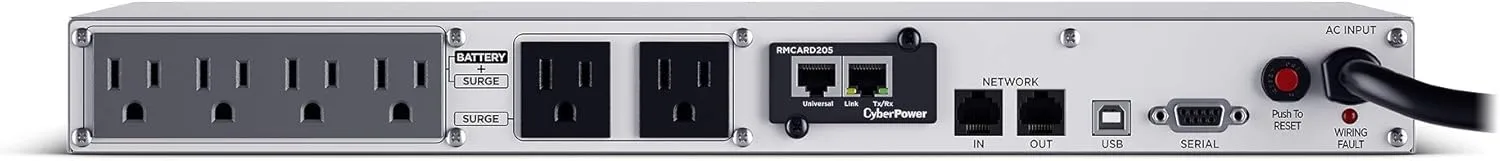

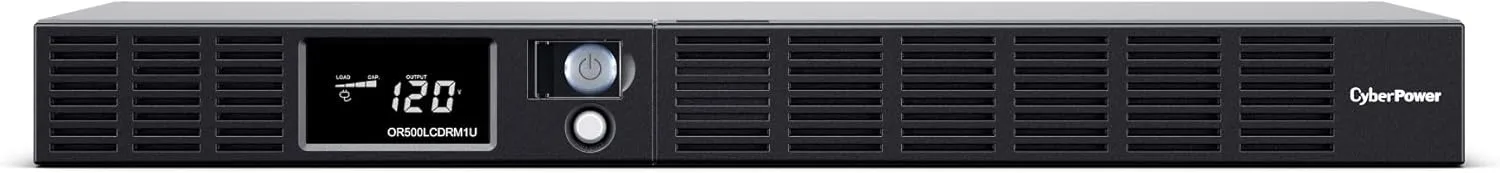

- MULTIFUNCTION LCD PANEL: Provides runtime in minutes, battery status, power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime; REMOTE MANAGEMENT: Requires optional RMCARD205 management card

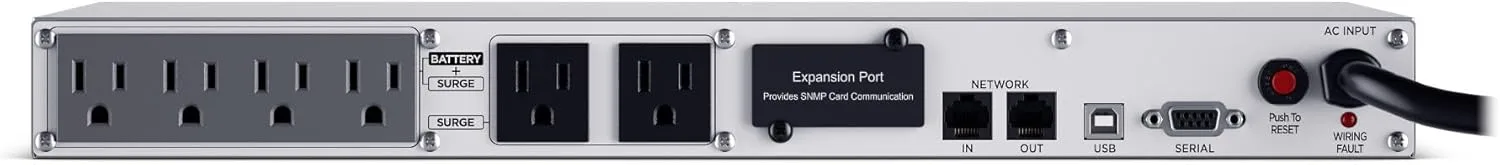

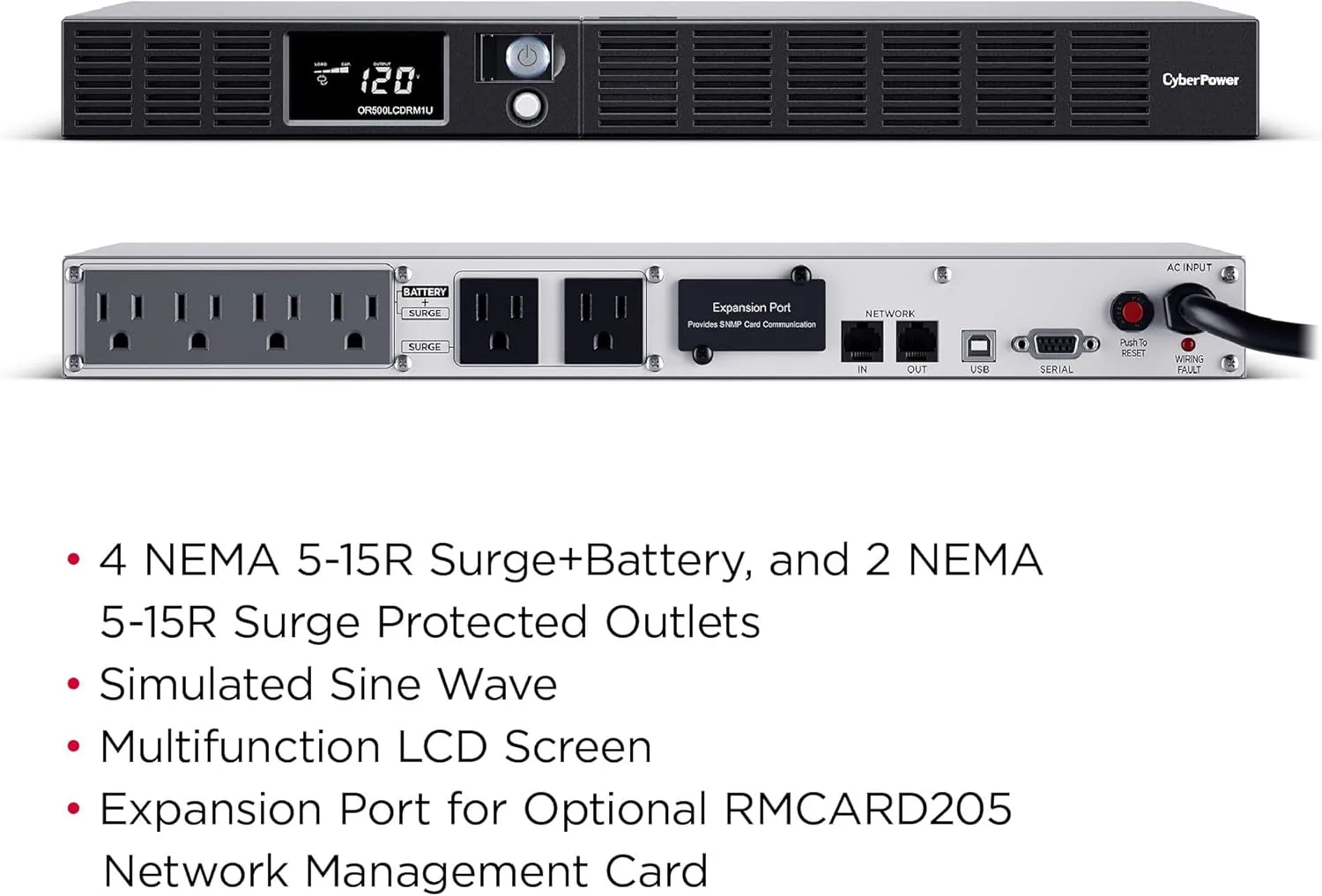

- SIX NEMA 5-15R OUTLETS: Four battery backup and surge protected outlets; Two Surge protected outlets; INPUT: 15A, NEMA 5-15P straight plug with 10 foot power cord
- 500VA/300W Smart App LCD Uninterruptible Power Supply (UPS) System uses simulated sine wave output to protect department and workgroup servers, network devices, and telecom installations without Active PFC power supplies
Specifications:
| Materials & Construction | |
| Battery Cell Composition | Sealed Lead Acid |
| Product Details | |
| Application | Servers/Networking |
| Automatic Voltage Regulation | Yes |
| Battery Run Time | 3 Min |
| Cable Included | Yes |
| Charge Time (Approx) | 8 hr |
| Eco-Conscious | Helps Save Energy |
| Emi/Rfi Noise Filtration | Yes |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Frequency Response | 35hz To 20khz |
| Number Of Surge Only Outlets | 2 |
| Number Of Usb Ports | 1 |
| Surge Rating | 1030 Joule |
| Total Number Of Outlets | 6 |
| Ul Listed | Yes |
| Ups Battery Type | Lead-Acid |
| Ups Type | Line Interactive |
| Usb Connection Type | Usb Type A |
| Warranty | 3-Year Limited |
| Sizing & Dimensions | |

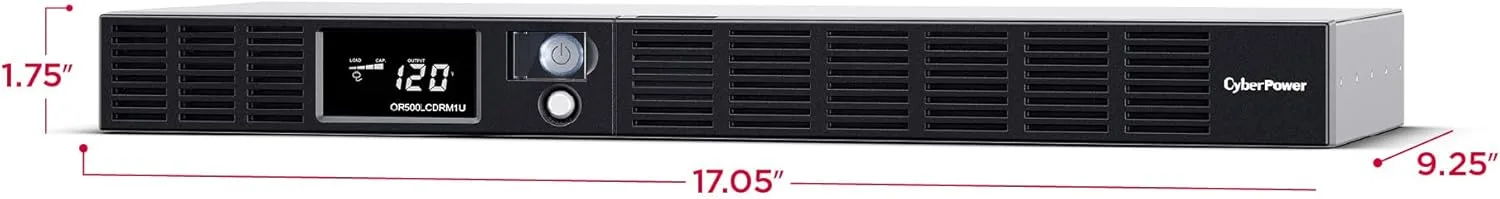

| Height | 1.75 inches |
| Length | 17.25 inches |
| Product Dimensions | 9.3"D x 17.1"W x 1.8"H |
| Weight | 18 pounds |
| Width | 9.25 inches |
| Technical Specifications | |
| Load Capacity (Va) | 500 |
| Surge Rating | 1030 Joule |
| Voltage | 120 Volts |
| Voltage (Input) | 120 V |
| Voltage (Output) | 50 V |
