Vertiv Liebert GXT5 208V Online Double-Conversion Rack/Tower UPS
Customize
The Vertiv Liebert GXT5 UPS family offers continuous, online double‑conversion power conditioning for centralized and edge locations, protecting critical equipment against outages and power disturbances. Common features across the GXT5 line include 208V single‑phase in/out operation, high power factor (0.9–1.0) to increase usable power for connected loads, and lead‑acid battery chemistry with scalable runtime through compatible external battery cabinets. Units include an intuitive gravity‑sensing color LCD for status and configuration and support remote management via an optional or built‑in Vertiv RDU101 communications card with compatibility for Vertiv Power Insight for consolidated monitoring of distributed UPS units. Energy Star 2.0 certification and high operating efficiency help reduce energy costs while providing enterprise‑grade power protection in rack or tower form factors.

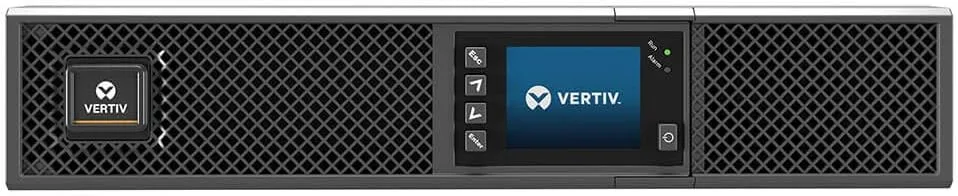

- Easy-to-use interface: tower/rack mount design with gravity sensing graphical Color display
- Energy efficient (up to 95%): energy Star 2.0 certified with high normal operating efficiency.
- 3-Year warranty: 3-year comprehensive coverage including battery with options for 2-year extension.
- Remote management: optional Vertiv Rdu101 network communications card with advanced features.
- UPDATED FIRMWARE: New firmware now available to reduce fan speed and noise issues
Specifications:
| Product Details | |
| Amperage | 20 Amps |
| Battery Cell Composition | Sealed Lead Acid |
| Battery Run Time | 3 Min |
| Cable Included | Yes |
| Cord Length | 10 ft |
| Item model number | GXT5-3KL620RT2UXL |
| Rack Mountable | Yes |
| Ups Battery Type | Lead-Acid |
| Ups Type | Online |
| Ups Weight | 65.05 lb |
| Vertical Rack Space | 2u |
| Sizing & Dimensions | |
| Height | 3.4 inches |
| Length | 21.3 inches |
| Product Dimensions | 21.3 x 16.9 x 3.4 inches |
| Weight | 86 pounds |
| Width | 16.9 inches |
| Technical Specifications | |
| Energy Rating | Energy Star |
| Frequency Response | 50hz To 20khz |
| Voltage (Input) | 230 V |
| Voltage (Output) | 208 V |
