CYBERPOWER Switched PDU, 1U Rackmount, 8 Outlets, 100-120V
Customize
The CYBERPOWER switched PDU family provides centralized, managed power distribution in a 1U rackmount enclosure with eight outlets for data center racks, server rooms, and network closets. Designed for 100-120V single-phase operation, the PDUs offer local control via a multifunction LCD and remote management through an RJ-45 SNMP connection and the CyberPower Management Console. Features include individual and grouped outlet switching, remote outlet control, automated event notifications (Email, SMS, SNMP traps), firmware upgradeability, and compliance with RoHS. The units are suitable for horizontal rack installation or wall mounting, include a 12 ft cord, and ship with a 3-year limited warranty to support reliable, remotely managed power distribution for servers and network equipment.
- 1U RACKMOUNT: With durable metal housing;UPGRADEABLE FIRMWARE: allows users to download firmware updates to programs that run the PDU; 3-YEAR LIMITED WARRANTY
- REMOTE AND LOCAL MONITORING: User can track PDU vitals both offsite and onsite; Provides control to turn on/off individual outlets or circuits; AUTOMATIC EVENT NOTIFICATIONS: Provides immediate updates about power events via email, SMS, or SNMP traps

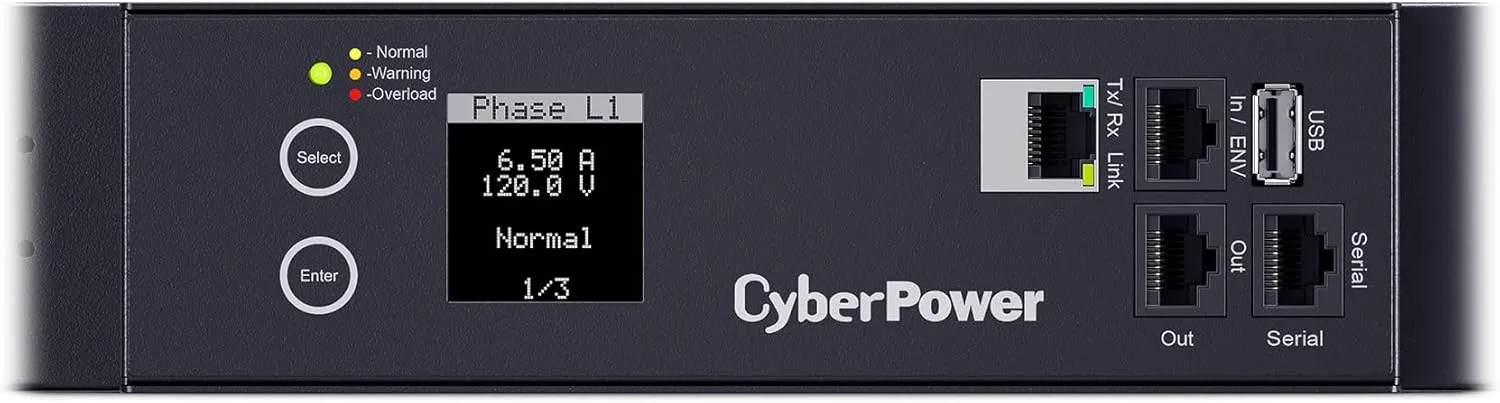

- MULTIFUNCTION LCD SCREEN: Displays immediate, detailed information on PDU conditions, including: amperage, voltage, KW, IP Address, etc.; SWITCH-FREE DESIGN: Safeguards against accidental power shutdown
- 8 SWITCHABLE NEMA 5-15R OUTLETS: Provides local and remote control for individual and multiple outlets; INPUT: NEMA 5-15P straight plug with 12 foot power cord; FREQUENCY: 50Hz/60Hz
- 100-120V/15A (Derated to 12A) Switched Power Distribution Unit (PDU) delivers and manages reliable power to electronic equipment, servers, and network/telecom devices
Specifications:
| Materials & Construction | |
| Country of Origin | Philippines |
| Product Details | |
| Country of Origin | Philippines |
| Dimensions | 1-3/4 In. X 17-3/64 In. |
| Eco Label Standard | Rohs |
| Energy Star | No |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Input Voltage Range | 100 V Ac - 120 V ac |
| Item model number | PDU41001 |
| Maximum Input Current | 15 V |
| Model | Pdu41001 |
| Mount Type | Rack-Mountable; Wall-Mountable |
| Mounting Orientation | Horizontal/Vertical |
| Network (Rj-45) | Yes |
| Output Voltage Range | 100 V Ac - 120 V ac |
| Pdu Type | Switched |
| Phase | Single Phase |
| Plug/Connector Type | Nema 5-15p |
| Receptacle Detail | 8 X Nema 5-15r |
| Receptacle Type | Nema 5-15r |
| Special Feature | Mountable |
| Voltage | 120 Volts |
| Warranty | 3-Year Limited |
| Sizing & Dimensions | |
| Height | 4.41 inches |
| Length | 1.75 inches |

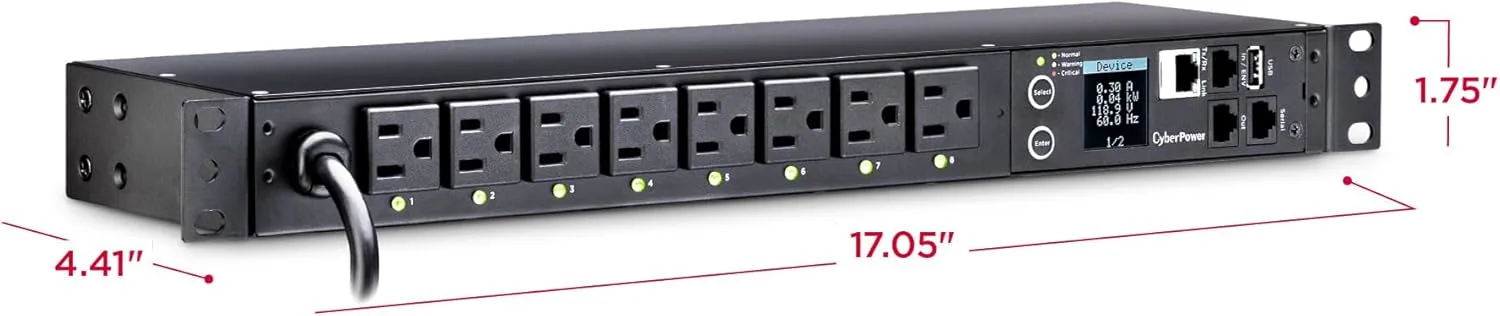

| Product Dimensions | 4.41 x 17.05 x 1.75 inches |
| Size | 4.41 x 17.05 x 1.75 inches |
| Weight | 5.7 pounds |
| Width | 17.05 inches |
| Technical Specifications | |
| Input Voltage Range | 100 V Ac - 120 V ac |
| Maximum Input Current | 15 V |
| Network (Rj-45) | Yes |
| Output Voltage Range | 100 V Ac - 120 V ac |
| Pdu Type | Switched |
| Phase | Single Phase |
| Plug/Connector Type | Nema 5-15p |
| Receptacle Detail | 8 X Nema 5-15r |
| Warranty | 3-Year Limited |
