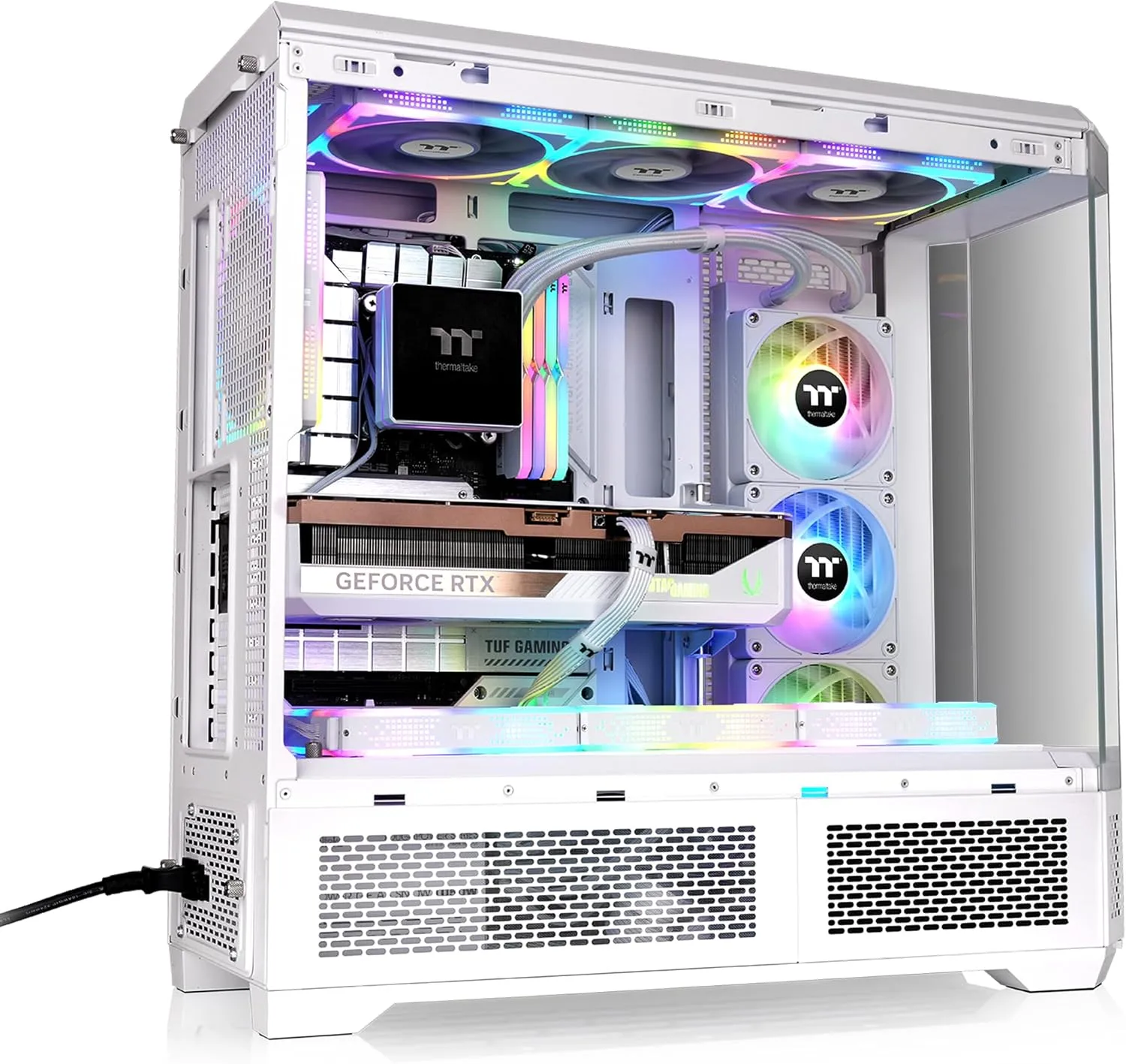

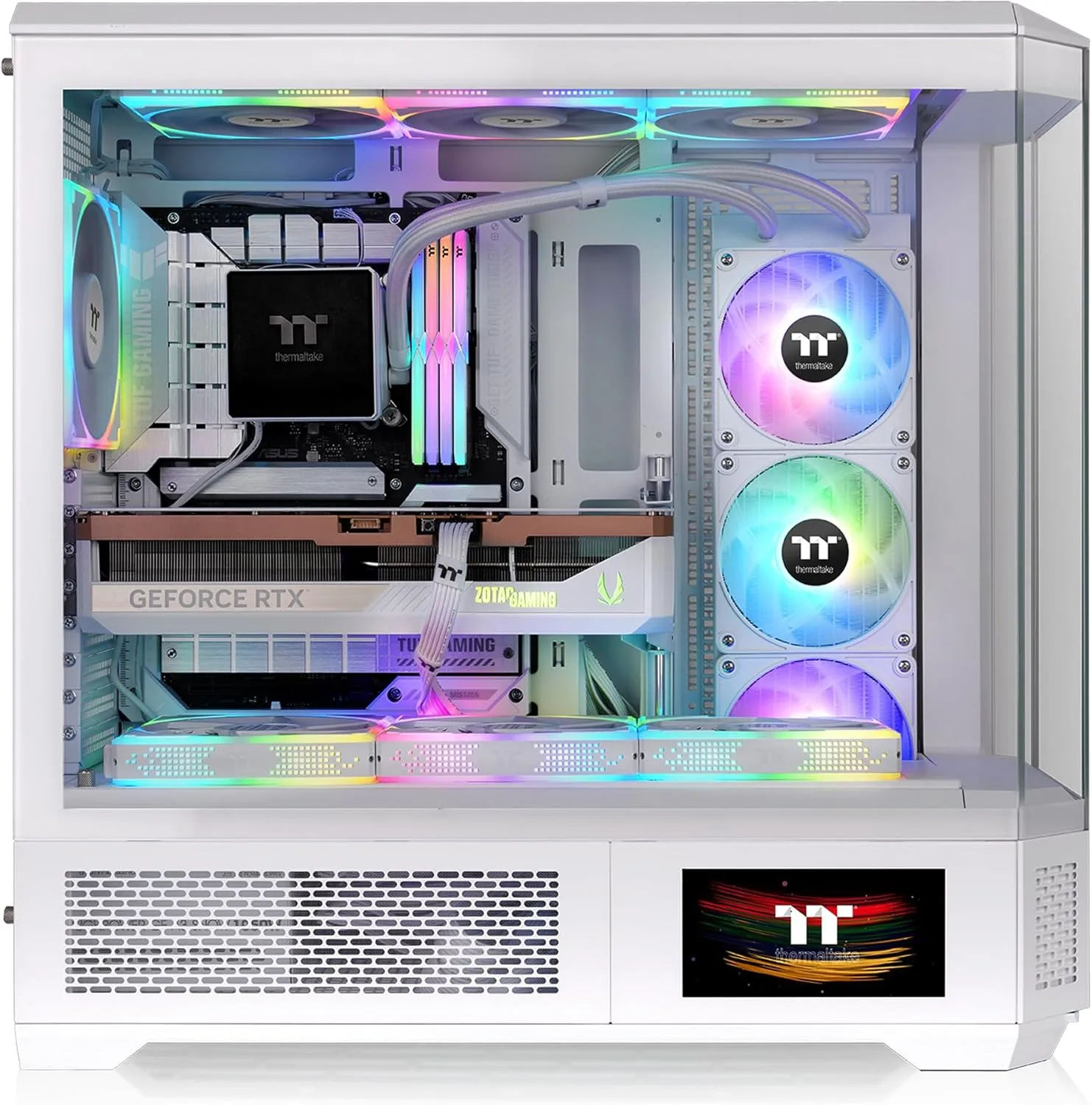

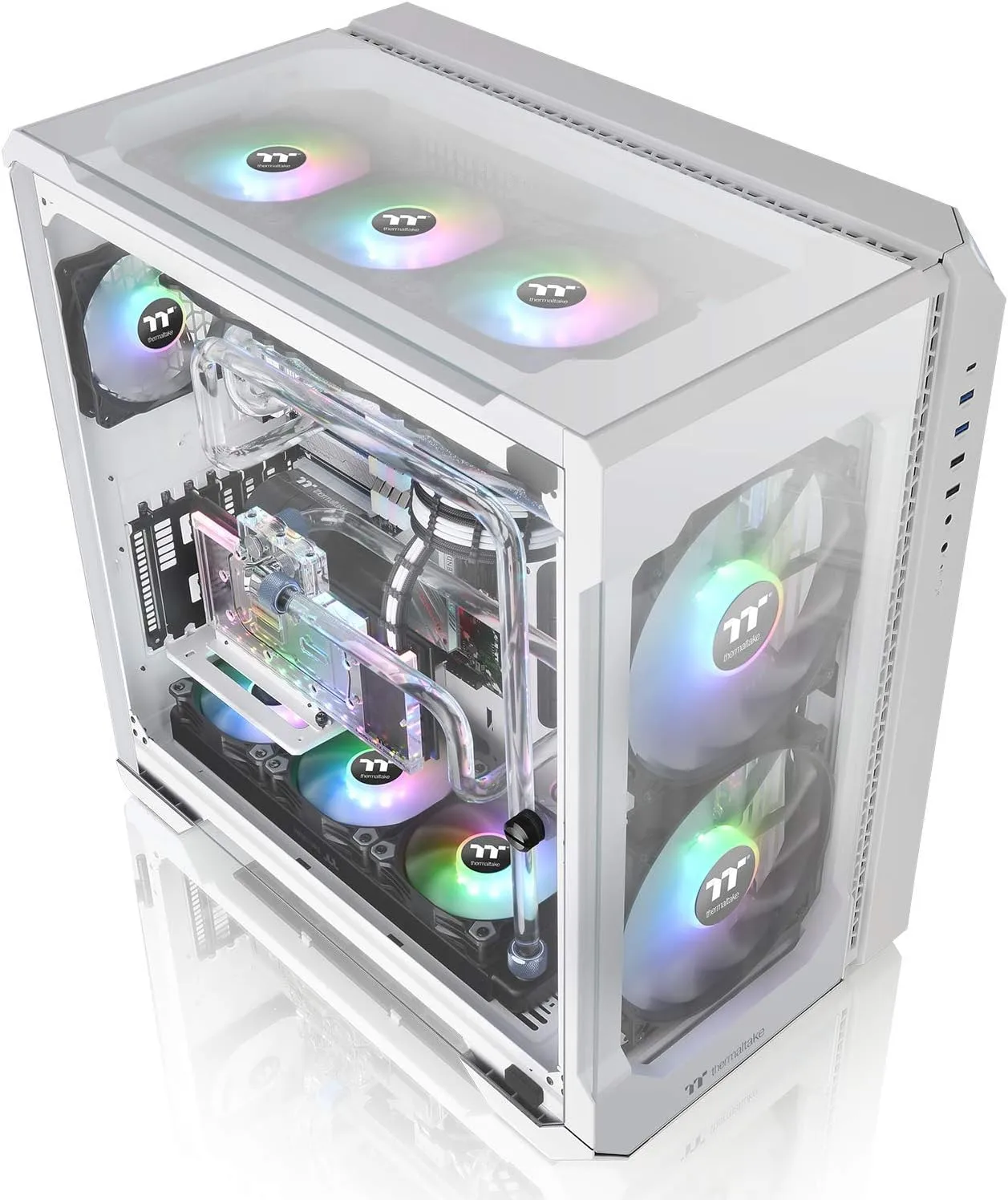

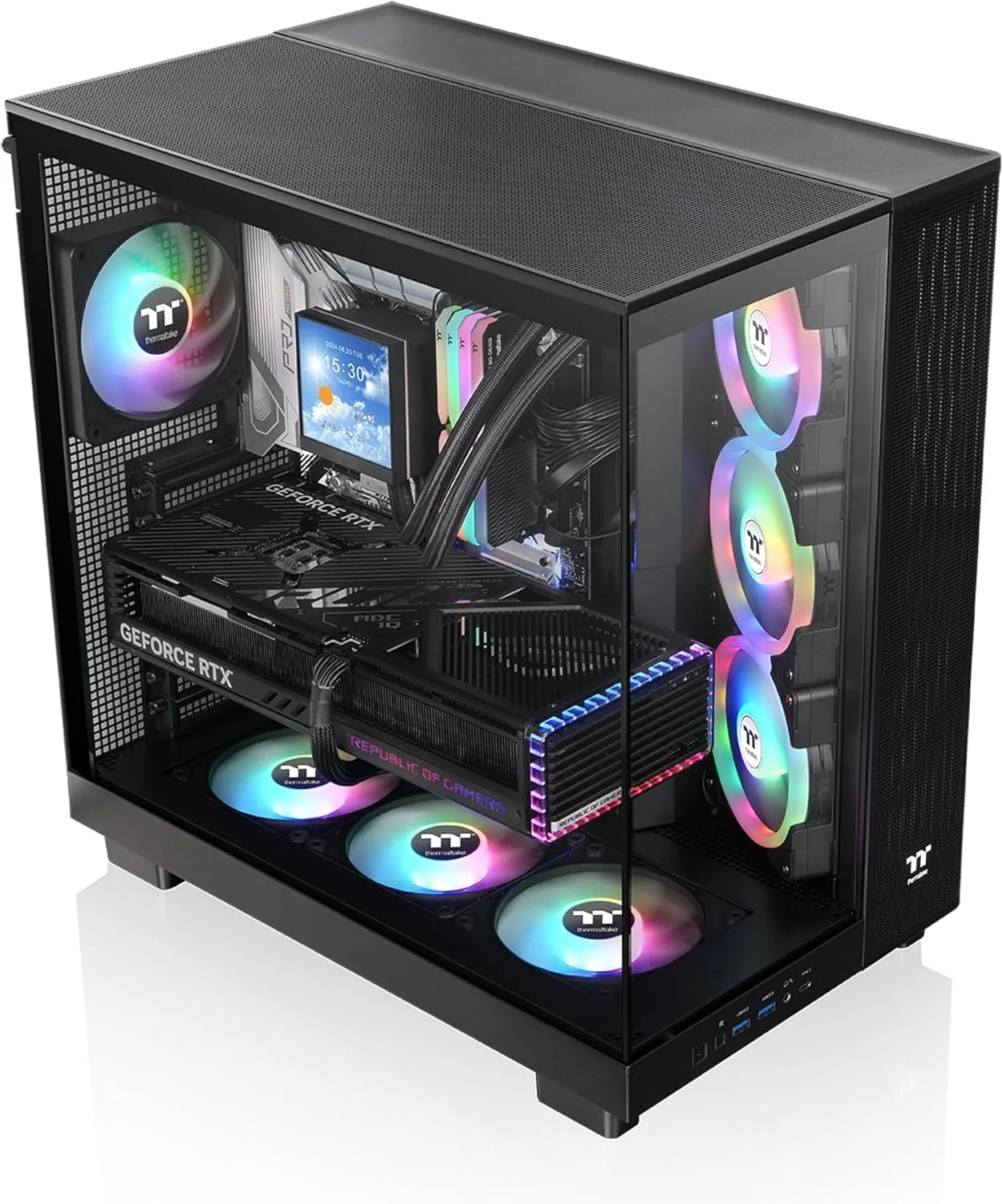

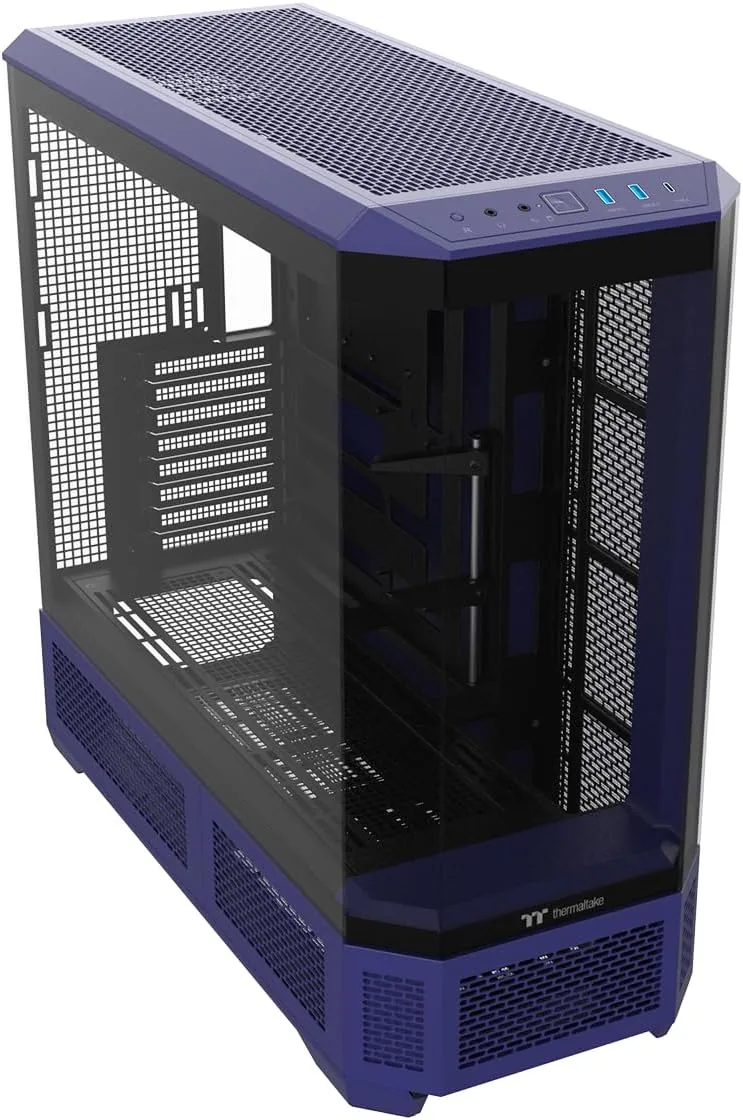

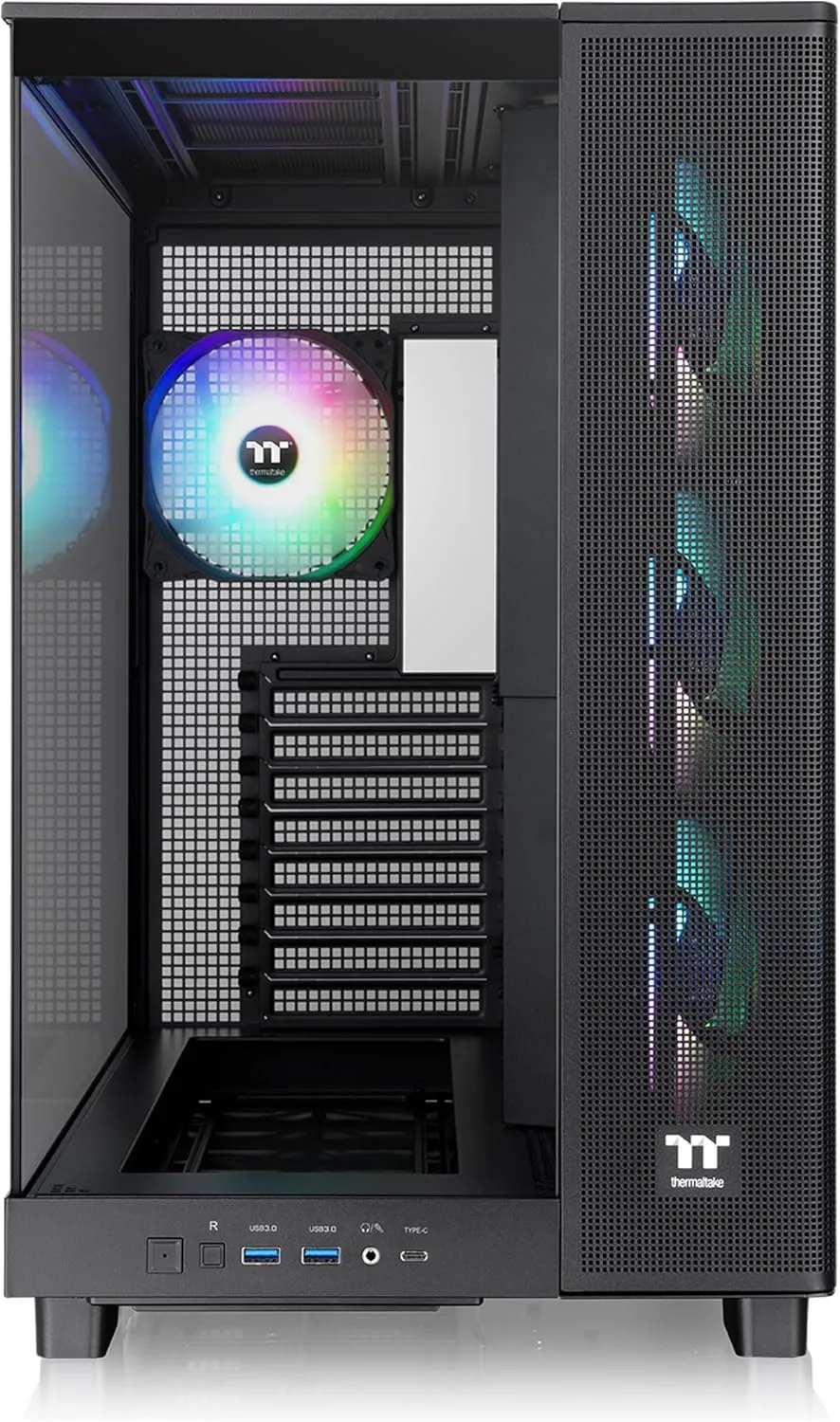

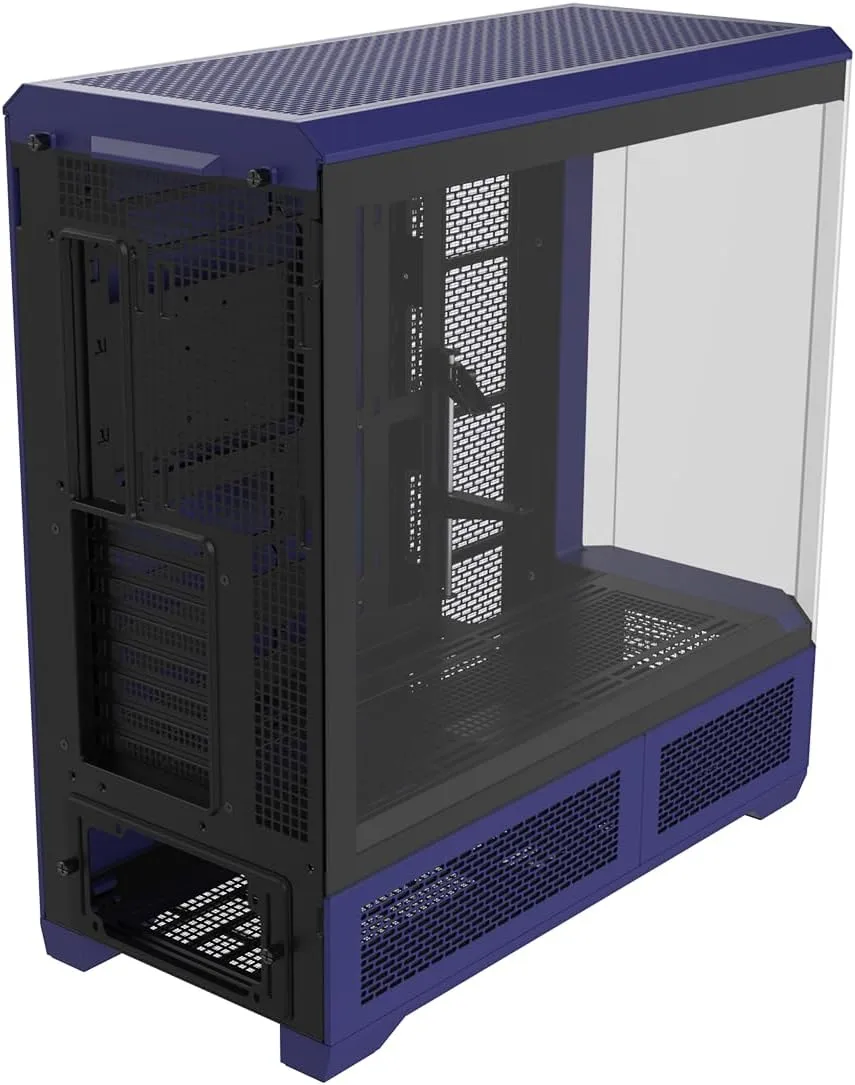

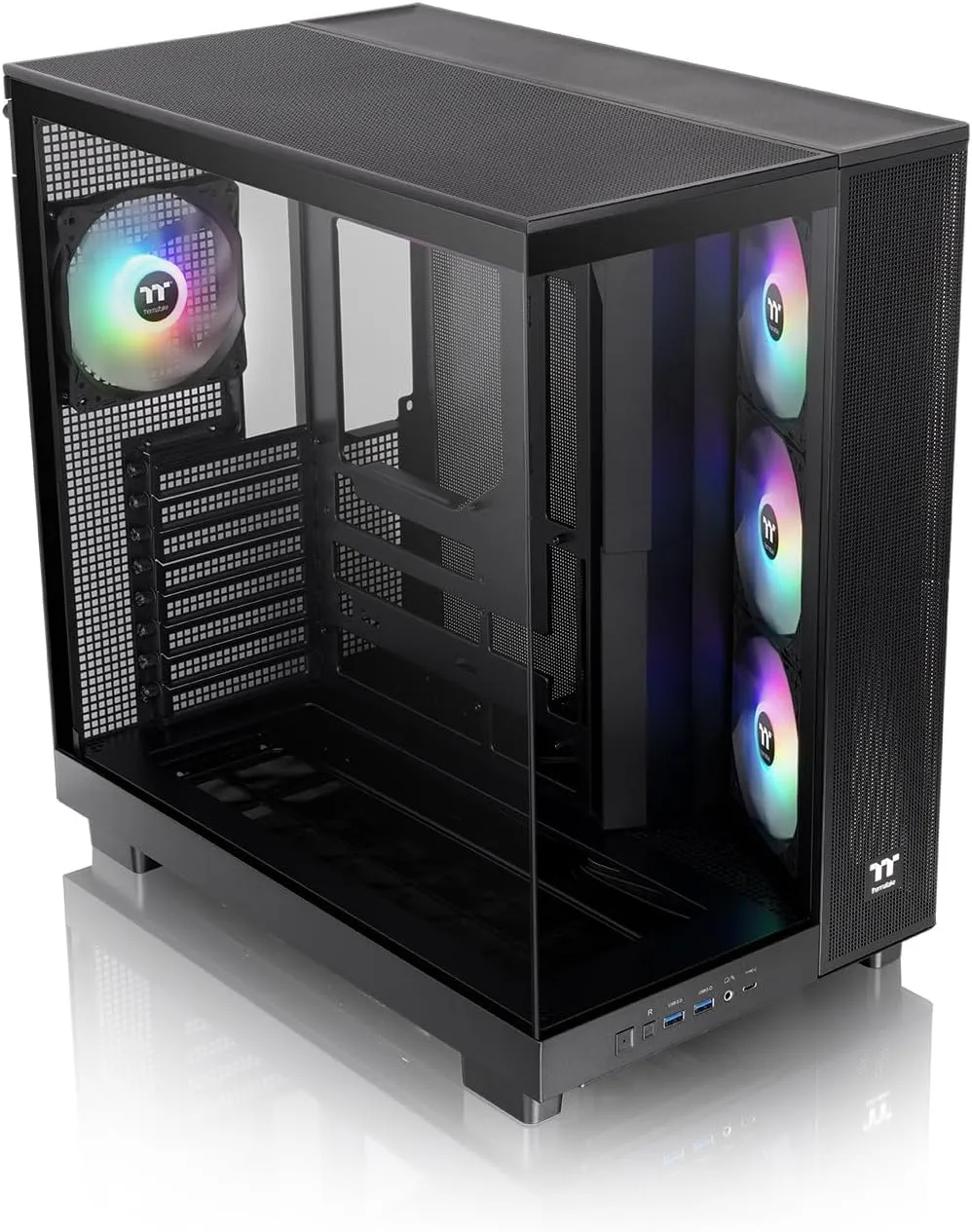

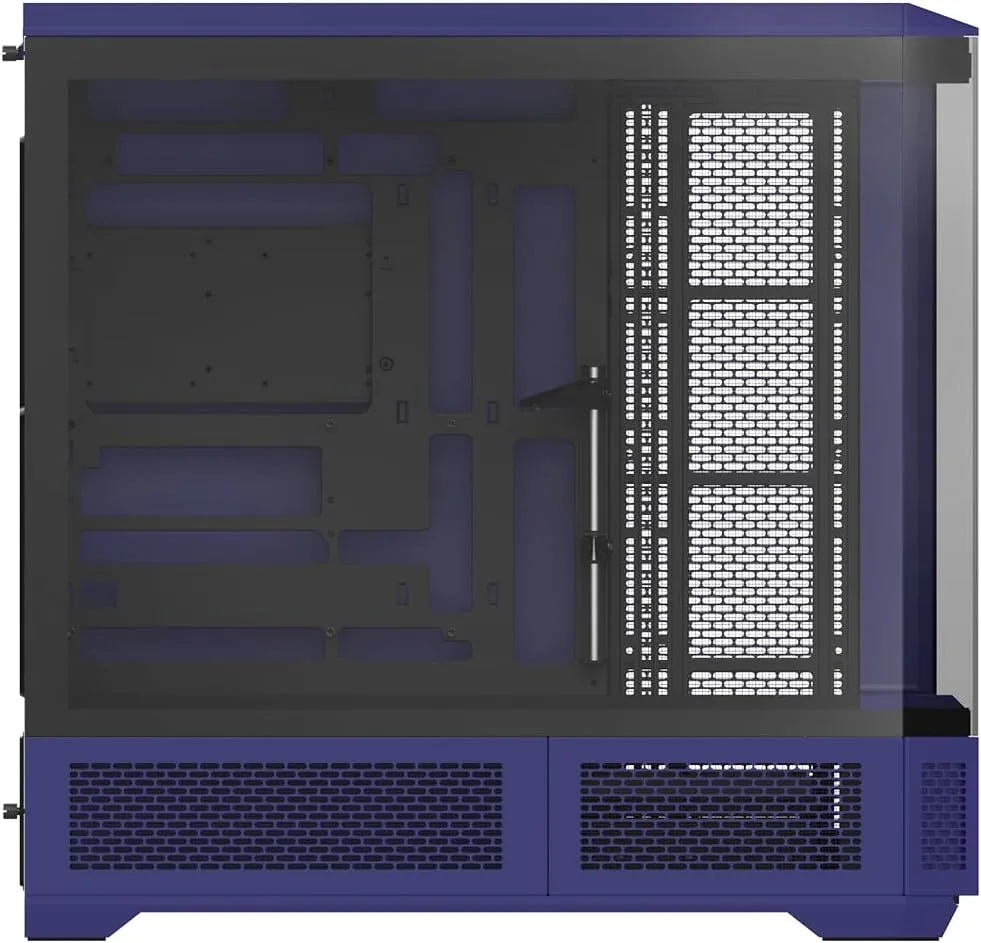

Thermaltake View Series Tempered Glass PC Case
Customize

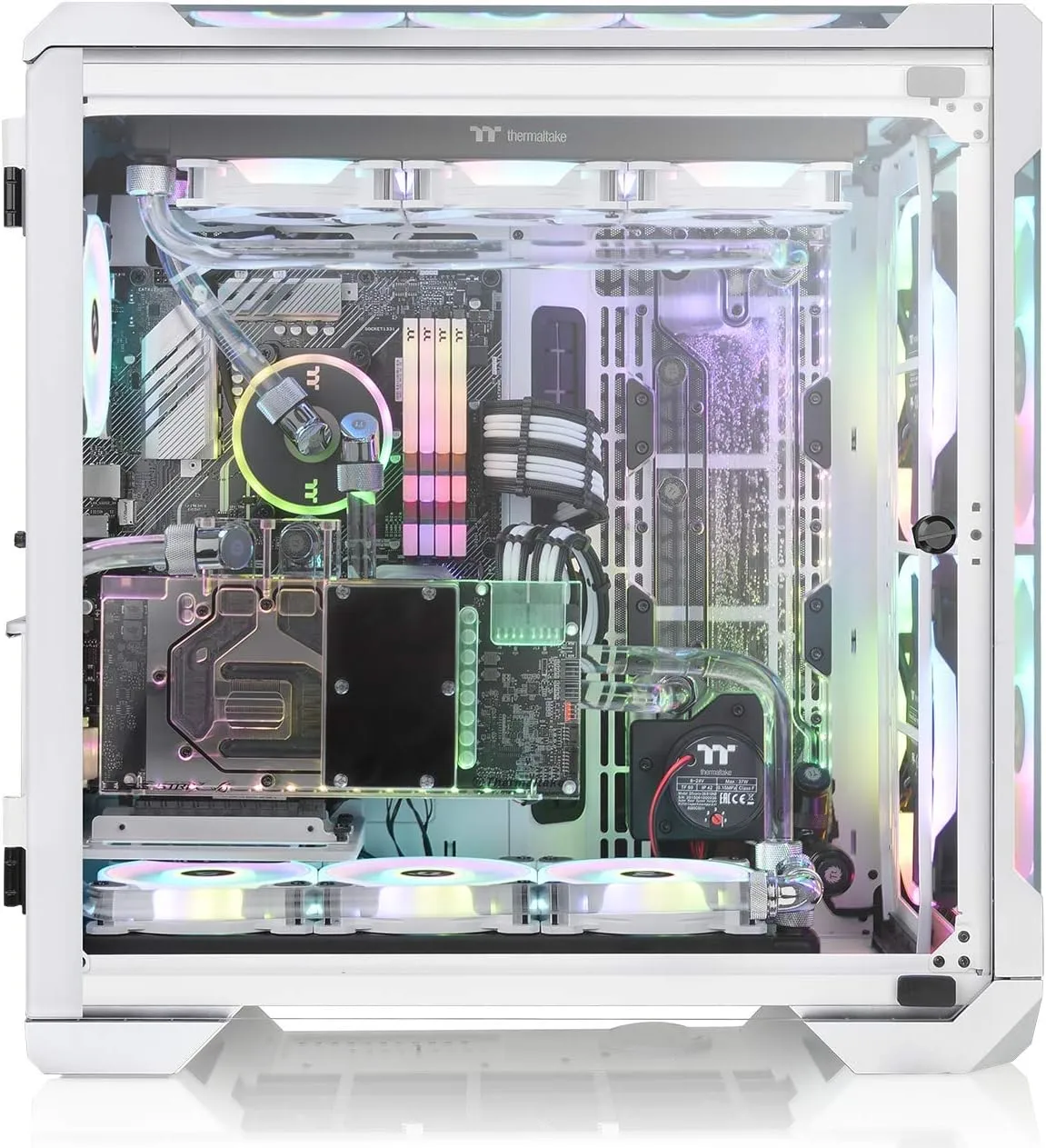

Thermaltake View Series tempered glass PC cases are designed for showcase and high‑performance builds, featuring multiple tempered glass panels for clear internal visibility. The family supports ATX and E‑ATX motherboards, wide GPU clearance, and multiple radiator configurations (including 360mm and 420mm in variants) with extensive fan mounting locations for optimized airflow. Selected models include pre‑installed ARGB cooling and offer features such as rotational PCI‑E slots for vertical GPU mounting, hidden connector motherboard support and enhanced cable management. These chassis are built to accommodate large PSUs, tall CPU coolers and varied drive configurations while highlighting components through premium tempered glass and mesh design elements.

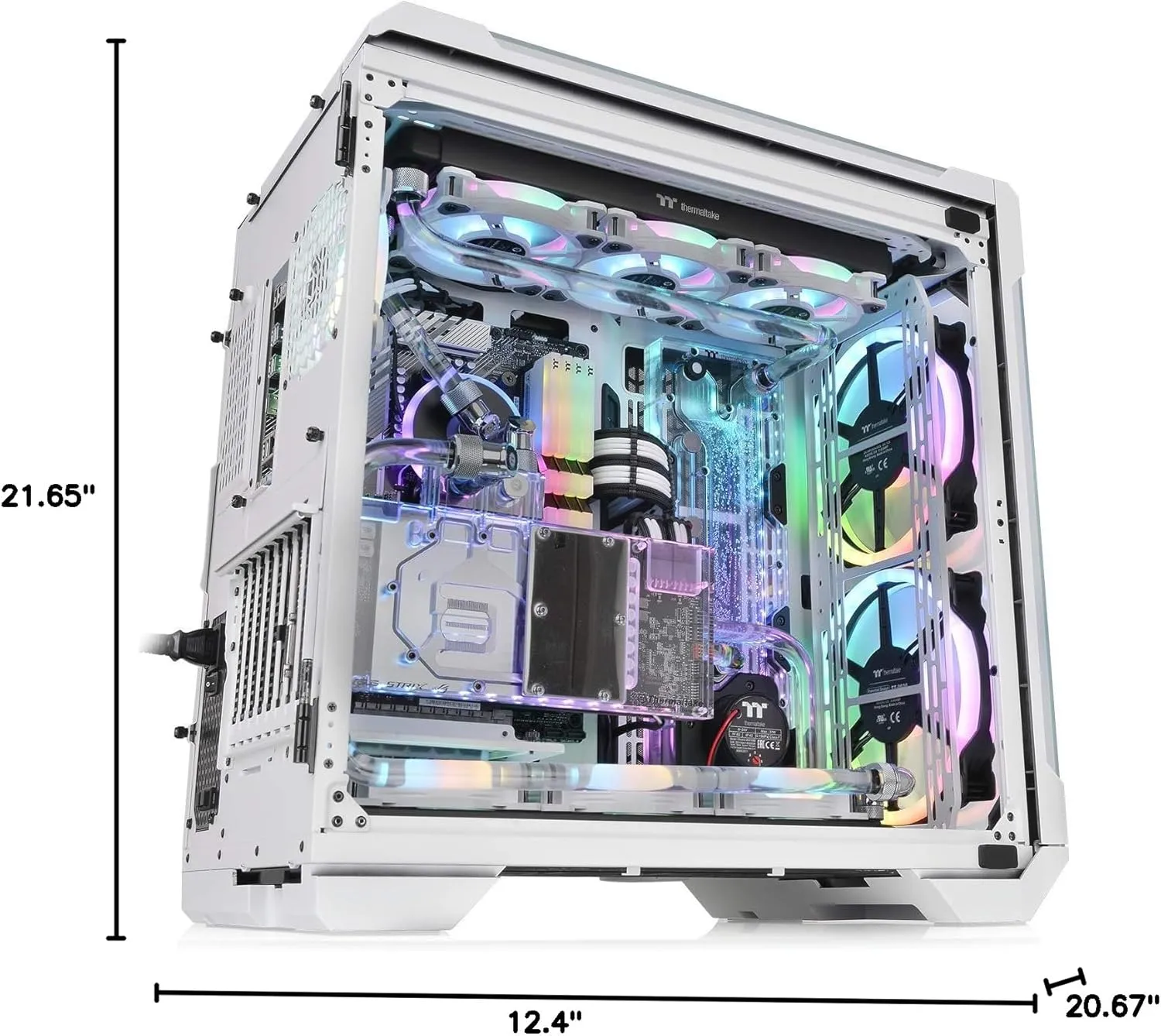

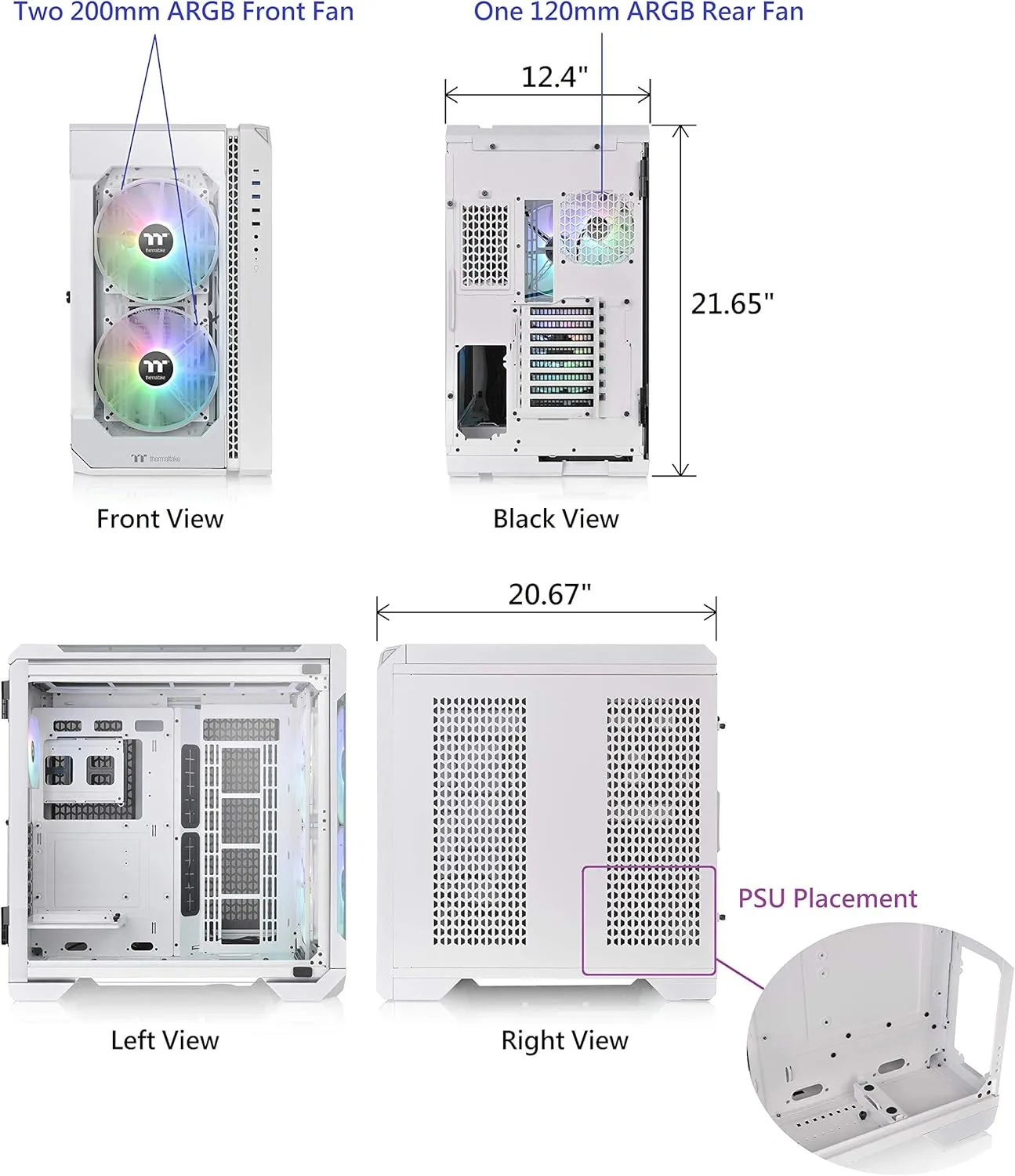

- DIMENSION - 21 65" x 12 4" x 20 67" 32 96 lbs 3 Year
- OUTSTANDING EXPANSION - Max CPU Cooler Height 175mm / Max VGA Length 300mm (With Reservoir) 440mm (Without Reservoir) / Max PSU Length 200mm

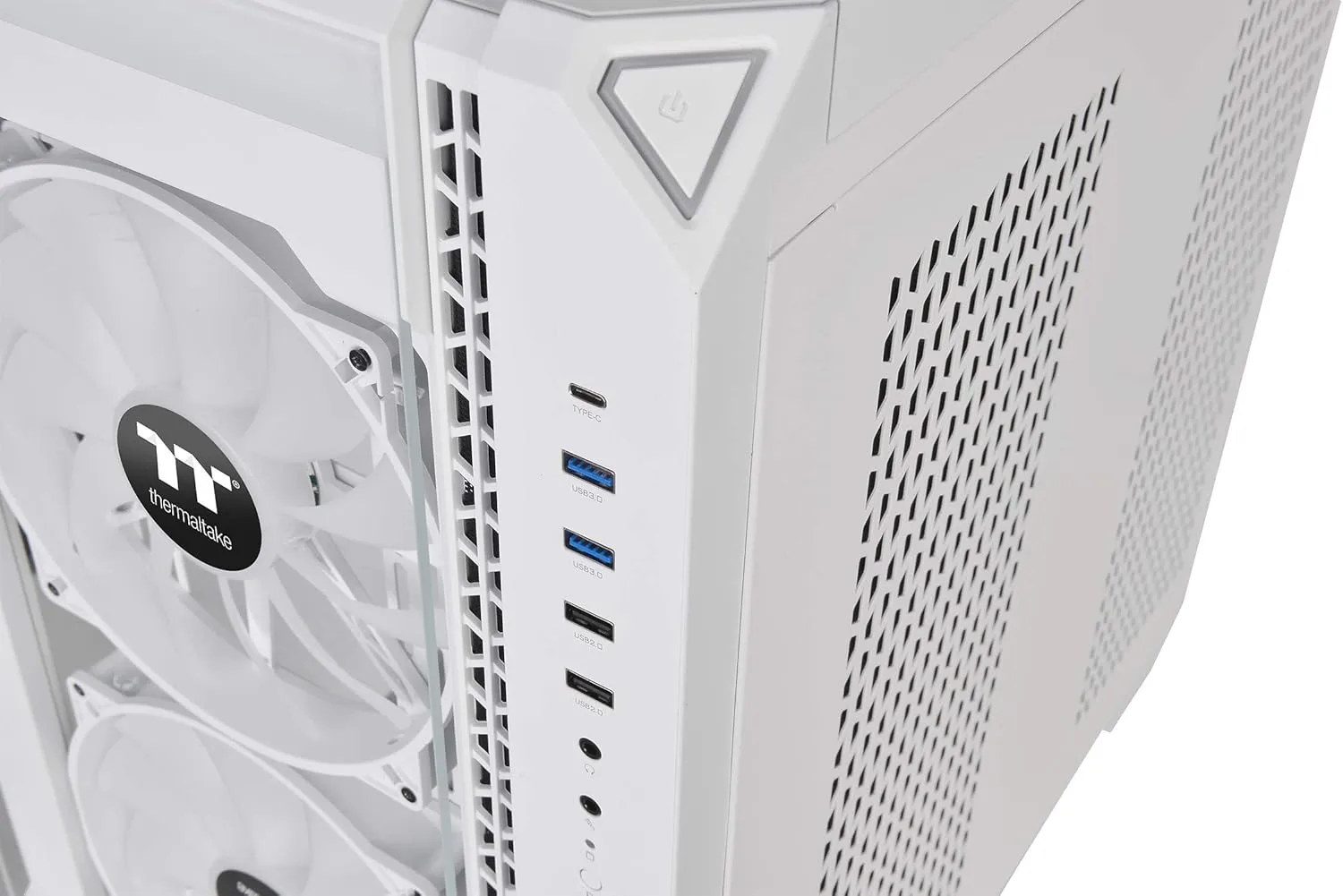

- I/O Port - Type C x 1 USB 3 0 x 2 USB 2 0 x 2 HD Audio x 1 RGB Switch x 1
- Supports Mini ITX Micro ATX ATX E-ATX (up to 10 5") Motherboard

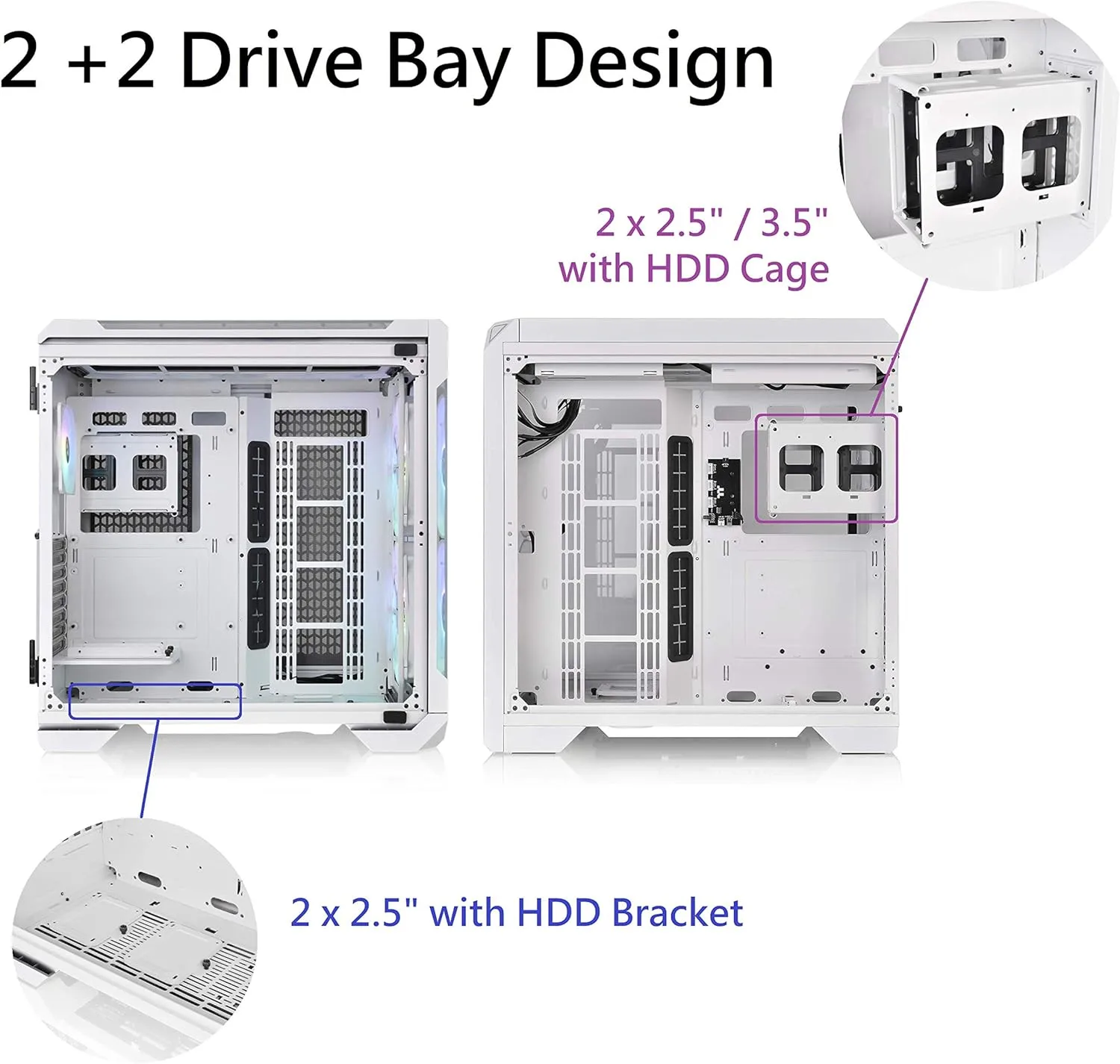

- [2 plus 2 DRIVE BAY] - 2 5"/3 5" x 2 with HDD Cage plus 2 5" x 2 with HDD Bracket

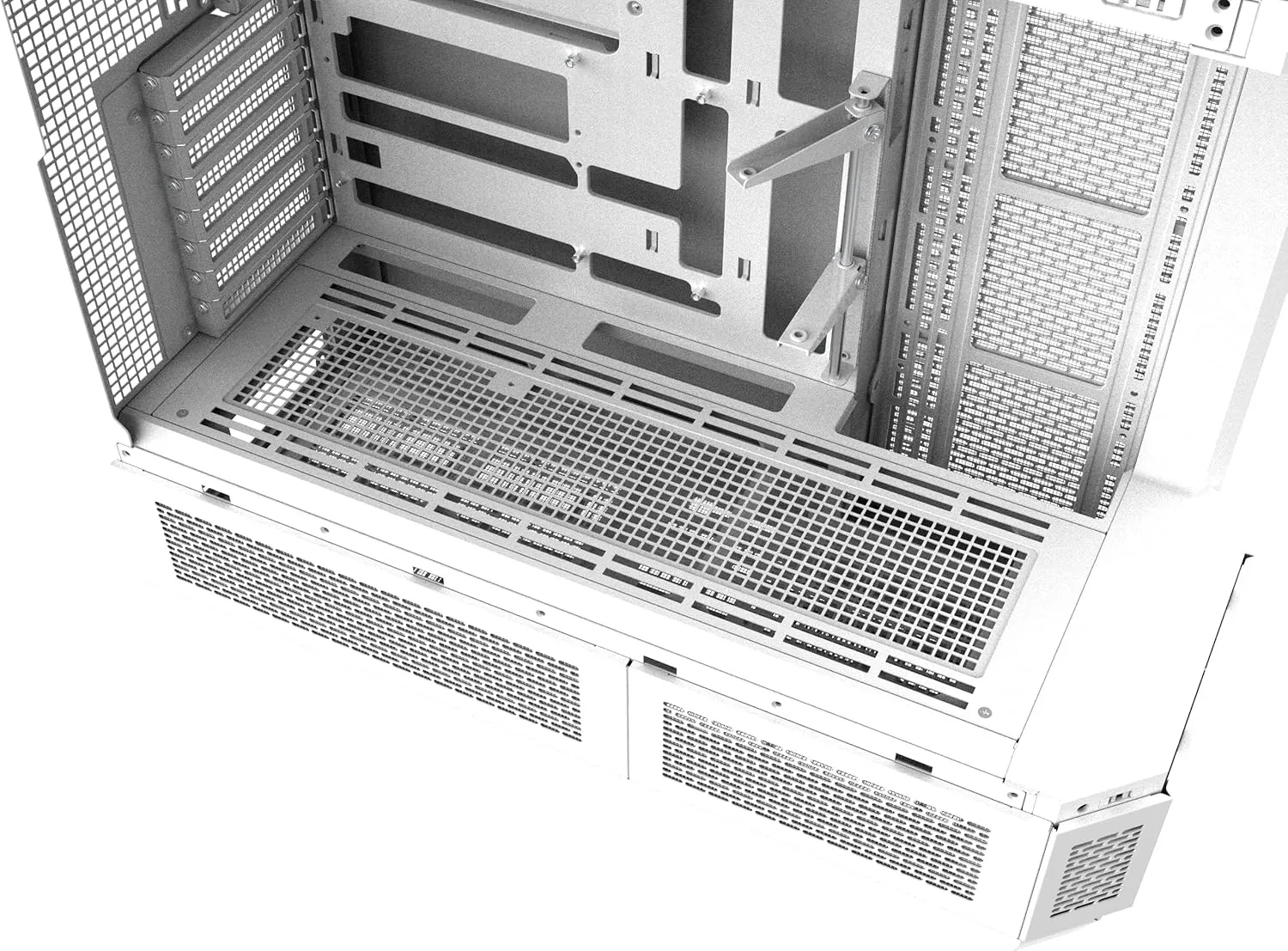

- [SMART SPACE] – Sophisticated space design at the right side of the case provides a neat area for PSU placement and cable management

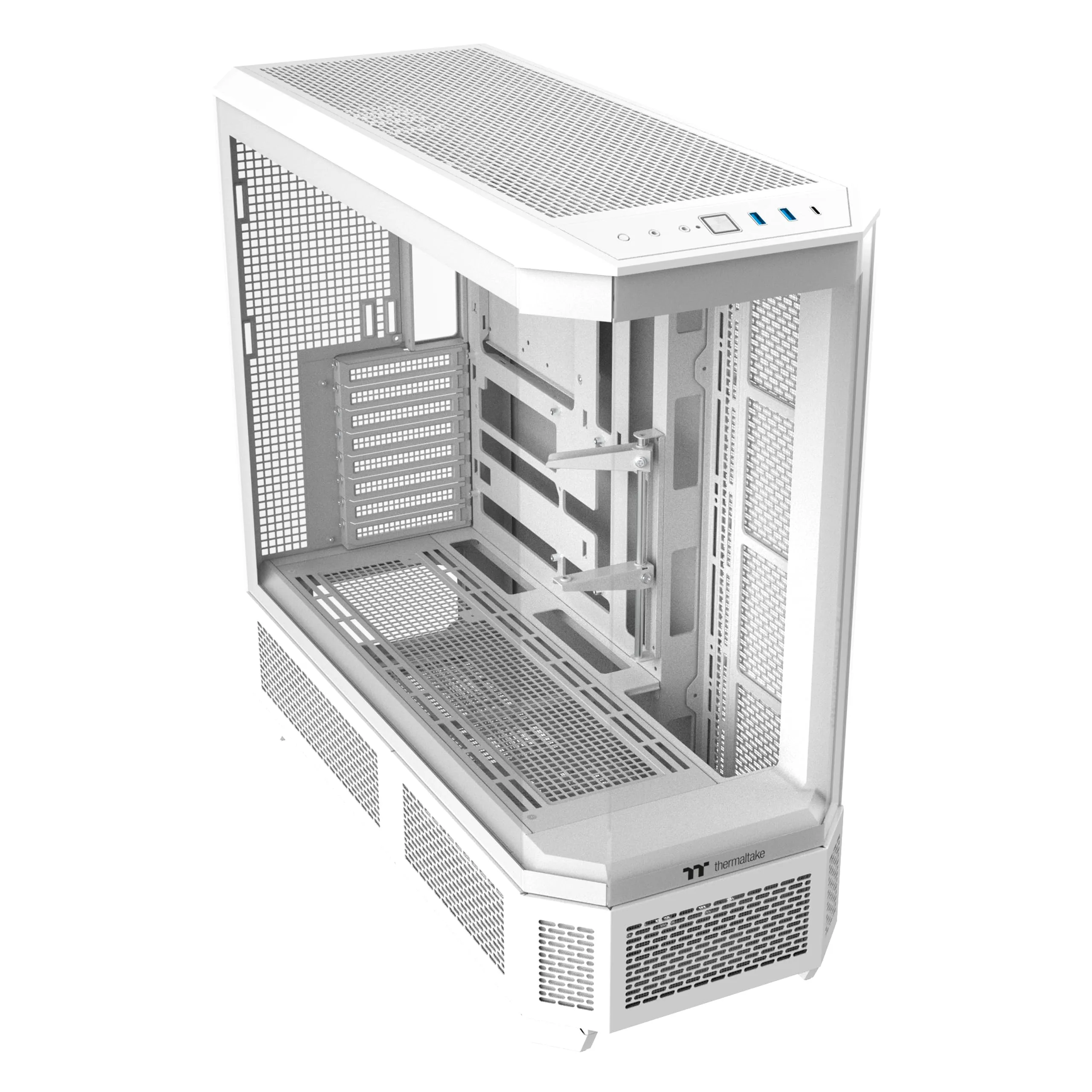

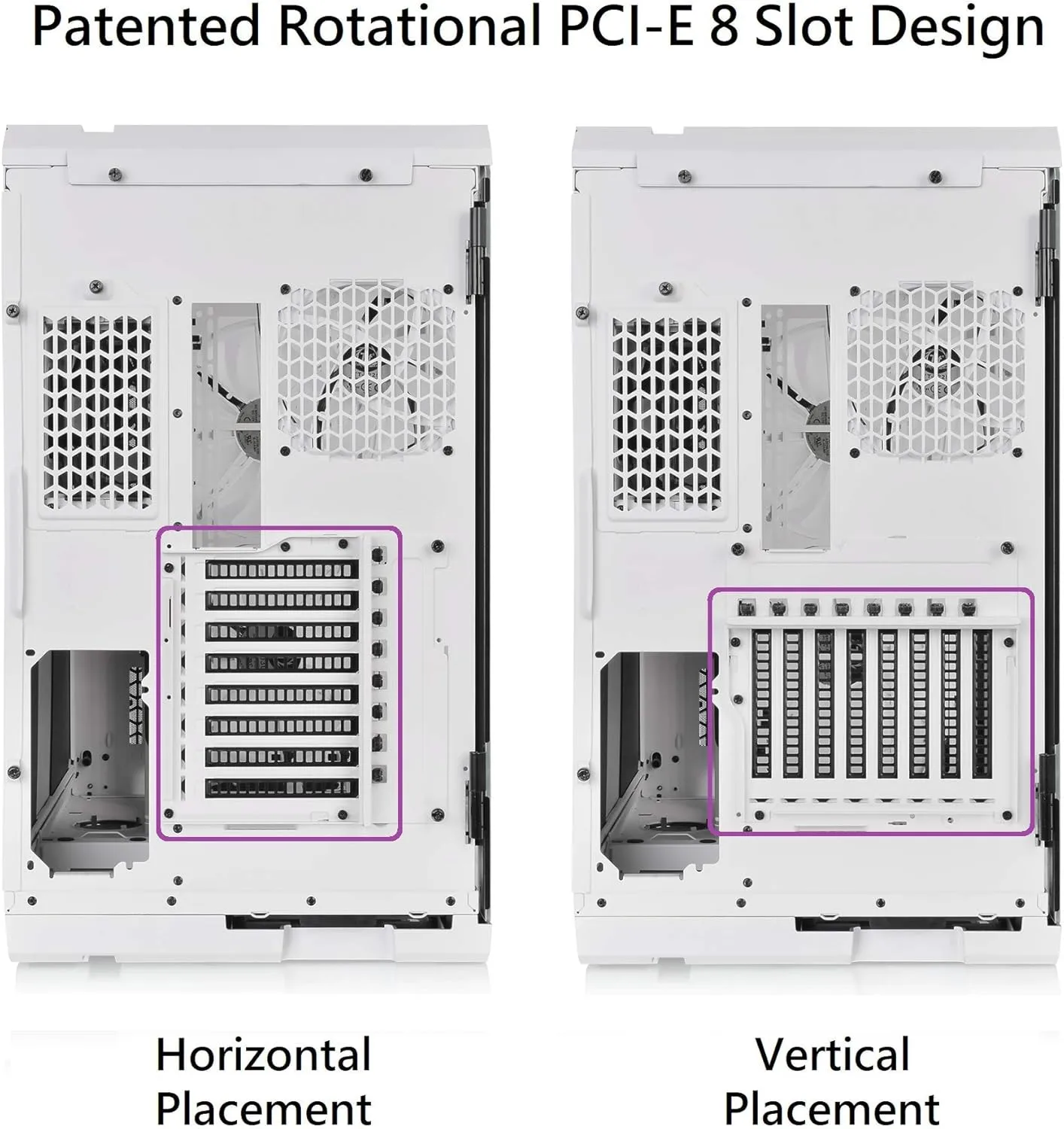

- [PATENTED ROTATIONAL PCI-E 8 SLOTS DESIGN] - With patented rotational PCI-E slots you can choose the way you want to display graphic cards vertically or horizontally

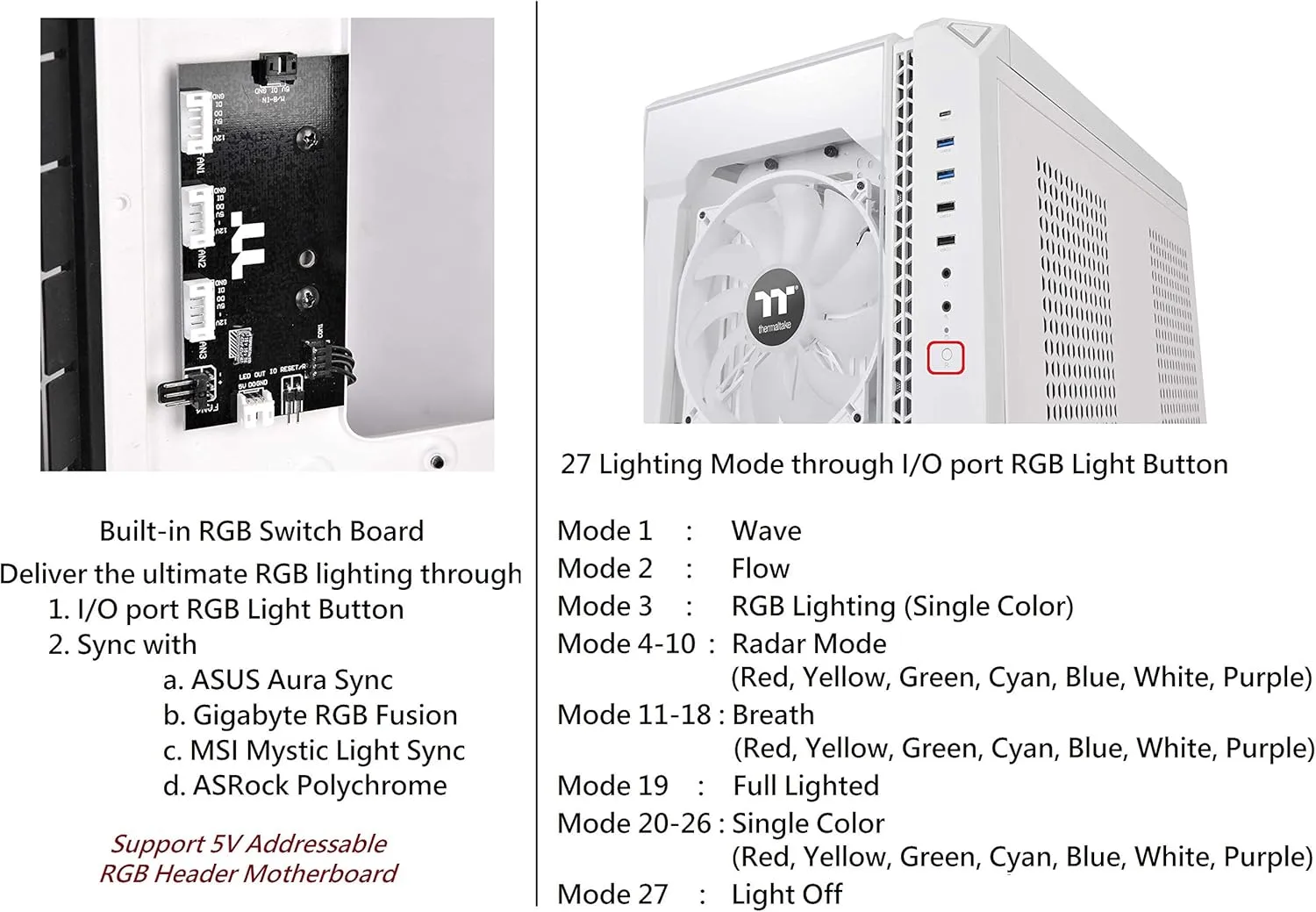

- [27 LED MODES via I/O PORT] - Wave mode/ Flow mode/ RGB lighting (single color)/ Radar mode (Red yellow green Cyan blue White Purple)/ Breath mode (8 Colors)/ Full Lighted mode/ Single Color mode (7 Colors)/ Light Off
- [BUILT-IN DUAL MODE 5V ARGB SWITCH BOARD] - Control light via I/O port button (27 LED modes/7 Colors) or via 5V ARGB Sync motherboard RBG software

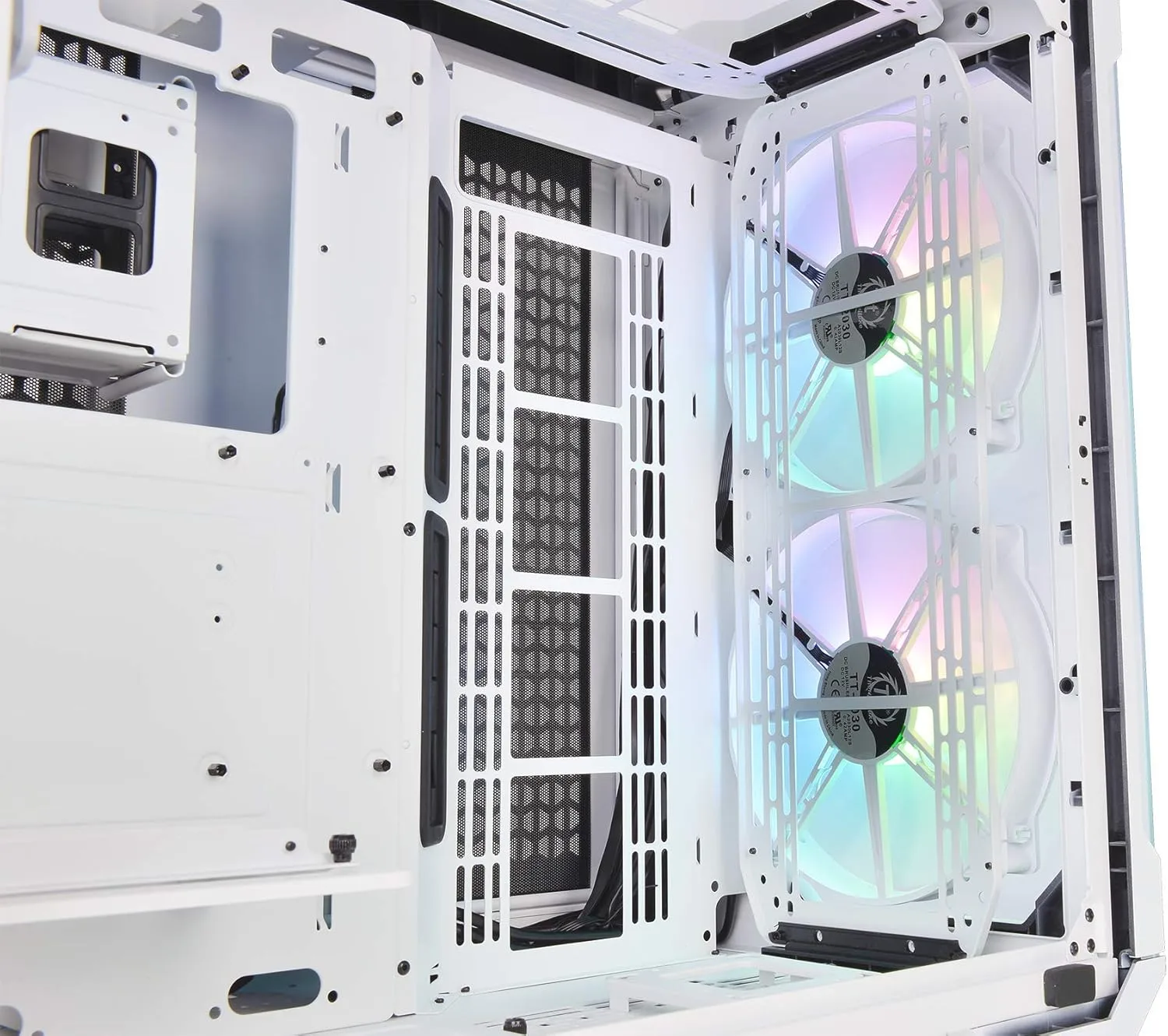

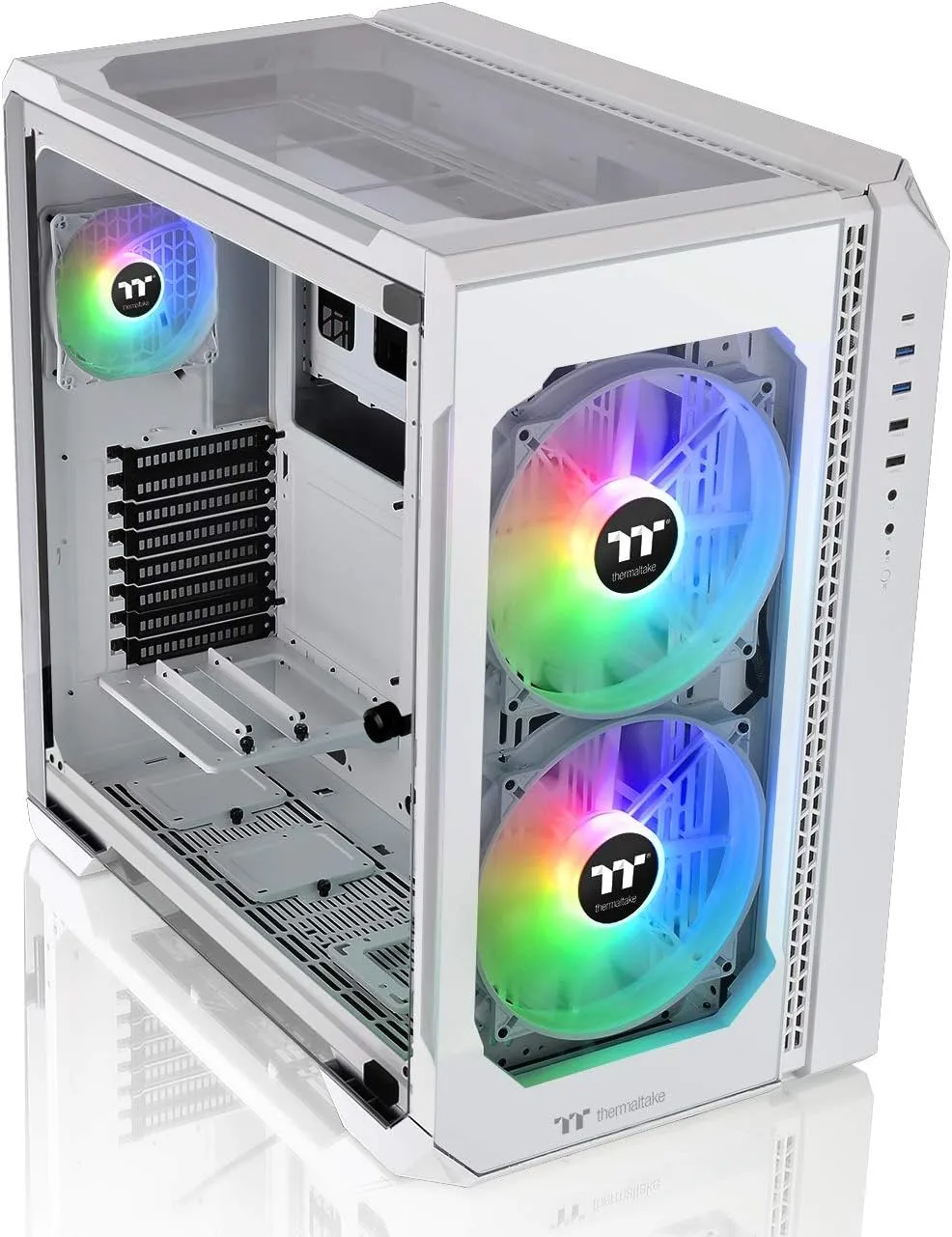

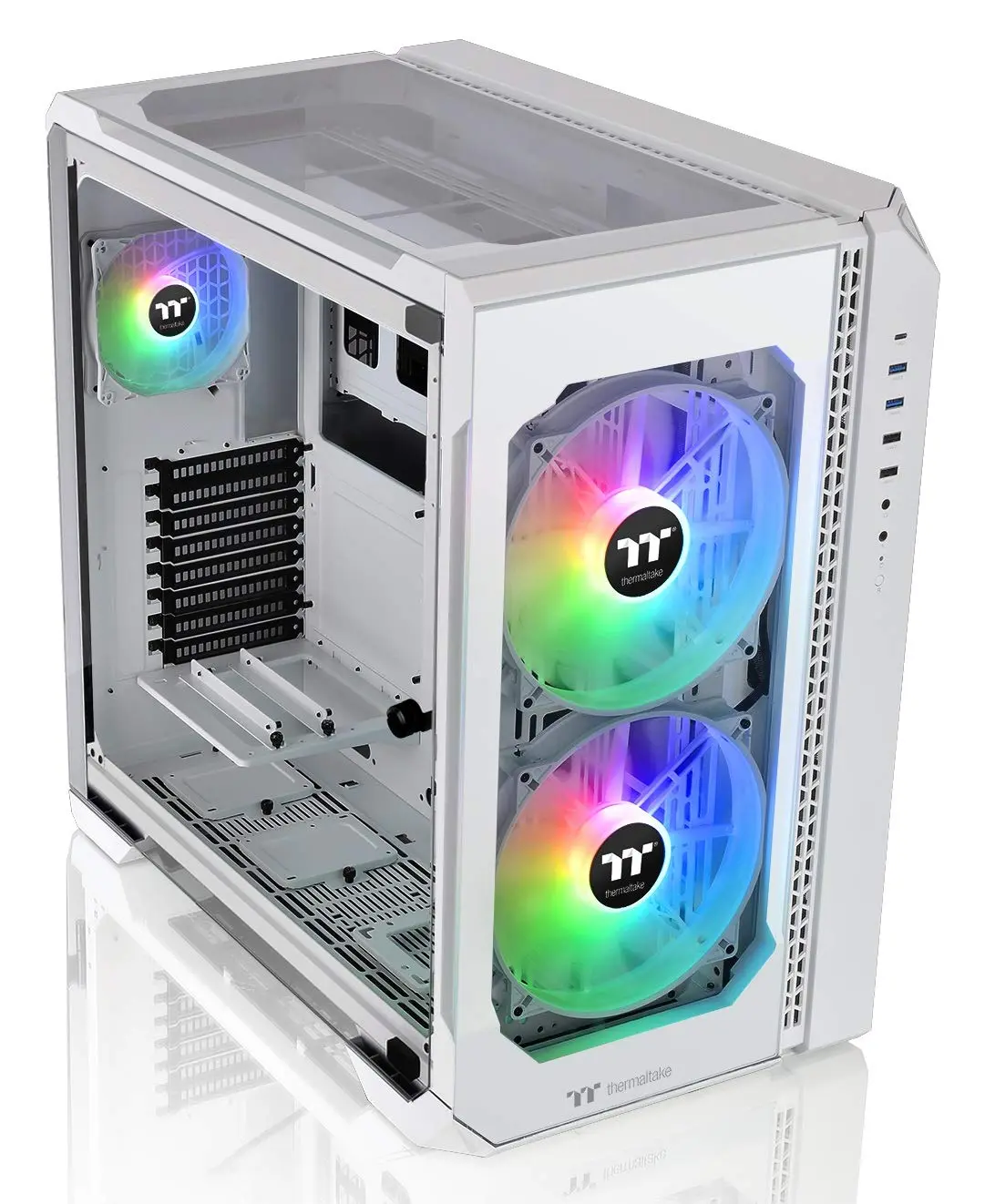

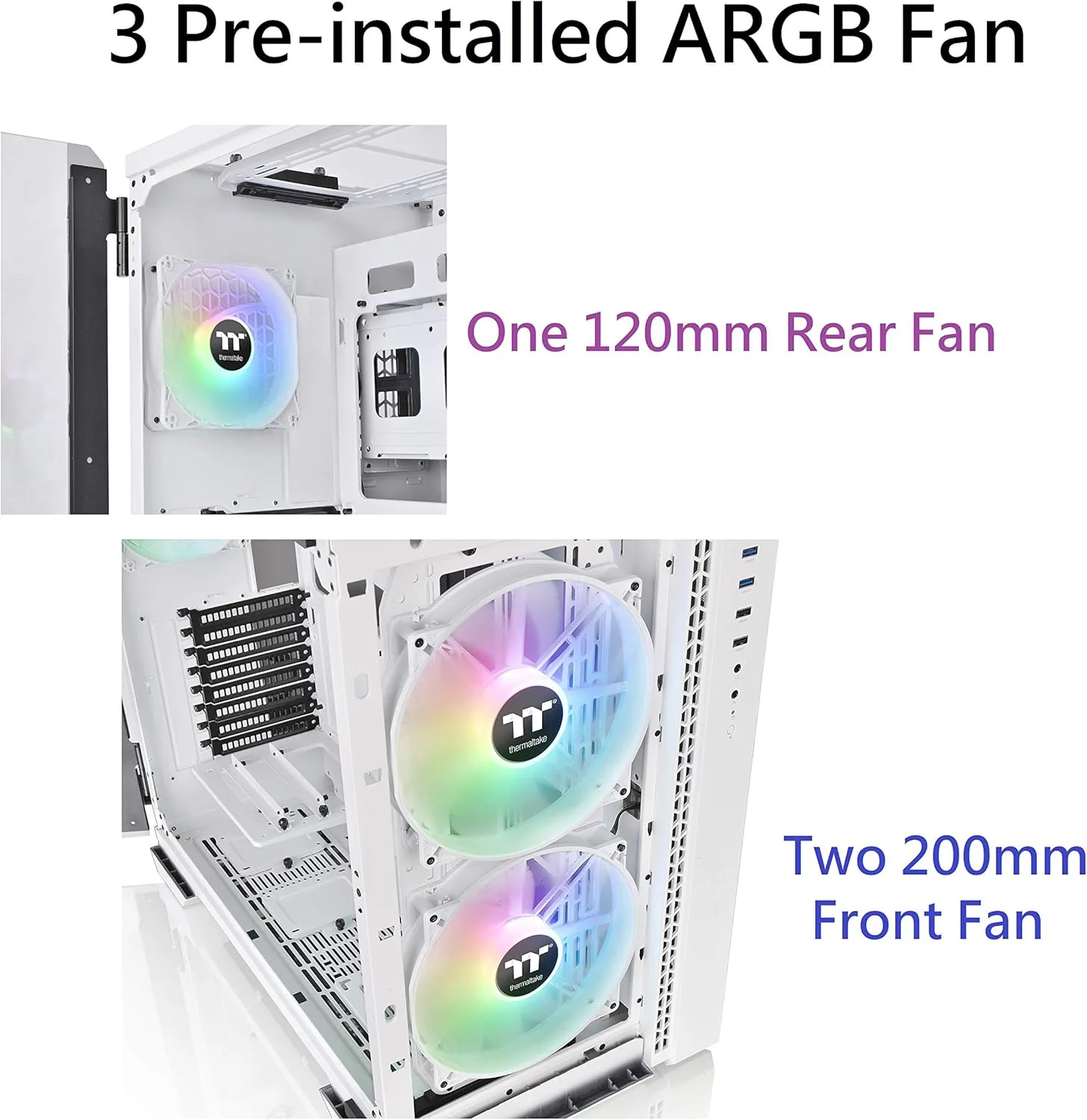

- [LIGHT UP THE SYSTEM] - 2 Pre-installed 200mm 5V Motherboard Sync ARGB fans plus ARGB light bar at front panel (Sync with Asus Gigabyte MSI ASRock Biostar that has 5V addressable RGB header)
Specifications:
| Product Details | |
| Cooling Method | Air, Water |
| Fan Size | 7.87 inches |
| Model Name | View 51 TG Snow |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Power Supply Mounting Type | Bottom Mount |
| Recommended Uses For Product | Gaming |
| Series | View 51 TG Snow |
| Sizing & Dimensions | |
| Weight | 2.2 pounds |
| Technical Specifications | |
| Cooling System Front (intake) | 2 x 200 x 200 x 30mm Addressable RGB fan (Fixed 600rpm, 24dBA) |
| Cooling System Rear (exhaust) | 1 x 120 x 120 x 25mm Addressable RGB fan (Fixed 1000rpm, 27.2 dBA) |

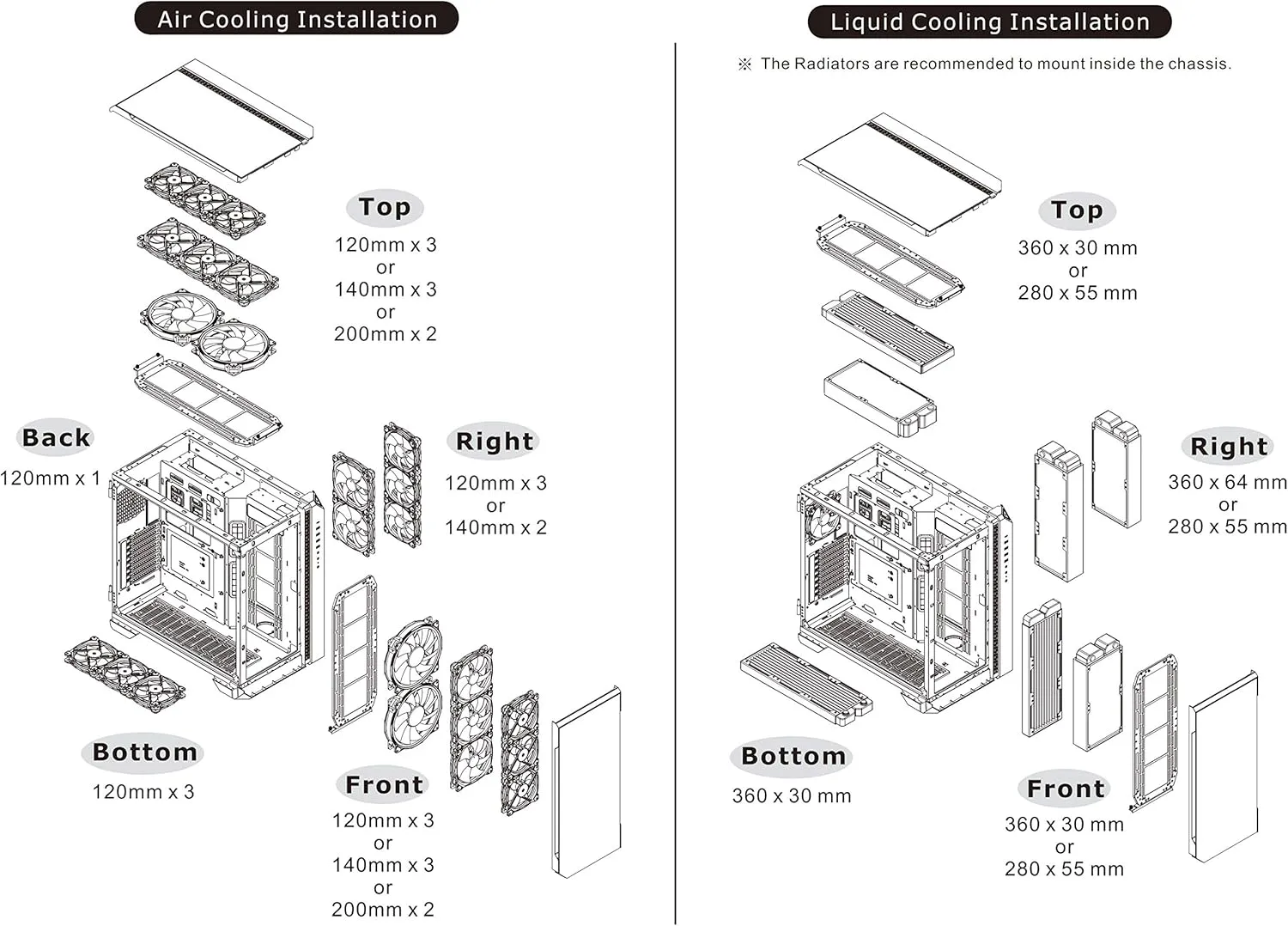

| Fan Support (Front) | 3 x 120mm, 3 x 140mm, 2 x 200mm |
| Fan Support (Rear/Right/Bottom) | Rear: 1 x 120mm; Right: 3 x 120mm, 2 x 140mm; Bottom: 3 x 120mm |

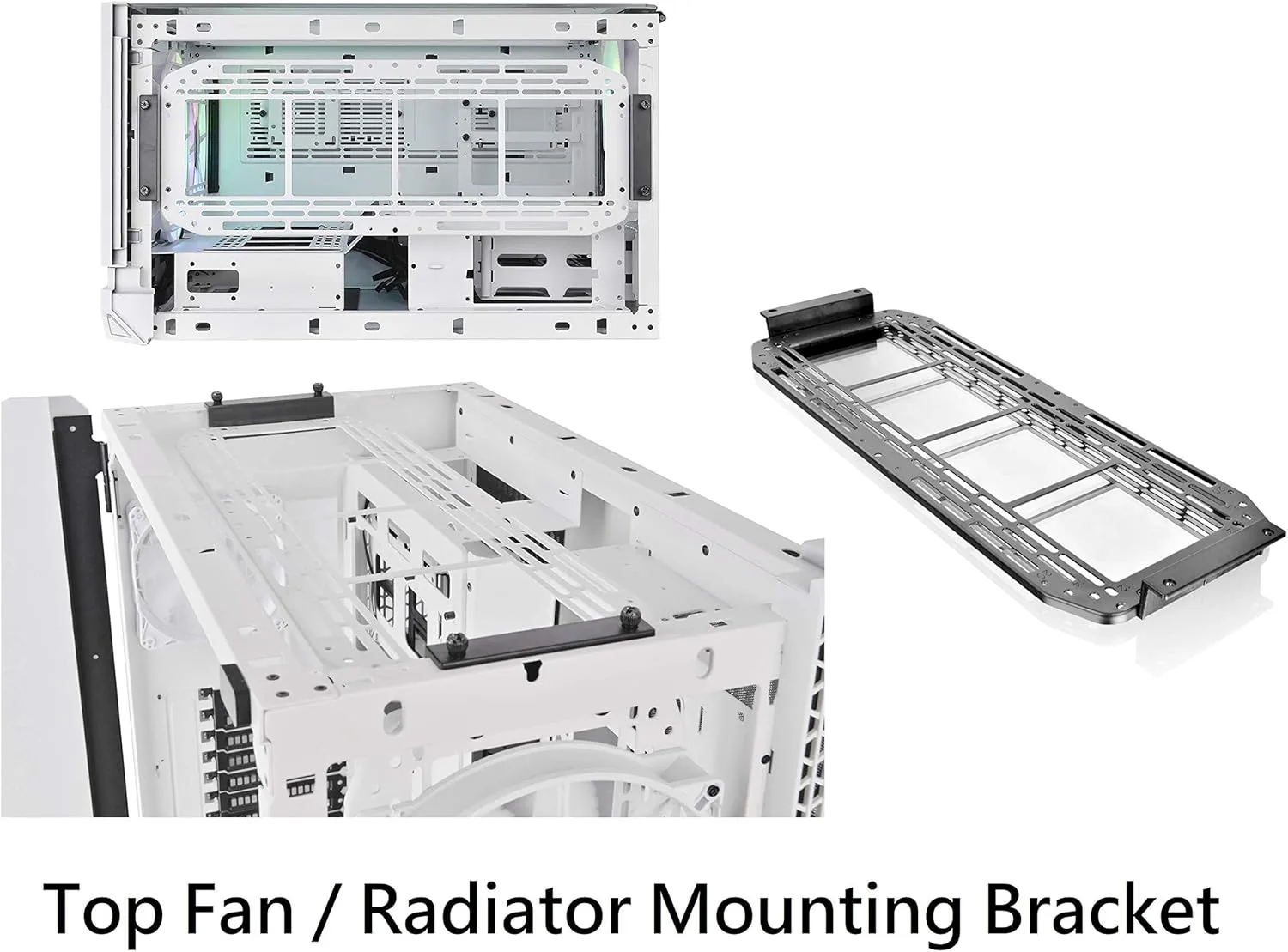

| Fan Support (Top) | 3 x 120mm, 3 x 140mm, 2 x 200mm |
| Motherboard Compatability | ATX, Micro ATX, Mini ITX, E-ATX (up to 10.5" wide) |
| Radiator Support (Front/Top/Right/Bottom) | Front: 14.17 inches or 11.02 inches; Top: 14.17 inches or 11.02 inches; Right: 14.17 inches or 11.02 inches; Bottom: 14.17 inches |
