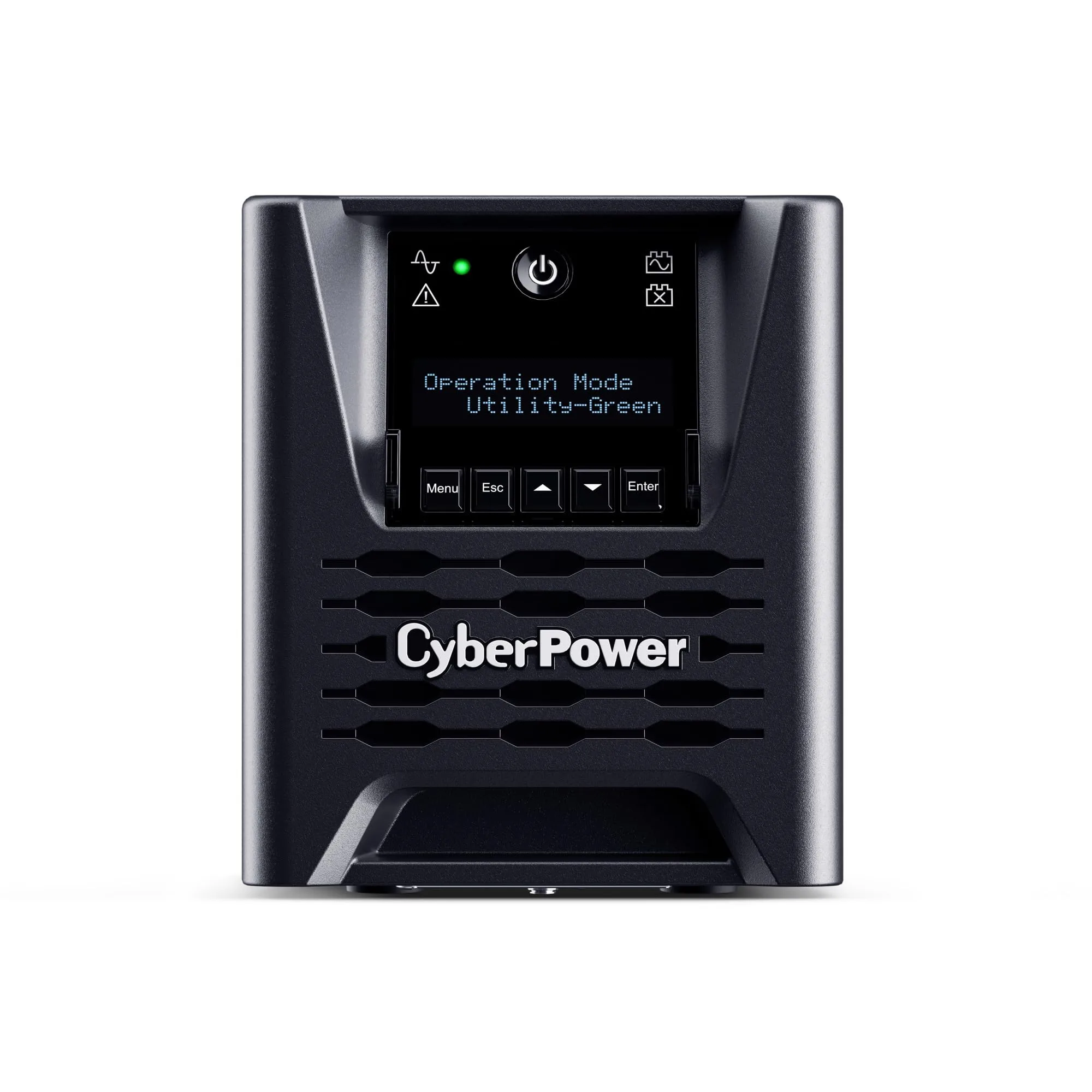

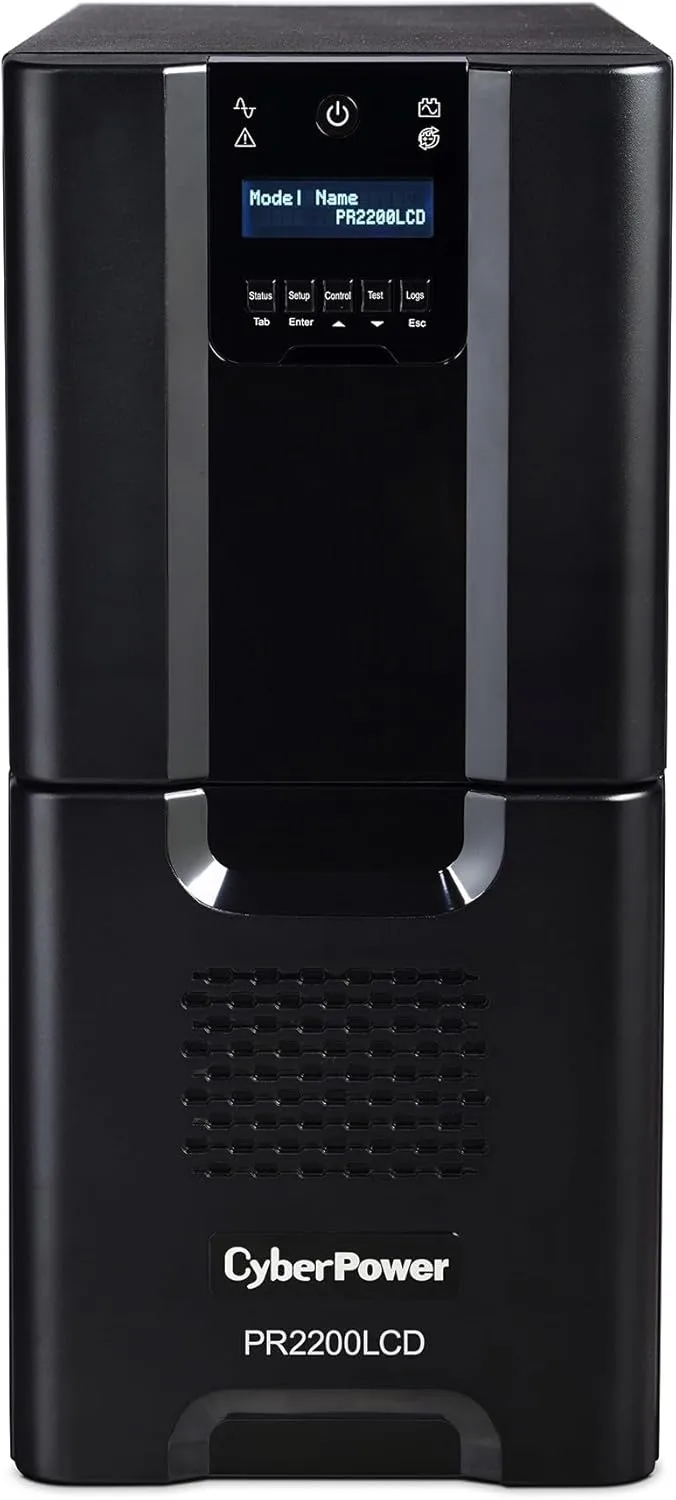

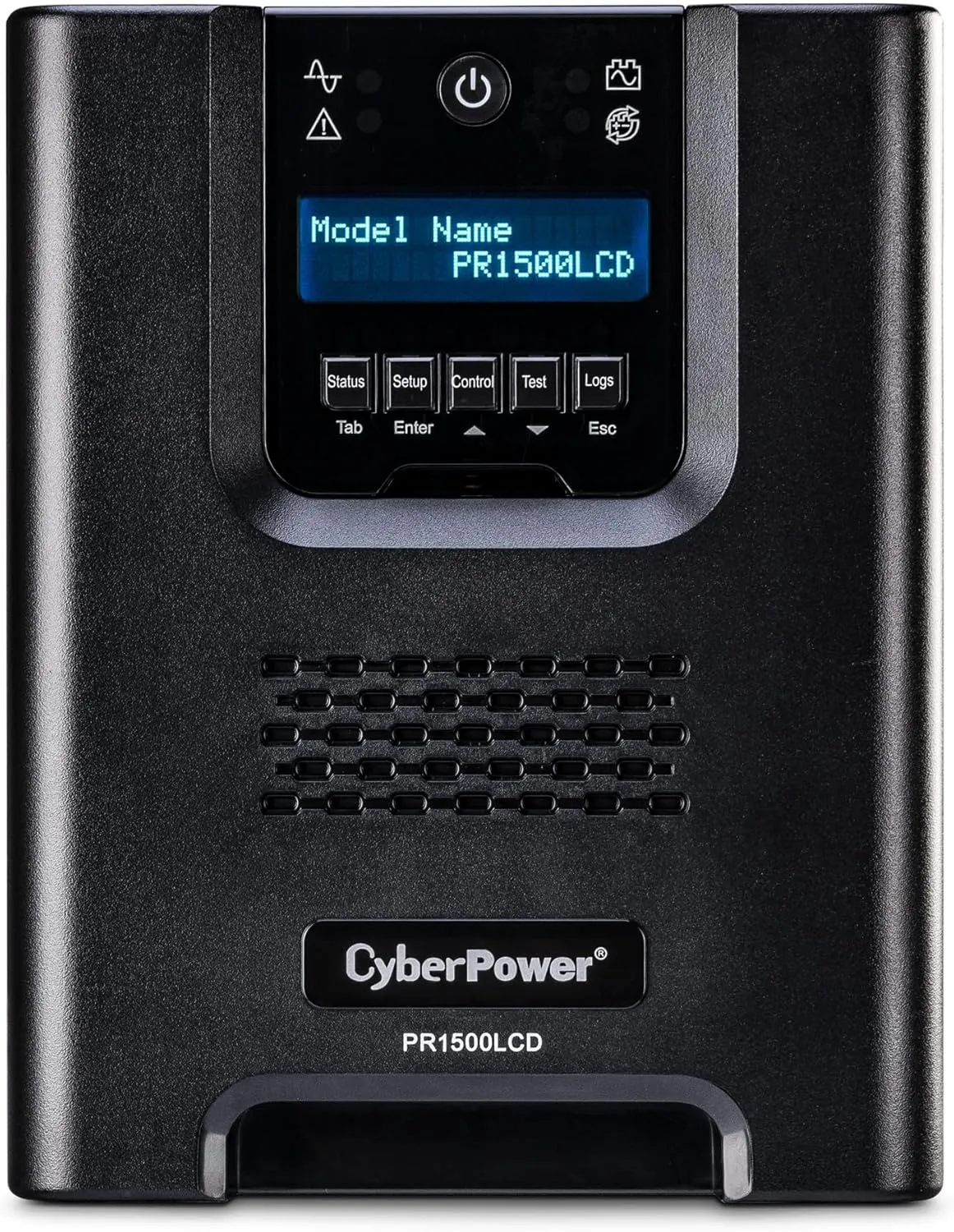

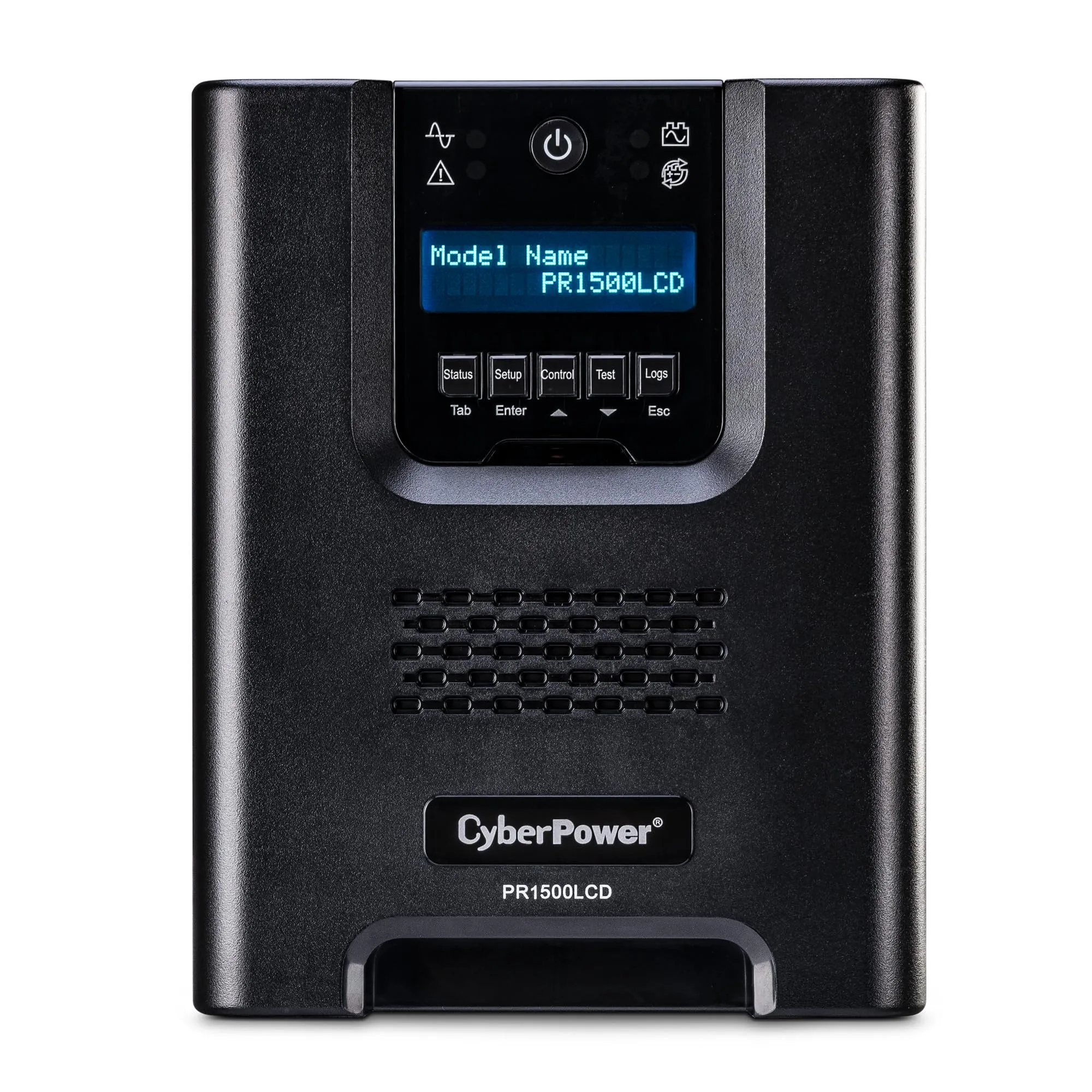

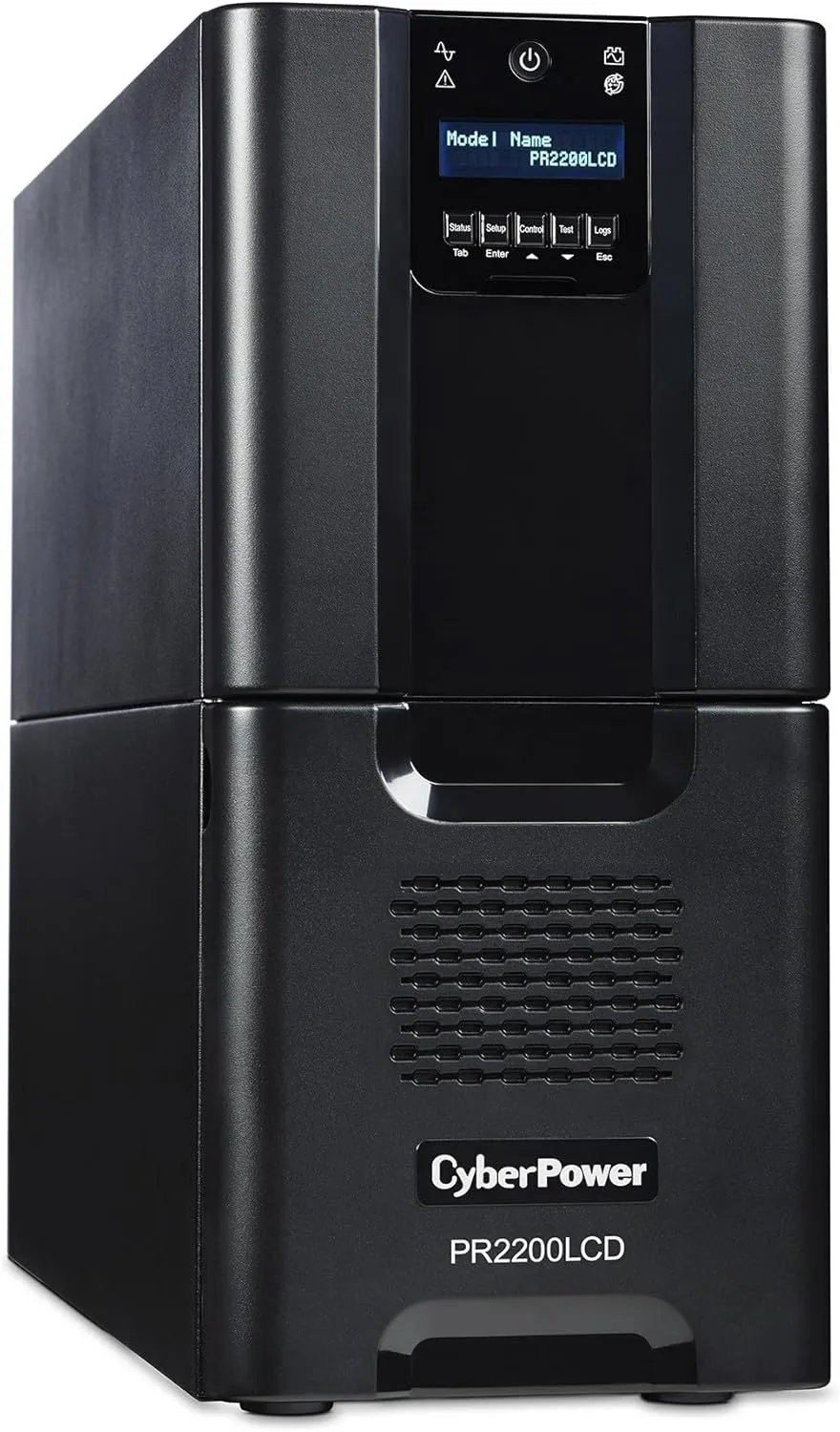

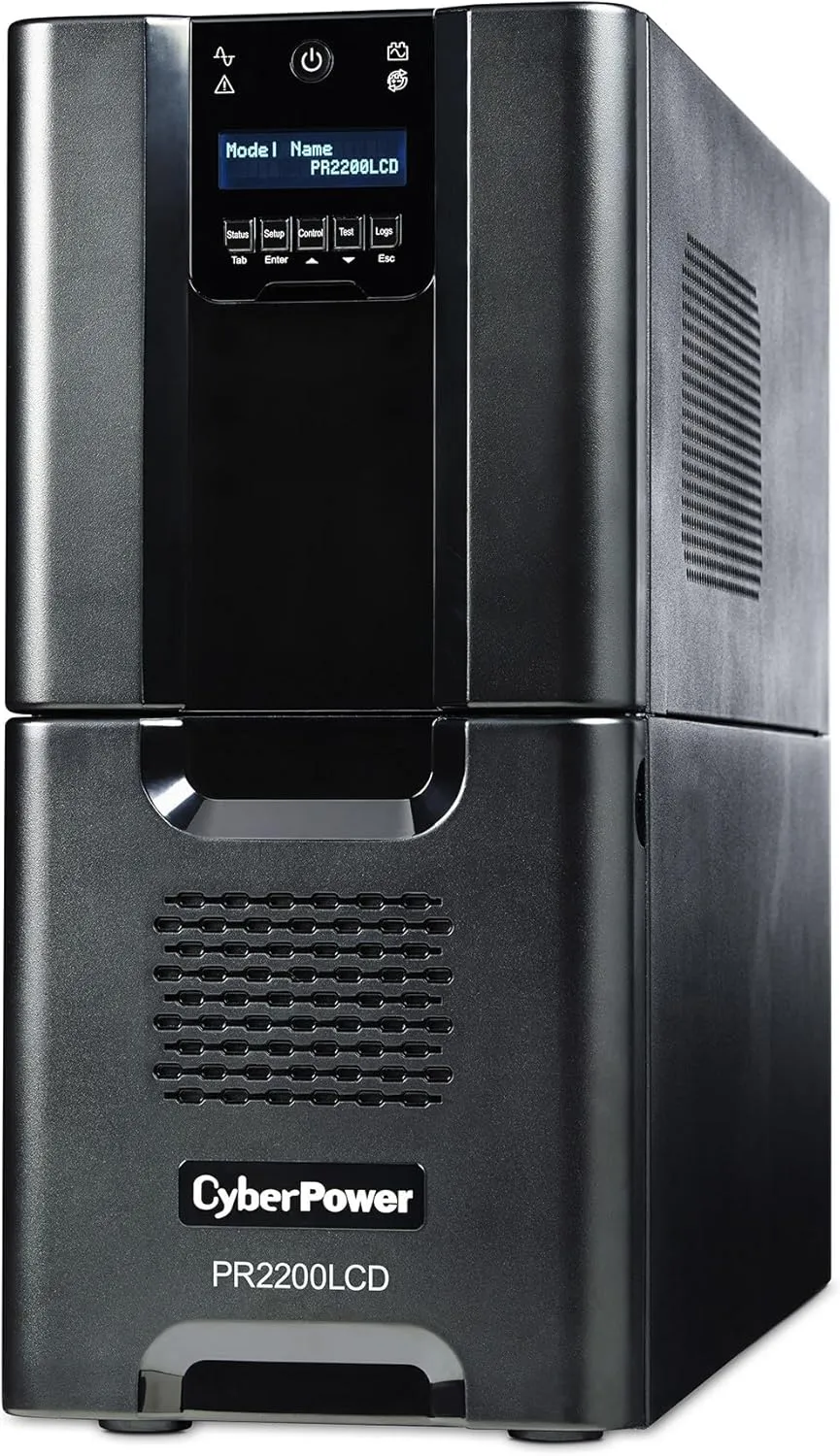

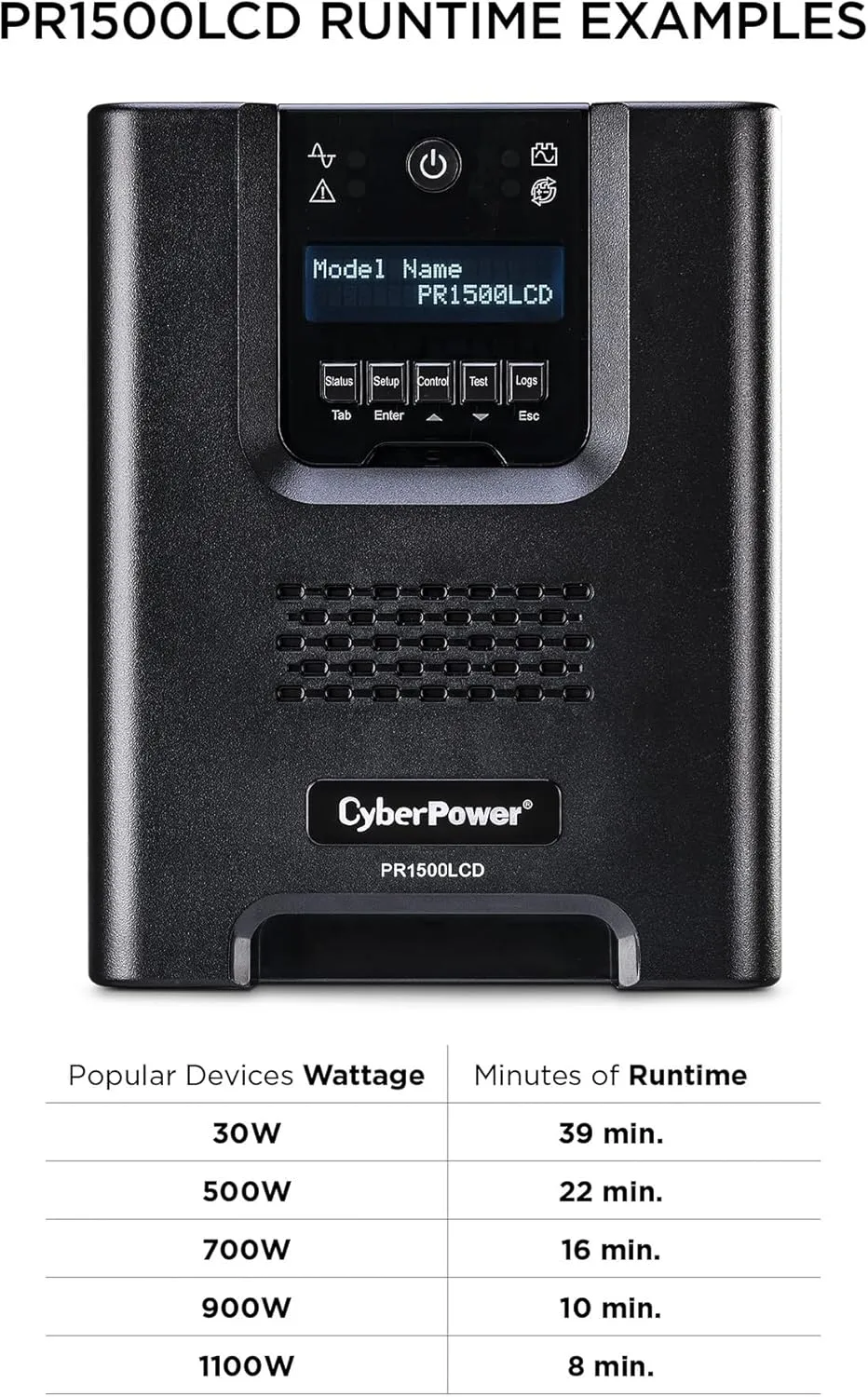

CyberPower Smart App Sinewave UPS System with AVR and LCD
Customize

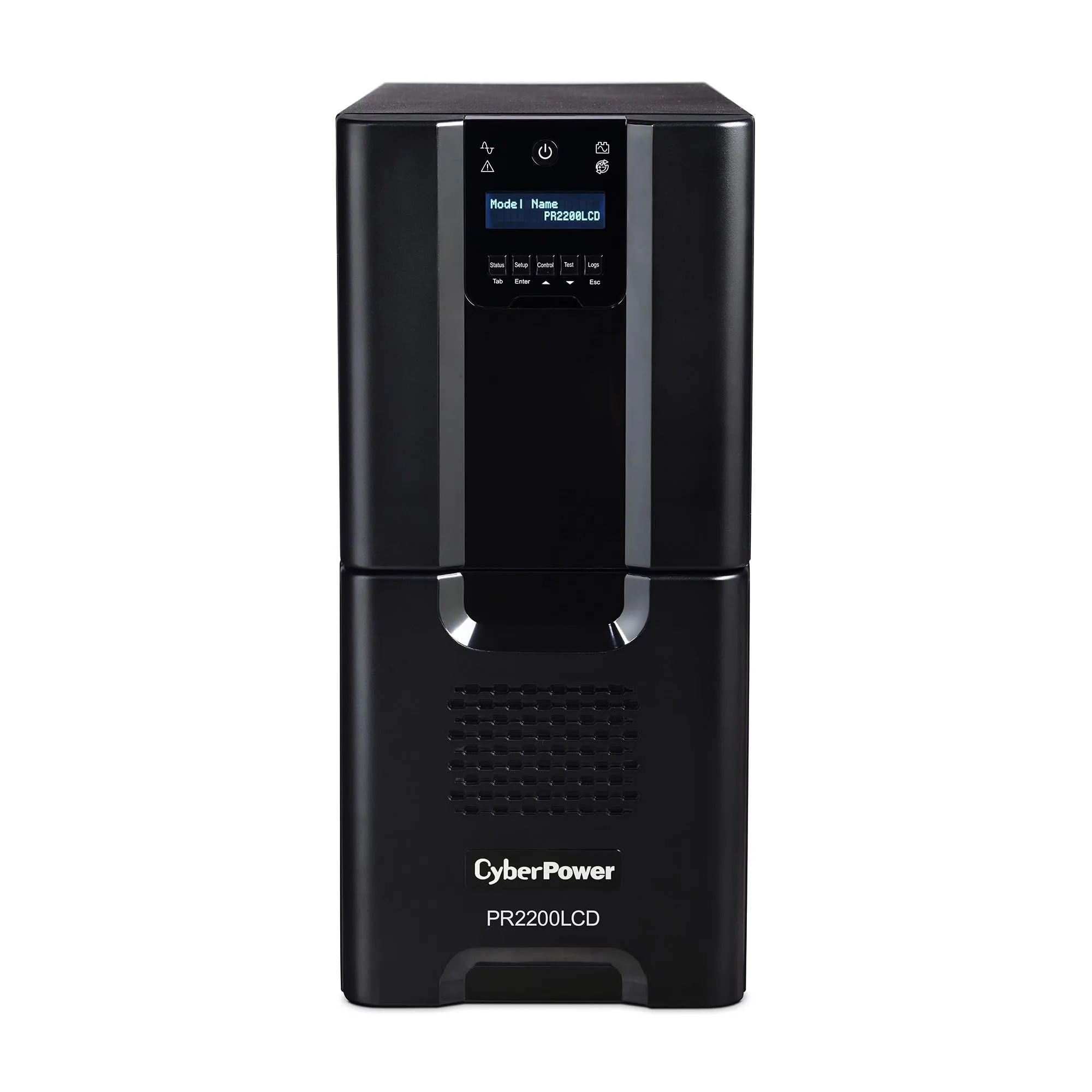

The CyberPower Smart App Sinewave UPS product family is designed to protect mission-critical servers, department servers, storage appliances, networking hardware and telecom equipment. These line-interactive UPS systems feature sine wave output, Automatic Voltage Regulation (AVR) to correct power fluctuations without switching to battery, multifunction LCD panels for runtime and load readouts, and surge protection. Models include PowerPanel Business Edition management software and offer communication options including USB, serial, EPO and optional or pre-installed SNMP/network cards for remote monitoring and management. Units use sealed lead-acid batteries and come with manufacturer warranty coverage and a Connected Equipment Guarantee on qualifying models. Multiple form factors (mini-tower and tower), capacities and outlet/communication configurations are available across the product family to suit a range of IT and telecommunications deployments.
- 3-YEAR WARRANTY – INCLUDING THE BATTERY; $375,000 Connected Equipment Guarantee and FREE PowerPanel Business Edition Management Software (Download)
- AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power; UL SAFETY CERTIFIED: Product has been tested in a UL certified lab and listed with UL as meeting or exceeding safety standards

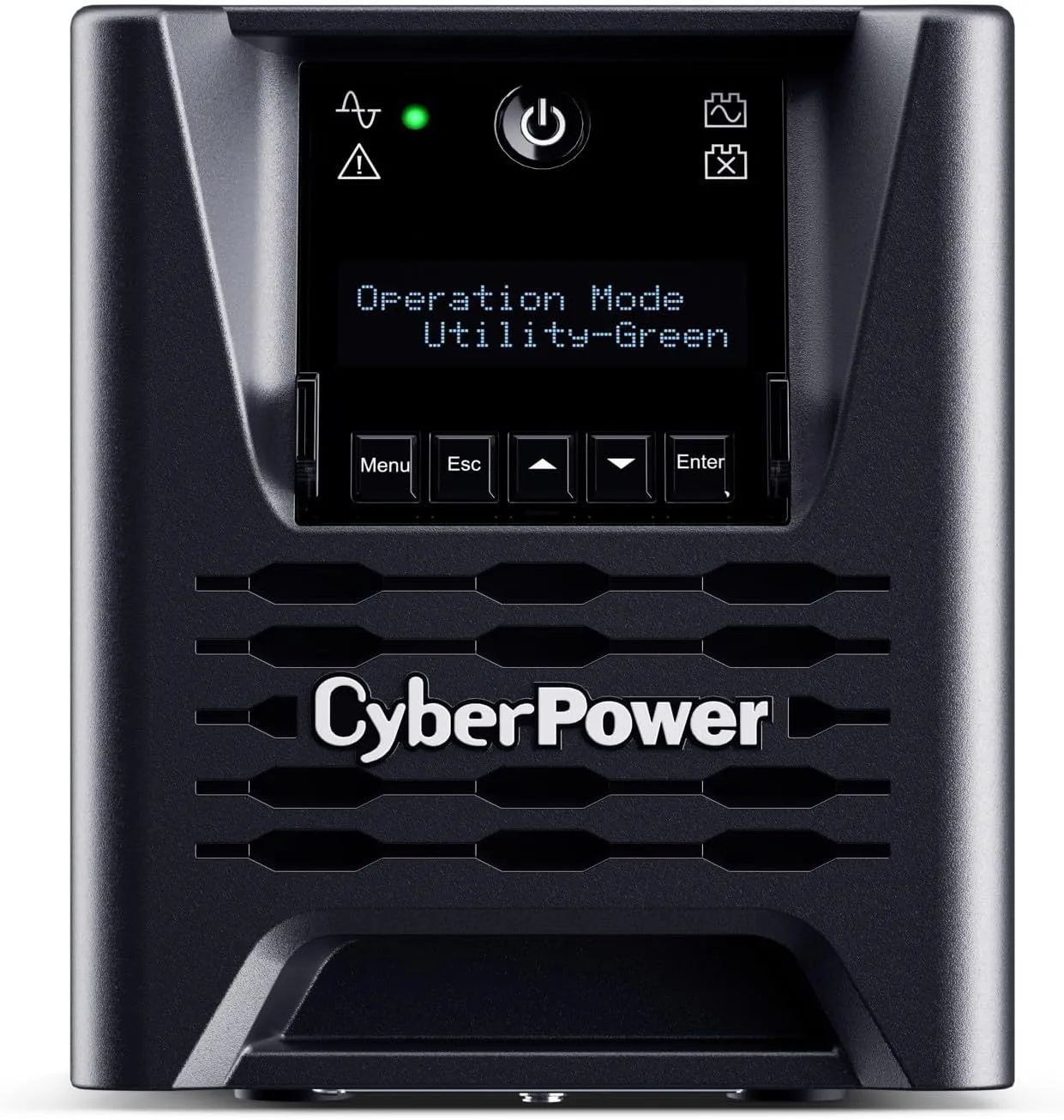

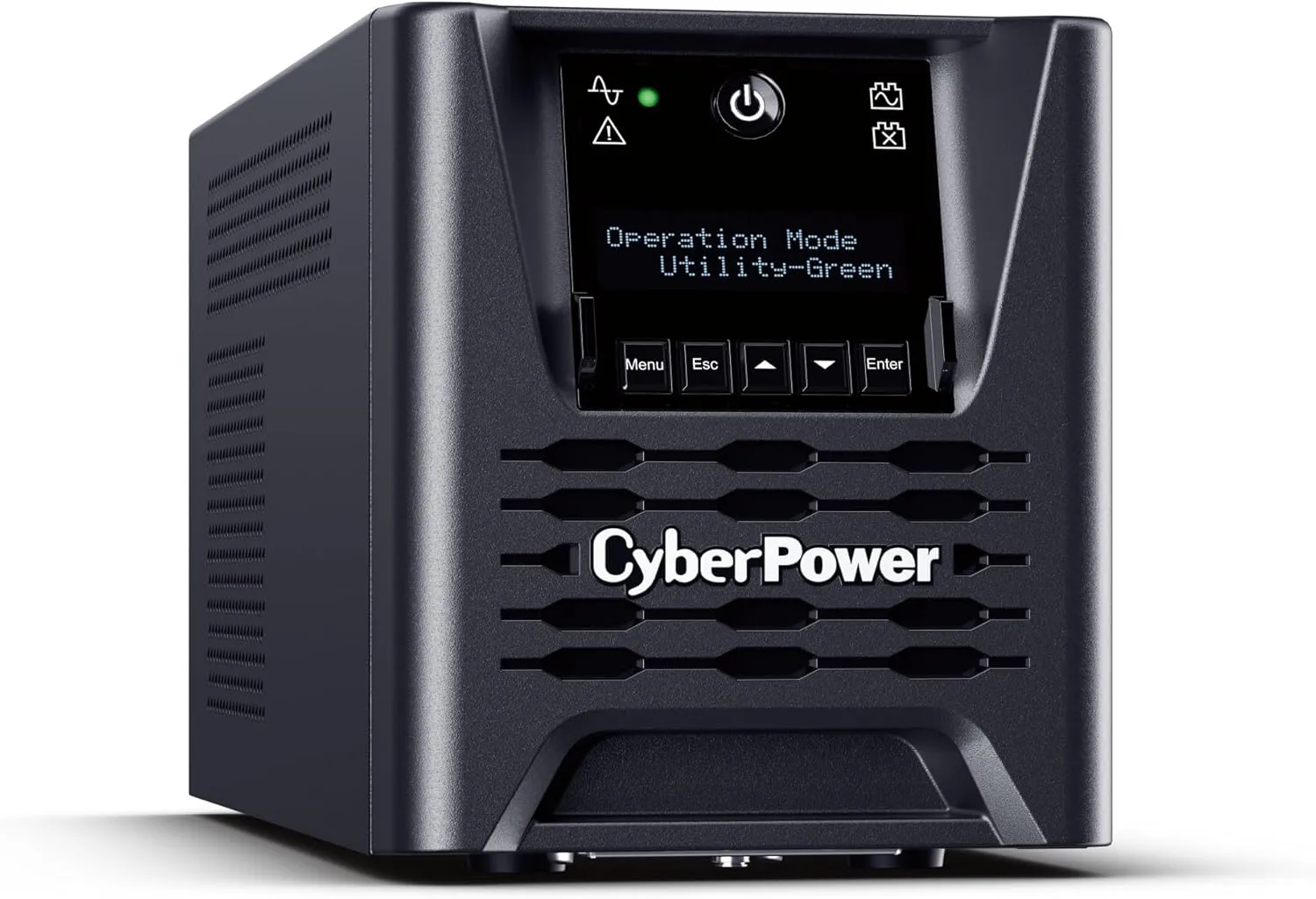

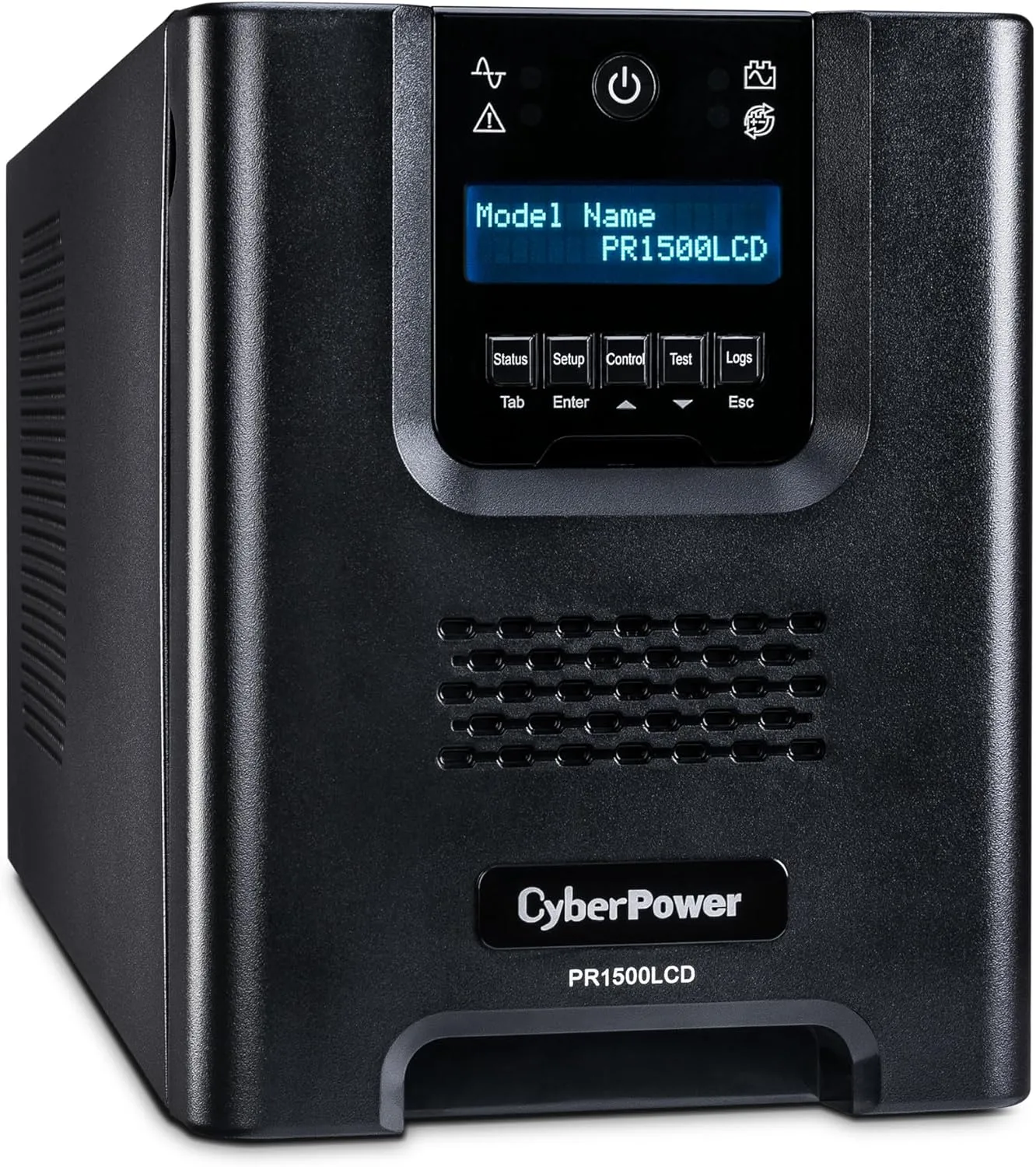

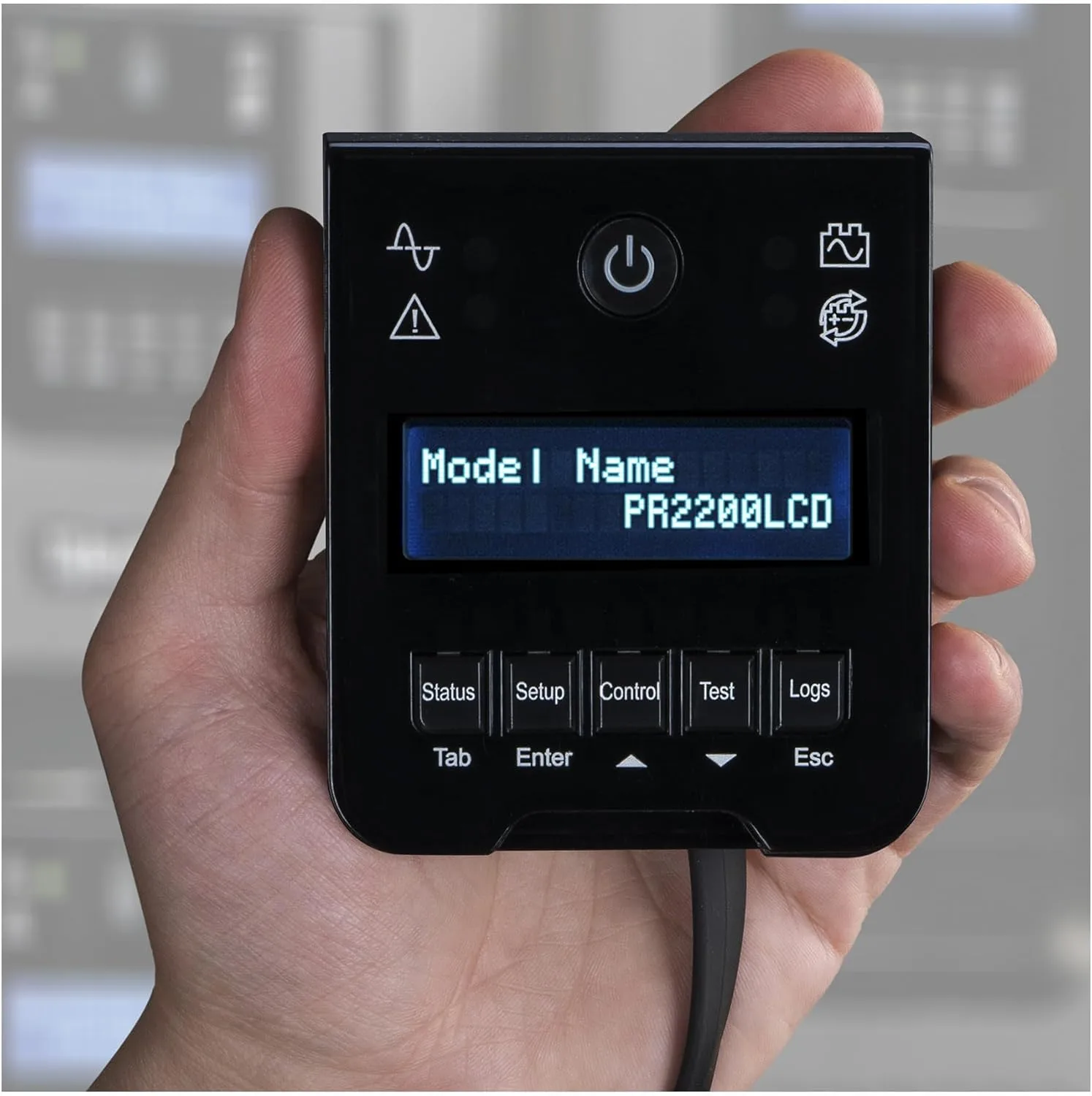

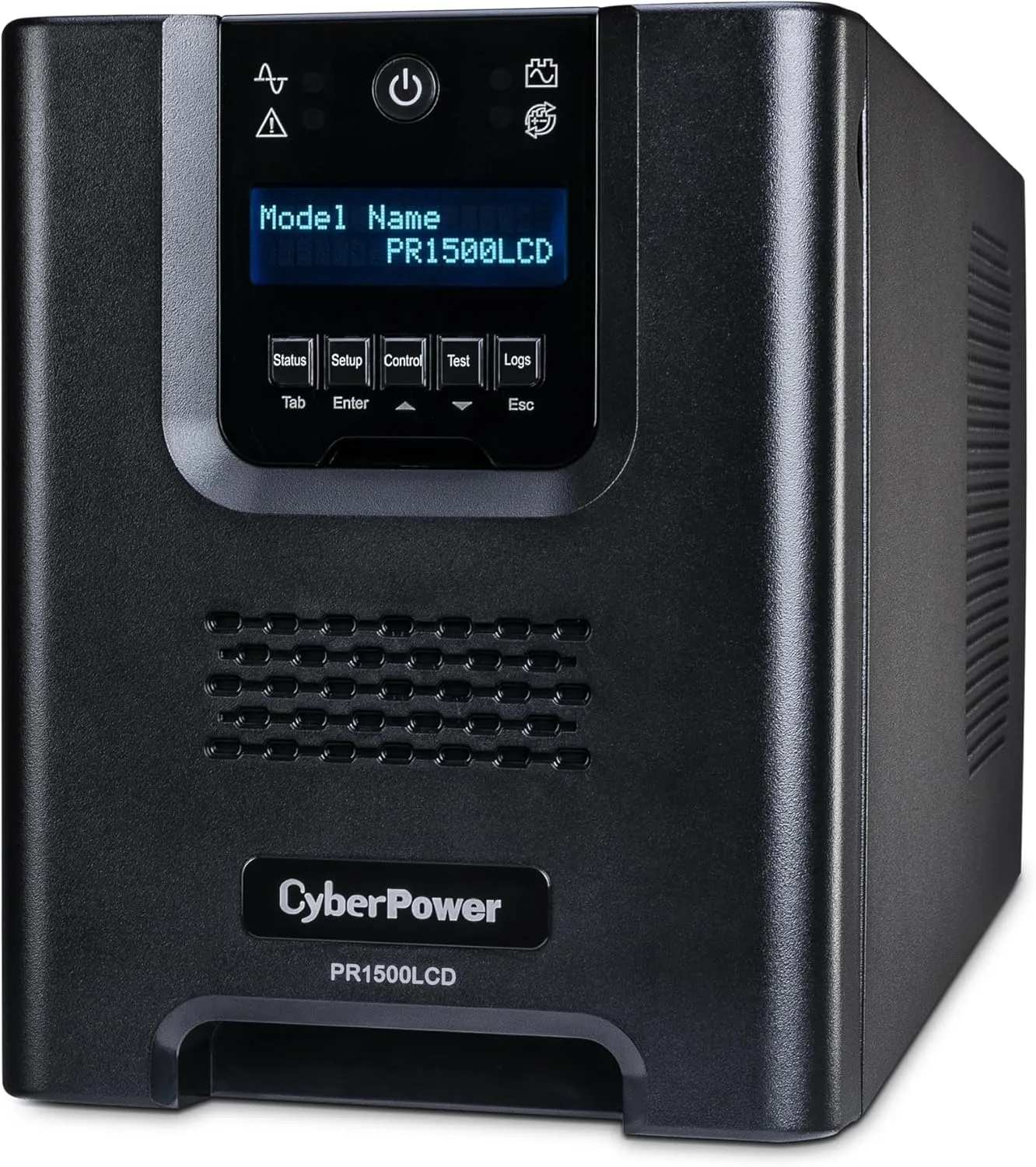

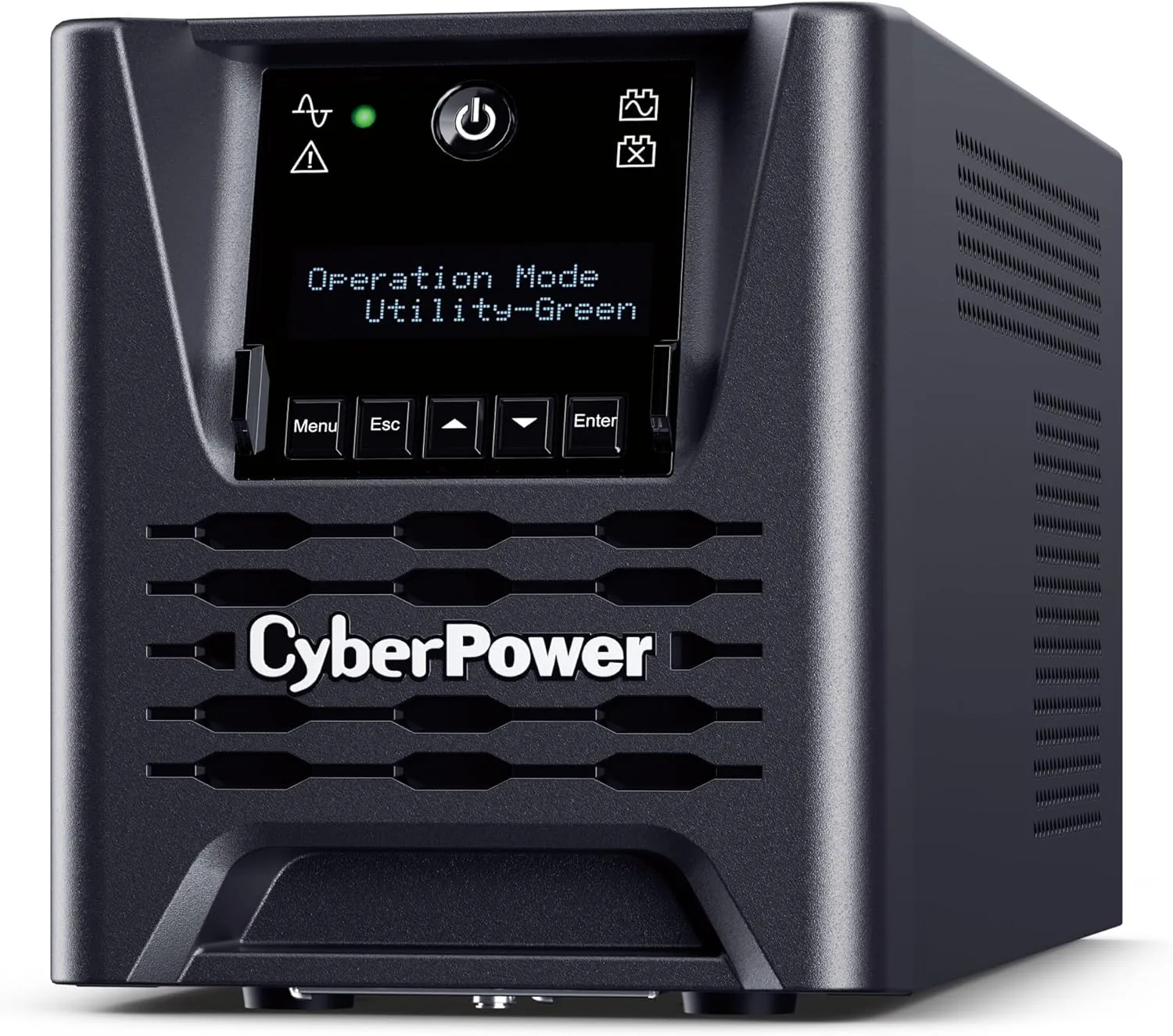

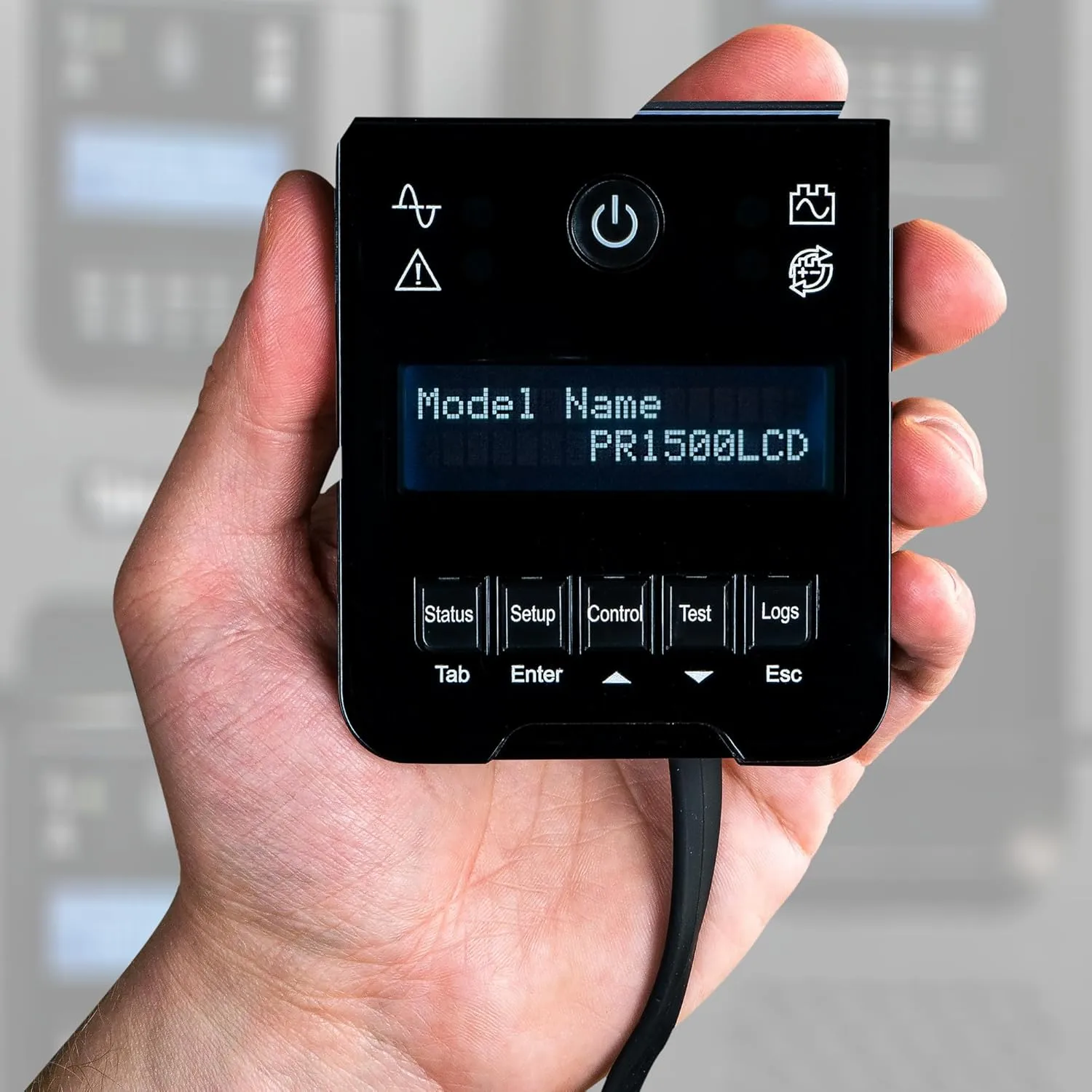

- MULTIFUNCTION LCD PANEL: Displays immediate, detailed information on battery and power conditions, including estimated runtime, battery capacity, load capacity, etc.; BUILT-IN CLOUD MONITORING: Allows remote monitoring of the UPS

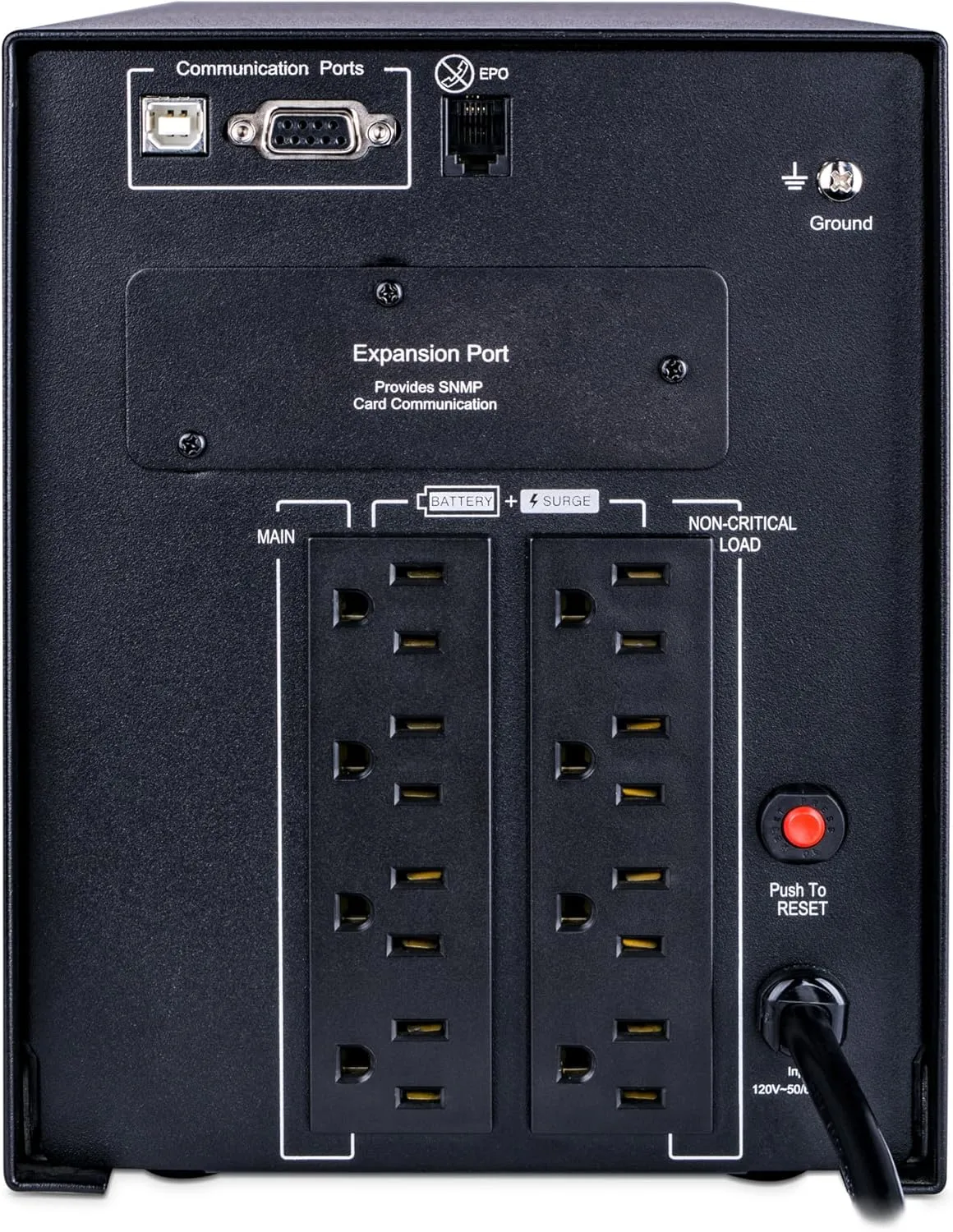

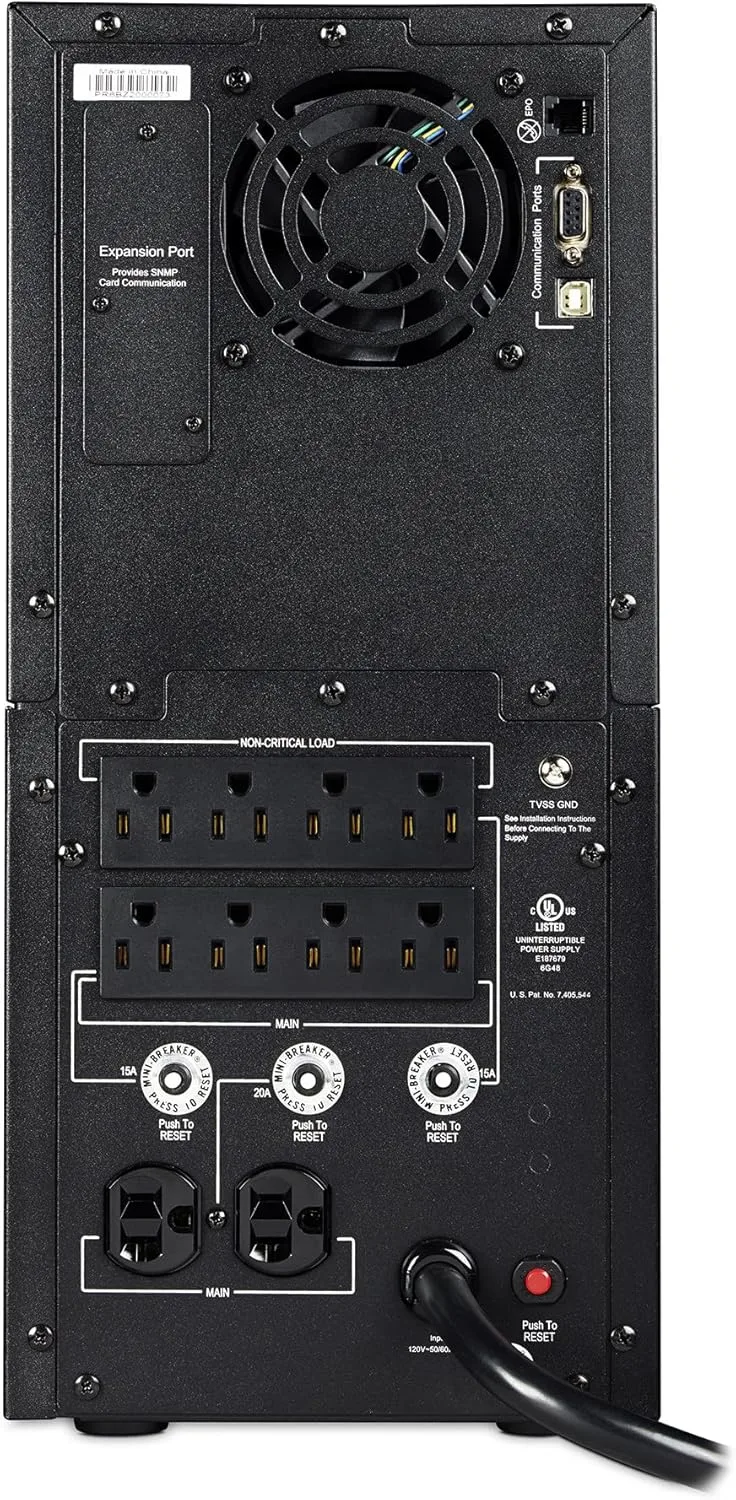

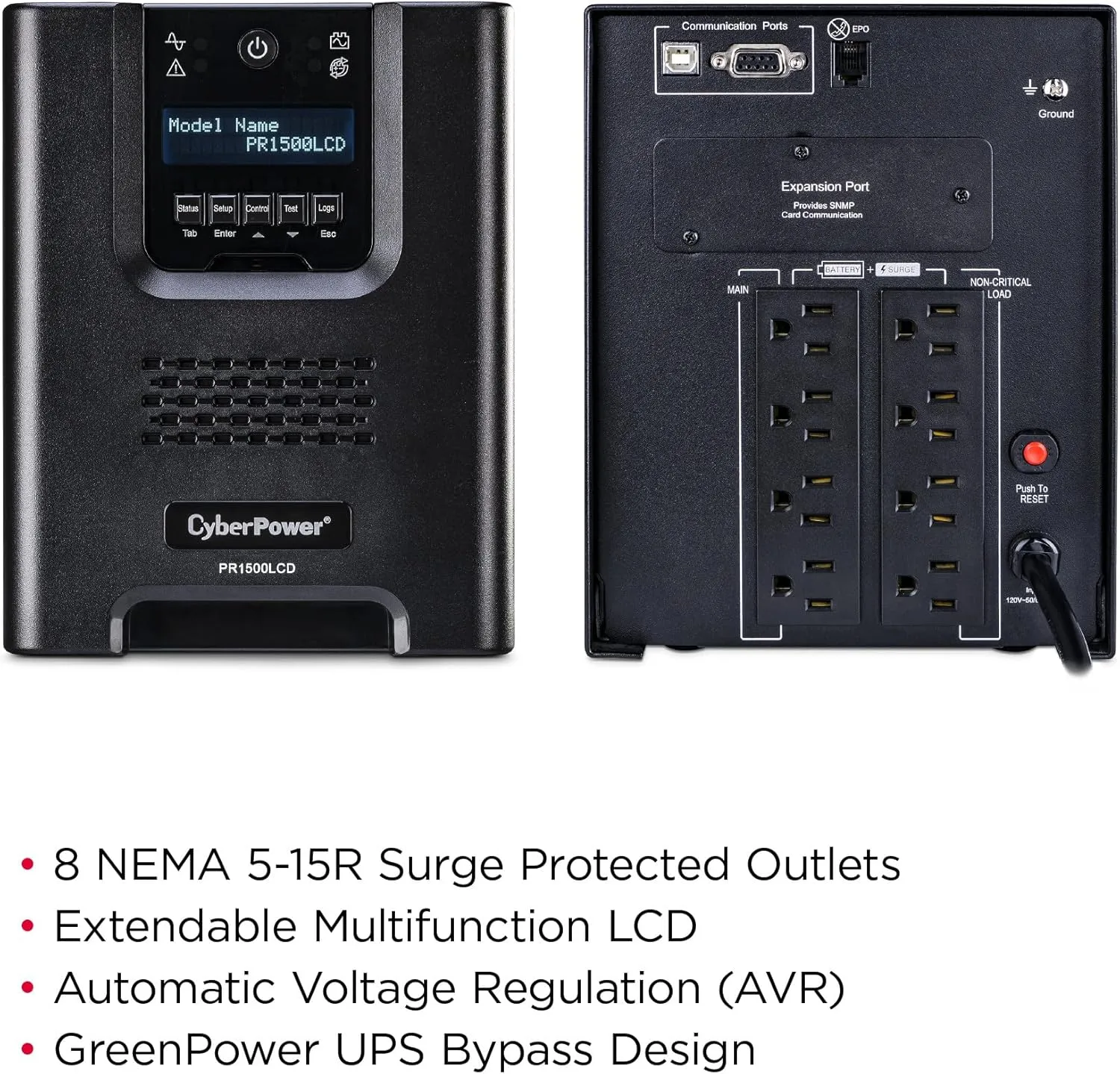

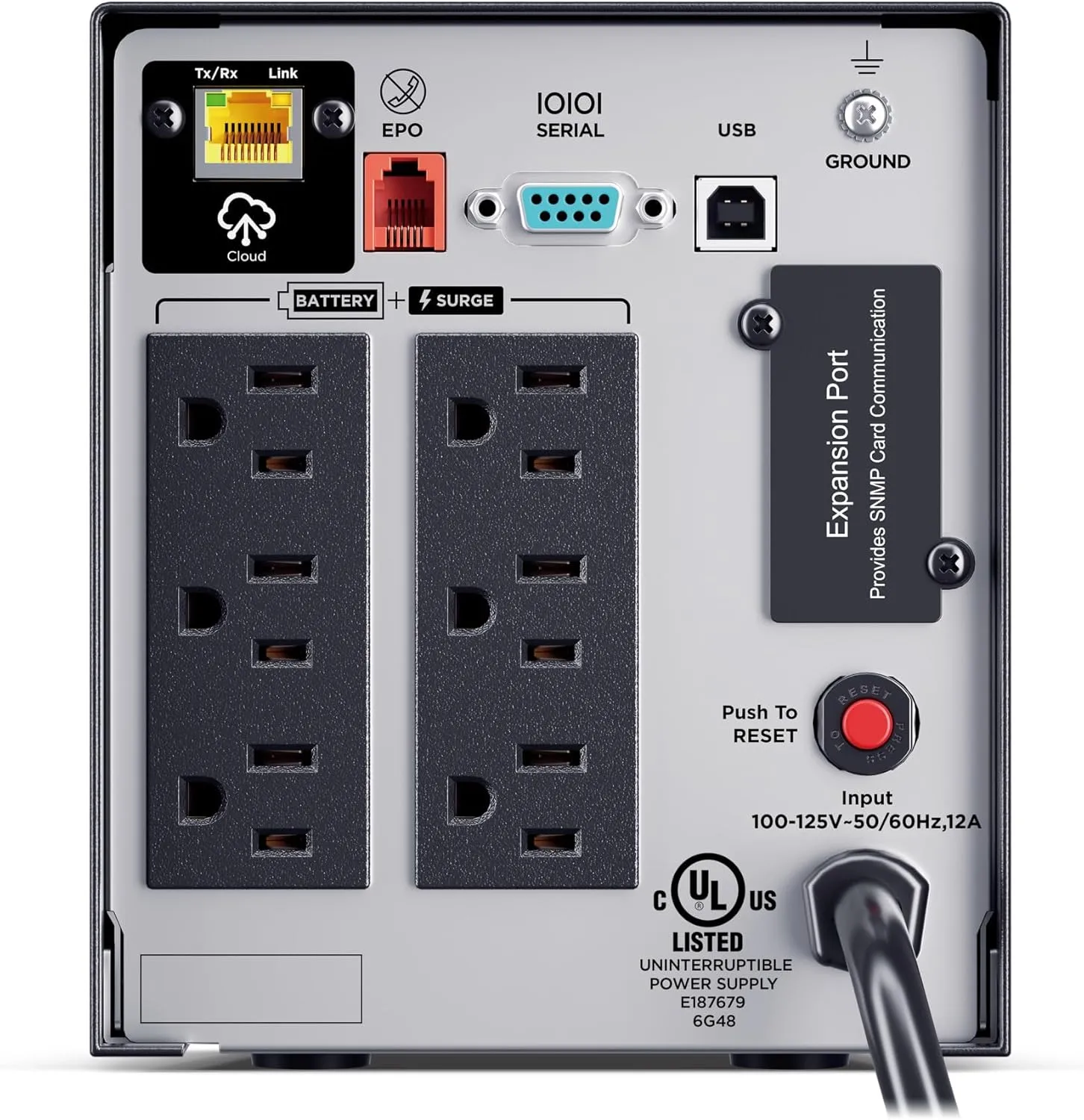

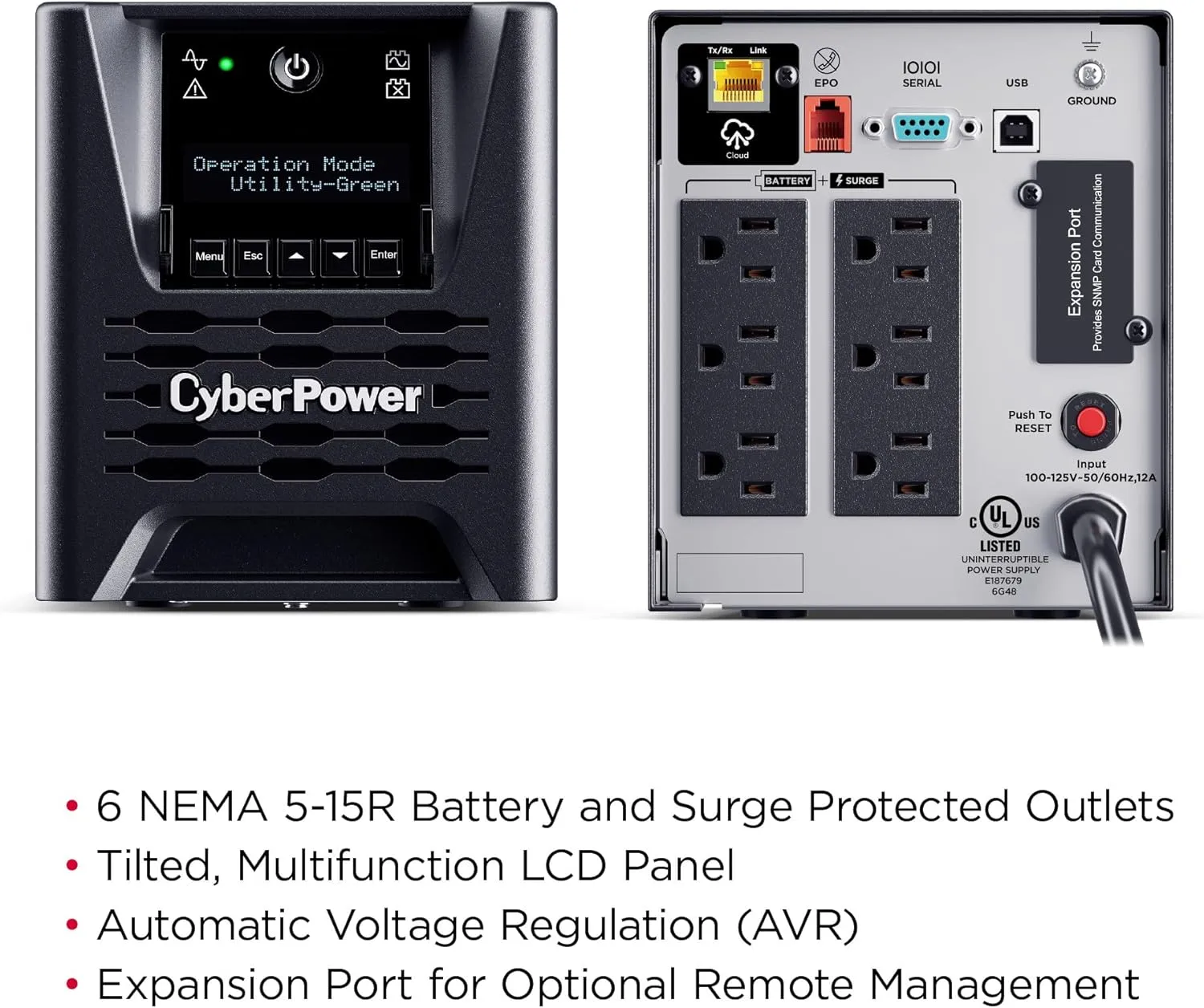

- SIX NEMA 5-15R OUTLETS: Provide battery backup and surge protection; to safeguard corporate and network servers, telecom installations, and VoIP systems; INPUT: NEMA 5-15P straight plug with 5 foot cord
- 750VA/750W Smart App Sinewave Uninterruptible Power Supply (UPS): Uses sine wave output to provide battery backup power for Active PFC & conventional power supplies; REMOTE MANAGEMENT: Requires RMCARD205 management card (sold separately)
Specifications:
| Materials & Construction | |
| Battery Cell Composition | Sealed Lead Acid |
| Product Details | |
| Battery Run Time | 4 Min |
| Display | Lcd |
| Eco Label Standard | Energy Star |
| EMI/RFI Noise Filtration | Yes |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Quantity | 1 |
| Surge Suppression | Yes |
| UL Listed | Yes |
| Ups Battery Type | Lead-Acid |
| Sizing & Dimensions | |
| Depth | 14-2/10 In. |
| Dimensions | 6-4/10 In. X 5-7/16 In. X 14-2/10 In. |
| Height | 6.4 inches |
| Length | 14.2 inches |

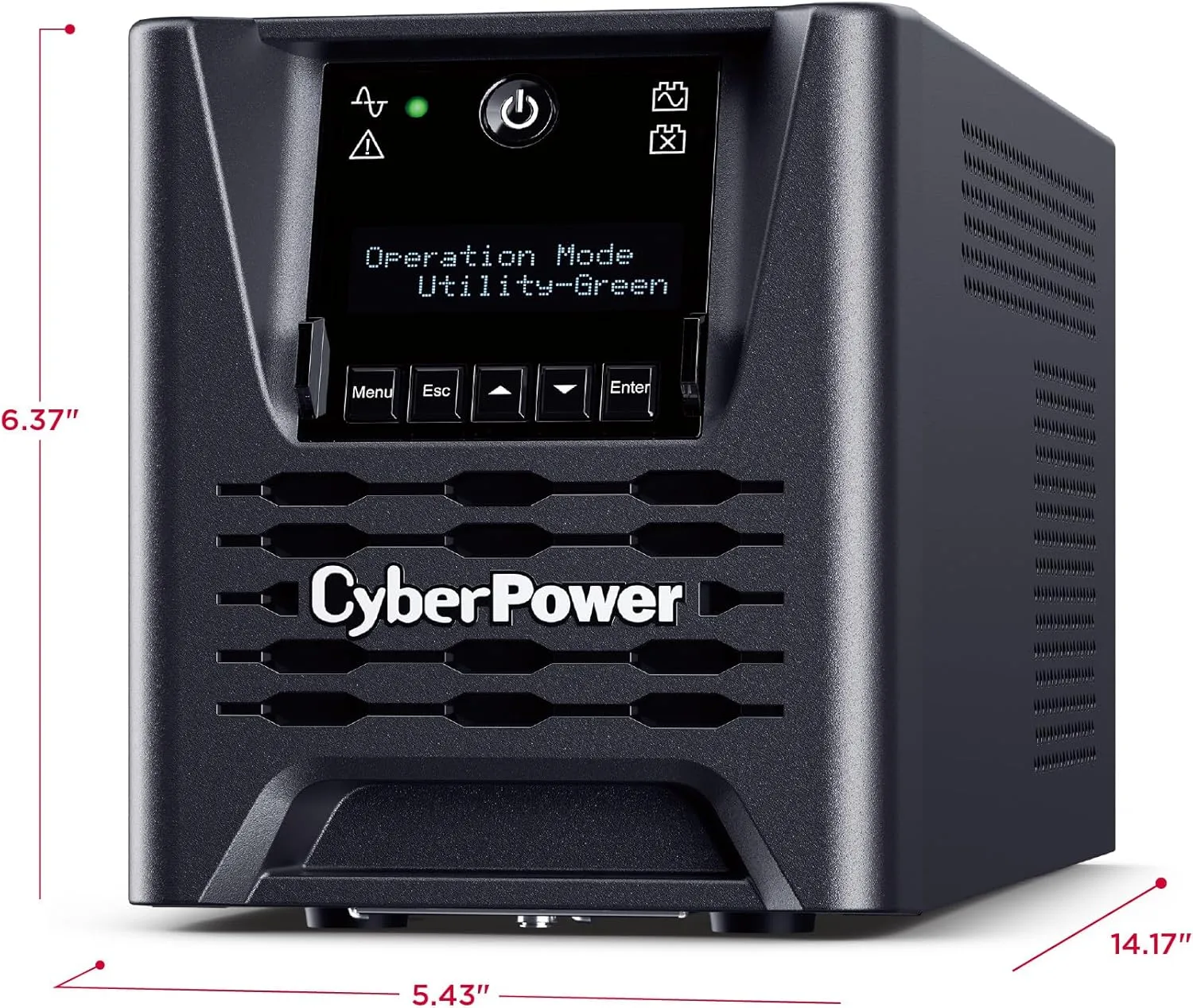

| Product Dimensions | 14.2"D x 5.4"W x 6.4"H |
| Weight | 26 pounds |
| Width | 5.4 inches |
| Technical Specifications | |
| Automatic Voltage Regulation | Yes |
| Charge Time (Approx) | 8 hr |
| Frequency Response | 50hz To 20khz |
| Load Capacity (Va) | 750 |
| Load Capacity (Watt) | 750 |
| Minimum Operating Temperature | 32 |
| Output Power Factor | 1 |
| Power Capacity | 750 va |
| Surge Rating | 1350 Joule |
| Voltage | 120 Volts |
