Derale Performance 16842 Gray/Black High Output Dual Radiator Fan
Customize

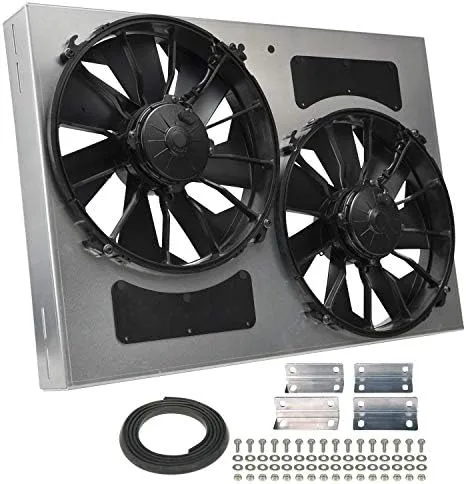

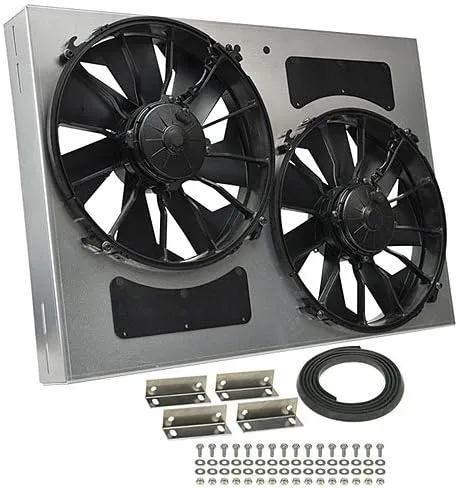

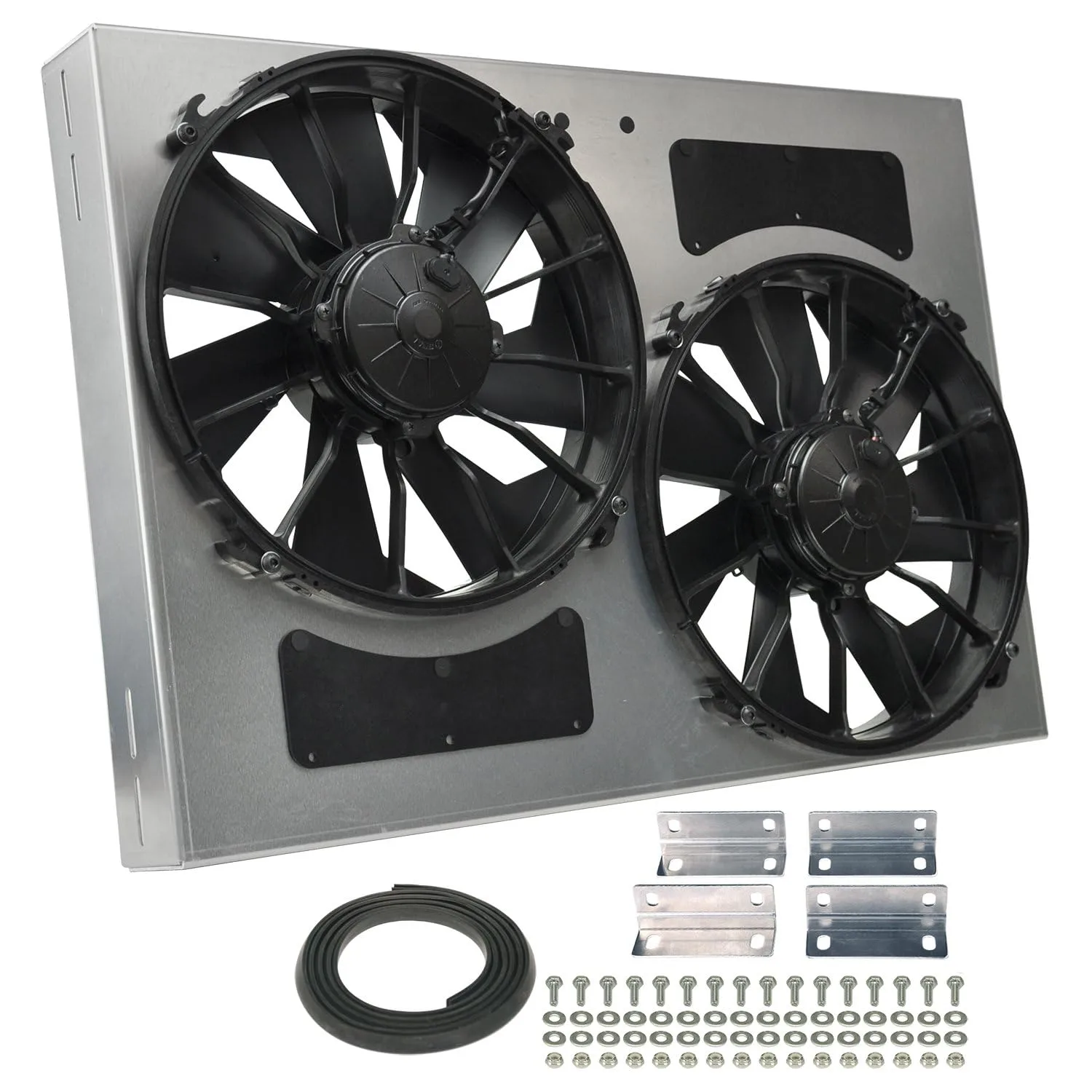

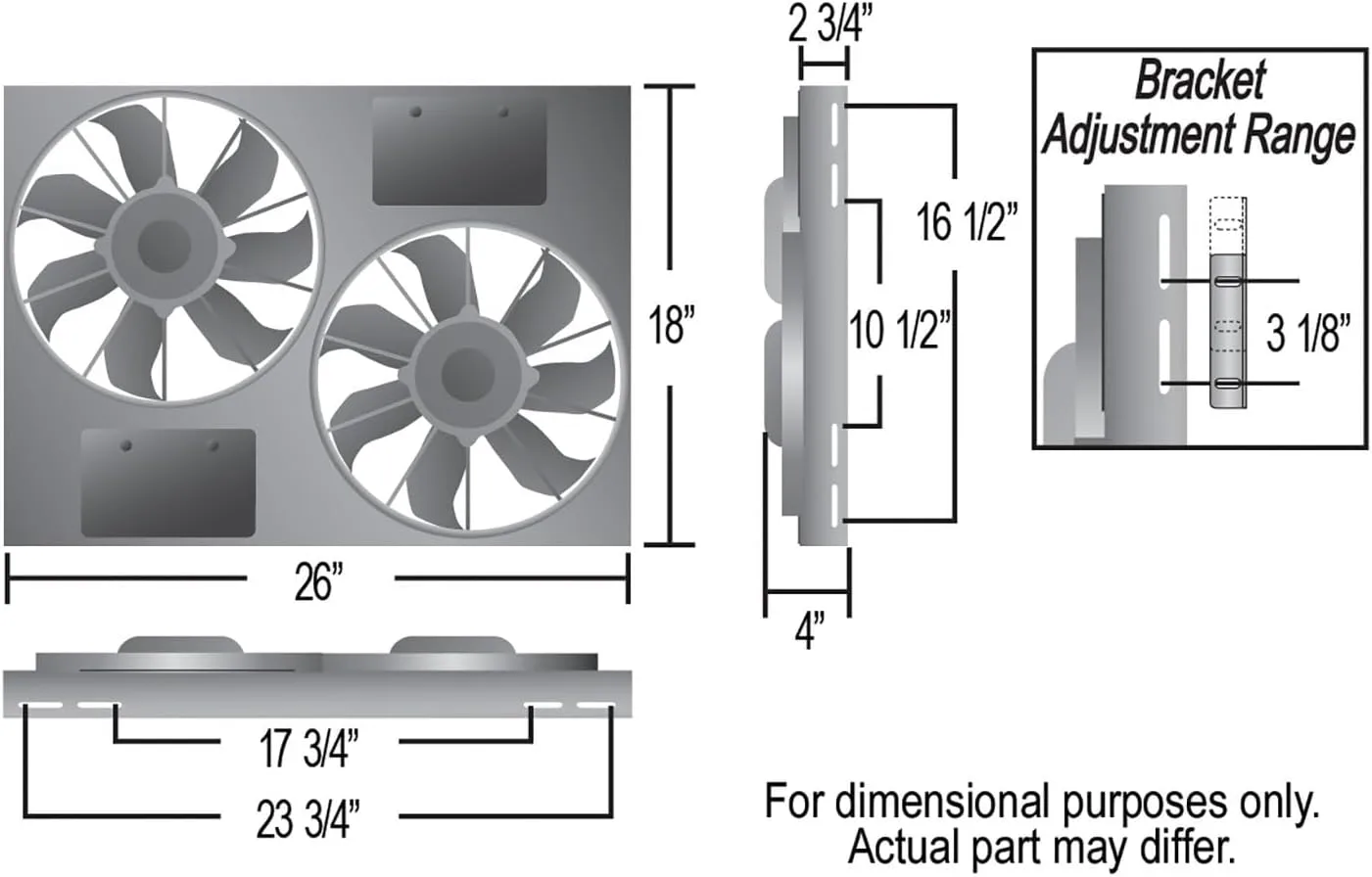

This Dual High Output Radiator Fan Assembly is part of the High Output Aluminum Shrouded Fans Series that is designed with the application in mind. Based on some of the most common Radiator core sizes sold today, this unit features an aluminum shroud measuring 26 inch wide by 18 inch top to bottom and is only 4 inch in overall depth to offer an adjustable yet precision fit. The natural, non-finished aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it raw to create a truly custom look for an affordable price. The dual 13 inch high output electric fans are some of the most proven and reliable fans in their line-up. Offering a total of 4000 CFM, this dual electric fan assembly generates the most real-world airflow in the smallest package on the market. Product details from inventory: Product dimensions (L x W x H) 30.75 x 22 x 5.5 inches. Product weight: 10.0 pounds. UPC: 083277168420. Model/Part Number: 16842. Includes adjustable mounting brackets and complete mounting hardware. Ideal for engine cooling and replacement applications.
- Kit includes adjustable mounting brackets and complete mounting hardware
- 4000 CFM
- High output 300 Watt motors
- Raw aluminum shroud construction with stator flow directors can be polished, painted or anodized
- Designed for primary cooling
Specifications:
| Materials & Construction | |
| Blade Material | Plastic |
| Color | Gray/Black |
| Finish Type | Unfinished |
| Material | Aluminum |
| Outer Material | Aluminum |
| Product Details | |
| Included Components | Per Item Description |
| Item Type Name | Dual RAD Fan/Aluminum Shroud Assembly |
| Model Number | 16842 |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 5.5 inches |
| Length | 30.75 inches |
| Size | 30.75 x 22 x 5.5 inches |
| Weight | 10 pounds |
| Width | 22 inches |
| Technical Specifications | |
| Air Flow Capacity | 4000 Cubic Feet Per Minute |
| Connector Type | DC barrel connector |
| Control Method | App |
| Main Power Connector Type | Coaxial power connector (5.5mm outer diameter, 2.1mm inner diameter) |
| Mounting Type | Adjustable |
| Noise Level | 70 Decibels |
| Number of Blades | 10 |
| Number of Power Levels | 1 |
| Power Source | Corded Electric |
| Standby Power Shutoff | 4000 CFM |
| Voltage | 12 Volts |
| Wattage | 300 watts |
