J.W. SPEAKER 1300181 Model 832 12-24V LED Auxiliary Work Light, 4 x 4 in, Flood Beam
Customize

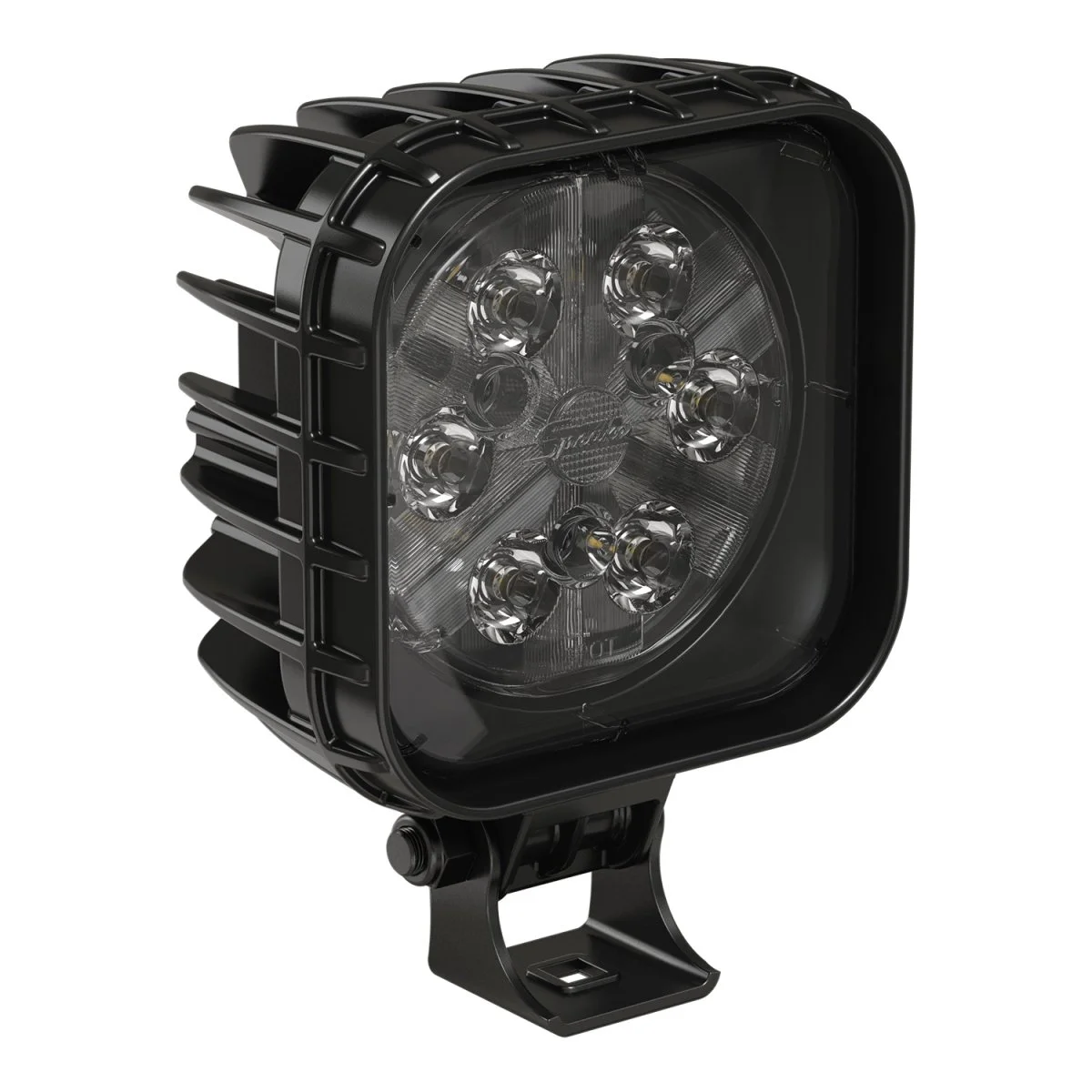

The J.W. SPEAKER Model 832 (Mfg Part No. 1300181) is a compact, durable 12-24V LED auxiliary work light engineered for demanding applications. Featuring a UV-resistant, hard-coated polycarbonate lens and a single-piece corrosion-resistant aluminum housing, the 832 delivers rugged performance for agriculture, construction, material handling, mining, off-road 4x4, power sports, railroad, and specialty vehicles. The light meets IEC IP69K standards for high-pressure, high-temperature washdown protection and includes a DT04-2P electrical connector, mounting bracket, hardware and pigtail. Dimensions (product): 7 x 5 x 4.25 inches; overall height options noted in manufacturer materials. The lamp provides a flood beam pattern for wide-area illumination, is designed for removable bolt mounting, and is manufactured in the USA.
- POLYCARBONATE LENS: UV-resistant hard-coated polycarbonate lens; Rugged solid state LEDs can withstand shock and vibration.
- MADE IN USA! STANDARDS: Buy America Standards, IEC IP69K and Eco Friendly. APPLICATIONS: Agriculture, Construction, Industrial, Material Handling, Mining, Off-Road 4x4, Power Sports, Railroad, and Specialty Vehicles

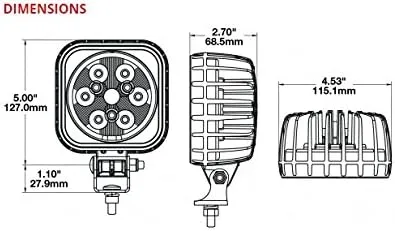

- DIMENSIONS: Height: 154.94 mm / 6.1 in; Width: 115.06 mm / 4.53 in; Depth: 68.58 mm / 2.7 in. Voltage: 12-24V.DIMENSIONS: Height: 154.94 mm / 6.1 in; Width: 115.06 mm / 4.53 in; Depth: 68.58 mm / 2.7 in. Voltage: 12-24V.
- ALUMINUM HOUSING: Single piece aluminum housing that's not only highly durable, but also corrosion resistant.
- MODEL 832: Perfect for tight mounting areas, the Model 832 packs a comparable output to the Model 735, but in a smaller form factor.
Specifications:
| Materials & Construction | |
| Color | Black |
| Housing Material | Aluminum |
| Material | Polycarbonate |
| Outer Material | Polycarbonate |
| Product Details | |
| Additional Features | Not_Performance_Used |
| Auto Part Position | Front |
| Compatible with Vehicle Type | ATVs, Construction Vehicles, Off-Road Vehicles |
| GTIN | 799475635328 |
| Included Components | Hardware, Mounting Bracket, Pigt |
| Item Dimensions | 7 x 5 x 4.25 inches |
| Lens Color | Clear |
| Lens Material | Polycarbonate |
| Light Source | LED |
| Light Source Type | LED |
| Model Year | 1995 |
| Specific Uses For Product | Exterior |
| Unit Count | 1.0 Count |
| UPC | 799475635328 |
| Sizing & Dimensions | |
| Height | 4.25 inches |
| Length | 7 inches |
| Product Dimensions | 7 x 5 x 4.25 inches |
| Product Weight | 2 Pounds |
| Size | 7 x 5 x 4.25 inches |
| Weight | 1.82 pounds |
| Width | 5 inches |
| Technical Specifications | |
| Electrical Connection | DT04-2P Connector |
| IP Rating | IP69K |
| Mount Type | Bolt |
| Operating Voltage | 12-24V DC |
| Special Feature | Not_Performance_Used |
| Standards | IEC IP69K |
