StarTech.com 12-24 Server Rack Screws - 50 Pack - Nickel-Plated (CABSCRWS1224)
Customize

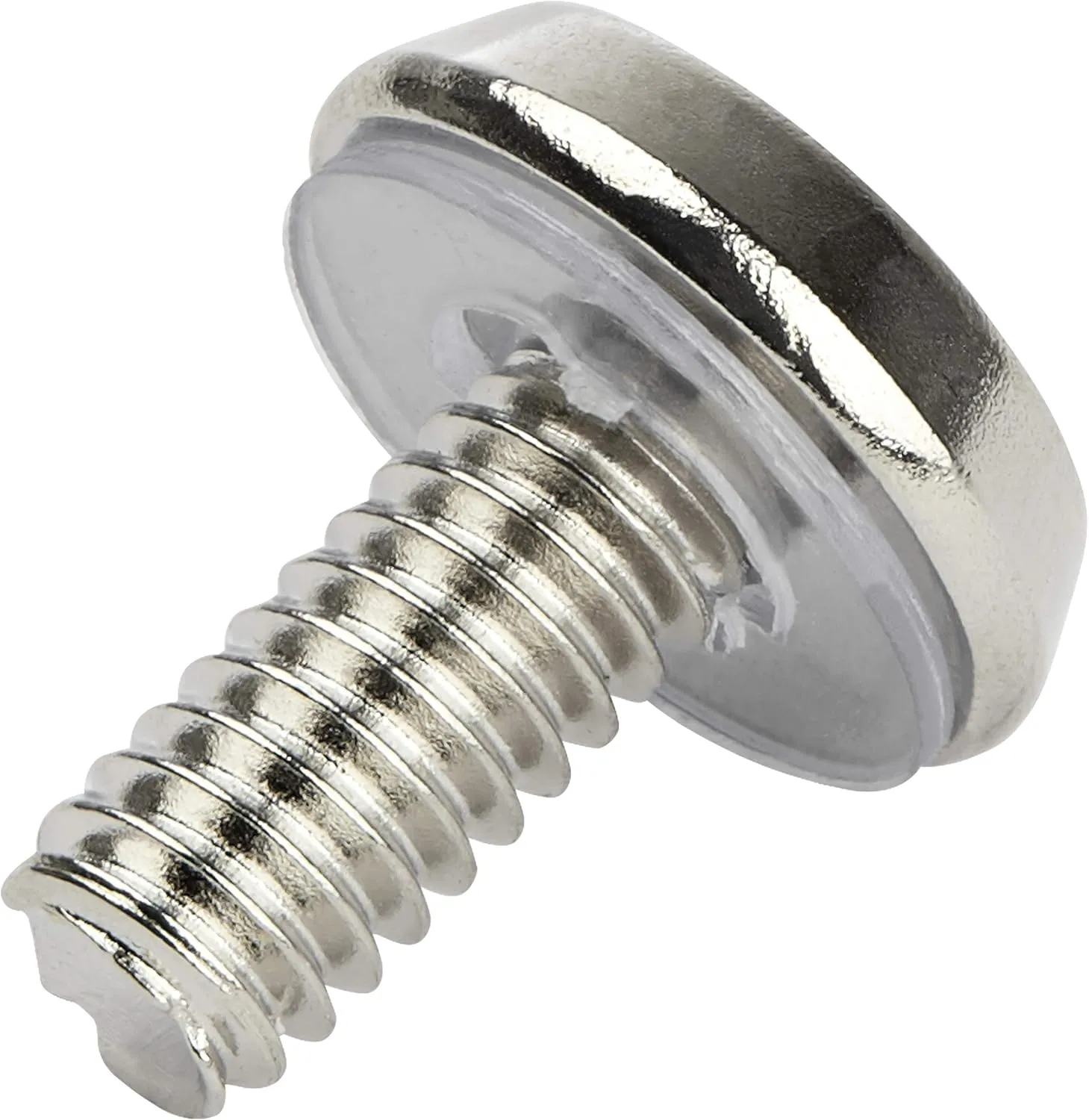

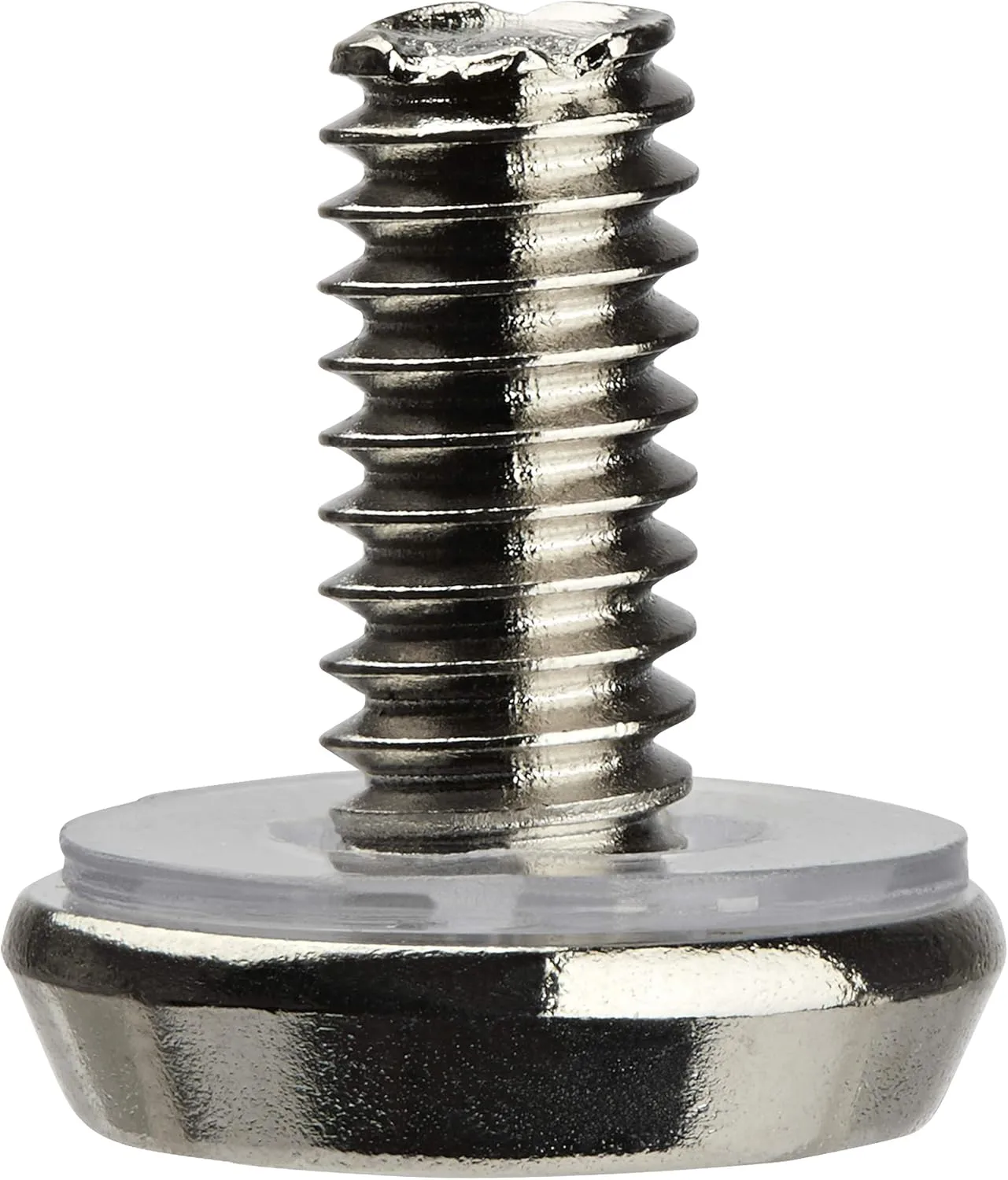

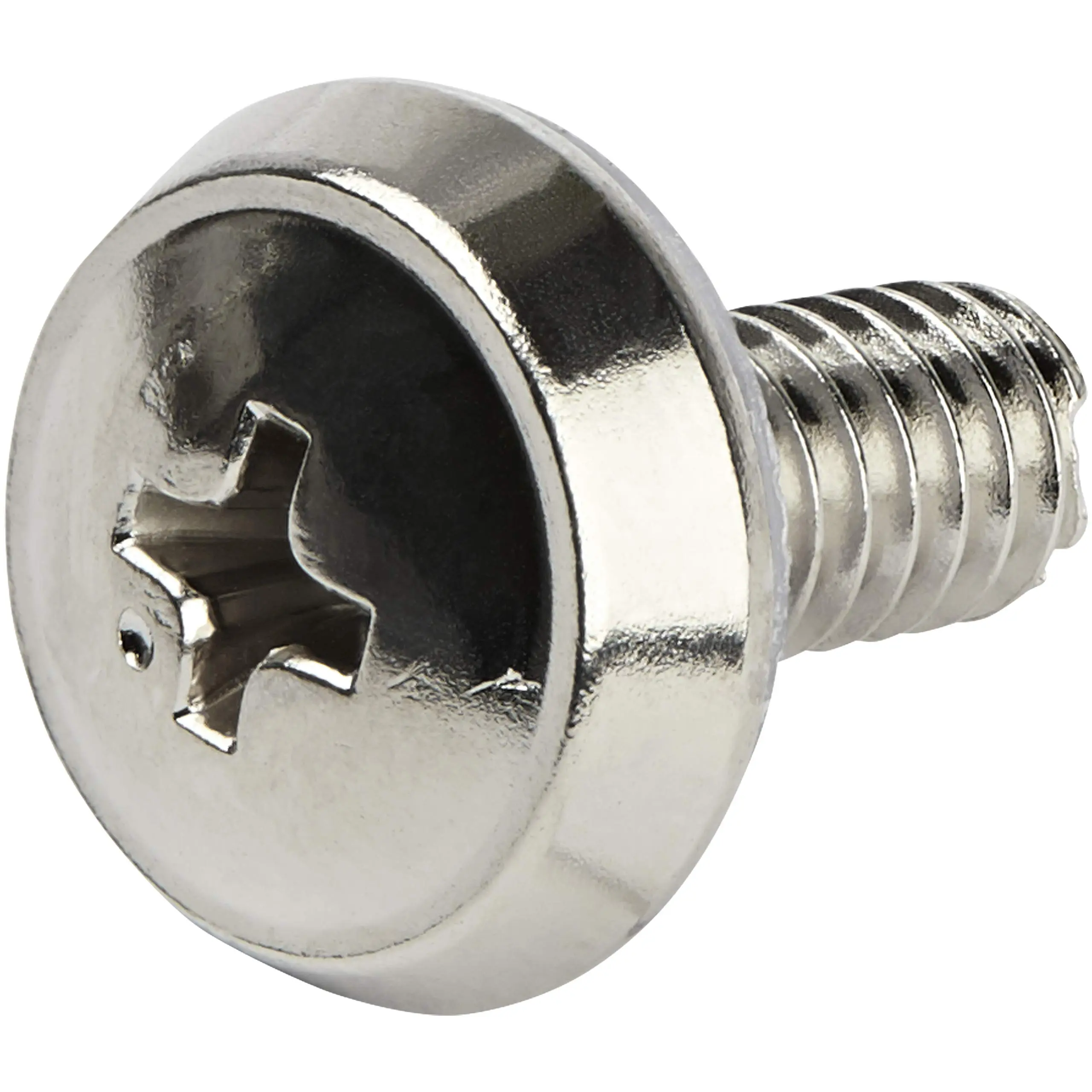

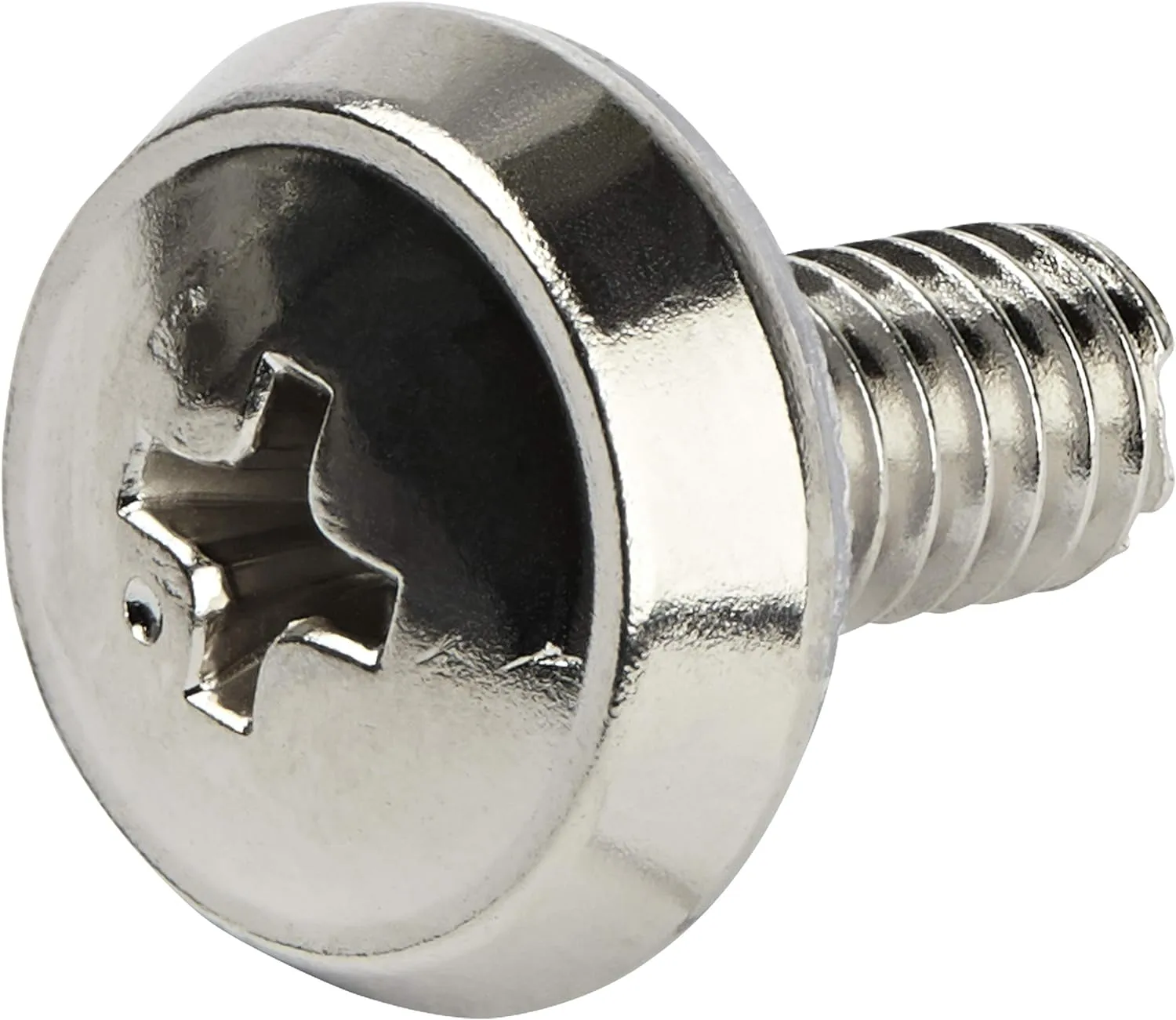

StarTech.com 12-24 Server Rack Screws (CABSCRWS1224) — 50 pack nickel-plated mounting screws designed for securing servers, network, AV and other equipment in server cabinets and data racks. Built from solid steel with a nickel-plated finish to prevent rust, these machine screws feature a Phillips head and are fully threaded for reliable fastening in both square-hole and threaded-hole rack rails. The pack of 50 helps keep installations on schedule by providing extras for new builds and service work; pre-installed washers speed up installs and reduce scuffs to rack rails and finishes. Product is TAA compliant for government/GSA purchases and backed by StarTech.com lifetime warranty and lifetime technical support. Technical highlights: 50x 12-24 mounting screws; Alloy steel with nickel finish; Phillips head/drive; Thread Size: 12-24; Threads per inch: 24; Fastener Type: Machine Screw; Compatible groove diameter: 0.23 inches; Maximum shear strength: High. Environmental compliance: RoHS 2 and REACH declarations available (see manufacturer documentation).
- VERSATILE OPTIONS: These data rack bolts are designed to work with both square-hole racks and threaded-hole racks

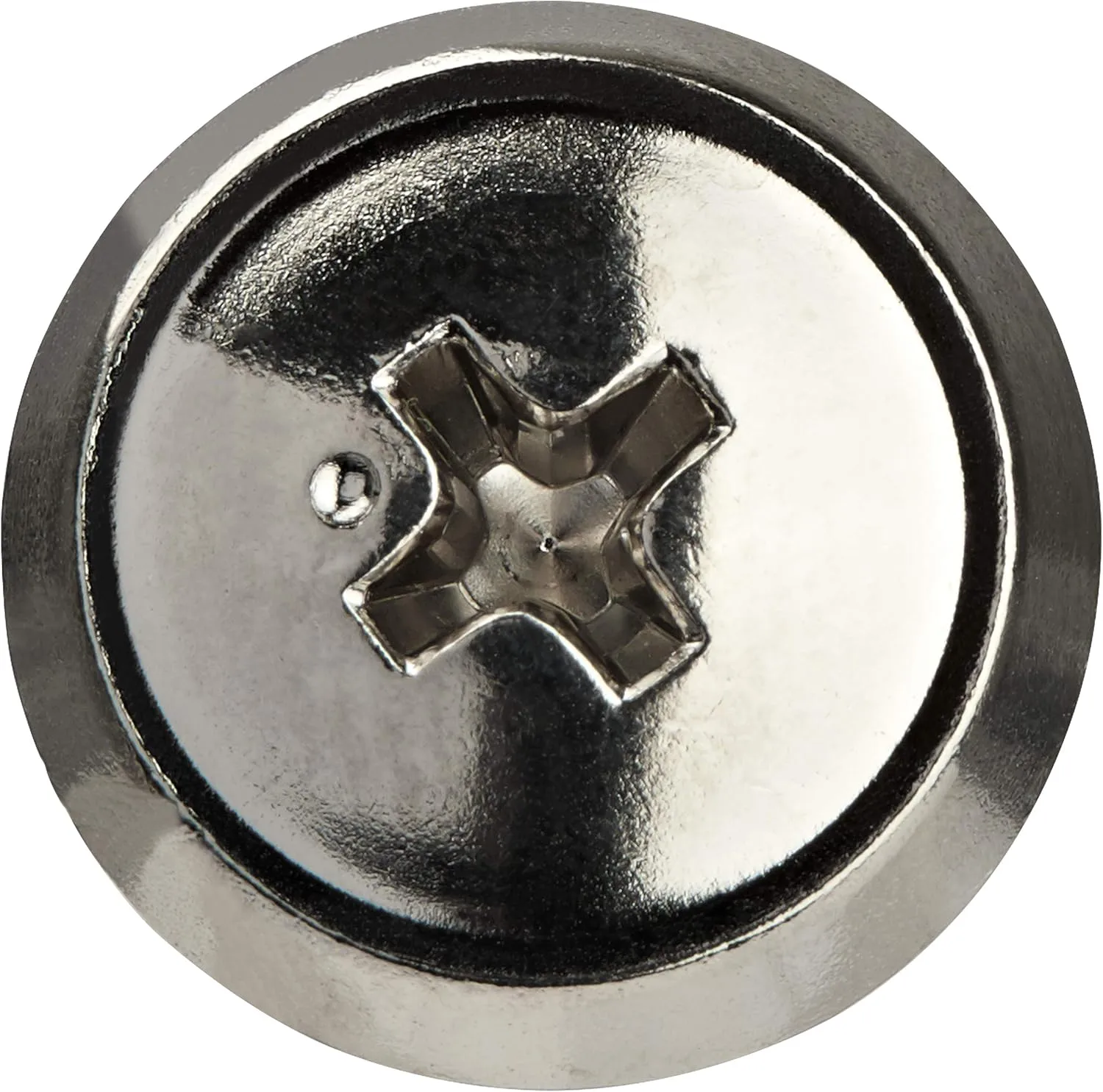

- PHILLIPS HEAD: These computer cabinet screws have a Phillips-head design, making them easy to install with the Phillips screwdriver or drill bit you already have;
- FOR THE IT PRO: Ideal for wide-scale use, this 50 pack of server rack mounting screws is great to have on hand for installing rack mount hardware, such as server, network, or AV equipment;
- STURDY CONSTRUCTION: These 12 24 rack screws are made of solid steel, are nickel-plated to prevent rust, and are strong enough to handle a variety of equipment;
Specifications:
| Materials & Construction | |
| Color | Silver |
| Material | Alloy Steel, Nickel |
| Outer Material | Nickel |
| Primary Material | Steel |
| Product Details | |
| Compatible groove diameter | 0.23 Inches |
| Drive System | Phillips |
| Exterior Finish | Nickel |
| Fastener Quantity | 50 X Mounting Screw |
| Fastener Size | 12-24 |
| Fastener Type | Machine Screw |
| Finishing | Nickel Plated |
| Grade Rating | CAN |
| Head Style | Phillips |
| Head Type | Phillips |
| Limited Warranty | Lifetime |
| Material Family | Metal |
| Maximum Notational Diameter | 12 |
| Maximum Shear Strength | High |
| Metal Type | Alloy Steel |
| Number of Pieces | 50 |
| Package Type | Bulk |
| Point Style | Self-Piercing Point |
| Primary Material | Steel |
| Set Screw Thread Type | UNC |
| Thread Class | Coarse |
| Thread Coverage | Fully Threaded |
| Thread Size | 12-24 |
| Thread Style | Right Hand |
| Thread Type | Unc |
| Threads Per Inch (TPI) | 24 |
| Total Quantity | 1 Screws |
| Sizing & Dimensions | |
| Height | 0.8 inches |
| Length | 4.1 inches |
| Product Dimensions | 0.6 x 0.6 x 0.6 inches |
| Product Weight | 0.61 pounds |
| Size | 12-24 |
| Weight | 9.4 ounces |
| Width | 3.2 inches |
| Technical Specifications | |
| Compatible groove diameter | 0.23 Inches |
| Drive System | Phillips |
| Fastener Type | Machine Screw |
| Grade Rating | CAN |
| Head Style | Phillips |
| Maximum Shear Strength | High |
| Thread Coverage | Fully Threaded |
| Thread Size | 12-24 |
| Thread Type | Unc |
