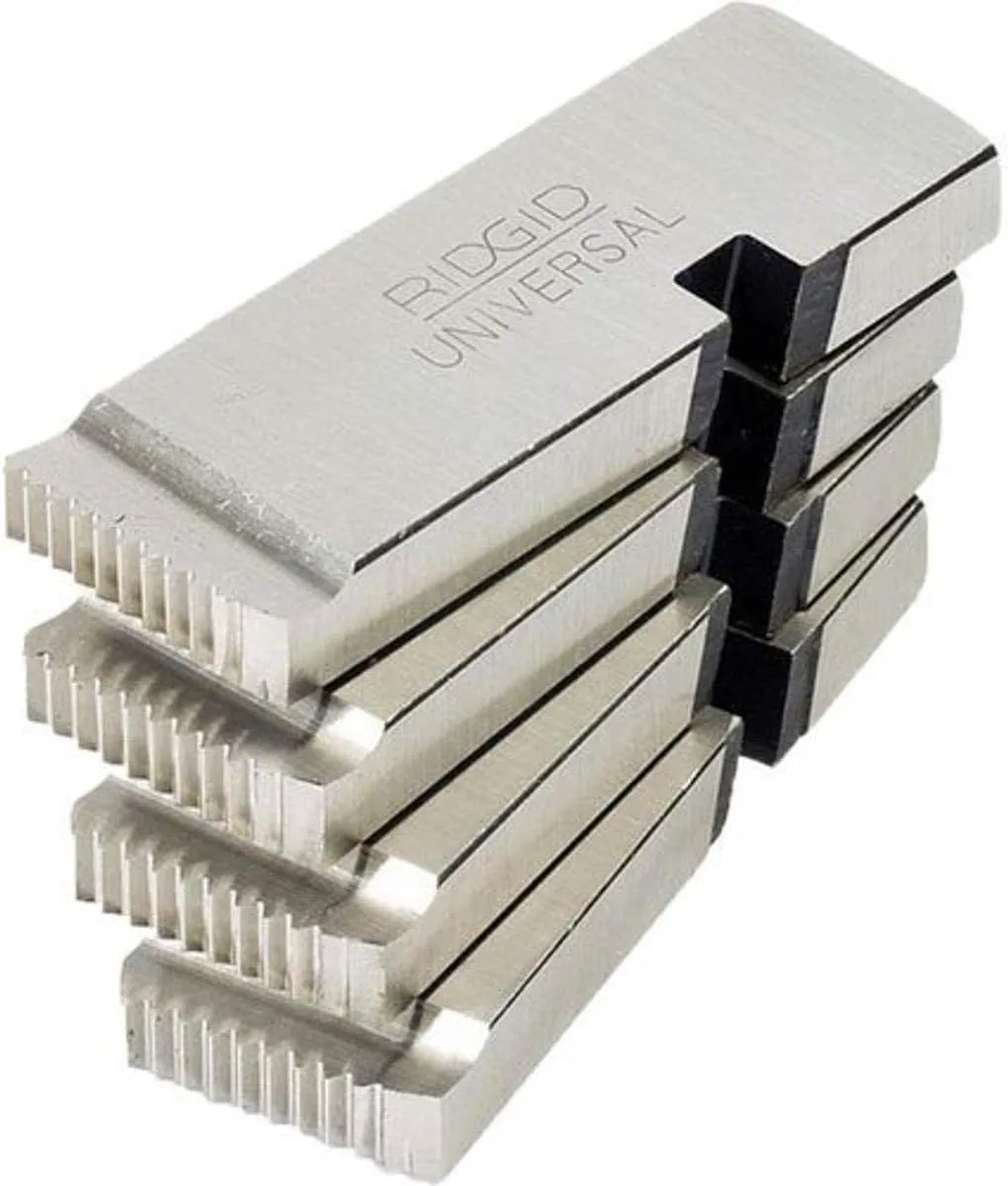

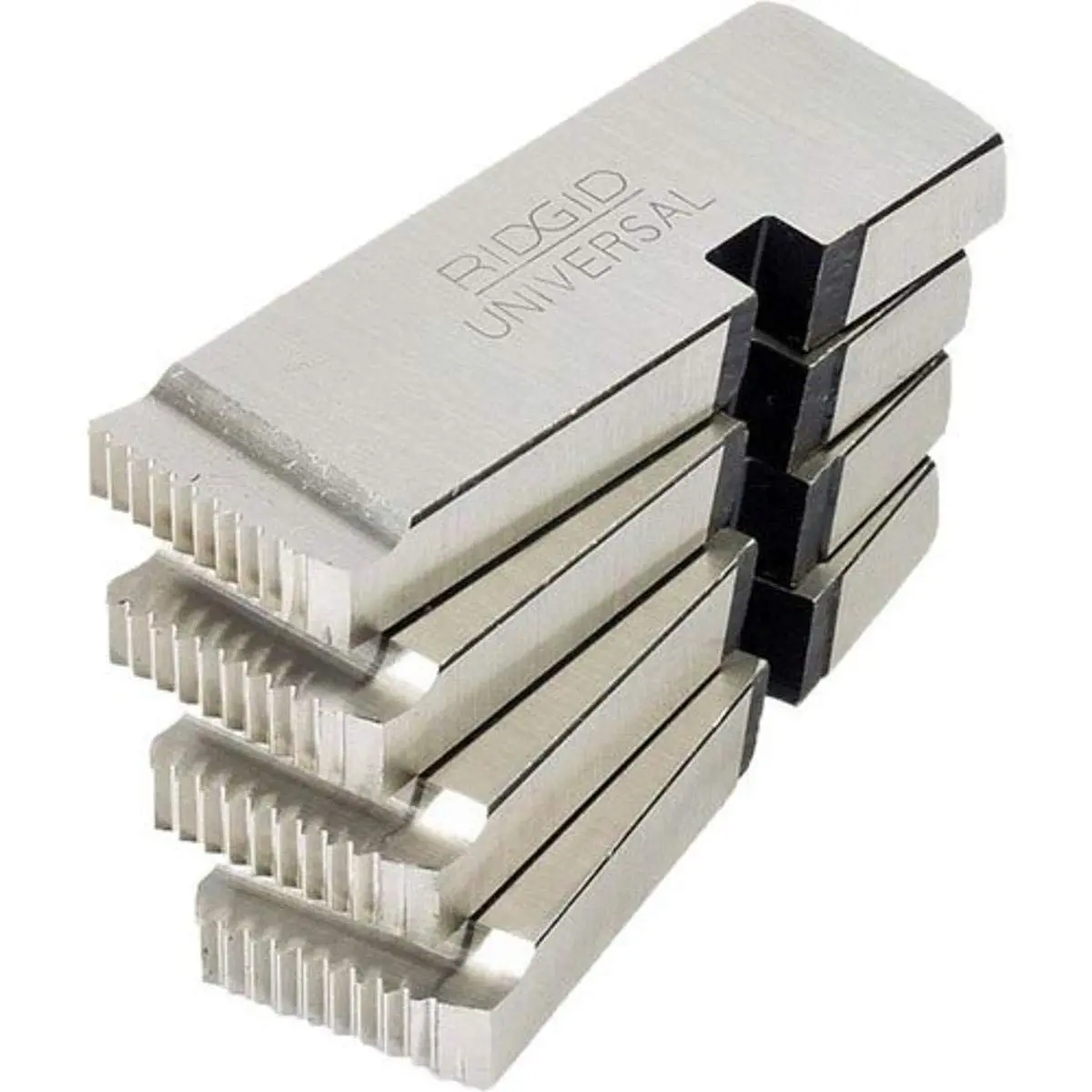

RIDGID 48235 Bolt Die, High Speed 1/2-inch RH Bolt Die Designed for use with RIDGID Universal Machine Die Heads
Customize
PRODUCT DESCRIPTION Designed with the professional in the mind, the RIDGID 48235 RH High Speed Bolt Die is the ultimate tool for quickly and precisely threading machine bolts. This strong die bolt is built to last, supporting a longer running, more efficient threading process. It’s the ideal choice for cutting consistently clean, accurate right-hand threads of 13 TPI for machine bolt rods that measure up to 1/2 inch (12 mm) in diameter.This hardwearing die bolt is specifically designed for use with high-speed threaders, including the RIDGID 1215, 1224 and 300 Compact, and is compatible with the RIDGID line of Universal Die Heads (504A, 711, 811A, 815A, 816, 817 and 911). This die bolt is manufactured in accordance with Unified National Coarse Standards. RIDGID covers its products with a lifetime warranty against defects in material or workmanship for the life of the tool.Since 1923, RIDGID has remained the symbol of certainty to dedicated professionals of the expert trades. Every tool that bears the RIDGID brand is engineered to the same high standards of quality, strength and endurance, as was that first heavy-duty pipe wrench more than 80 years ago. FROM THE MANUFACTURER Rigid 48235 1/2-inch Universal High Speed Bolt Dies. The Rigid 48235 1/2-inch Universal High Speed Bolt Dies is a bolt die for Universal Die Heads (Nos. 504A, 711, 811A, 815A, 816, 817 and 911 Die Heads). The Rigid 48235 1/2-inch Universal High Speed Bolt Dies is High-Speed RH with a 1/2" rod size and 13 TPI.
- Die bolt designed for use with RIDGID Universal High-Speed Die Heads, including 504A, 711, 811A, 815A, 816, 817 and 911
- Compatible with high-speed bolt threaders, including the 1215, 1224 and 300 Compact Threader
- This high-speed die bolt is perfect for quickly threading machine bolts with a rod size of 1/2 inch (12 mm) in diameter
- Strong, durable bolt thread die is built to last and supports a longer running threading process for maximum efficiency
- Delivers clean, precise machine bolt threads of 13 TPI every time
Specifications:
| Materials & Construction | |
| Color | Silver |
| Material | High-Speed Steel (HSS) |
| Metal Type | High-Speed Steel (HSS) |
| Product Details | |
| Cutting Diameter | 0.5 Inches |
| Fastener Type | Hexagon Bolt |
| Head Style | Flat |
| Head Type | Hex |
| Included Components | 48235 |
| Item Hardness | Grade 2 |
| Item Package Quantity | 1 |
| Manufacturer Grade | Grade 2 |
| Metal Type | High-Speed Steel (HSS) |
| Number of Pieces | 1 |
| Thread Size | 1/2"-13 UNC |
| Thread Style | Right Hand |
| Thread Type | Unc |
| Sizing & Dimensions | |
| Height | 0.5 inches |
| Length | 9.0 inches |
| Product Dimensions | 9.0 x 4.7 x 0.5 inches |
| Size | 0.5" |
| Weight | 1.45 pounds |
| Width | 4.7 inches |
| Technical Specifications | |
| Manufacturer Grade | Grade 2 |
| Warranty | Full Lifetime Warranty. Should your tool ever malfunction from defects in workmanship or materials, we will repair or replace the tool free of charge. |
