NavPod AG27 AngleGuard - Double Bend - 9.5" Wide - 1" Diameter
NavPod AG27 AngleGuard double-bend 1" diameter stainless steel mount for marine instruments — 9.5" center-to-center spacing, mirror polished 316 stainless, designed for InstrumentPod and SailPod mounting.
Non-returnable
$499.99
Customize
UPC
659988106633 Available Quantity
2 GSA Item
No GSA Compliant
No Product Details

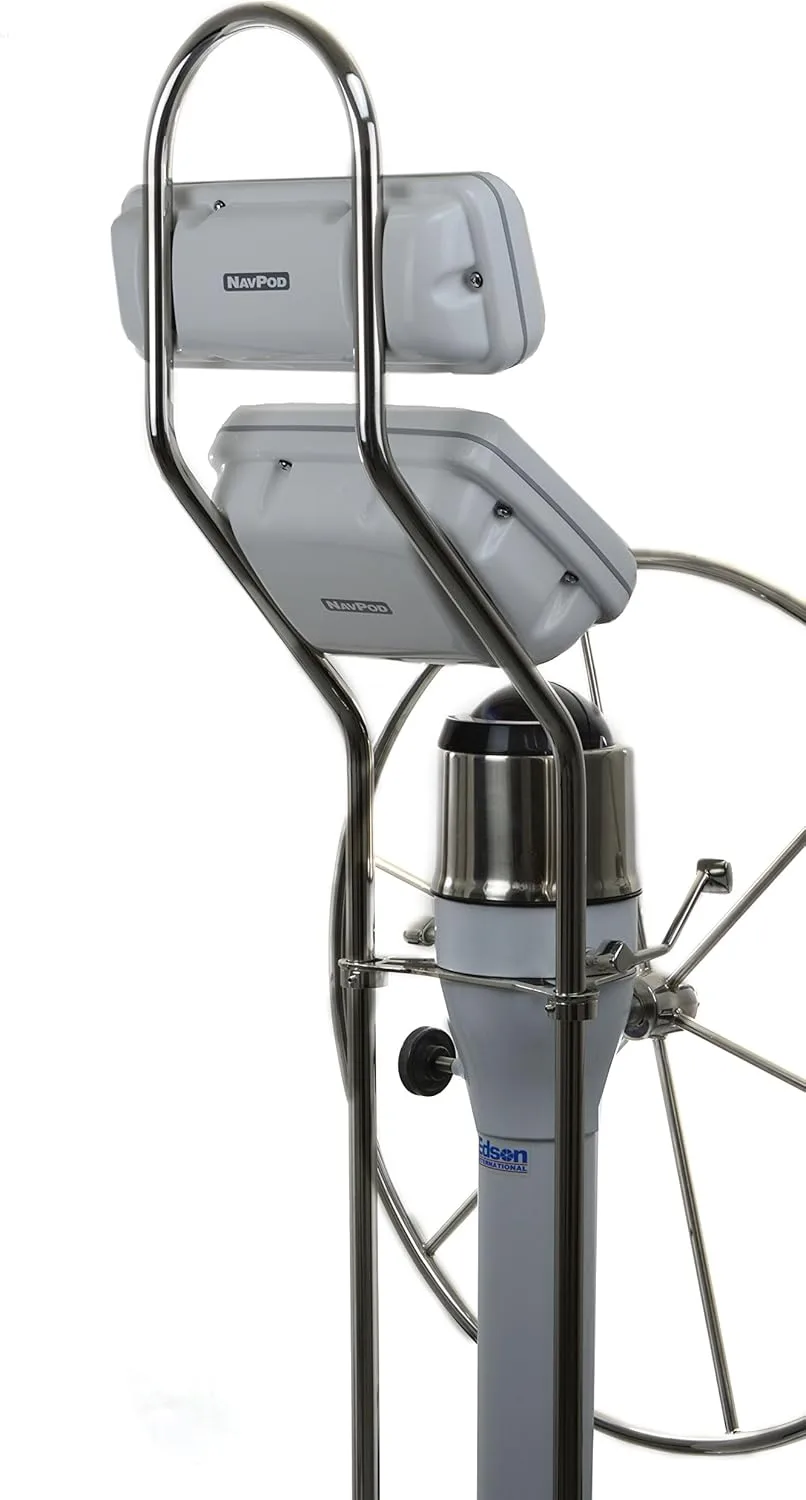

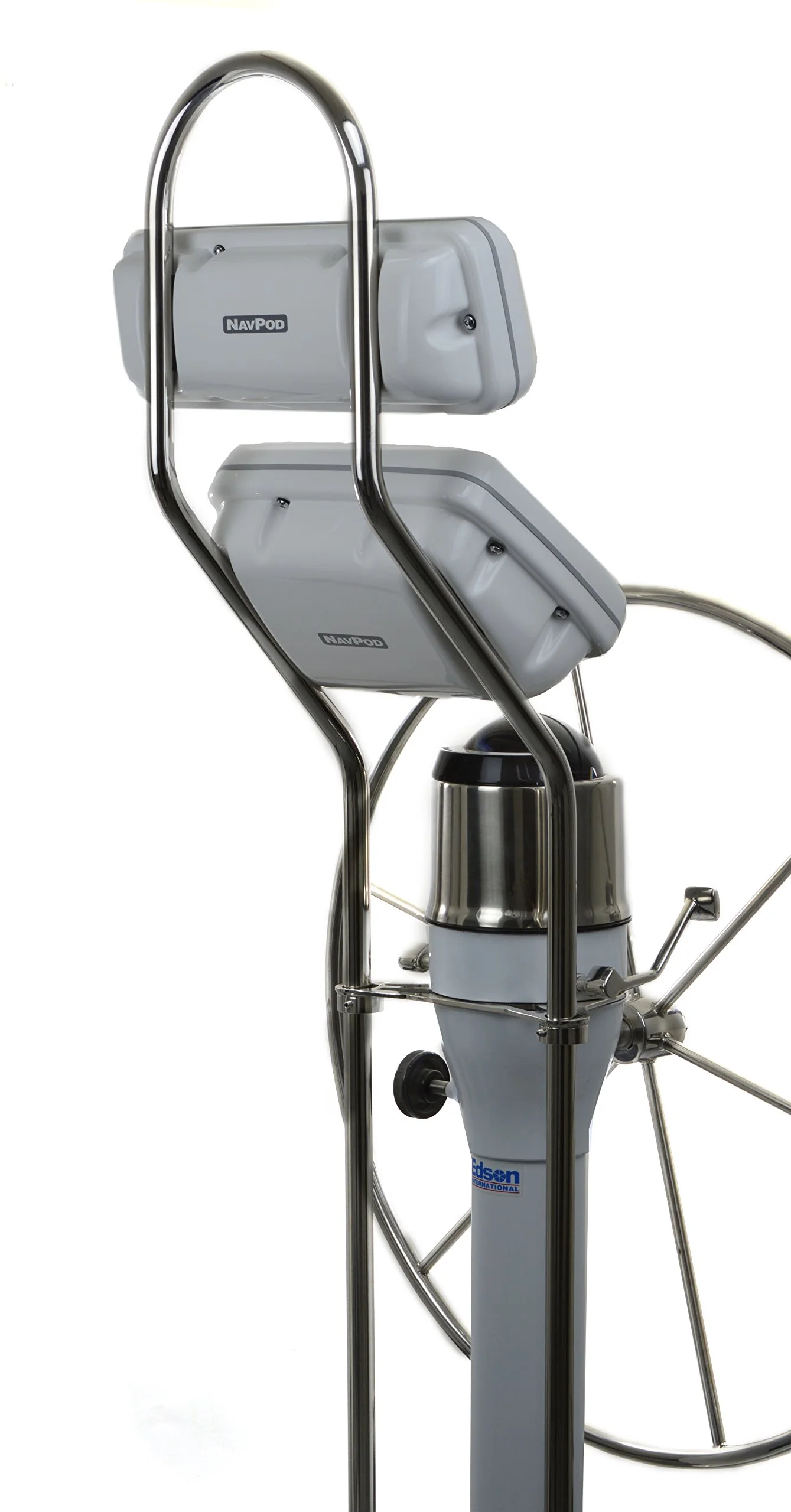

NavPod AG27 AngleGuard - Double Bend - 9.5" Wide - 1" Diameter. The AG27 double-bend AngleGuard positions one InstrumentPod above one SailPod to provide optimal viewing angles for chartplotters and instruments. Constructed from 316 grade stainless steel with a mirror polished finish and 0.065" wall thickness, it offers durable protection for electronics in harsh marine environments. Features include 9.5" center-to-center spacing, 1" diameter tubing, 10" angled flat length, and 8" upper vertical flat length. Recommended for mounting GP2300/GP2400 InstrumentPods on the upper section and GP2050/GP2200 SailPods on the lower angled section. Includes pedestal guard only (no mounting feet, NavPod housings or electronics).
- Includes pedestal guard only (no mounting feet, NavPod housings or electronics are included).

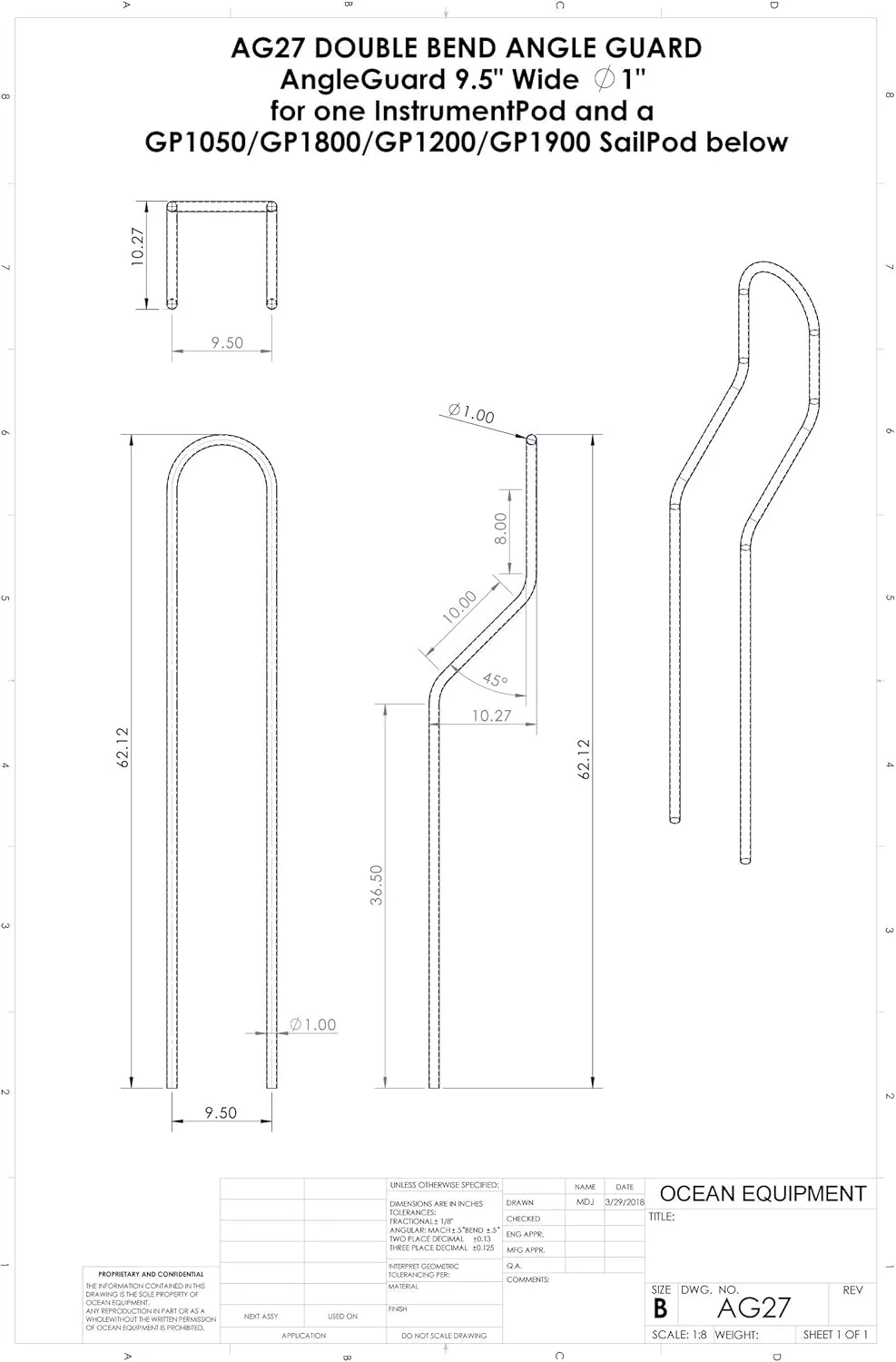

- 62.12" Overall Height; 10.27" Overall Depth; 45 degree bend begins at 36.5" height; 10" available vertical mounting space on angled section; 8" available vertical mounting space on upper straight section. 316 Grade Stainless Steel; 0.065" Wall Thickness; Mirror Polished Finish.
- Recommended for mounting one GP2300/GP2400 Series InstrumentPod on the upper section and one GP2050/GP2200 SailPod on the lower angled section.
- A Double Bend AngleGuard positions one InstrumentPod above one SailPod, providing optimal viewing angles and allowing you to clearly and comfortably see the details on your chartplotter and instrument displays.
- NavPod AG27 AngleGuard - Double Bend - 9.5" Wide - 1" Diameter
Specifications:
| Materials & Construction | |
| Color | Stainless Steel |
| Material | Steel |
| Outer Material | Steel |
| Product Details | |
| Included Components | NavPod AG27 AngleGuard - Double Bend - 9.5" Wide - 1" Diameter |
| Model Name | NavPod AG27 AngleGuard - Double Bend - 9.5" Wide - 1" Diameter |
| Number of Items | 1 |
| Size | One Size |
| Sport Type | Boating |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 60 inches |
| Length | 10.5 inches |
| Product Dimensions | 10.5 x 10.5 x 60 inches |
| Size | One Size |
| Weight | 12 pounds |
| Width | 10.5 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 10.5 x 10.5 x 60 inches |
| Item Package Dimensions L x W x H | 64.02 x 12.01 x 10 inches |
