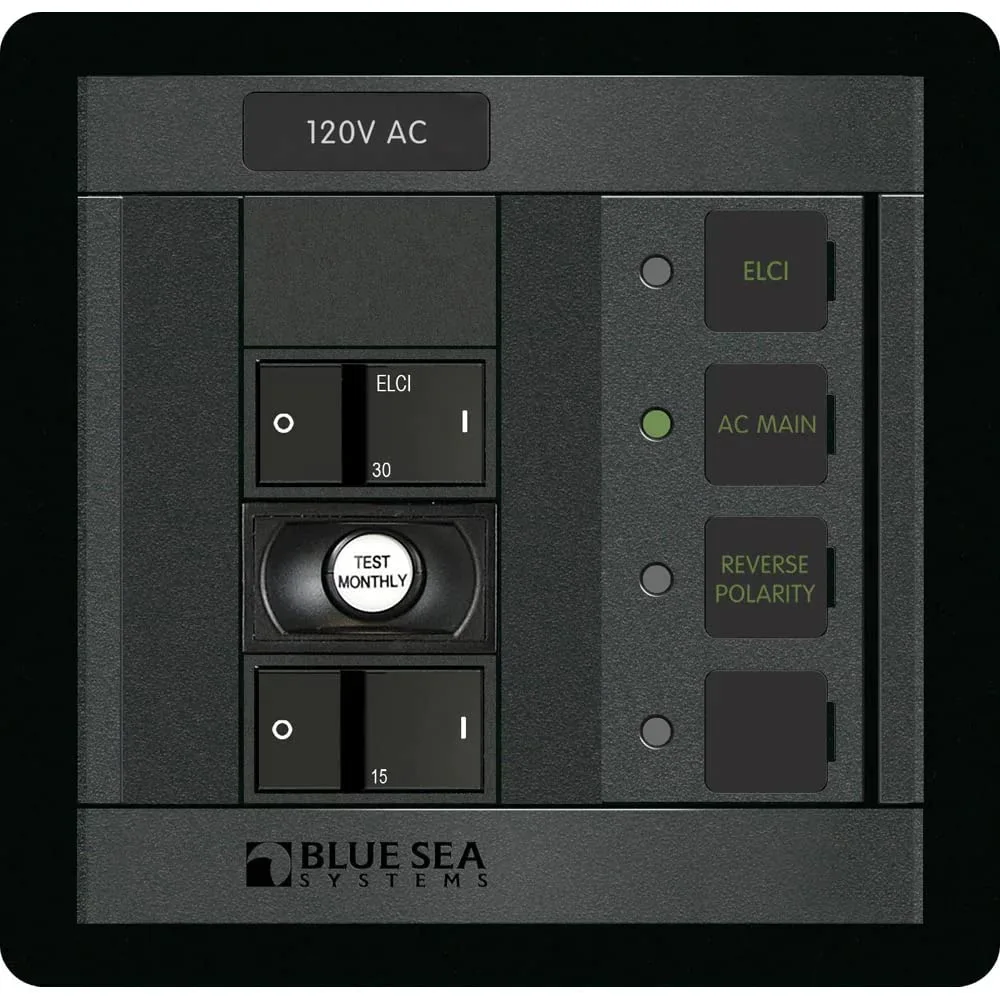

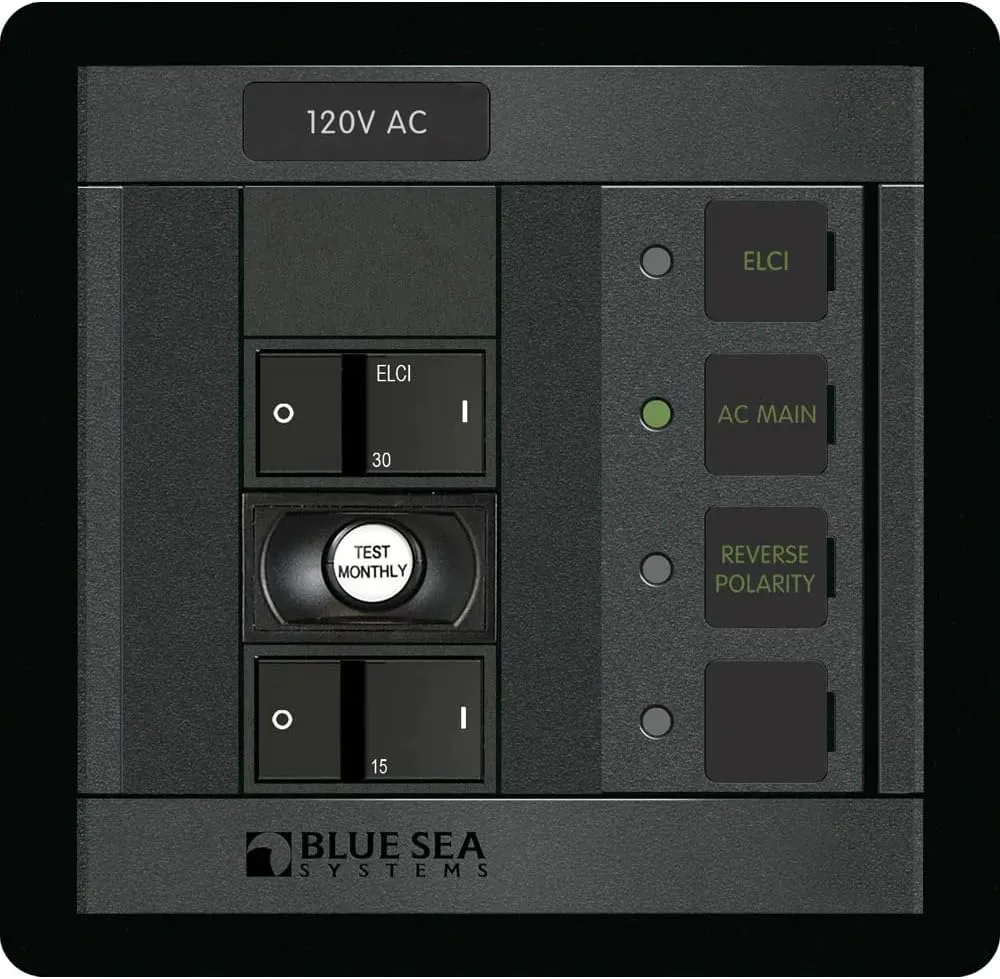

Blue Sea Systems 1190 ELCI Main 30A Double Pole + 1 Position

ELCI Main 30A Double Pole + 1 Position Features: One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection One 15A AC Branch Flat Rocker Circuit Breaker Red " Reverse Polarity" LED Includes 4206 AC Panel Basic Square Format Label Set All circuit label positions are backlit "ON" indicating LEDs Specifications: Positions: 1 Nominal Voltage: 120V AC Backlit Label*: Green LED Height: 4.75" (120.65mm) Width: 4.88" (123.95mm) Depth: 3.99" (101.35mm) Weight: 1.00lb (0.45kg) Includes: (1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A *Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

• Includes 4206 AC Panel Basic Square Format Label Set
• Red " Reverse Polarity" LED
• Includes one 15A AC Branch Flat Rocker Circuit Breaker
• Includes one 30A 120VAC ELCI Main Circuit Breaker, leakage trip amperage - 30 mA
• 360 Panel System
