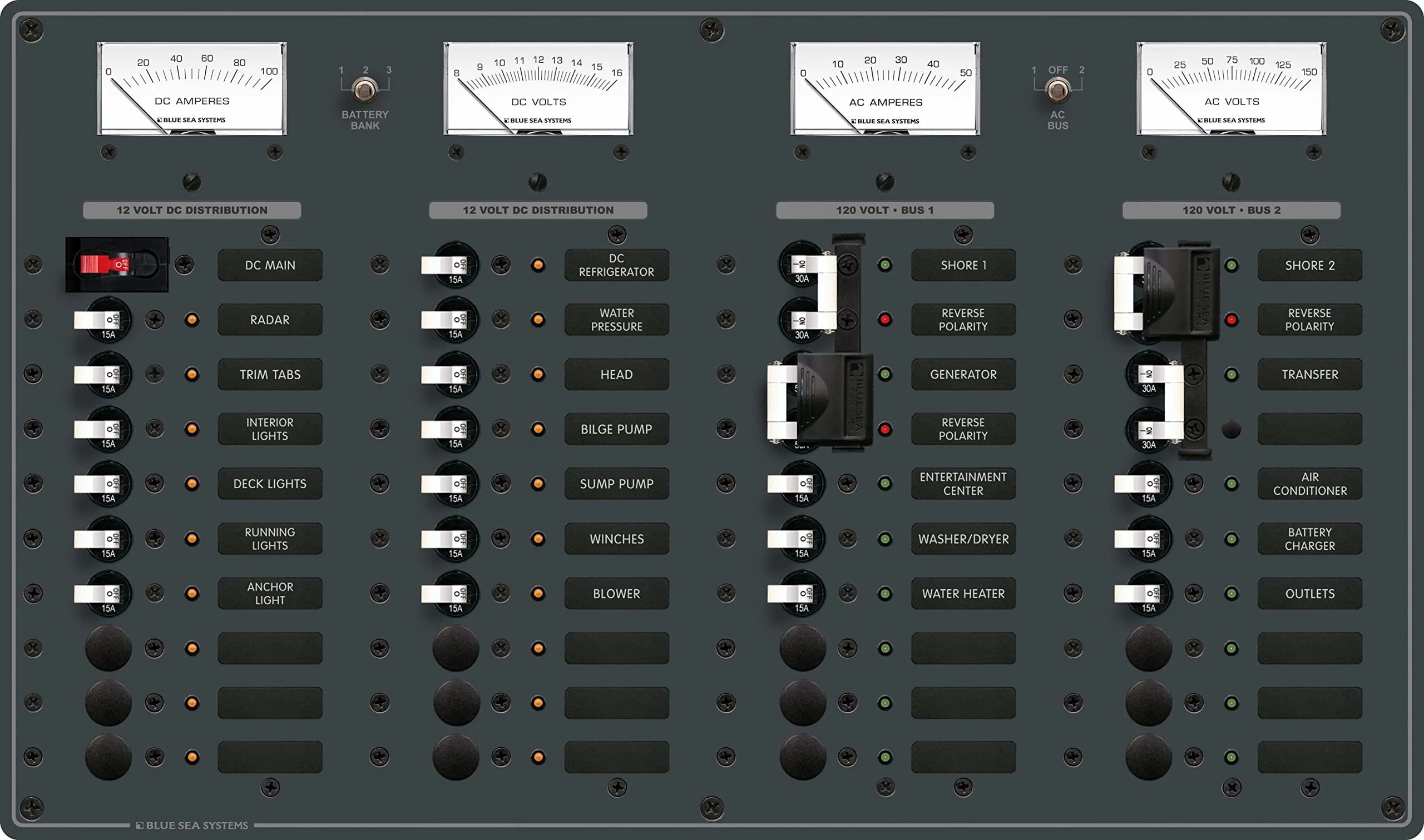

Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel (White Switches)

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches. Features: Includes set of 30 common AC and 30 common DC labels. All AC and DC buses installed, fully pre-wired. Label backlighting pre-installed. All LEDs installed. Maximum panel Amperage 100 Amperes DC, 50 Amperes AC. AC Features: Two separate AC load groups with transfer switch to combine into one load group. Switch allows Ammeter and Voltmeter to read either AC load group. Reverse polarity indicators on both AC load groups. Ready for installation of optional 4031 AC Isolation Cover; compatible with 9353 0-150 Volt AC Voltmeter and 9630 0-50 Amp AC Ammeter. DC Features: 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits; compatible with 8003 8-16 Volt DC Voltmeter and 8017 0-100 Amp DC Ammeter. Specifications: AC Positions: Source Selectors +12. DC Positions: Main +19. 120 Volts AC / 12 Volts DC. (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers. (1) 100A - (13) 15A DC Circuit Breakers. *Combined AC/DC panels require an AC insulating cover to meet ABYC Standards. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• BLU1003
