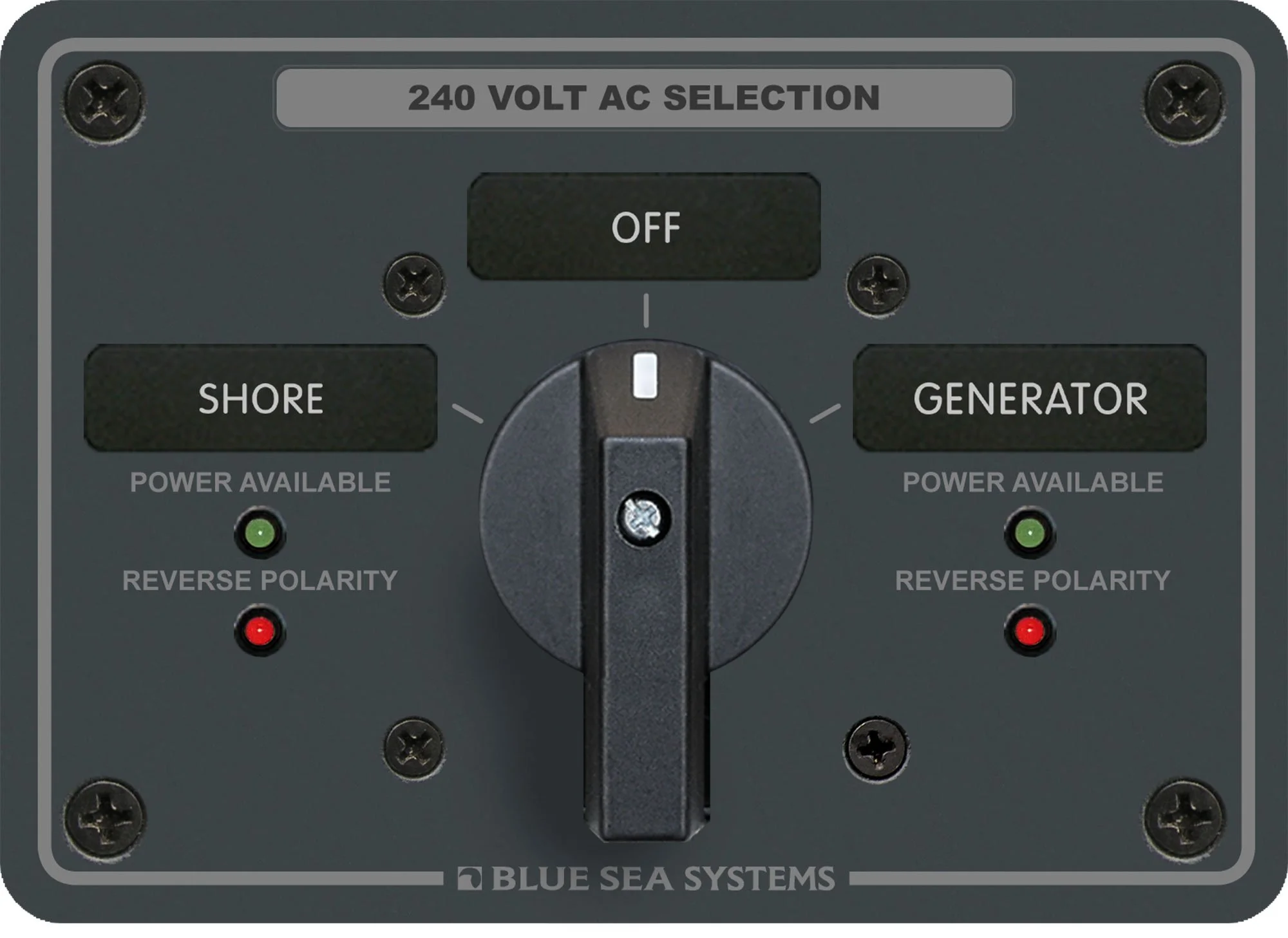

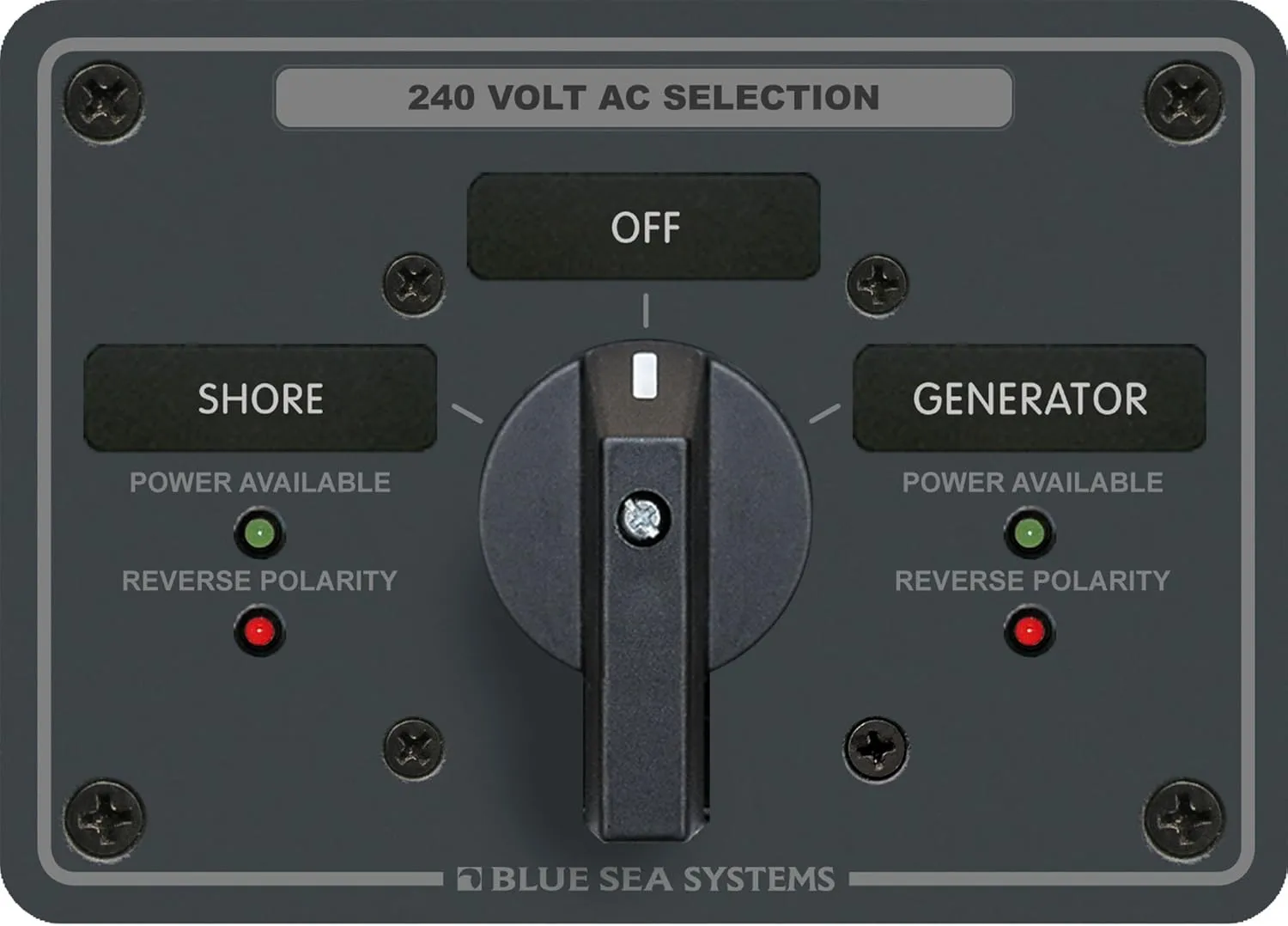

Blue Sea Systems 8363 AC Rotary Switch Panel 65 Ampere 2 positions + OFF, 3 Pole
Customize
AC Rotary Switch Panel 65 Ampere 2 positions + OFF, 3 Pole. Poles: 3. Voltage: 120/240v. Amperage: 65. Positions: 2 + OFF. Switches 3 - 230 Volt AC sources. Includes 9019 heavy duty industrial rated switch. Two-part polyurethane slate gray finish. Heavy 1/8" aluminum 5052 alloy. Red reverse polarity LED indicators. Green power available LED indicators. Compact solution when circuit protection is provided elsewhere. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. AC/DC: AC. Max Breaker Quantity: 2 +OFF. Voltage: 240v. Includes 9011 heavy duty industrial rated switch and 9583 AC rotary panel labels. Intended for use with PN 8247 AC Digital Multimeter (not included). Mounting: panel mount. Contact material: stainless steel. IP65 rated for protection.
- Includes 9011 heavy duty industrial rated switch
- Intended for use with PN 8247 AC Digital Multimeter (Not included)
- Includes 9011 (AC Rotary Switch - OFF + 2 Positions 240V AC 65A) & 9583 (AC Rotary Panel Labels)
- Switches 2 - 230 Volt AC sources
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Ac/dc | Ac |
| Actuator Type | Rotary |
| Circuit Type | 2-position circuit |
| Connectivity Protocol | X-10 |
| Connector Type | Screw |
| Contact Material | Stainless Steel |
| Contact Type | Normally Open |
| Current Rating | 65 Amps |
| Global Trade Identification Number | 00632085083632 |
| Included Components | Blue Sea 8363 AC Rotary Switch Panel 65 Ampere 2 Positions + OFF, 3 Pole |
| International Protection Rating | IP65 |
| Max Breaker Quantity | 2 +off |
| Model Name | Blue Sea 8363 AC Rotary Switch Panel 65 Ampere 2 Positions + OFF, 3 Pole |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Number of Positions | 2 |
| Operating Voltage | 230 Volts |
| Operation Mode | Off,Rotary Switch |
| Terminal | Screw |
| Unit Count | 1 Count |
| Voltage | 240v |
| Warranty Description | Warranty |
| Wattage | 1.495E+4 |
| Sizing & Dimensions | |
| Height | 4.5 inches |
| Length | 12 inches |
| Product Dimensions | 12 x 9.1 x 4.5 inches |
| Size | 4.5-inch Combi |
| Weight | 1.8 pounds |
| Width | 9.1 inches |
| Technical Specifications | |
| Current Rating | 65 Amps |
| Operating Voltage | 230 Volts |
| Operation Mode | Off,Rotary Switch |
| Terminal | Screw |
