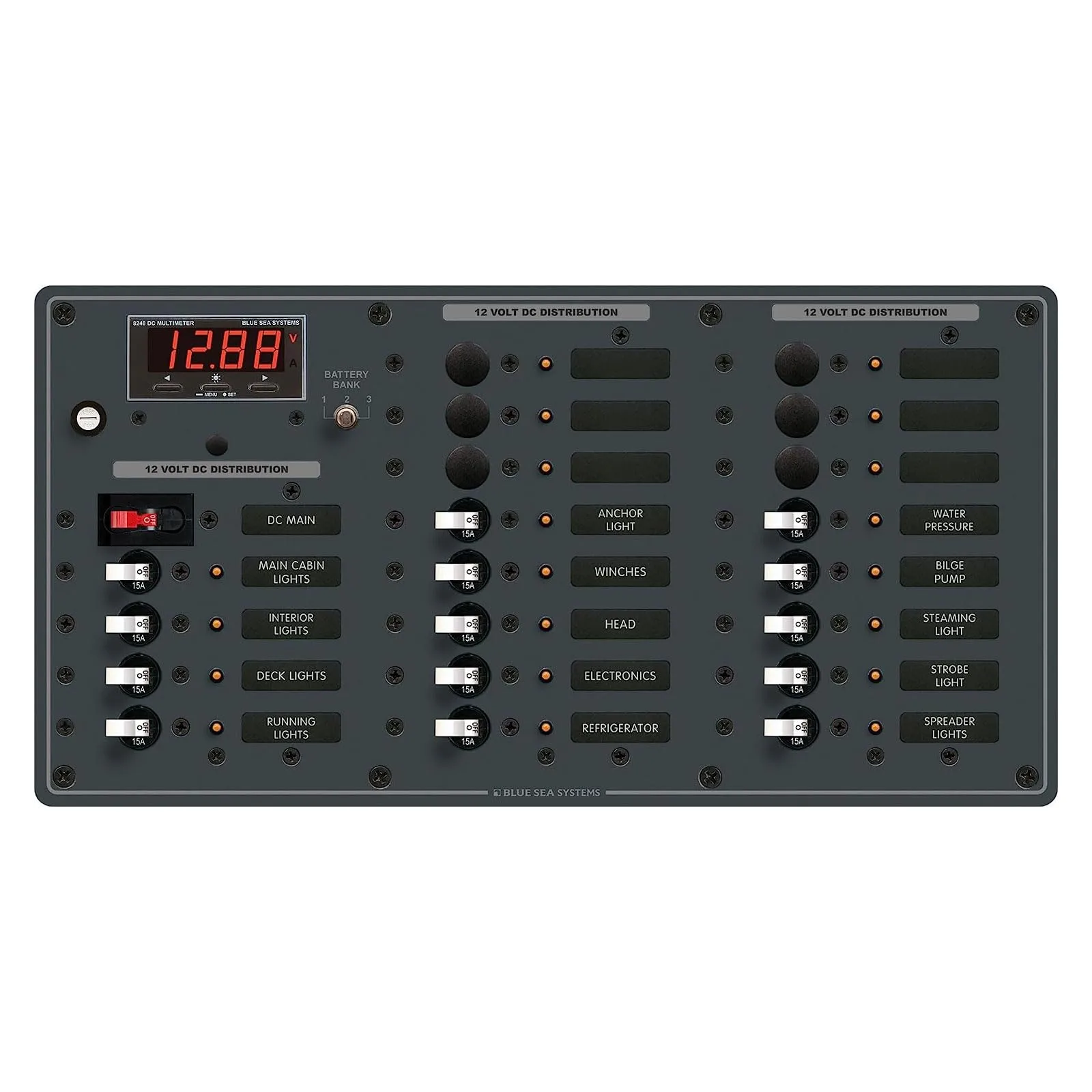

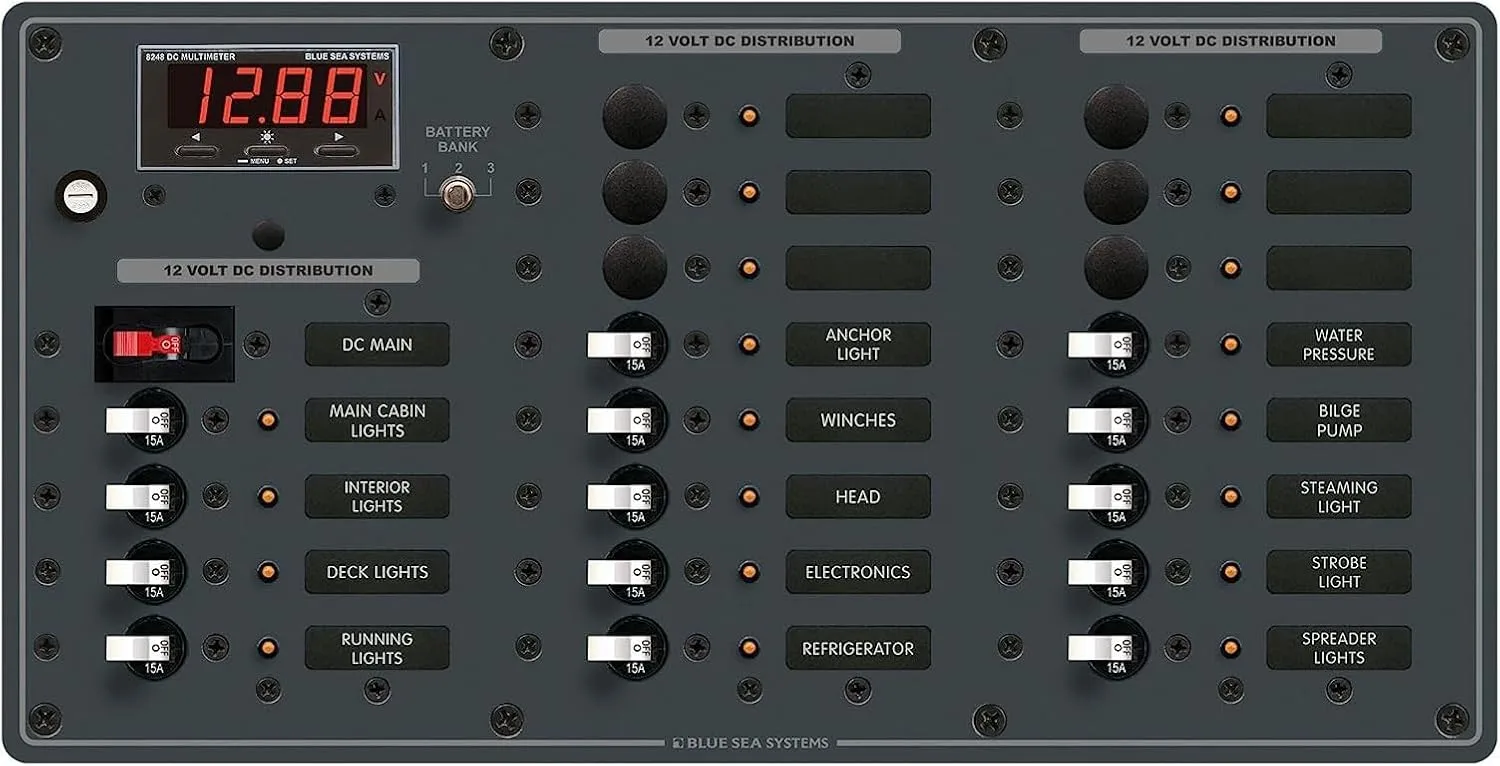

Blue Sea Systems 8379 DC Main + 20 Positions, White Toggle
Customize
Blue Sea Systems 8379 DC Main + 20 Positions. Main + 20 Positions with (14) 15A Single Pole Circuit Breakers, (1) 100A C-Series Main Circuit Breaker, and (1) 8248 DC Digital Multimeter with Alarm. White toggle switches. All positive, negative and grounding buses installed and fully pre-wired. Panels with meters include toggle switch for mounting up to 3 battery banks. All circuit label positions are backlit on standard panels; no kit required. "ON" indicating LEDs installed in all circuit positions. MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance. Two-part polyurethane slate gray finish. Heavy 1/8" aluminum 5052 alloy construction with industry standard height and width. Countersunk mounting holes throughout. Detailed installation instructions and cutout template included. Includes set of 30 common Large Format Panel Labels. Maximum panel amperage - 100 Amperes. Product is suitable for marine electrical distribution and boat electrical panels. Voltage: 12/24V. Max Breaker Quantity: 20.
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- Maximum panel amperage - 100 Amperes
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC/DC | DC |
| Circuit Breaker Type | Standard |
| Current Rating | 100 Amps |
| Included Components | Blue Sea 8379 DC Main + 20 Positions |
| Max Breaker Quantity | 20 |
| Mounting Type | Panel Mount |
| Number Of Poles | 3 |
| Voltage | 12/24v |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 7 inches |
| Length | 22 inches |
| Product Dimensions | 22 x 14 x 7 inches |
| Size | One Size |
| Weight | 8.4 pounds |
| Width | 14 inches |
| Technical Specifications | |
| Warranty | Warranty |
