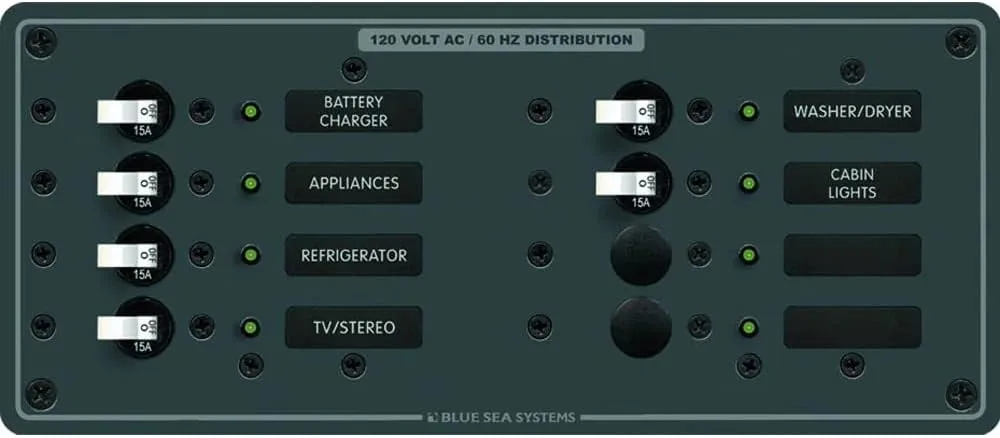

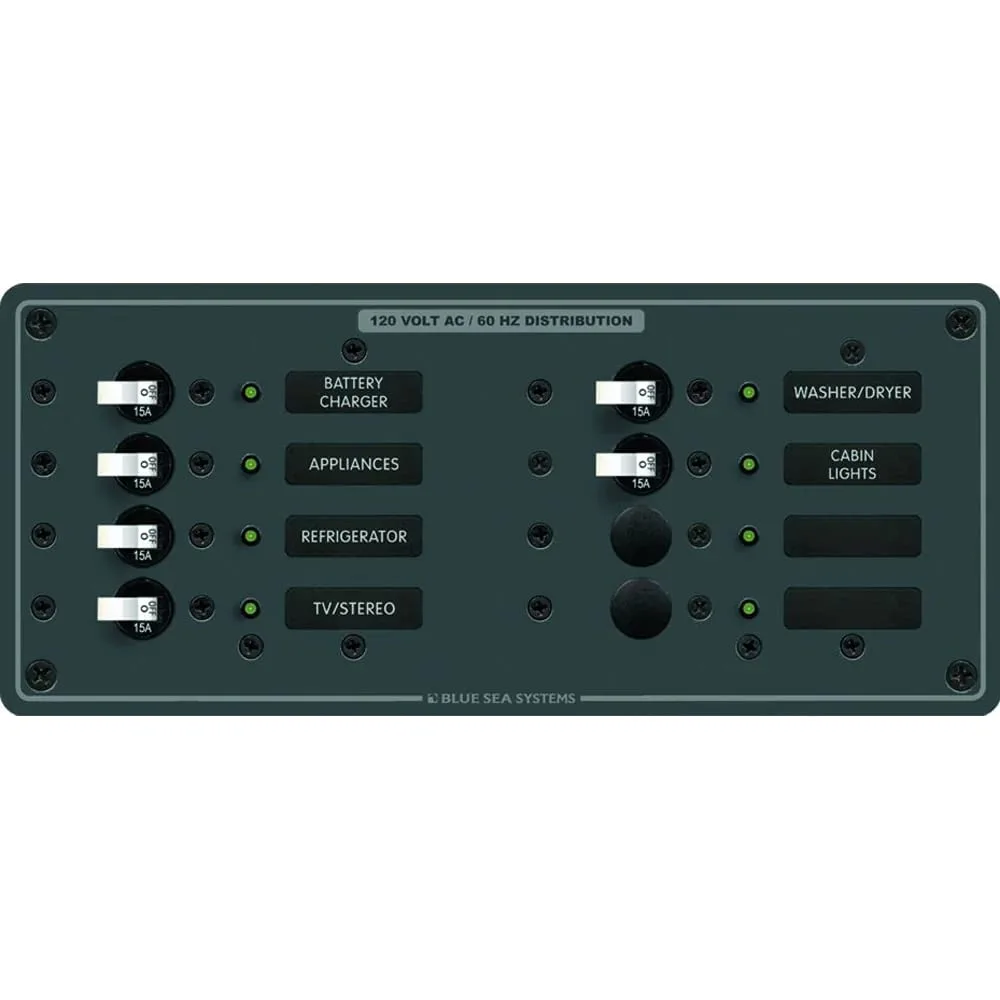

AC 8 Position panel designed by Blue Sea Systems. AC 8 Position with (6) 15A single pole circuit breaker capacity; all hot, neutral, and safety ground buses installed and fully pre-wired. All circuit label positions are backlit on standard panels with ON indicating LEDs installed in all circuit positions. Maximum panel amperage is 100 Amperes. Finished with MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance and a two-part polyurethane slate gray finish. Constructed of heavy 1/8" 5052 aluminum alloy with industry standard height and width and countersunk mounting holes. Detailed installation instructions and cutout template included. Includes set of 30 common large format labels. Voltage: 120v AC. Max Breaker Quantity: 8. Great Product.
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Circuit Breaker Type | Standard |
| Included Components | Blue Sea 8411 AC 8 Position |
| Model Name | Blue Sea 8411 AC 8 Position |
| Mounting Type | Panel Mount |
| Number Of Poles | 1 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 12 inches |
| Product Dimensions | 12 x 9 x 4 inches |
| Size | One Size |
| Weight | 3.63 pounds |
| Width | 9 inches |
| Technical Specifications | |
| AC/DC | AC |
| Circuit Breaker Type (Summary) | Standard |
| Max Breaker Quantity | 8 |
| Voltage | 120v |
