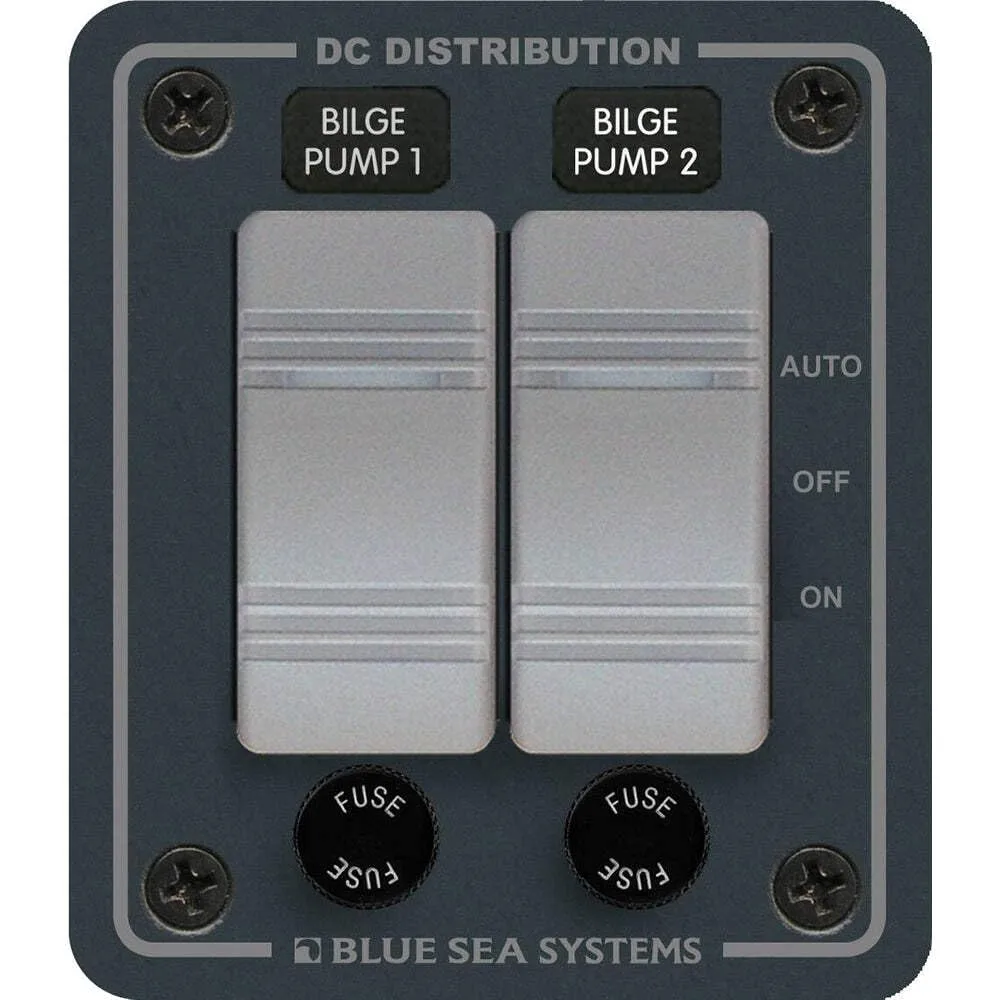

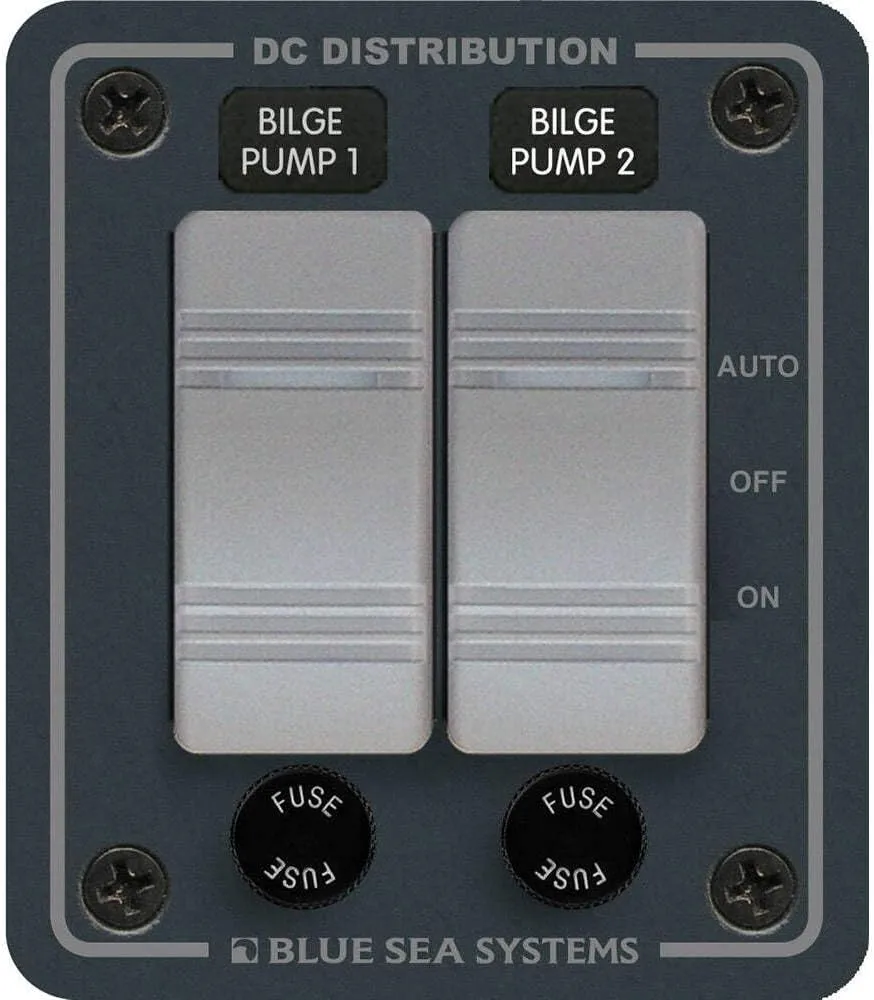

Blue Sea Systems 8664 Contura Water-Resistant DC Panel - Bilge Pump Control 2 Position, Gray

8664 Contura 2 Bilge Pump Control Panel Blue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp. Designed for 12 or 24V DC systems. ON - OFF - AUTO Contura Switch. Watertight mounting gasket. Fuse holders accept commonly available AGC and MDL glass fuses. ON LED embedded in switch indicates the pump is running. Completely wired and ready to install. Weatherproof - Water Resistant. No. of Bilge Pumps - two (2). Nominal Voltage - 12/24V. Panel Cumulative Rating - 45A. Switch Rating: 20A @ 12V DC / 15A @ 24V DC. Dimensions (H x W x D) - 3.75" x 3.34" x 3". In the Box: Panel, Mount AGC/MDL Fuse Holder (P/N 5021) x two (2), Contura III Switch SPDT - On - OFF - (ON) (P/N 7944) x two (2), Black 60 Label Set (P/N 8214). Rated IP66. ON indicating LEDs embedded in all switches. Pre-wired for easy installation. Operating current: 18mA per switch. Height: 3.75in (95.25 mm), Width: 3.34in (84.84 mm), Depth: 3in (76.2 mm).

• Color: Gray, Nominal Voltage: 12/24V DC, Panel Cumulative Rating: 45A, Operating Current: 18mA per Switch, Switch Rating: 20A @ 12V DC, 15A @ 24V DC, Height: 3.75in (95.25 mm), Width: 3.34in (84.84 mm), Depth: 3in (76.2 mm)
• Designed for 12 or 24V DC systems
• Watertight mounting gasket
• Pre-wired for easy installation
• ON indicating LEDs embedded in all switches
• (ON)-OFF-ON Contura Switches and 15A AGC Fuses
• Rated IP66
