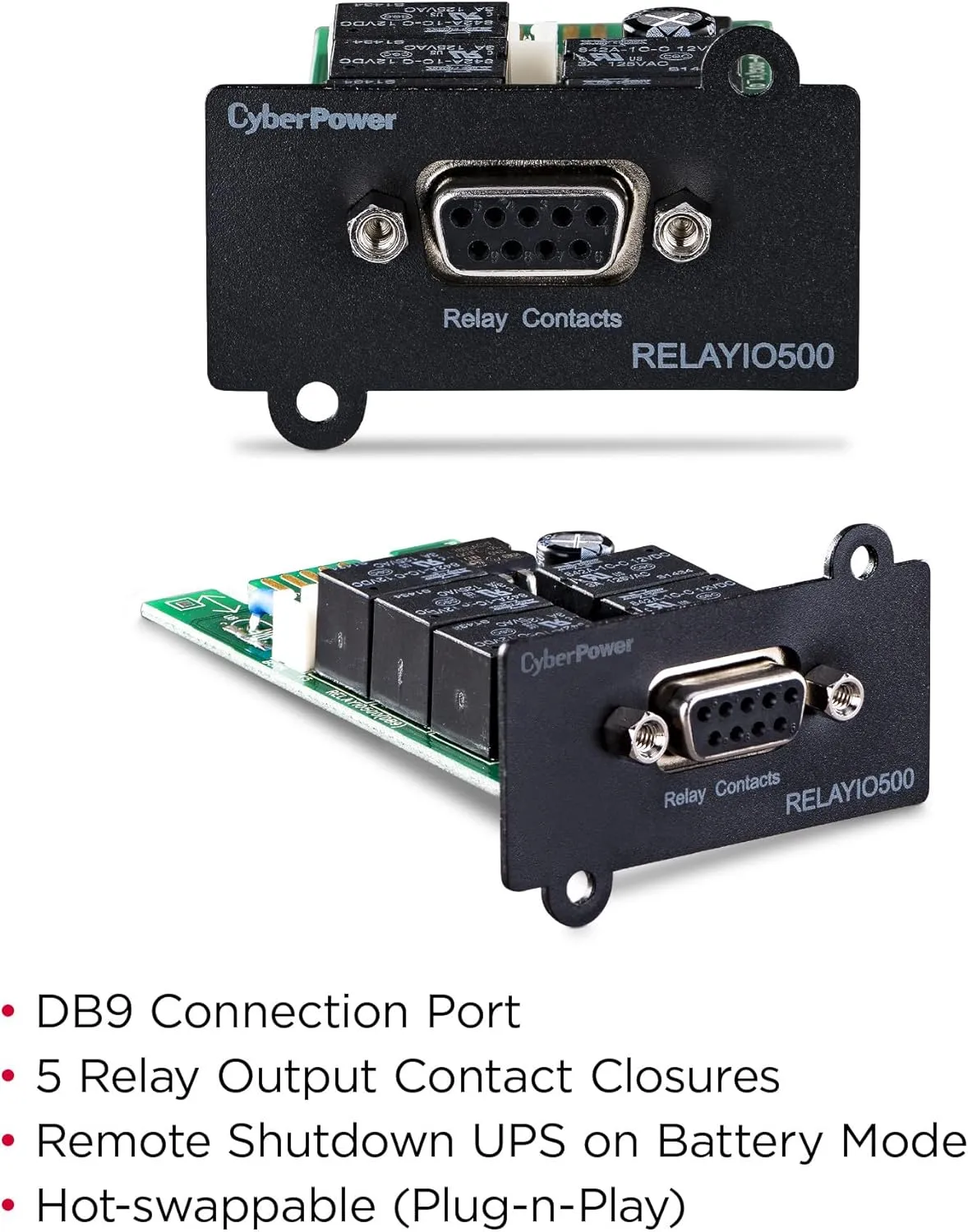

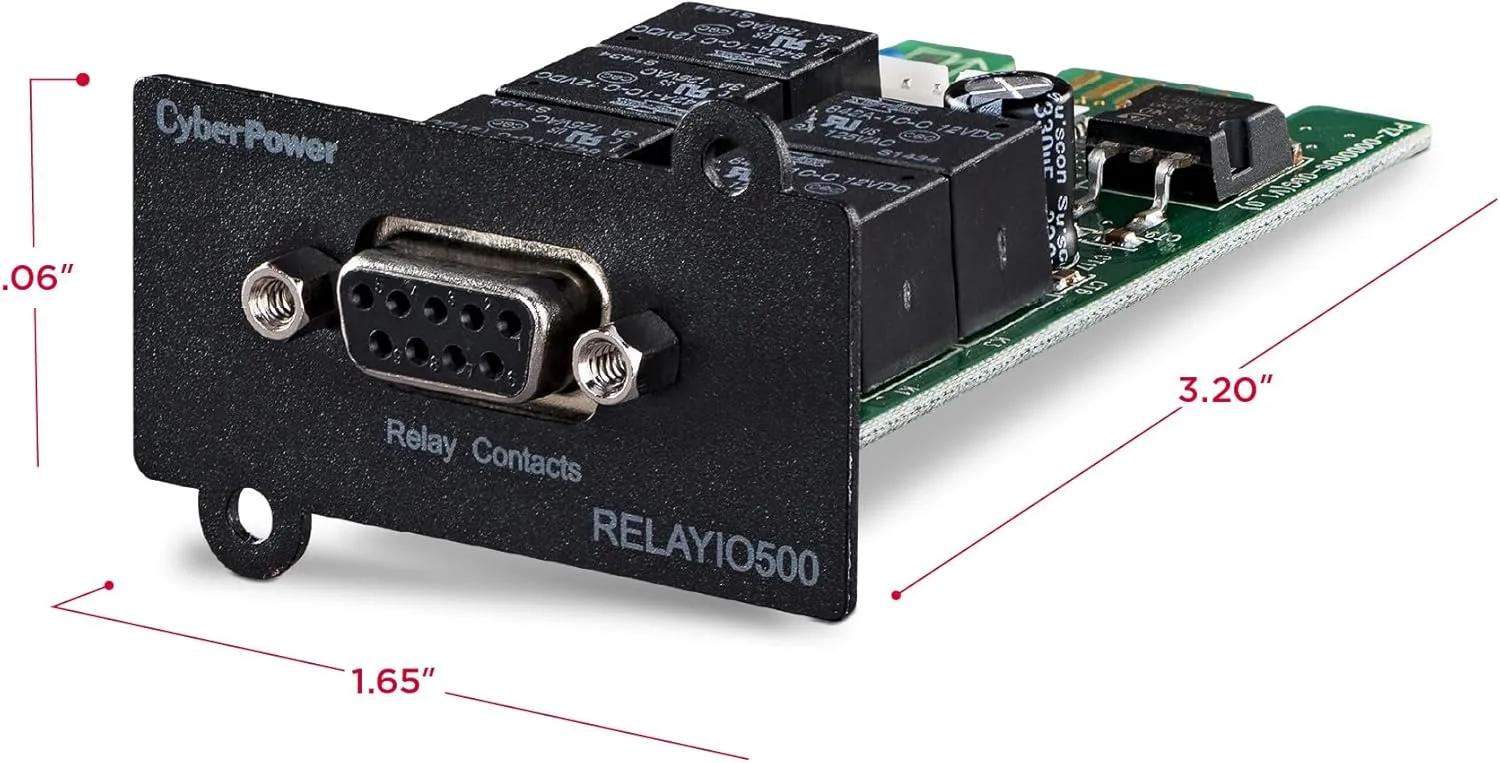

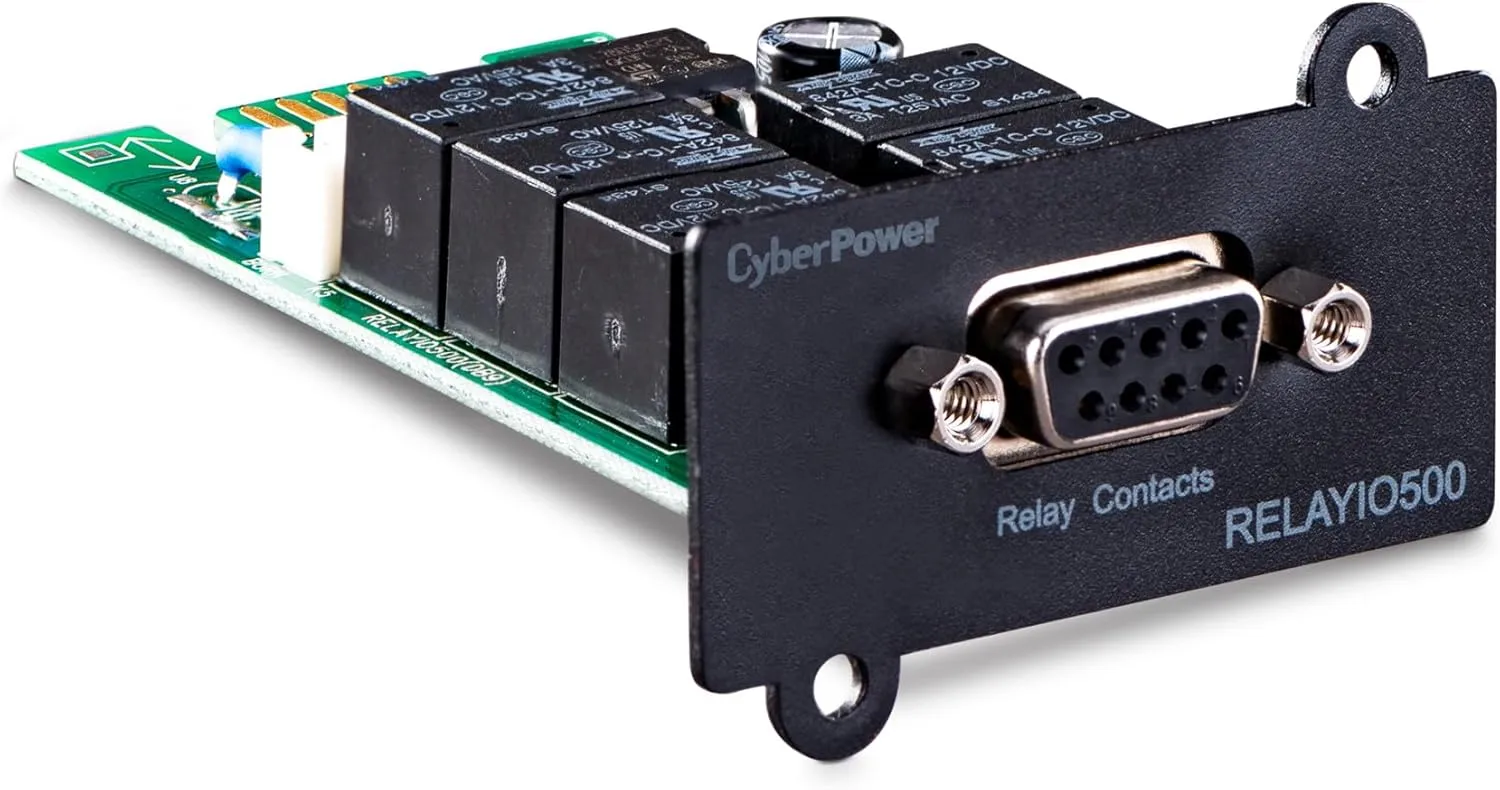

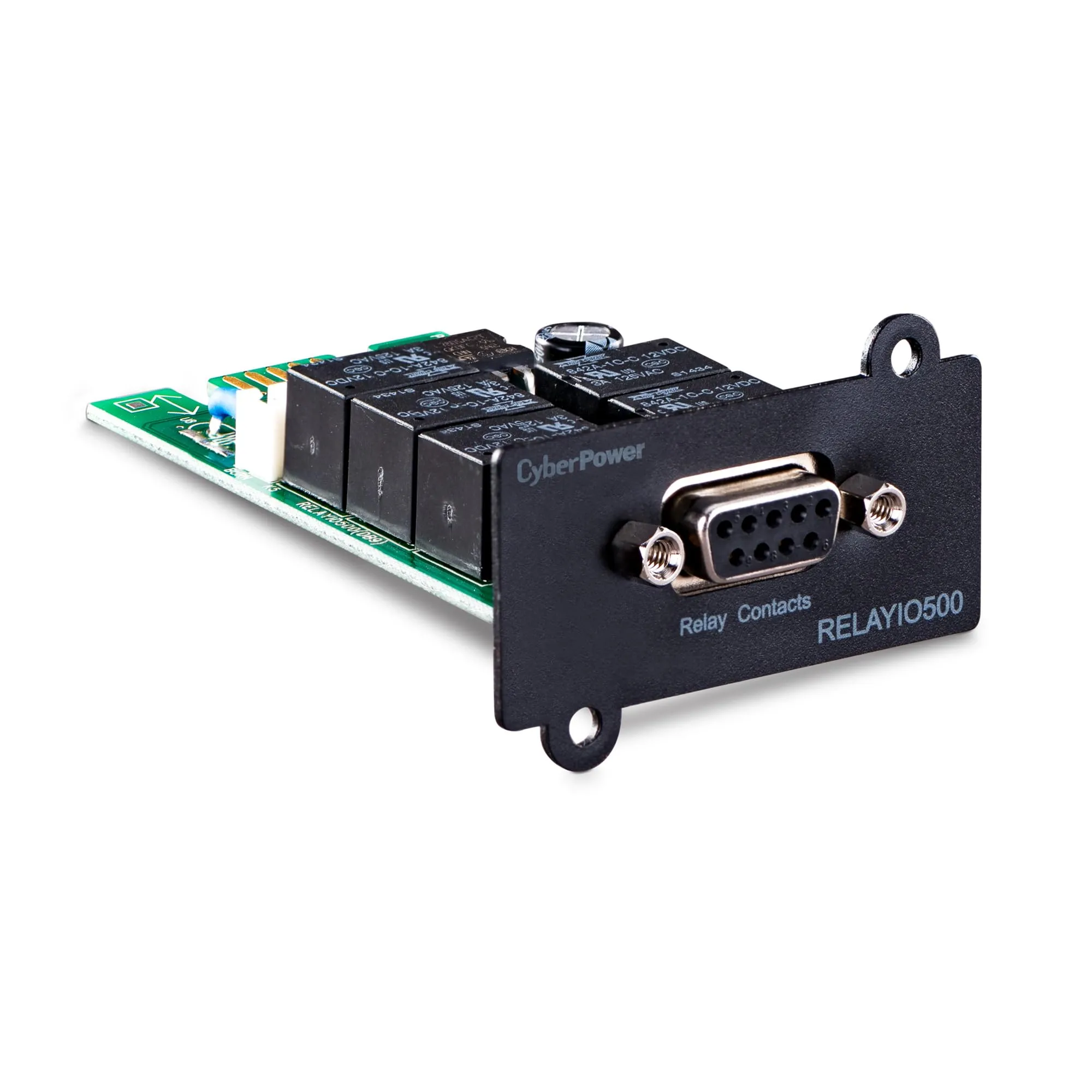

CyberPower RELAYIO500 UPS Relay IO Management Card
Customize
CyberPower RELAYIO500 is a UPS relay I/O management card that provides local monitoring and control via five contact-closure outputs and one input. Designed for seamless integration with compatible Smart App Online and other CyberPower UPS expansion-slot models, it uses a DB9 (9-pin D-Sub) connector for straightforward PC compatibility. The RELAYIO500 supports remote shutdown via the input contact closure to preserve battery power during extended outages, is hot-swappable for minimal downtime during maintenance, and is rated to operate within typical operating temperatures (0°C to 40°C). The unit ships with a three-year warranty and is commonly compatible with OR Series, PR Series, OL1000RTXL2U, OL1500RTXL2U, OL1500RTXL2UN, OL2200RTXL2U, and OL3000RTXL2UHV UPS models. Product dimensions, specifications, and compatibility are provided in the product details and specifications sections.
- 3-YEAR WARRANTY
- INTERFACING WITH EXTERNAL ALARMS: External alarm devices can be interfaced via the DB9 port
- REMOTE SHUTDOWN IN BATTERY MODE: Preserves battery power in the event of a prolonged power outage
- HOT-SWAPPABLE
- RELAYIO500 Network Management Card - provides users with the ability to monitor and locally manage UPS status and event information via 5 contact closure outputs
Specifications:
| Materials & Construction | |
| Depth | 3-2/10 In. |
| Product Details | |
| Compatible With | <ul> <li>all Or Series Ups Systems</Li> <li>all Pr Series Ups Systems</Li> <li>ol1000rtxl2u</Li> <li>ol1500rtxl2u</Li> <li>ol1500rtxl2un</Li> <li>ol3000rtxl2uhv</Li> <li>ol2200rtxl2u</Li> </Ul> |
| Model | Relayio500 |
| Quantity | 1 |
| Sizing & Dimensions | |
| Height | 2.3000 inches |
| Length | 6.7000 inches |
| Product Dimensions | 3 x 2 x 1 inches |
| Product Weight | 0.3500 |
| Weight | 5.60 ounces |
| Width | 6.5000 inches |
| Technical Specifications | |
| Item model number | RELAYIO500 |
