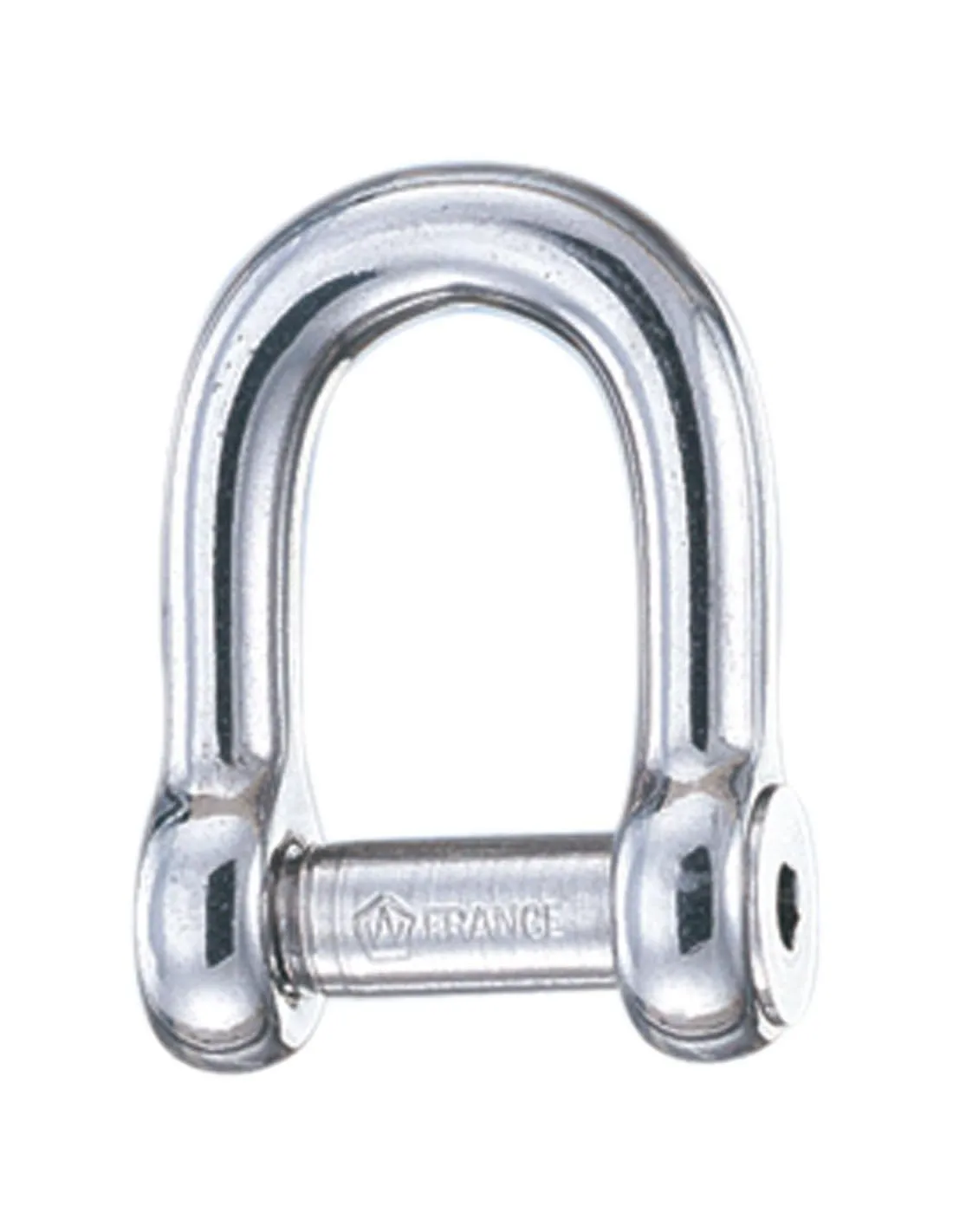

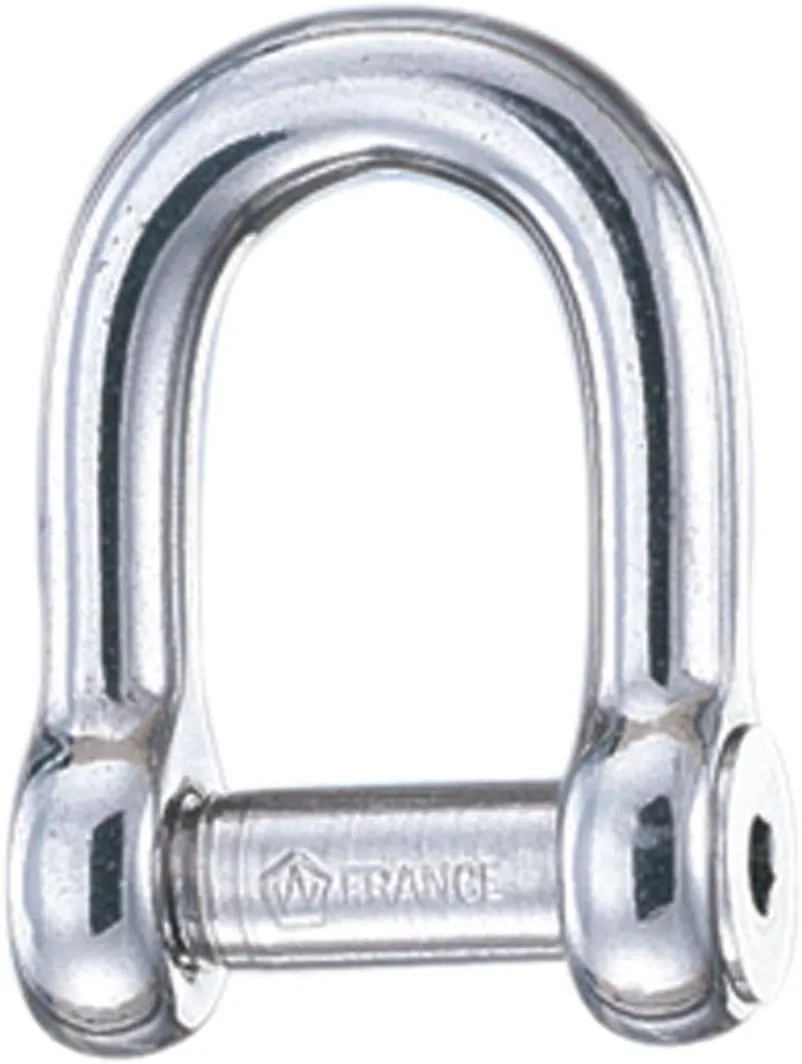

Wichard Self-Locking Allen Head D Shackle, 12mm (15/32") 316L Stainless

Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32" Features: Self-locking shackle with allen head pin D forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal to link chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced Specifications: Materials: 316 stainless steel grade Working load: (lb) 4580 / (kg) 2080 WLL: (lb) 2640 / (kg) 1200 Breaking load: (lb) 13220 / (kg) 6000 Weight: (lb) 0.412 / (g) 187 Dimensions: A: (inch) 1-21/32" / (mm) 42 B: (inch) 1-1/16" / (mm) 27 C: (inch) 15/32" / (mm) 12 D: (inch) 15/16" / (mm) 24 D diameter: (inch) 15/32" / (mm) 12 E: (inch) 25/64" / (mm) 10 F: (inch) 2-7/8" / (mm) 73 G: (inch) 1-59/64" / (mm) 49 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual
