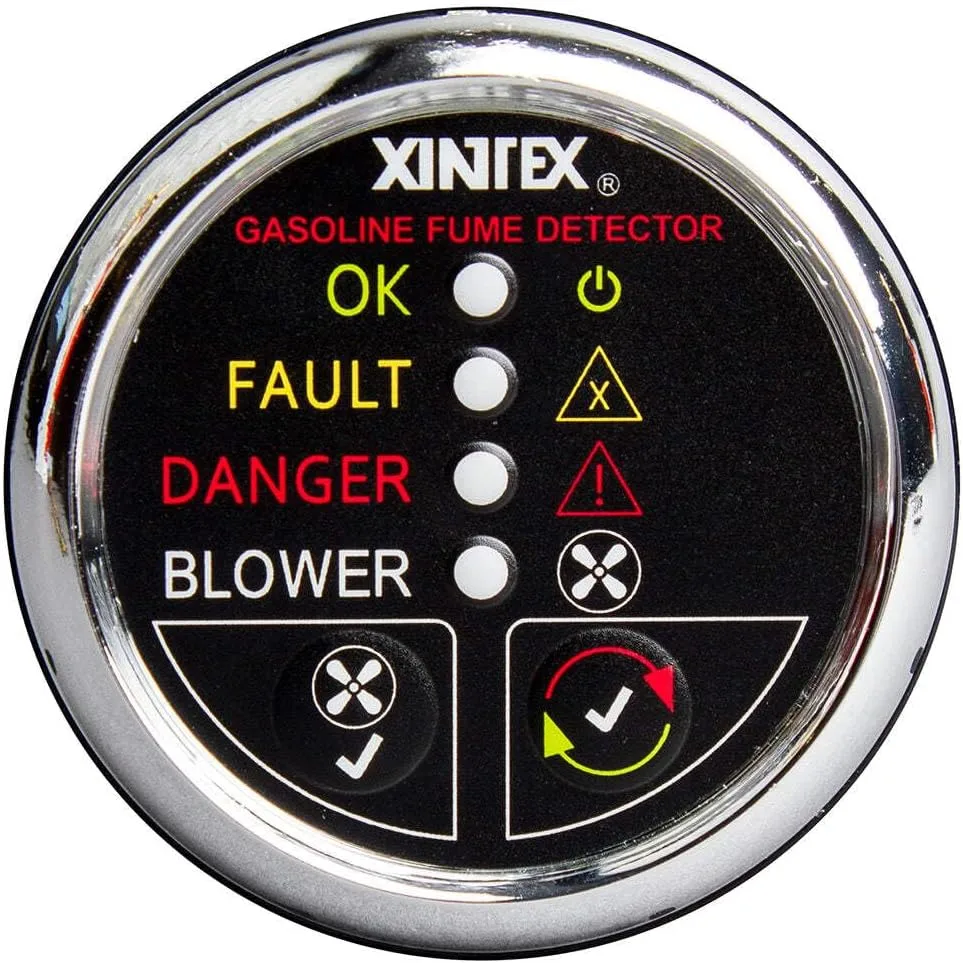

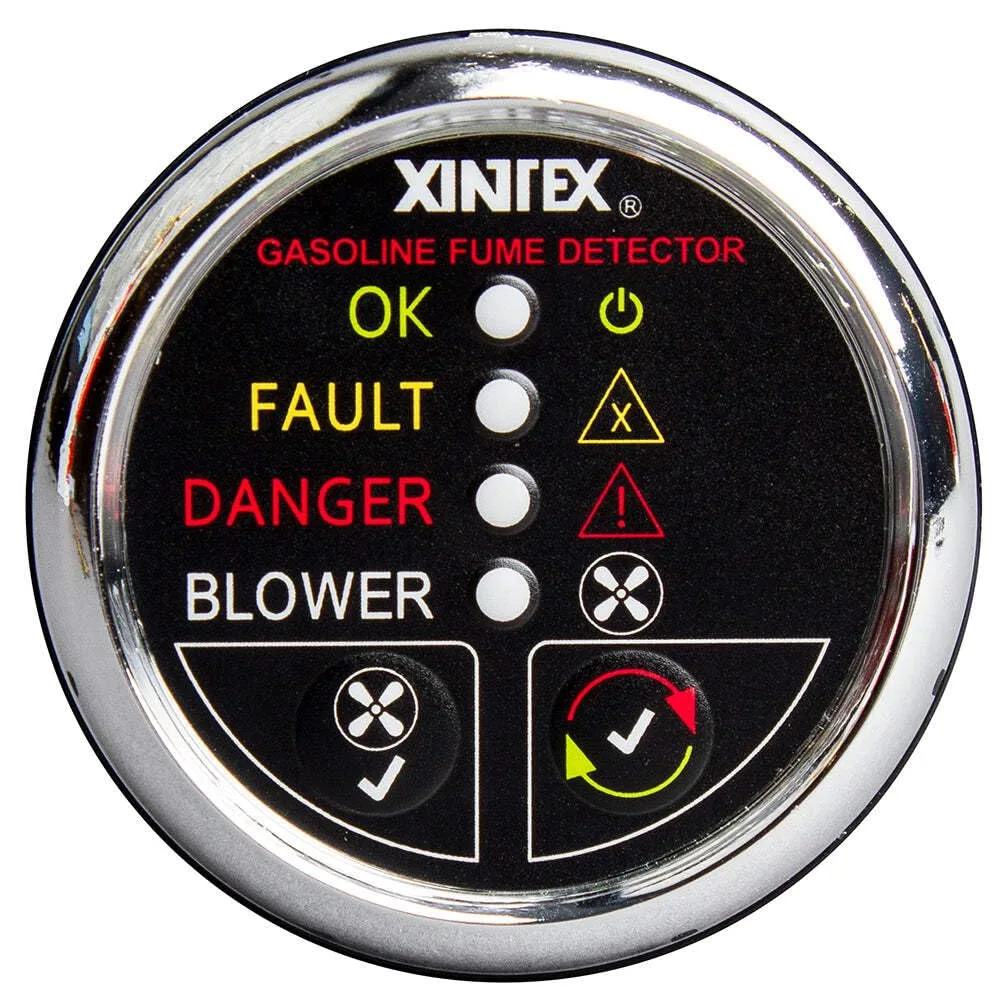

Fireboy-Xintex Gasoline Fume Detector w/Blower Control - Chrome Bezel - 12V
Customize
Gasoline Fume Detector w/Blower Control - Chrome Bezel - 12V The Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate. Complete system includes Blower Control Relay, easy installation and precise monitoring. Features: Simple Installation Audible and visual alarm to indicate LEL (Lower Explosive Level) presence Monitors one (1) single area Automatically activates bilge blower Technical Specifications: Operating Temperature: -40° to 185°F (-40° to 85°C) Current Draw Nominal - 55mA Current Draw Maximum - 95mA Operating Voltage - 9 to 30V DC Alarm Horn - 68 dB Display Style - Round with Chrome Bezel Display Dimensions - 2-3/16" (5.6 cm) round Cutout Dimension - 2-1/16" (5.2 cm) round hole In the Box: Fume Detector Fuel sensors x one (1) 20' Extension Cable x one (1) Blower Relay x one (1) Instruction manual *Sold as an Individual, Blower Relay: Yes, Fume Type: Gasoline, Generator Shutdown: No, Sensors Included: 1, Voltage - Input Range (Volts): 9 to 30. Additional marketplace info: Power Source: Battery Powered; Material: Plastic; Color: Beige; Item Weight: 1 Pounds; Item Dimensions (LxWxH): 9 x 4 x 4 inches; Package Dimensions (LxWxH): 8 x 4 x 4 inches; Package Weight: 1 Pounds.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Product Details | |
| Blower Relay | Yes |
| Fume Type | Gasoline |
| Generator Shutdown | No |
| Included Components | Great Product |
| Model Name | G-1CB-R |
| Number of Items | 1 |
| Sensors Included | 1 |
| Size | One Size |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Item Package Dimensions | 8 x 4 x 4 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 4 x 4 inches |
| Weight | 1 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Alarm | Audible, Visual |
| Power Source | Battery Powered |
| Upper Temperature Rating | 85 Degrees Celsius |
| Voltage - Input Range (Volts) | 9 To 30 |
