Trijicon ACOG 6 X 48 Scope Dual Illuminated Horseshoe .50 Ballistic Reticle, Red
Customize

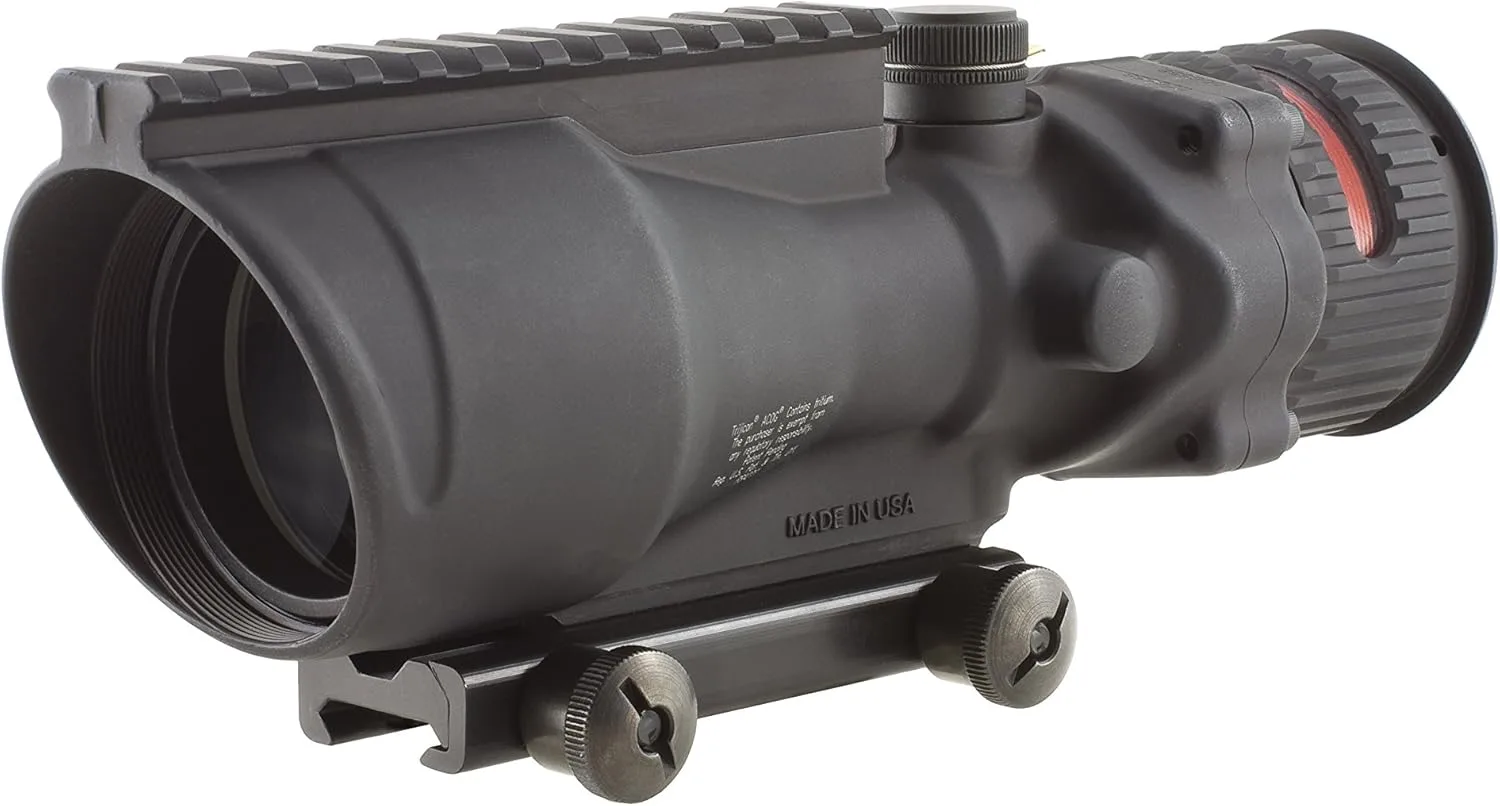

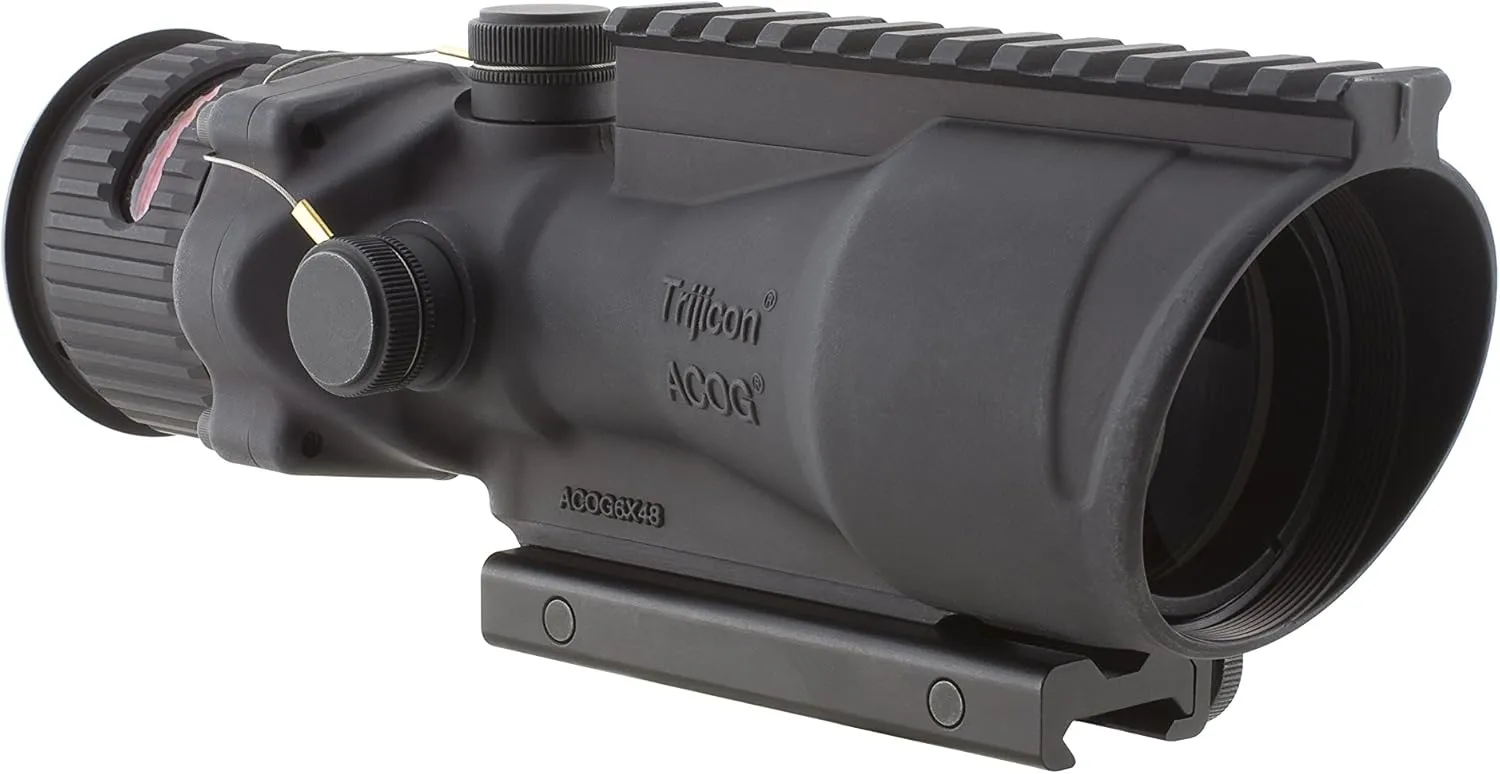

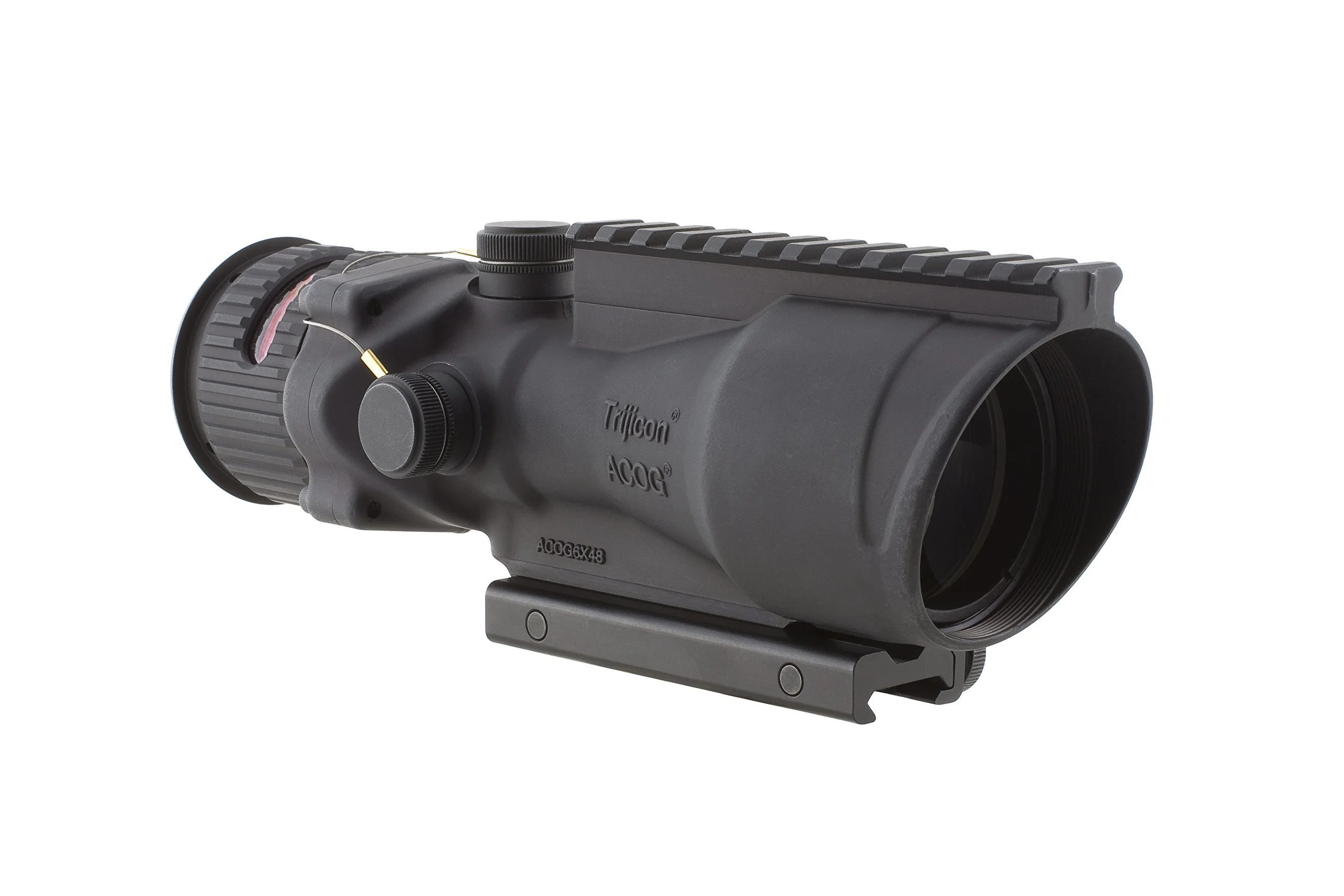

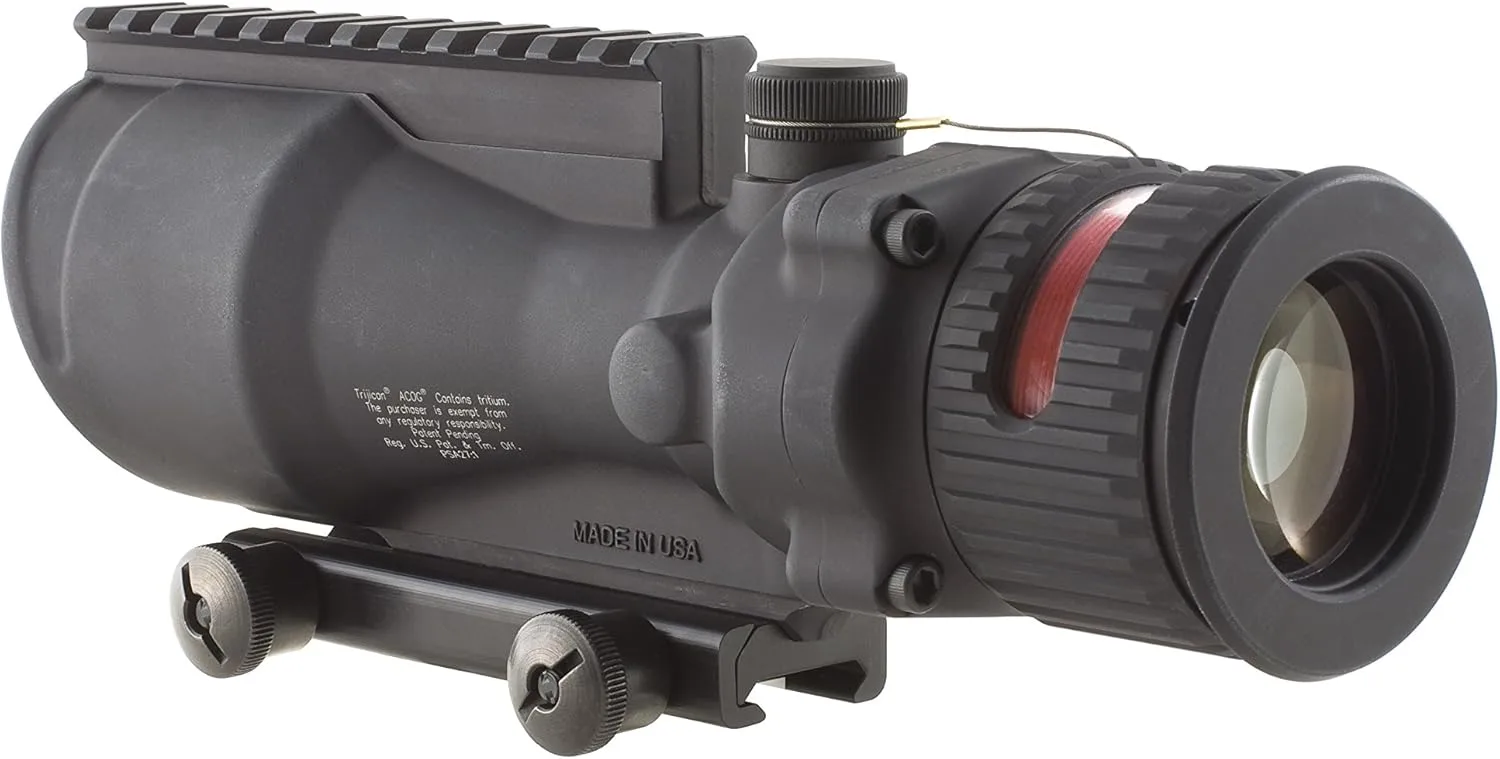

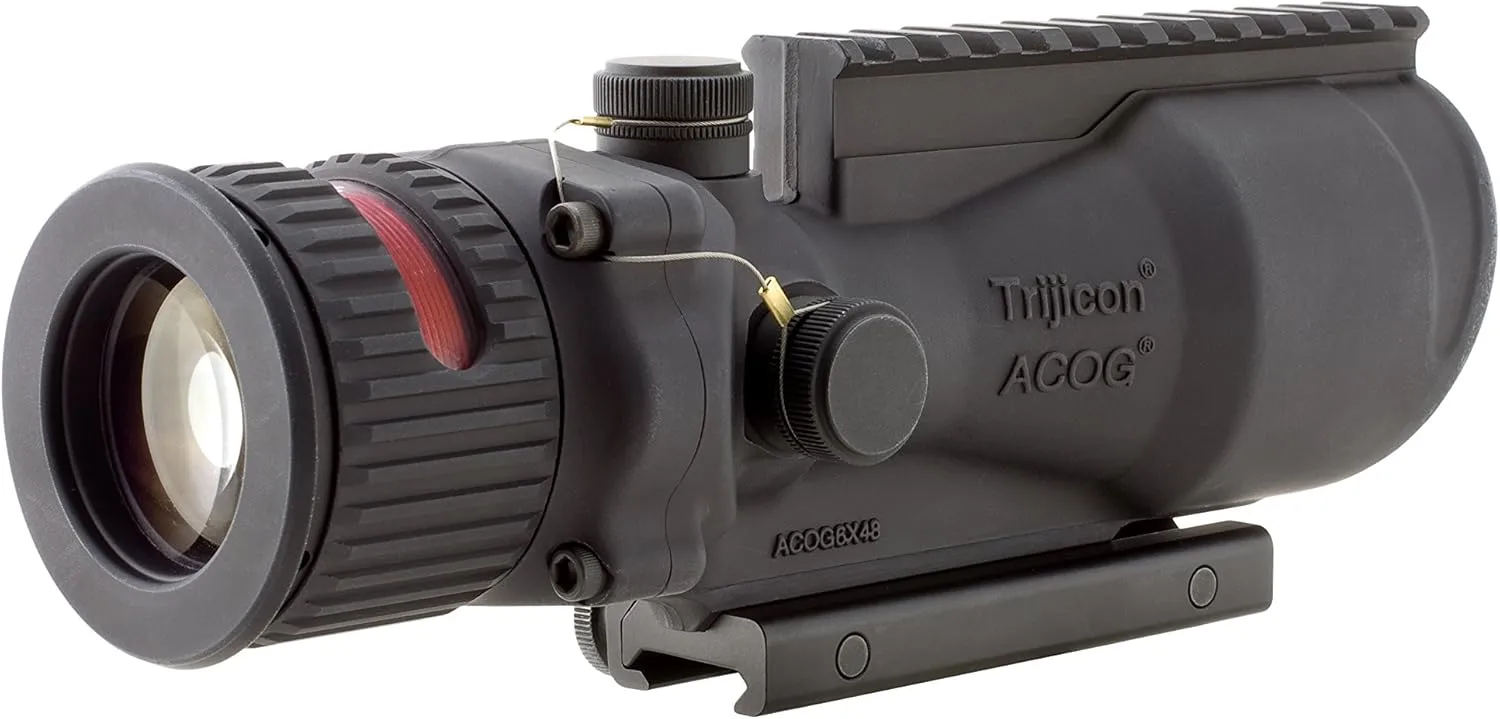

The Trijicon ACOG 6x48 .50 Cal (TA648-50) is a magnified, self-luminous tactical riflescope engineered for professional and enthusiast shooters. Constructed from forged 7075-T6 aircraft-grade aluminum with broadband anti-reflective coated lenses, the ACOG combines fiber optics and a tritium phosphor lamp for dual illumination (battery-free). This model features a red chevron reticle calibrated for .50 BMG, a bullet drop compensator (BDC), and Trijicon's Bindon Aiming Concept (BAC) for both-eyes-open aiming. The scope is dry nitrogen filled, waterproof to 100 feet (30 meters), and backed by a limited lifetime warranty on optical systems and metal structure and a 15-year guarantee on the tritium lamp. Includes TA75 Picatinny rail adapter, Scopecoat, Lenspen, manual, and warranty card.
- With TA75 Mount
- the new ACOG 6x48 is battery free and waterproof to 328 feet
- To further improve target acquisition and hit potential, the new ACOG 6x48 incorporates Trijicon’s Bindon Aiming Concept (BAC) – a revolutionary both-eyes-open method of aiming

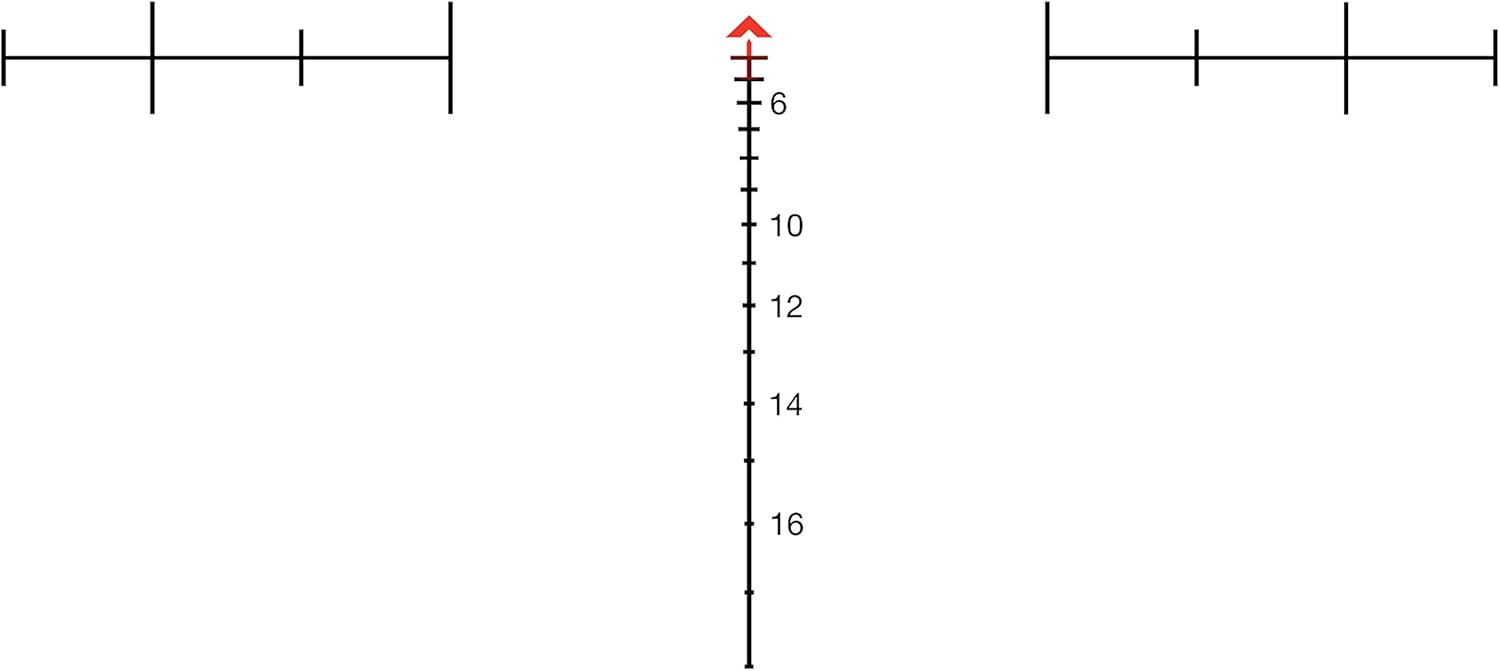

- It also incorporates a bullet drop compensator (BDC) with additional aiming points estimated for trajectory of the .50BMG round out to 1800 meters
- A magnified, self-luminous tactical sight that enhances target identification and increases hit probability on extended range shots has given rise to the new Trijicon ACOG 6x48
Specifications:
| Materials & Construction | |
| Color | Red |
| Material | Aluminum |
| Outer Material | Aluminum |
| Product Details | |
| Model Name | ACOG 6x48 Dual Illum Red Chevron 50 Ballistic |
| Model Number | TA648-50 |
| Mount | TA75 (included) |
| Mounting Type | Weaver Mount |
| Reticle Type | Chevron, Red |
| Style | Tactical |
| Sizing & Dimensions | |
| Length | 9 inches |
| Product Dimensions | 9 inches |
| Size | 6x1.89 inches |
| Weight | 2.3 pounds |
| Technical Specifications | |
| Adjustment @ 100 yards | 4 clicks per inch |
| Bindon Aiming Concept | Yes |
| Bullet Drop Compensator | Yes |
| Calibration | 0.50 BMG |
| Exit Pupil | 8 millimeters |
| Eye Relief | 2.7 inches |
| Field of View | 17 feet |
| Housing Material | forged aluminum |
| Illumination source | Fiber Optics and Tritium |
| Magnification | 6X |
| Objective Lens Diameter | 1.89 inches |
| Warranty | Limited Lifetime: optical systems and metal structure; 15-years: Tritium lamp |
| Water Resistant | 100 feet/30 meters |
