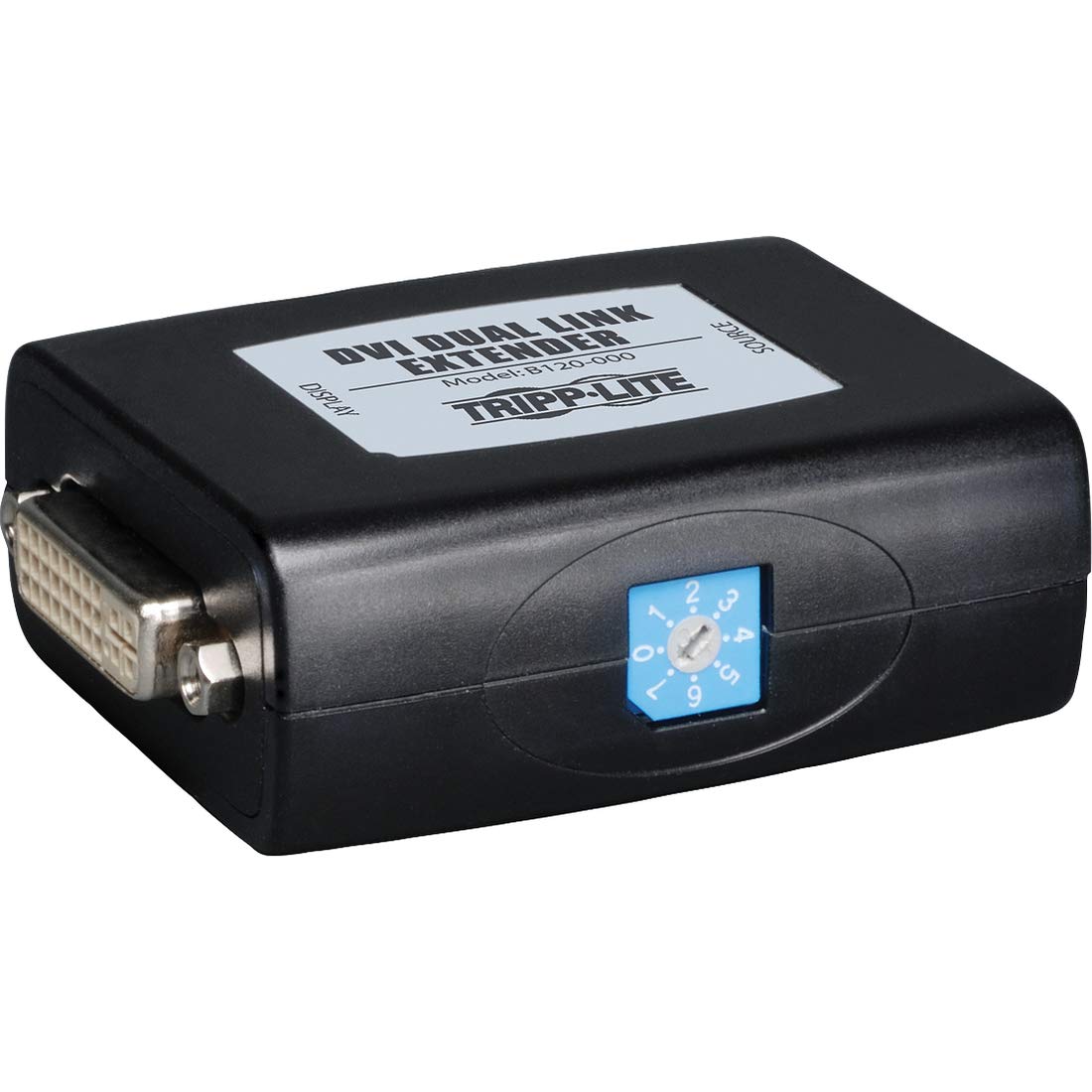

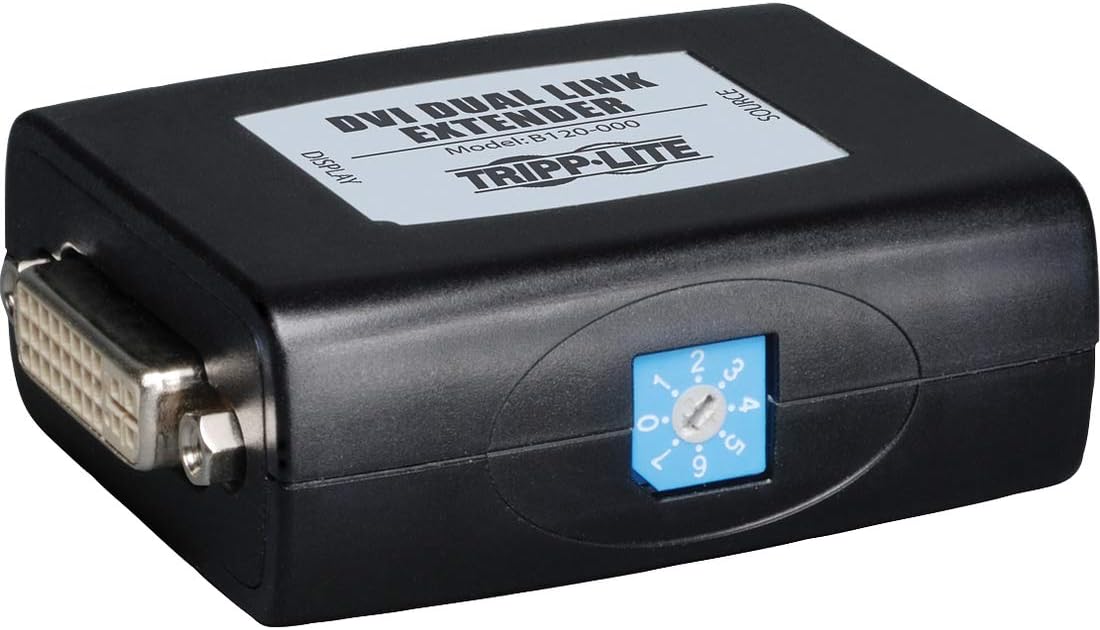

Tripp Lite DVI Extender Equalizer B120-000 increases the length of DVI cables beyond standard limits and functions as a dual-link video repeater. Tripp Lite/Eaton Tripp Lite Series DVI signal booster/extender supports resolutions up to 2560x1600 at 60Hz and WUXGA (1920x1200). Works with single- or dual-link DVI cables; extends DVI signals an additional 135 ft for a total of up to 150 ft (45 m). Includes built-in equalization control and requires nearby power (Input 100-240V, 50/60Hz; Output 5V, 2A). Ideal for retail, classroom, or any application requiring longer DVI cable runs. TAA compliant (per ProductDatabase long description).
- Built-in Equalization control to adjust the video image. Input 100-240V, 50/60Hz, 0.5A Output 5V, 2A
- Supports WUXGA resolution to 1920x1200. Works with Single or Dual Link DVI cables
- Perfect for retail, classroom, or any application that requires longer DVI cables
- Extend DVI signals an additional 135ft, for a total of 150ft
Specifications:
| Product Details |
| Is Discontinued By Manufacturer | No |
| Item model number | B120-000 |
| Sizing & Dimensions |
| Height | 6.5 inches |
| Length | 2.5 inches |
| Product Dimensions | 2.5 x 4.5 x 6.5 inches |
| Weight | 3.2 ounces |
| Width | 4.5 inches |
| Technical Specifications |
| Input Voltage | 100-240V, 50/60Hz |
| Output | 5V, 2A |
| Supported Resolution | Up to 2560x1600 @ 60Hz (also supports 1920x1200 WUXGA) |
