Tripp Lite 4-Post Rack-Mount Installation Kit for Select Rack-Mount UPS Systems (4POSTRAILKIT),Black
Customize

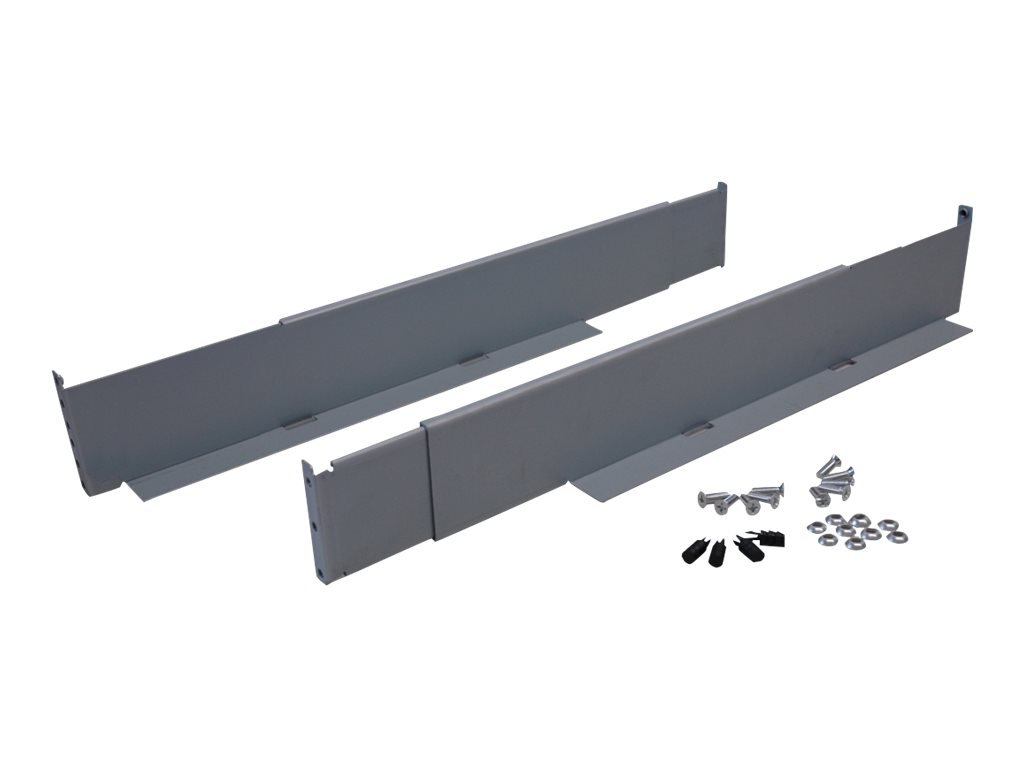

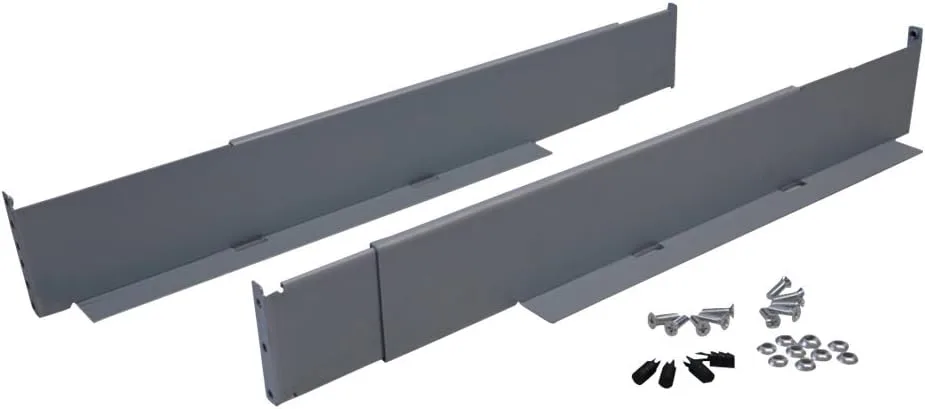

Tripp Lite's 4POSTRAILKIT adjustable rackmount shelf system supports heavy UPS systems in 4 post rackmount applications. Includes one pair of expandable L-bracket mounting rails to offer front-to-rear support of rackmount UPS systems. Pair of expandable L brackets adjust to any setting between 20.5 and 36 inches. Includes mounting hardware compatible with square-hole racks. Set of temporary placement pegs enables simple single-person installation by allowing the rails to be held in place while attachment hardware is installed. Also compatible with other heavy pieces of networking or power protection equipment with 17.5 inch wide rectangular chassis. Supports up to 250 lbs. 5-Year Limited Warranty. PRODUCT (database) DESCRIPTION: EATON TRIPP LITE SERIES 4-POST RACK-MOUNT INSTALLATION KIT FOR SELECT RACK-MOUNT UPS SYSTEMS - SUPPORTS UPS SYSTEMS IN 4-POST RACKMOUNT APPLICATIONS - ADJUSTABLE TO ANY SETTING BETWEEN 20.5 AND 36 INCHES - TEMPORARY PLACEMENT PEGS SIMPLIFIES INSTALLATION.
- Supports up to 250 lbs of equipment
- Square hole rack attachment hardware included
- Temporary placement pegs simplifies single-person installation
- Adjustable to any setting between 20.5 and 36 inches
- Enables 4-Post Rackmount Installation of Select Rackmount UPS Systems
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Form Factor | Rack |
| Item model number | 4POSTRAILKIT |
| Sizing & Dimensions | |
| Height | 3.54 inches |
| Length | 22 inches |
| Product Dimensions | 22 x 2.36 x 3.54 inches |
| Size | Adjustable 20.5-36 inches |
| Weight | 5.5 pounds |
| Width | 2.36 inches |
| Technical Specifications | |
| Maximum Power | 3000 Watts |
| Warranty | 5-Year Limited Warranty |
