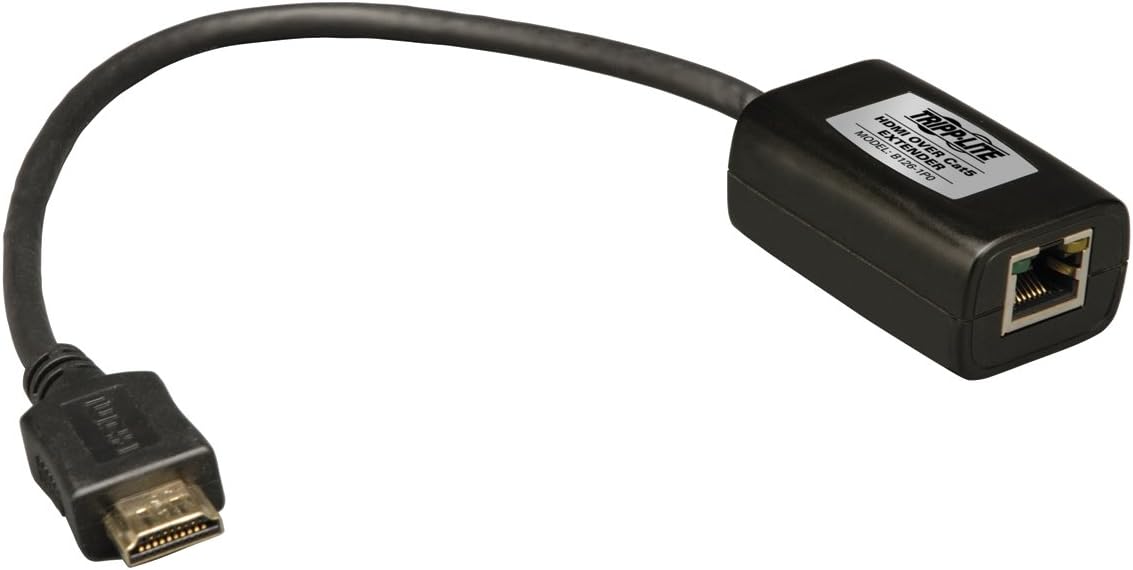

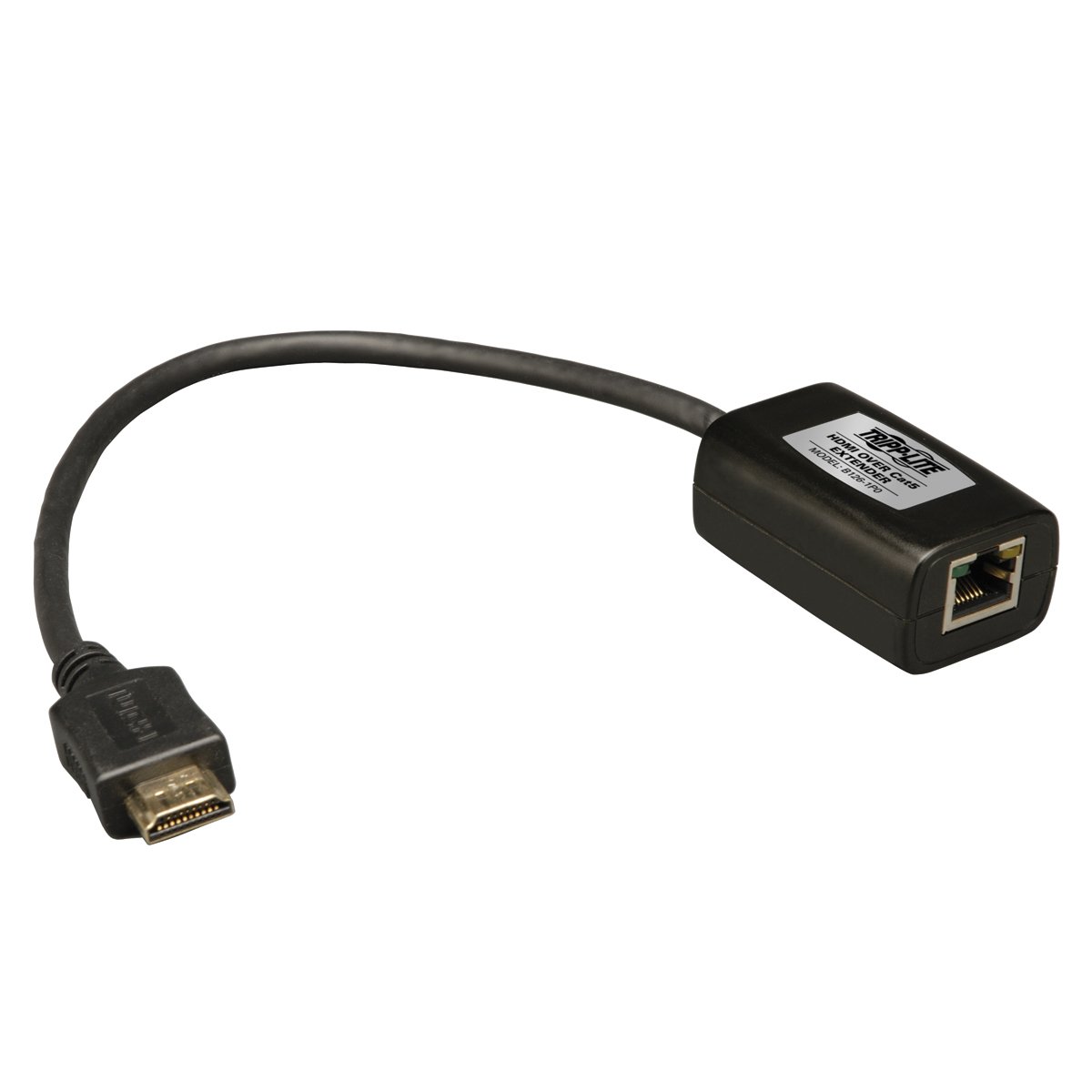

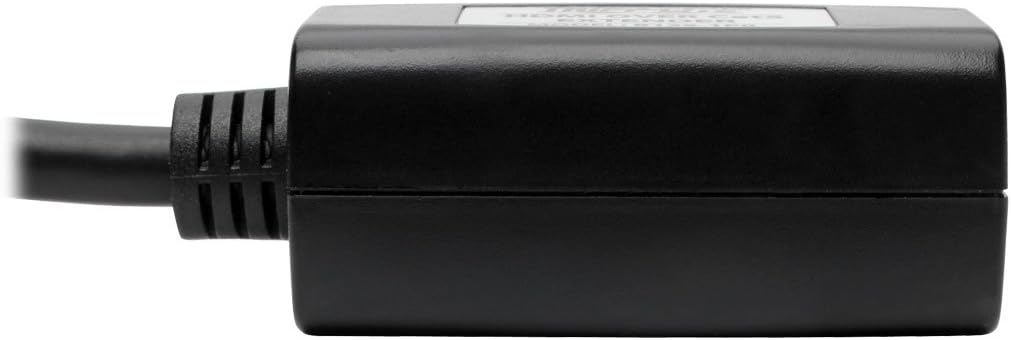

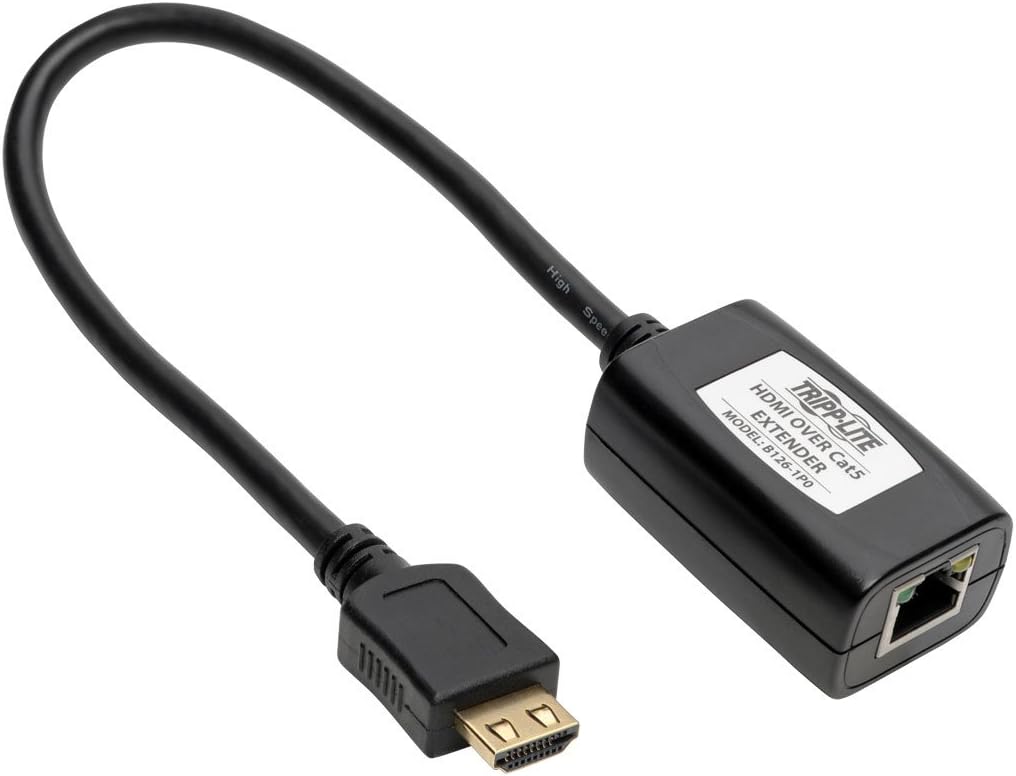

Tripp Lite HDMI Over Cat5 / Cat6 Extender, Receiver for Video and Audio 1920x1200 1080p at 60Hz (B126-1P0), Black, 100 Feet

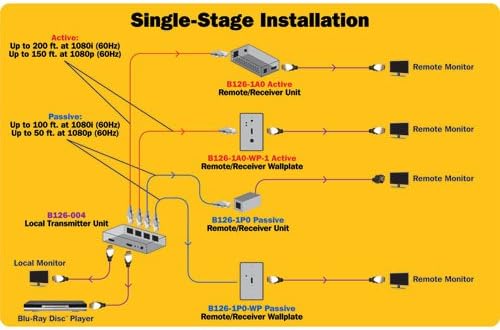

The B126-1P0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 50 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) No power is required, and its built-in HDMI male connector plugs directly into a monitor without the need for an additional cable. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the built-in HDMI connector on the receiver unit directly to a display. Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.

• Passive Remote Receiver for use with Tripp Lite’s B126-002 (2-Port) or B126-004 (4-Port) Extender/Splitter Transmitter units (sold separately)
• When used with a HDMI over Cat5 extender (B126-002 or B126-004), this unit is compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM)
• Extends a HDMI signal up to 100 ft. at 1080i (60Hz) or up to 50 ft. at 1080p (60Hz)
• For best results, use 24 AWG Solid Wire Cat5e/6 cable (such as Tripp Lite N202-Series)
• Supports 24-bit True Color (8-bits per channel); HDCP and 3D compliant. Plug and play; No drivers or external power required

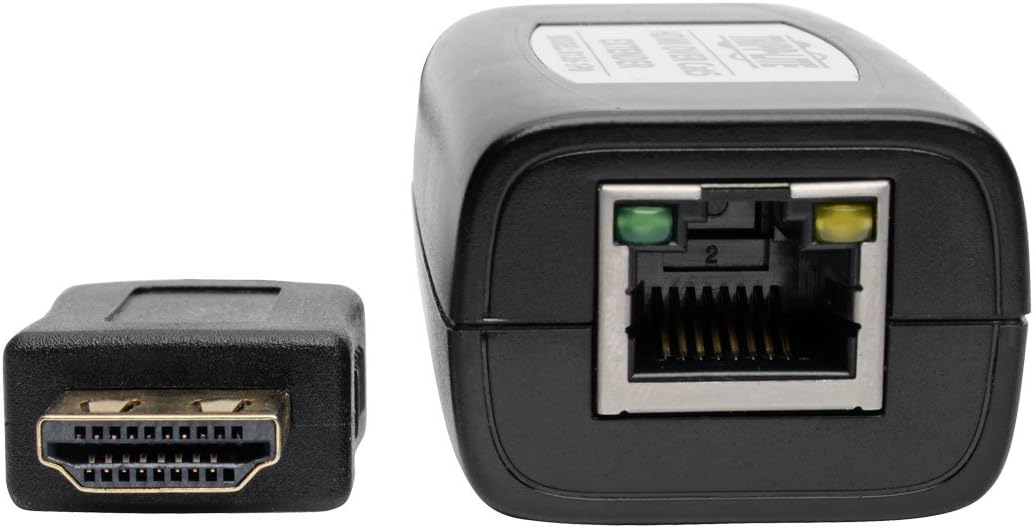

• Built-in HDMI male connector plugs directly into a monitor without the need for an additional cable. Please refer the User Manual and the Instructional video before use
