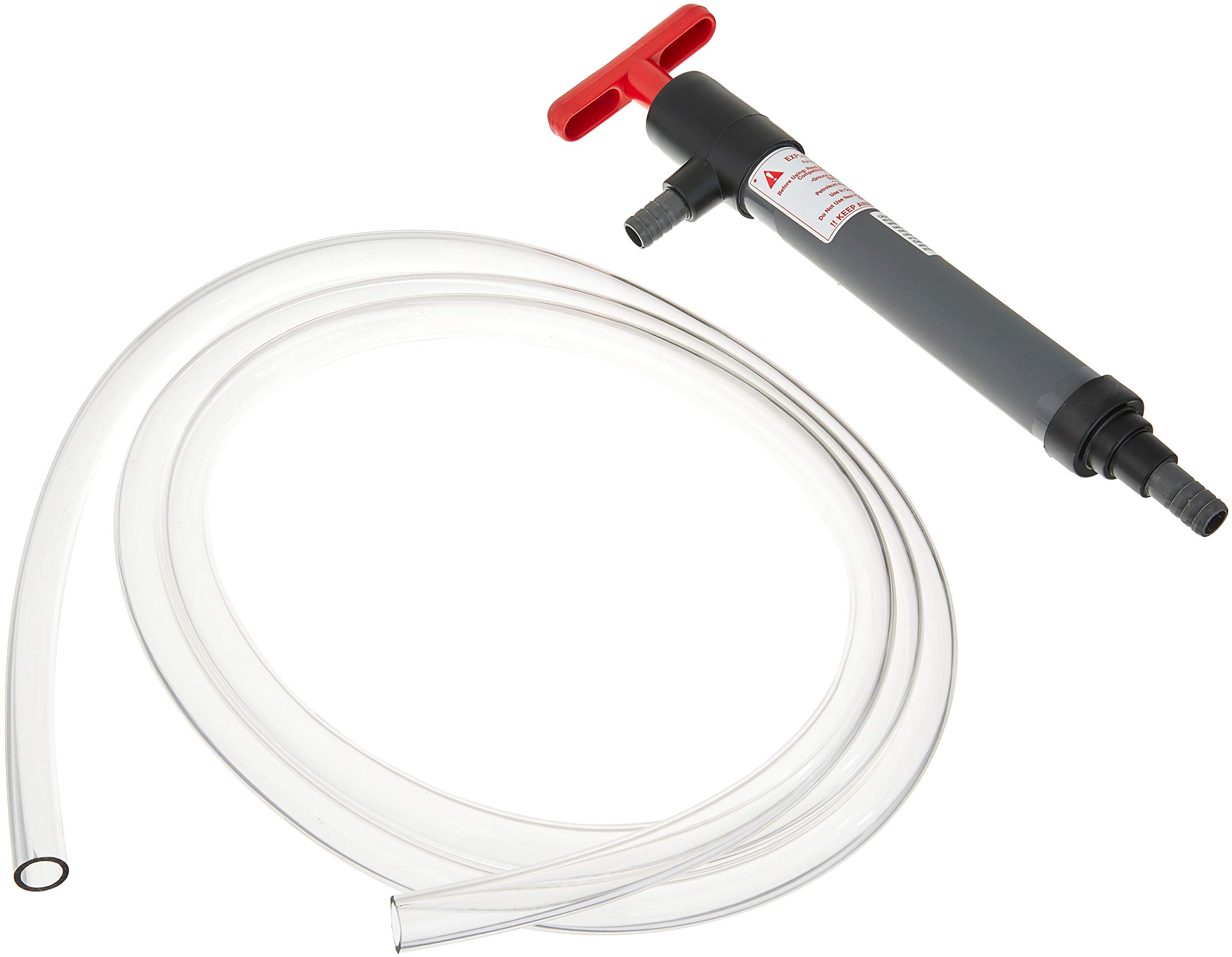

BECKSON MARINE 109PC Siphon-Mate Transfer Pump
Customize
Siphon-Mate Siphon Pump Specialty Transfer Pump. Safety experts caution against the unsafe practice of siphoning petroleum by mouth, warning specially, that it can result in loss of life. Beckson's answer is the patented Siphon-Mate pump; a combination displacement lift pump and siphon pump with valves suitable for transferring fuel. Pump half strokes to start flow. Once flow begins, fully extending the handle will allow siphoning provided that the source is higher in elevation than the receptacle. Supplied with clear tubing to allow versatile application. Cut tubing for desired length of intake and discharge hose. When finished siphoning or pumping flammable liquids, be sure to drain siphon pump of liquid before storing. This pump not intended for transfer of liquid over 120 degrees F (49 degrees C) nor solvents that will attack PVC. Features: Use for diesel, oil, water. Length: 11-1/2" (28.4cm). Diameter: 1-1/4" (32mm). Lifts: 4 oz (.12 L) per stroke. Type: Manual. GREAT PRODUCT
- Item Package Dimension: 5L x 3W x 1H inches
- Item Package Weight - 0.9 Pounds
- Item Package Quantity - 1
- Product Type - ELECTRONIC COMPONENT TERMINAL
- AFFORDABLE PARTS
Specifications:
| Materials & Construction | |
| Body Material | Plastic |
| Material | Plastic |
| Product Details | |
| Auto Part Position | Rear |
| Connector Type | NPT |
| Fit Type | Universal Fit |
| Inlet Connection Size | 0.38 Inches |
| Inlet Connection Type | NPT thread |
| Item model number | 109PC |
| Manufacturer Part No | 109PC |
| Mounting Type | Portable |
| Operation Mode | Mechanical |
| Outlet Connection Size | 1.25 Inches |
| Outlet Connection Type | Fuel line or fuel hose |
| Product Grade | New |
| Specification Met | OE |
| Style | Diaphragm |
| Vehicle Service Type | Boat |
| Sizing & Dimensions | |
| Height | 8 inches |
| Length | 15 inches |
| Product Dimensions | 15 x 24 x 8 inches |
| Size | 15 x 24 x 8 inches |
| Weight | 1 pounds |
| Width | 24 inches |
| Technical Specifications | |
| Gas Type | Diesel, Oil, Water |
| Mounting Type | Portable |
| Operation Mode | Mechanical |
| Product Grade | New |
