Attwood Tsunami MK2 T500 Manual Bilge Pump w/Installation Kit - 500 GPH & 12V
Customize
Tsunami MK2 T500 Manual Bilge Pump with Installation Kit - 500 GPH & 12V This is a complete kit (includes a bilge pump) to install a manual bilge pump with a 3/4" I.D. hose outlet. The Tsunami Mk2 is the only manual bilge pump that eliminates airlocks. This is done by the Patented X-Air Impeller, which ejects trapped air in the pump and pipework. Also, the Tsunami Mk2 is the most reliable manual bilge pump in freshwater applications, considering it has 40% better protection against water ingress and electrolysis vs. the Mk1 pump. Kit Includes: Attwood Tsunami Mk2 500 GPH Pump Washer / Non-Return Valve 90-degree Outlet Straight Outlet 3/4" x 5' Pump Hose 3/4" Thru-hull fitting 2-way on/off switch with bezel plate Snap-It hose clamps Wire Kit Installation Kit Easy Installation & Service: GPH (Gallons Per Hour): 500 GPH 90° rotatable elbow outlet allows users to install the pump anywhere in a full 360° orientation Backward compatible hole pattern and motor cartridges of Tsunami Mk1 bilge and aerator pumps External mounting feet and integrated outlets reduce time and effort Service pump cartridges from hard-to-reach areas using only one hand. Features (marketplace): Easy installation; 40% better protection against water ingress & electrolysis; Patented X-Air anti-airlock impeller; Installation kit includes straight outlet, 3/4" x 5' hose, 3/4" thru-hull fitting, 2-way on/off switch with bezel, Snap-It clamps, 2-conductor 16 AWG wire and in-line fuse holder.
- PN 5614-7, Installation kit for Attwood Tsunami 500 MK2 bilge pump

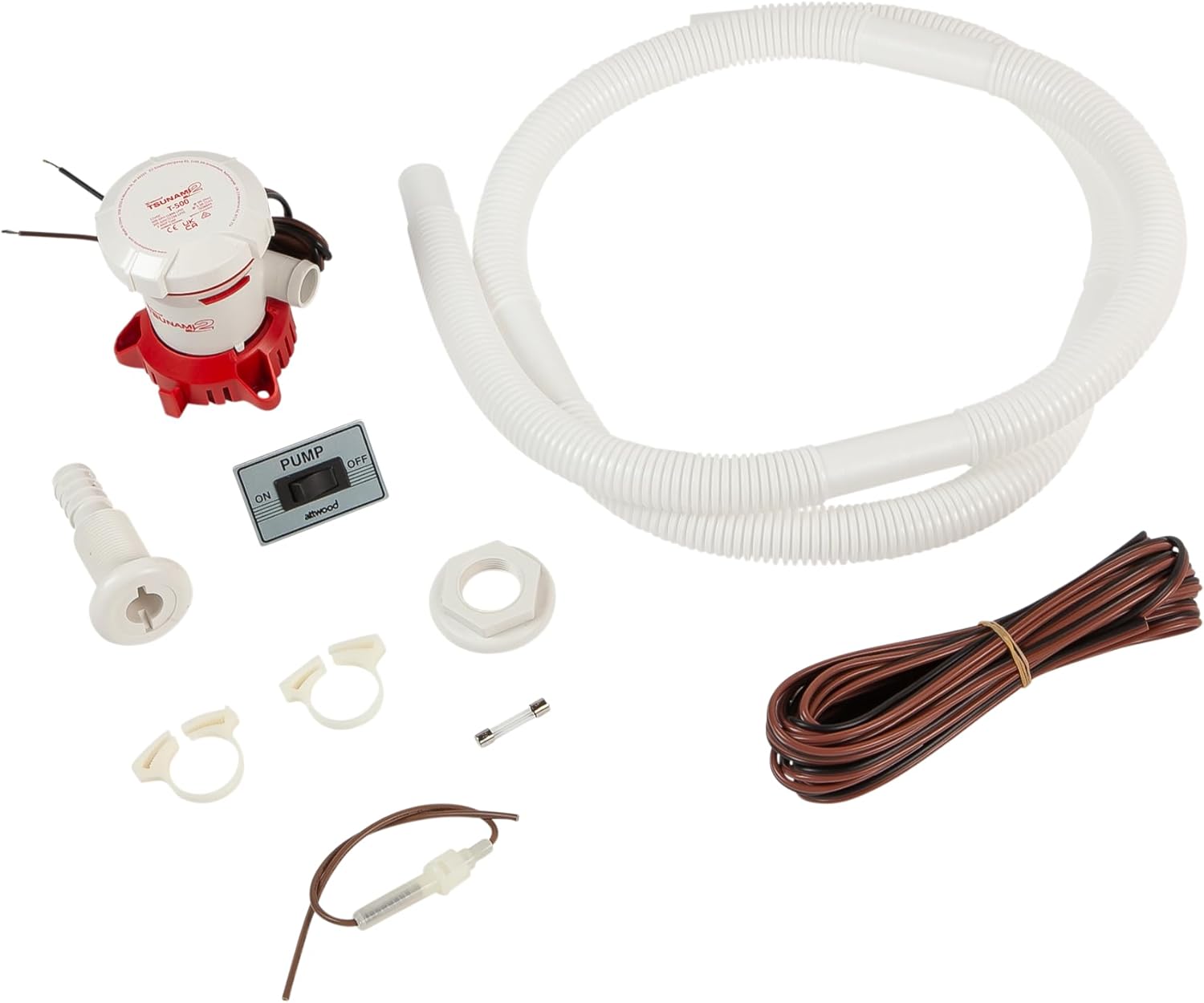

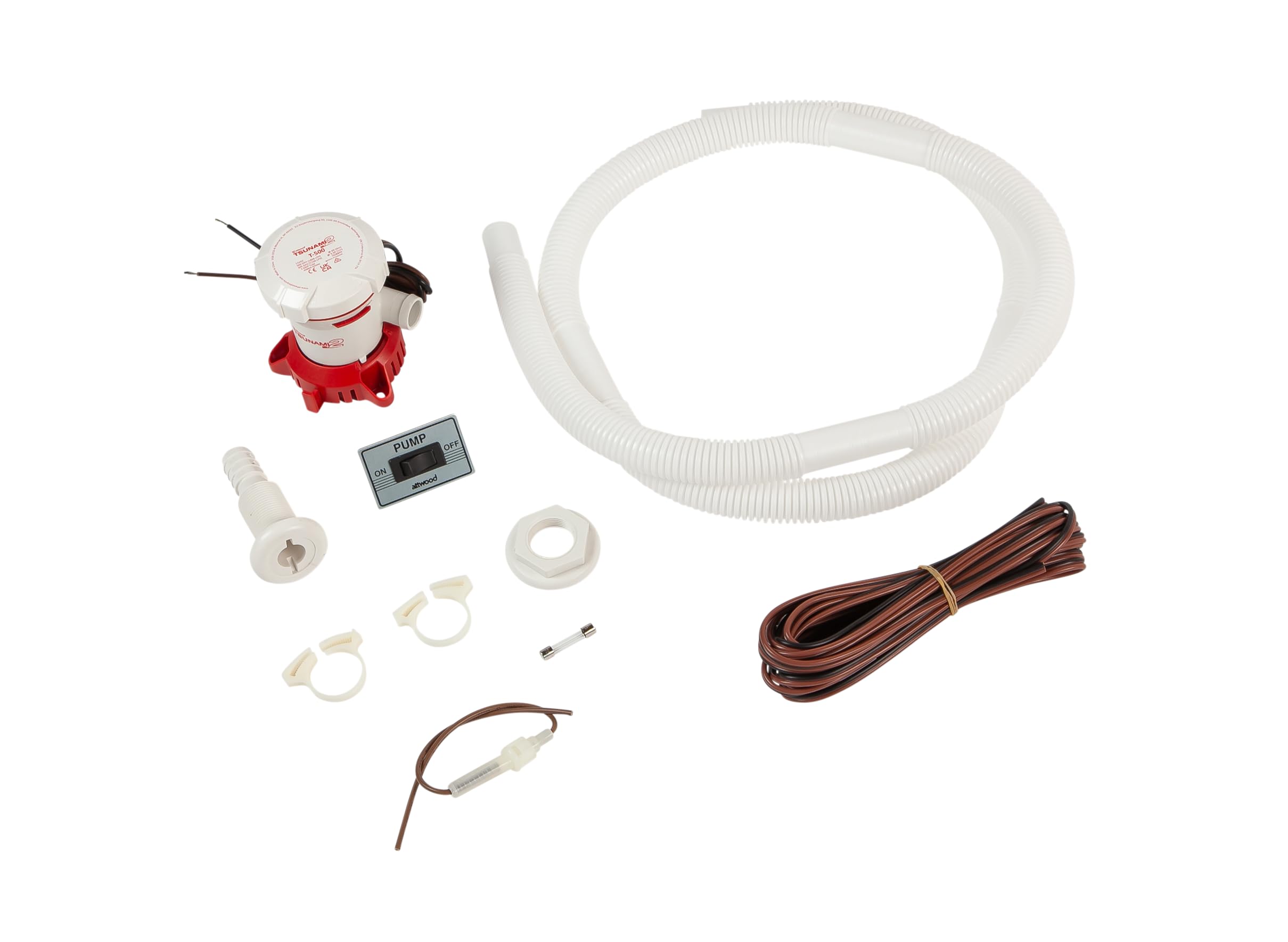

- Installation Kit Includes: Attwood Tsunami Mk2 500 GPH Pump, Washer, Straight Outlet, 3/4" x 5' Pump Hose, 3/4" Thru-hull fitting, 2-way on/off switch with bezel plate, Snap-It hose clamps, 2-conductor 16 AWG wire 20' L, In-line fuse holder with 2A fuse
- Patented X-Air anti airlock impeller ejects trapped air in the pump and pipework - preventing pump burnout
- 40% better protection against water ingress & electrolysis
- Easy installation: Compatible mounting patterns with leading pumps - no new drill holes required
Materials & Construction
- Color:Red/White
- Material:Plastic
- Outer Material:Plastic
Product Details
- Gallons Per Hour:500 Gph
- Operation:Non-Automatic
- Outlet Size:3/4" Or 1"
- Style:12V - 500 GPH KIT
- Type:Electric
Sizing & Dimensions
- Height:3.8 inches
- Length:3.6 inches
- Package Weight:1.102 pounds
- Product Dimensions:3.6"L x 3.6"W x 3.8"H
- Size:12V
- Width:3.6 inches
Technical Specifications
- Maximum Flow Rate:5E+2 Gallons Per Minute
- Power Source:DC
- Voltage:12 Volts (DC)
