Tripp Lite USB-C Dock, 3 Monitor Display, USB Type C Hub Adds 4K HDMI, mDP, VGA, USB 3.2 Gen 1, USB-A, USB-C, GbE

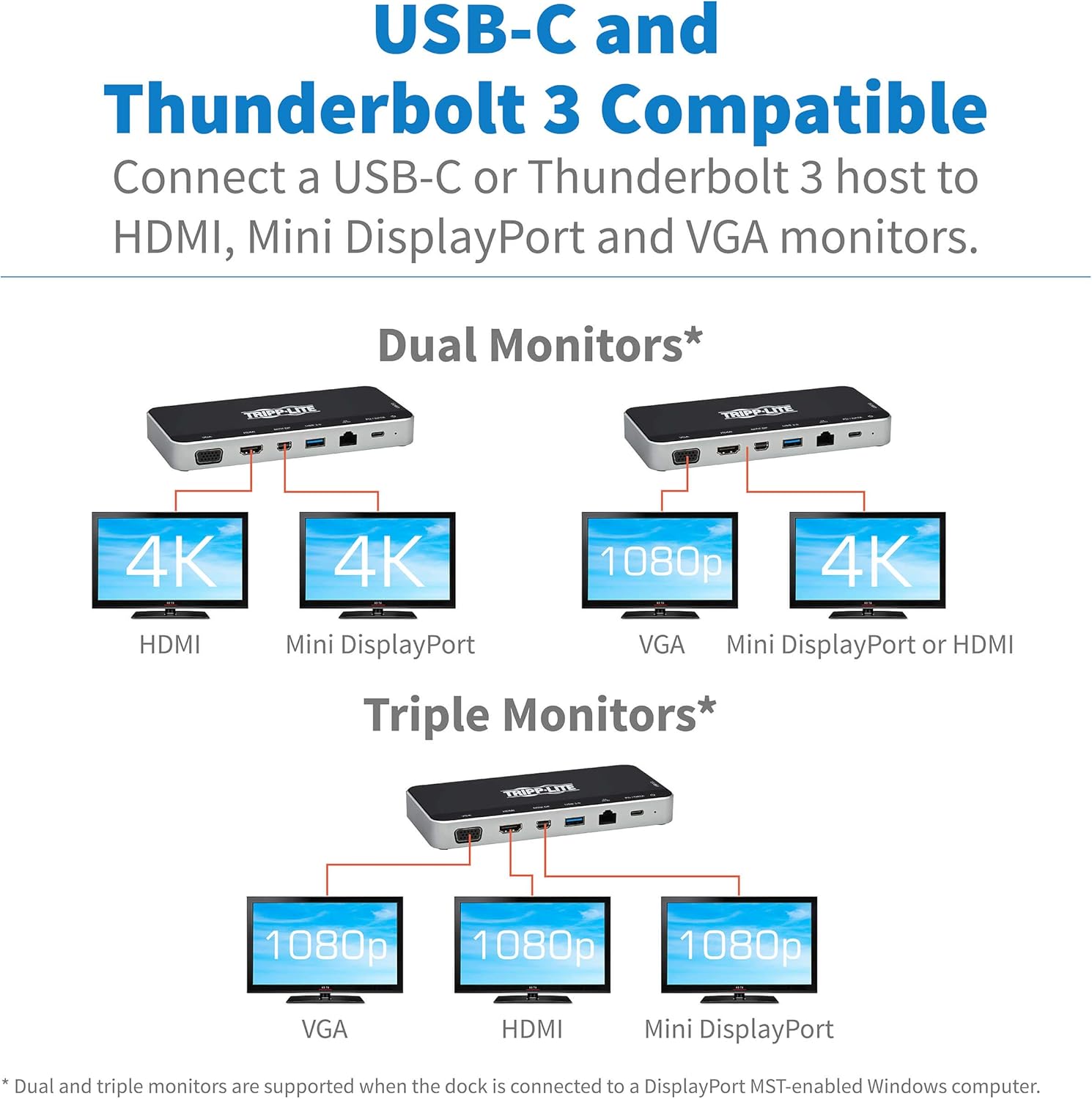

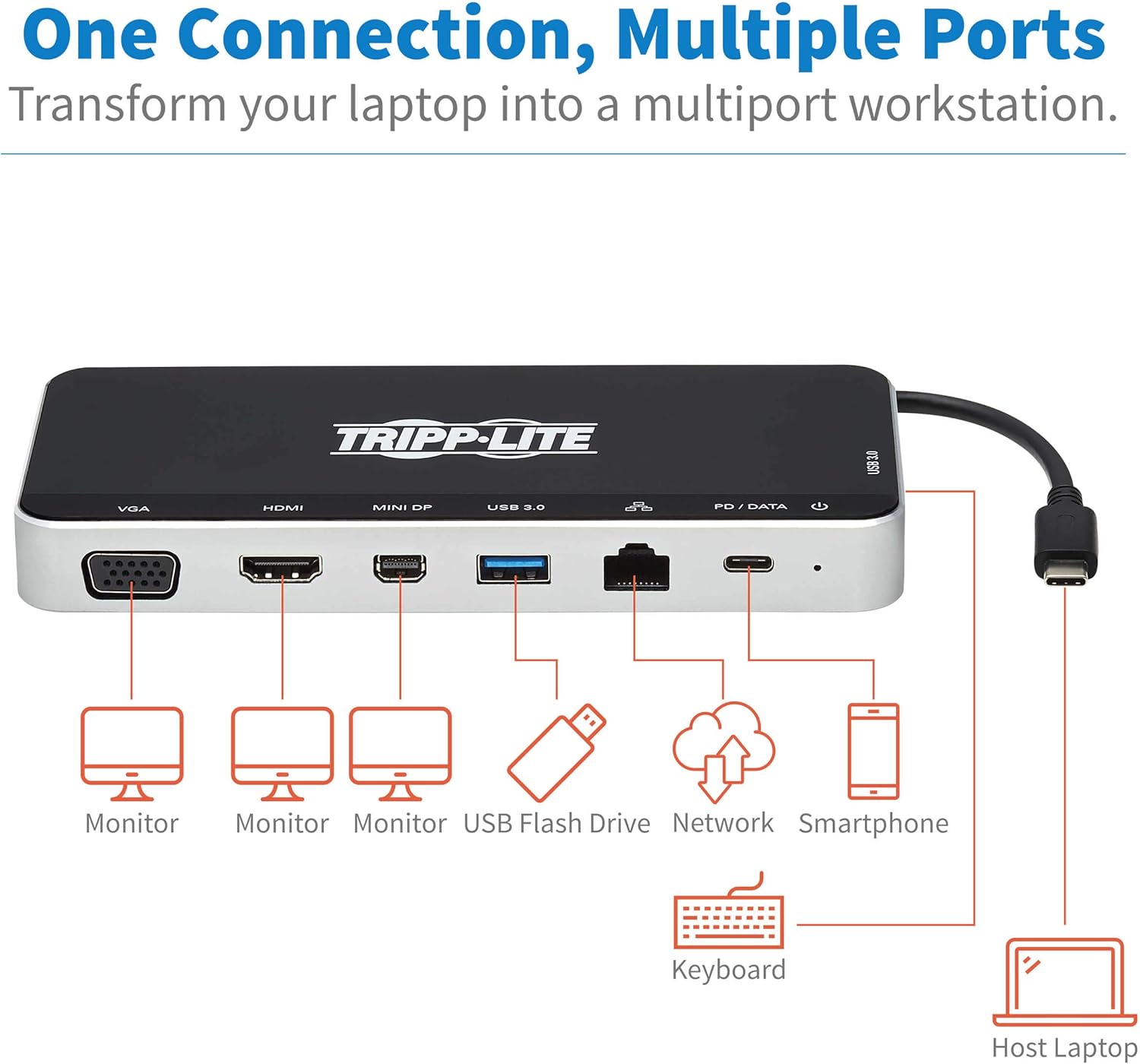

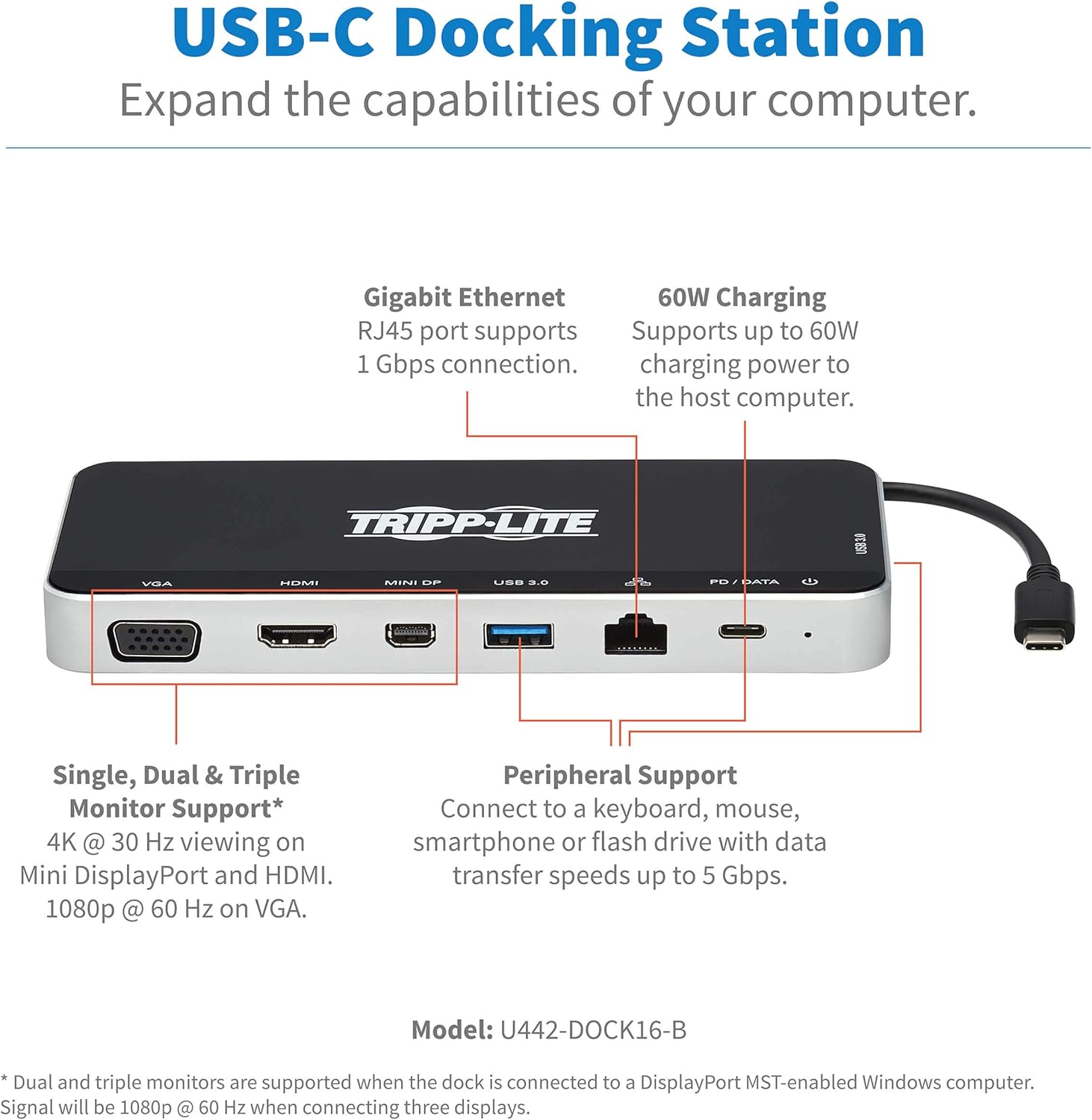

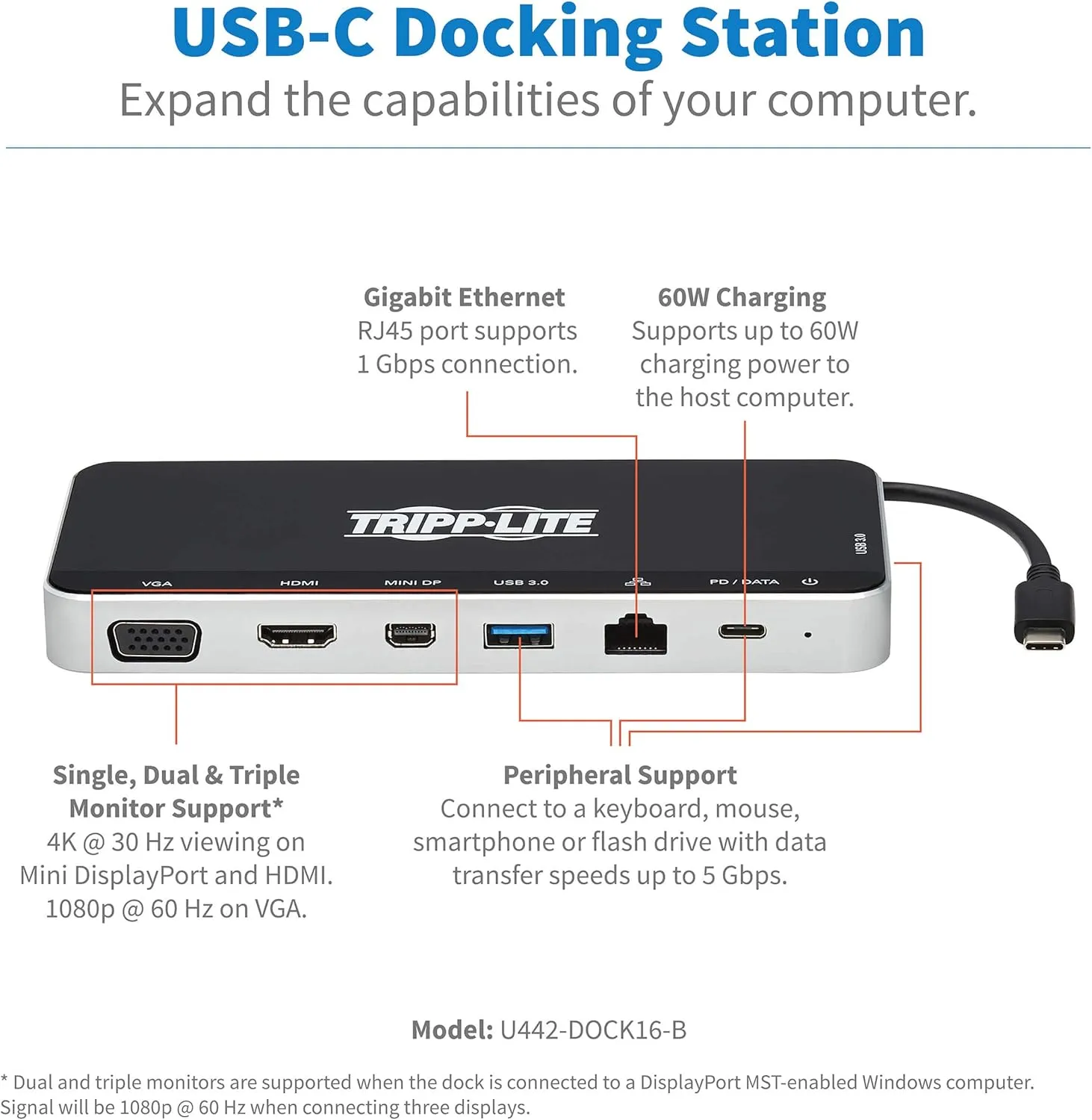

EATON TRIPP LITE SERIES USB DOCK, TRIPLE DISPLAY - 4K HDMI & MDP, VGA, USB 3.X (5GBPS), USB-A/C HUB, GBE, 60W PD CHARGING USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Workstation This multiport USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, tablet or other device with a USB-C or Thunderbolt 3 port. It’s ideal for transmitting 4K video and digital audio to multiple large displays, adding a thumb drive and other USB peripherals, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network—all at the same time. Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers. Note: only one 4K display can be extended in an application. See the owner’s manual for various configurations and maximum resolutions. Transmits Crystal-Clear 4K Video and Digital Audio The HDMI and Mini DisplayPort (mDP) outputs support true 4K resolutions up to 4096 x 2160 at 30 Hz. The VGA port supports HD resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Extends High-Definition Video Across All 3 External Displays at the Same Time By connecting the self-storing USB-C cable to a source that supports DisplayPort MST (Multi-Stream Transport) mode, you may connect up to three monitors simultaneously. With a Windows source device, you can display the same image on all connected monitors, extend the host desktop across them with different windows open on each, or combine them into one large display as a video wall. Note: Mac OS laptops or computers will only extend to one monitor. The other monitors will be mirrored. See the owner’s manual for various configurations and maximum resolutions. USB Ports Connect Keyboards, Thumb Drives and Other Peripherals A USB-A port and a USB-C port accept USB peripherals, such as flash drives, mice, keyboards and printers. Both support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. PD Charging Port Charges the Connected Notebook, Tablet or Other Device The USB-C Power Delivery port supports power output up to 20V 3A (60W), which is sufficient for charging and powering the connected source device, such as an Android smartphone or Chromebook. Just connect the device’s AC wall charger to the USB-C PD port. This port, as mentioned above, can also be used for transferring data up to 5 Gbps. Accesses a Wired Gigabit Ethernet Network The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (Tripp Lite N201-Series Cat6 cables sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers. Self-Storing USB-C Connector Attaches in Either Direction Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time. The built-in cable fits within the base of the dock for convenient storage. Ready to Use Right Out of the Package The plug-and-play USB-C dock is specifically designed for use with Windows laptops and other notebooks, smartphones, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software or external power source. It’s slightly larger than an average smartphone, but compact enough to fit easily into your desk space without taking up much valuable room.

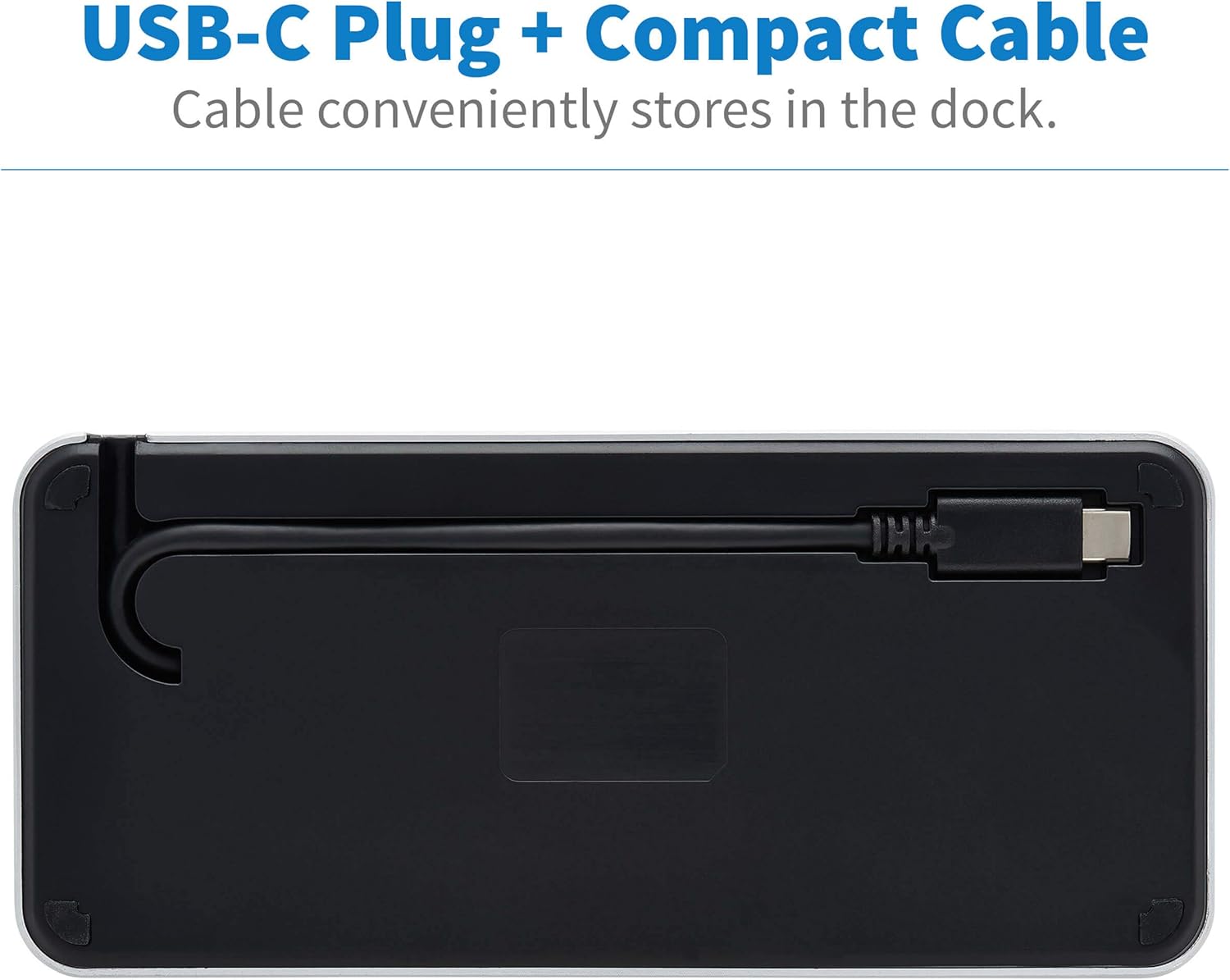

• READY TO USE: This hub is made from lightweight aluminum, and is specifically designed for use with notebooks, tablets and other devices equipped with a USB-C or Thunderbolt 3 port. It requires no drivers or external power source to operate, and easy to pack into a pocket, backpack or laptop bag for multiport convenience wherever you go. The reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time. Plus built-in cable fits within the base of the dock for convenient storage.
• POWERFUL FEATURES: This USB C docking station supports USB-C DisplayPort Alternate mode for rransmitting Audio/Video signals. The HDMI and Mini DisplayPort (mDP) outputs support true 4K resolutions up to 4096 x 2160 at 30 Hz. The VGA port supports HD resolutions up to 1920 x 1200, including 1080p, at 60 Hz. USB ports connect keyboards, thumb drives and other peripherals. Provides access to a wired gigabit ethernet network
• BROAD COMPATIBILITY: Ideal for transmitting 4K video and digital audio to multiple large displays, adding a thumb drive and other USB peripherals, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network. USB-C Power Delivery port supports power output up to 20V 3A (60W) and can be used for transferring data up to 5 Gbps.
• CREATE A VERSATILE, PORTABLE WORKSATION: Multiport USB-C dock with PD Charging expands the potential, and connects up to 3 displays to your Windows laptop, Chromebook, tablet or other device with a USB-C or Thunderbolt 3 port.
