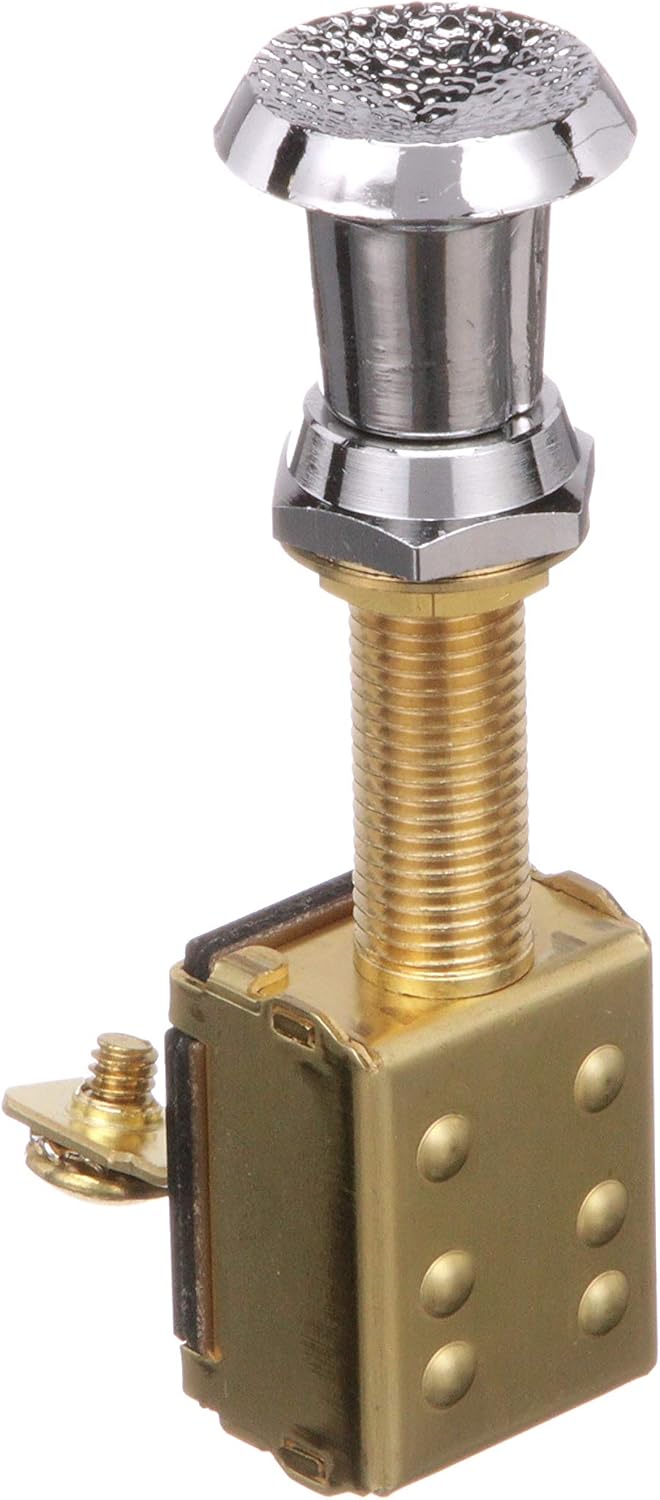

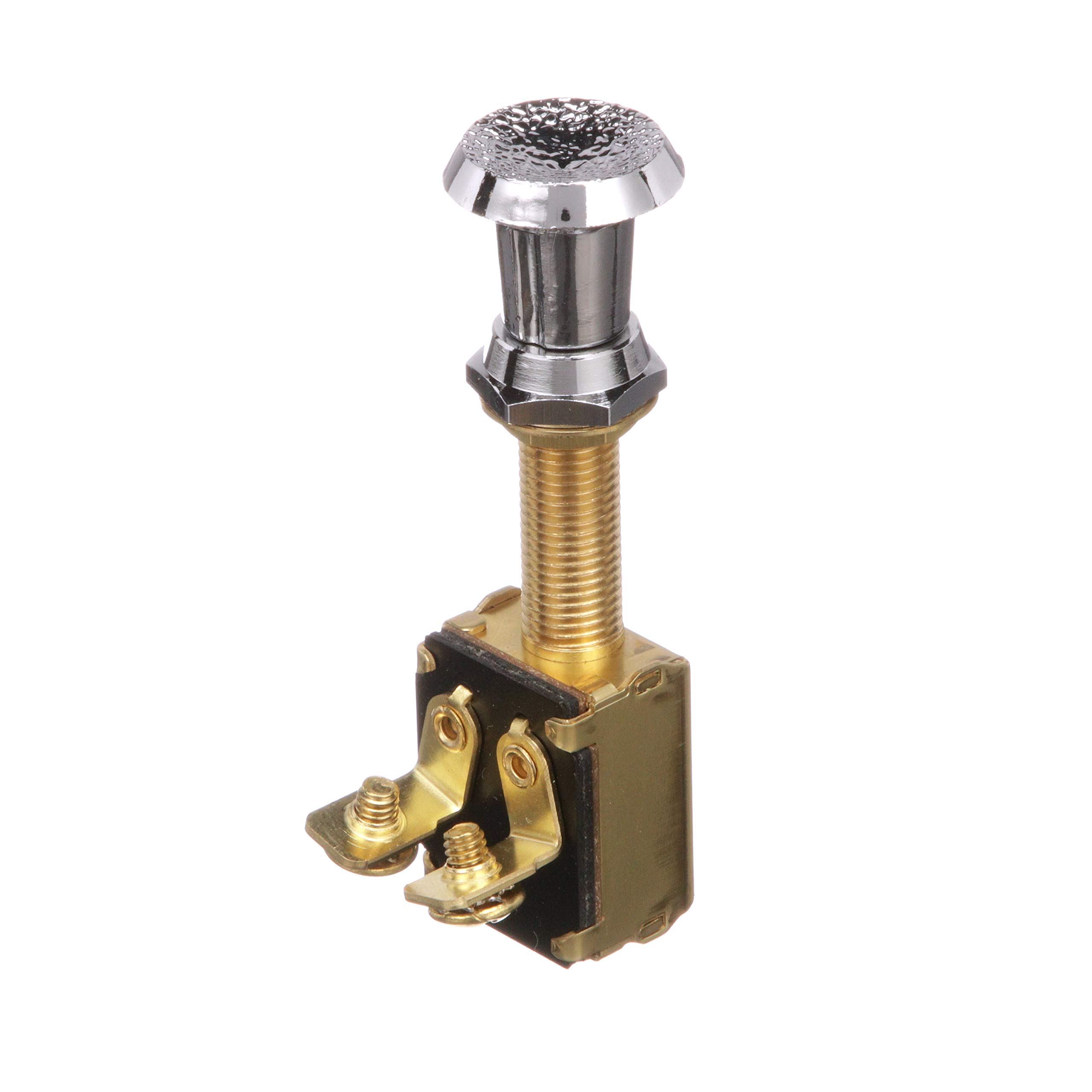

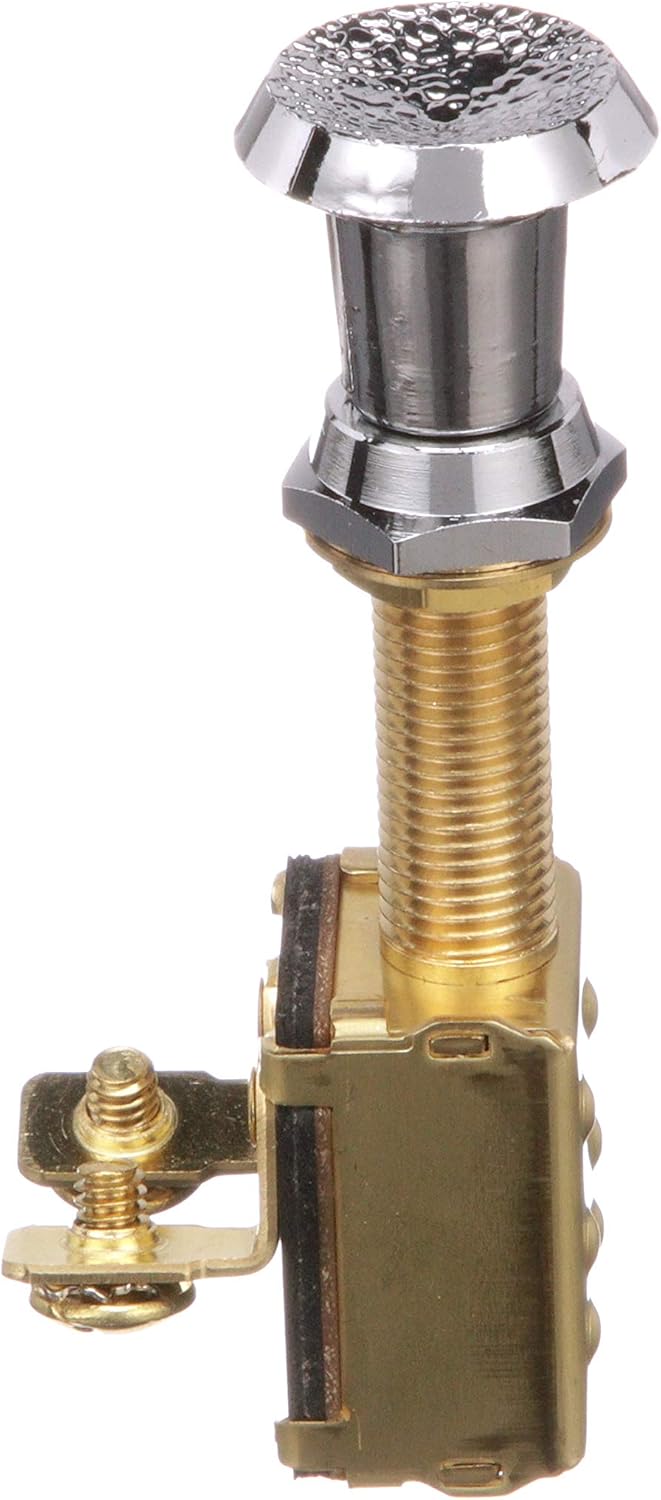

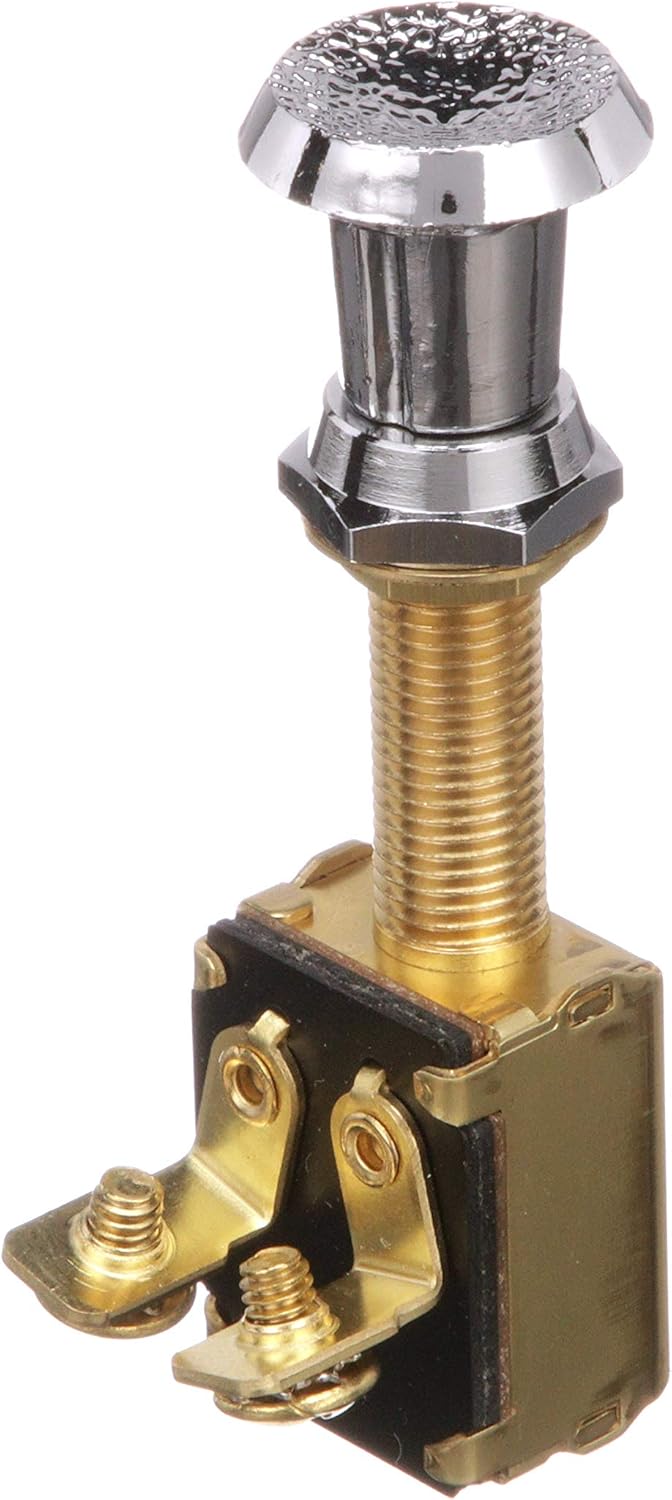

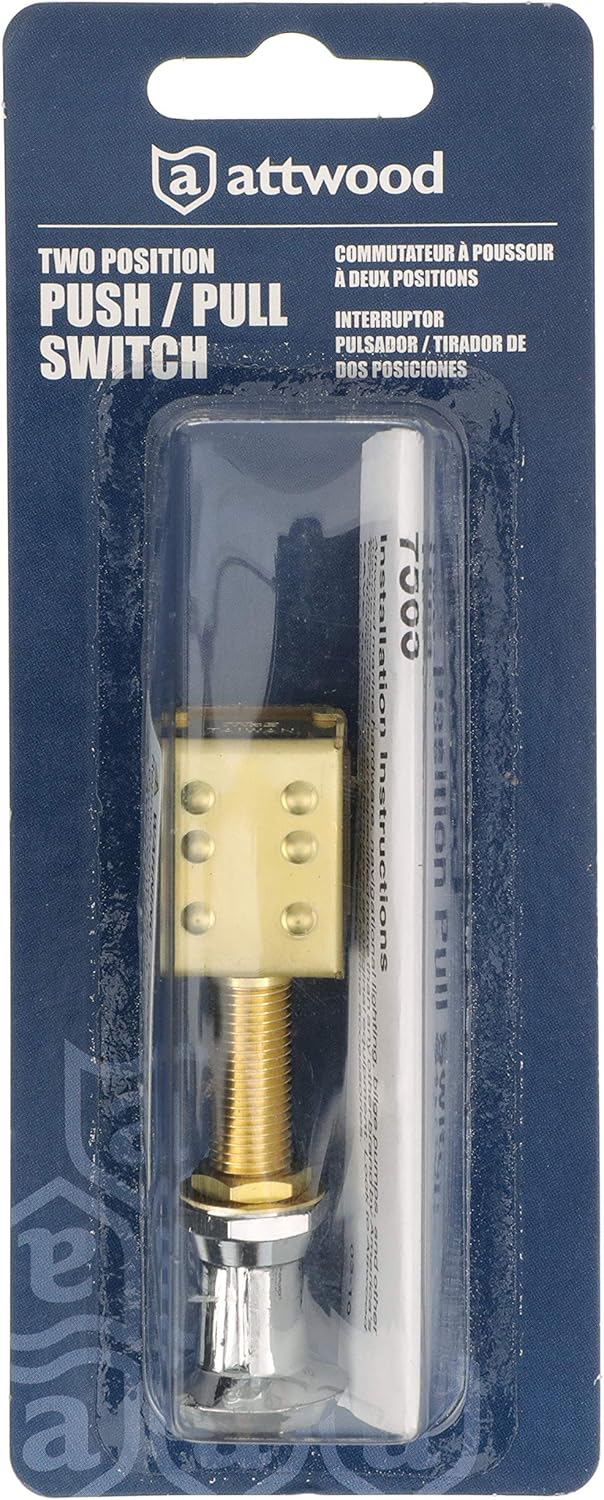

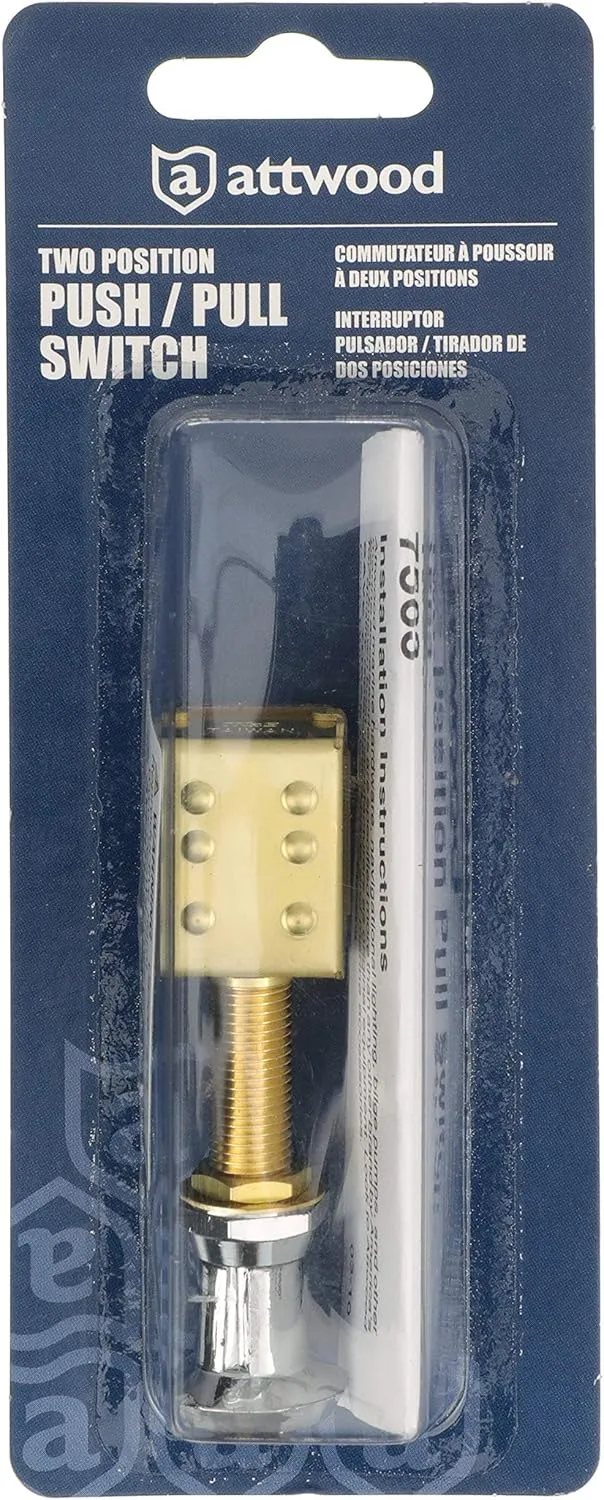

Attwood 7563-6 2-Position Off/On Push/Pull Switch for Boat Lights and Other Accessories
Customize
Push/Pull Switch Two-Position Two-position, off/on. For operating one set of lights or other accessory. These switches have large, easy-to-pull handles. They are commonly used for operating lights. 3/4" diameter chrome-plated knob, brass case. Include screw terminals for connection without a wire lug. For 12-volt D.C. only. Not external ignition protected. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Action: On/Off, Color: Chrome Plated. This Attwood Push/Pull Switch has a bright, appealing finish, and it reliably controls operation of components such as lights. This switch has a large, easy-to-pull and push handle. It is a 2-position switch with Off/On, and it can be used to operate a set of lights or another accessory. The 3/4 inch-diameter chrome-plated knob has a brass case that looks great installed. A 3/8-inch-diameter installation hole is required, the maximum panel thickness is 1 inch, and the switch extends 1 ½ inches behind the panel. Its overall measurements are 3 1/8 inches L x 1 ¼ inches W. It includes screw terminals for connection without a wire lug. It is for 12-volts DC only, and it is not external ignition protected. Attwood Corporation has been an award-winning leader in engineering, testing, and manufacturing the highest quality marine products for over 100 years. We deliver safe and reliable lighting, fuel systems, water systems, seating & pedestals, swim ladders, custom upholstery, and general marine accessories that are easy to install and meet regulatory compliance.
- For 12-volts DC only
- Screw terminals for connection without a wire lug
- 3/8-inch-diameter installation hole, maximum panel thickness is 1 inch, and switch extends 1 ½ inches behind panel
- 3/4 inch-diameter chrome-plated knob with brass case
- Can be used to operate a set of lights or another accessory
- 2-position switch with Off/On
- Reliably controls electrical components such as lights or accessory
Specifications:
| Materials & Construction | |
| Color | Chrome Plated |
| Material | Brass |
| Outer Material | Brass |
| Product Details | |
| Action | On/Off |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Connector Type | Screw |
| Contact Material | Brass |
| Contact Type | Normally Closed |
| Current Rating | 1 Amps |
| Included Components | End Product & Information |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Voltage | 12 Volts |
| Operation Mode | OFF-NONE-ON |
| Part Number | 7563-6 |
| Terminal | Screw |
| Wattage | 12 watts |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 7 inches |
| Product Dimensions | 7 x 3 x 2 inches |
| Size | One Size |
| Weight | 0.80 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Connectivity Protocol | X-10 |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Current Rating | 1 Amps |
| International Protection Rating | IP00 |
| Number of Positions | 2 |
| Operating Voltage | 12 Volts |
