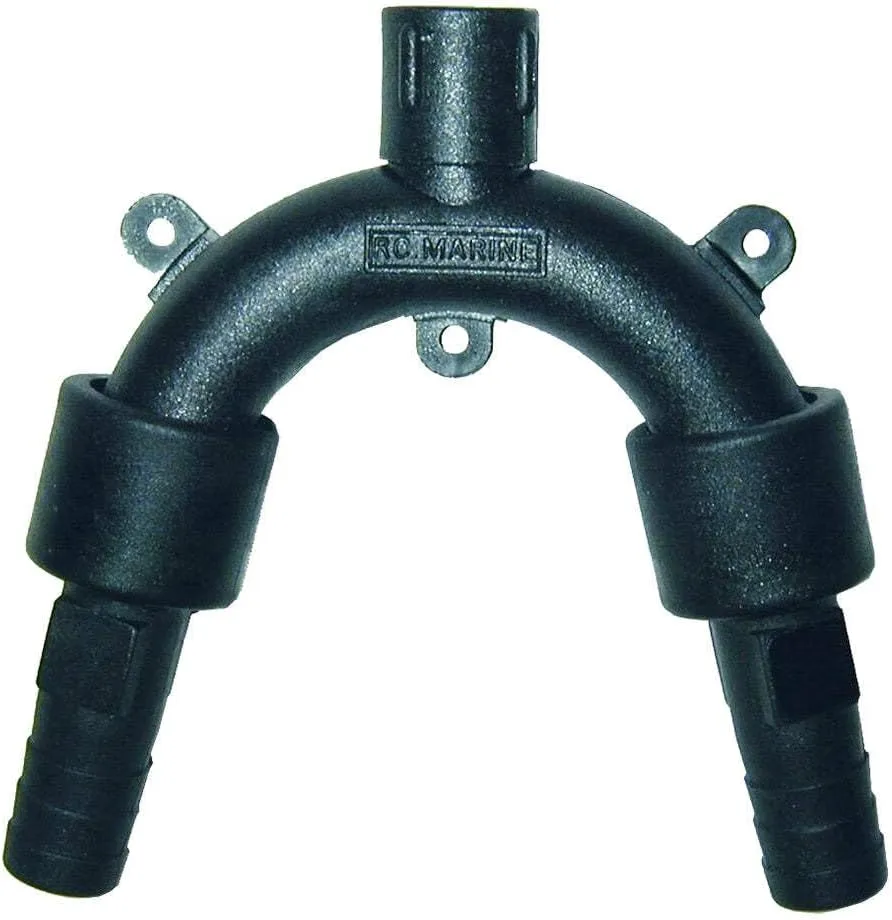

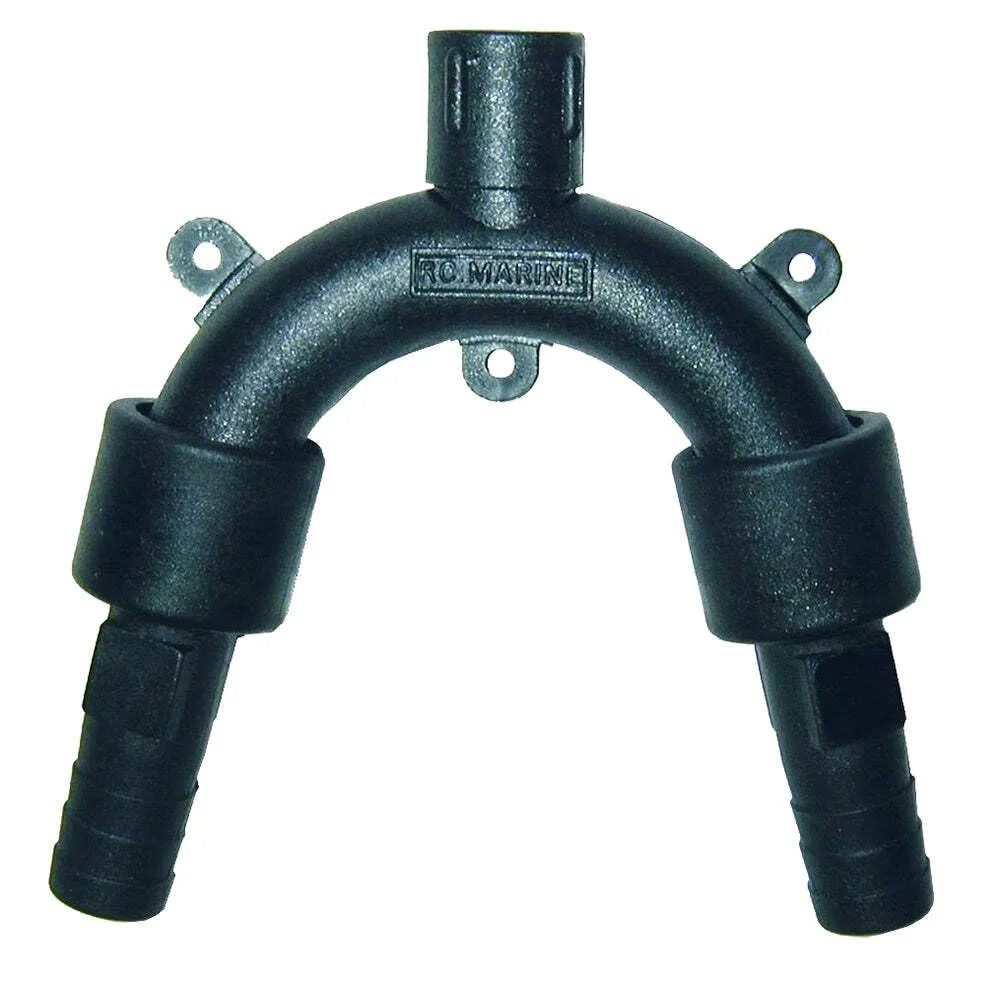

MF 843 Vented Loop - 5/8". Installing one of our vented loops will ensure that fluids will not siphon from tank to tank. Vented loops are commonly used in the marine toilet system and engine cooling system. The simple valve system incorporated in the top of the loop allows air to enter the line when not in use, yet effectively seals as water or other fluid passes through. Molded in Marelon, neither vent nor loop will corrode. The duckbill one way valve is designed to seal properly if particulate matter is present in fluids. Specifications: Barb Size: 5/8" (15.87mm). Height: 4-1/2" (114.3mm). Width: 4" (101.6mm). Type: Vented Loops. Material: Plastic. Connections: Barb inlet and outlet. Number of Ports: 2. Item dimensions (L x W x H): 5 x 5 x 2 inches. Item Weight: 0.13 Pounds. Package dimensions (L x W x H): 4.84 x 4.57 x 1.22 inches. Package Weight: 0.1500 (ProductDatabase) / 0.06 kg (source data). Model Number: 903003. Ideal for marine plumbing and boat toilet/engine cooling applications.
Specifications:
| Materials & Construction |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details |
| Included Components | Great Product |
| Inlet Connection Type | Barb |
| Material | Plastic |
| Model Name | 903003 |
| Number of Items | 1 |
| Number of Ports | 2 |
| Outlet Connection Type | Barb |
| Size | One Size |
| Type | Vented Loops |
| Valve Type | simple valve |
| Warranty Description | Warranty |
| Sizing & Dimensions |
| Height | 2 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 5 x 2 inches |
| Product Weight | 0.13 Pounds |
| Size | One Size |
| Weight | 2.08 ounces |
| Width | 5 inches |
| Technical Specifications |
| Item Package Dimensions L x W x H | 4.84 x 4.57 x 1.22 inches |
