ProMariner ProIsoCharge Battery Isolator 120Amp 1-Alt 3-Bat - 12V
Customize

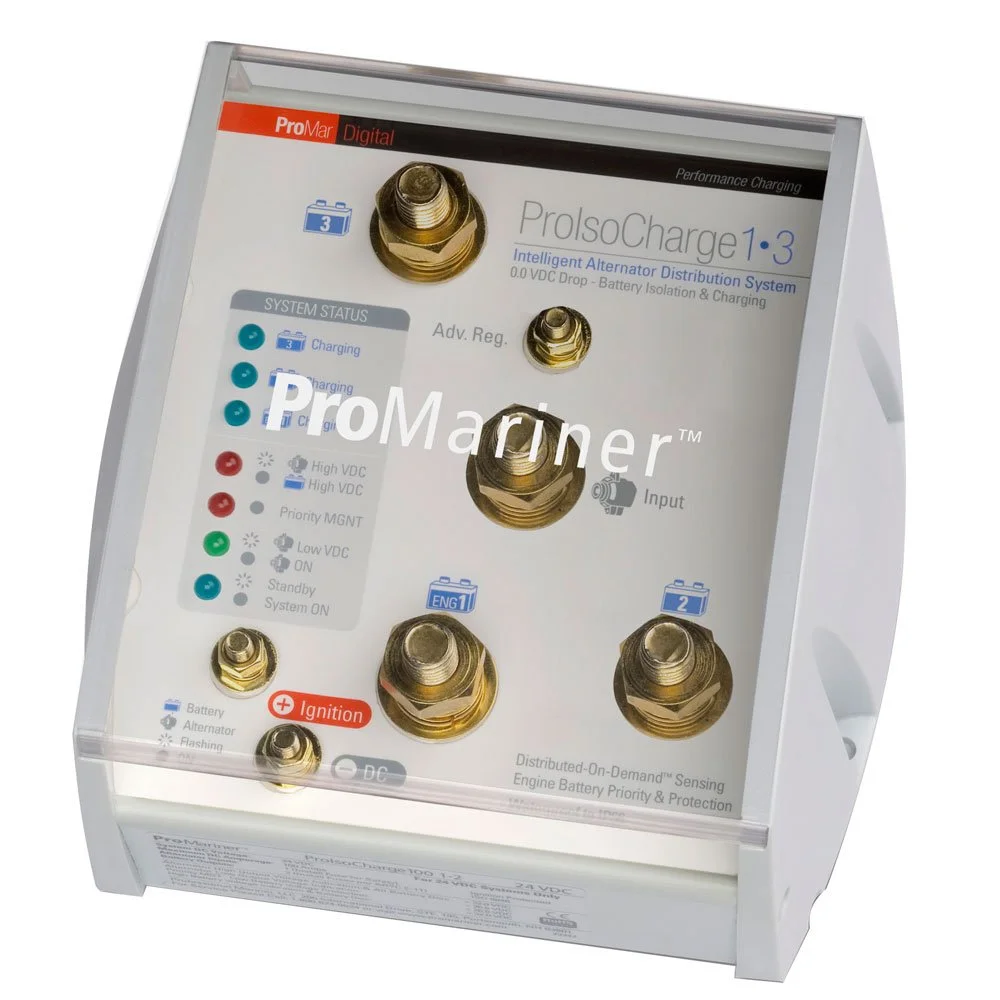

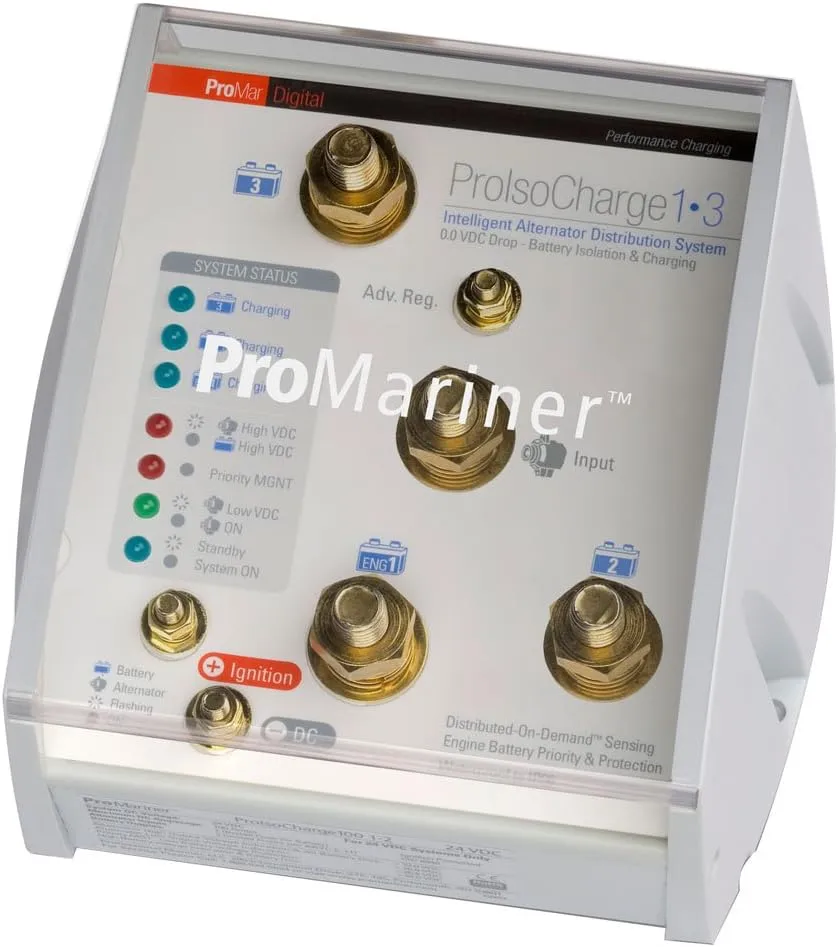

ProIsoCharge Series Model ProIsoCharge120 (Part No. 23124) - 12V, Max DC Amps 120. Alternator Input: 1; Battery Outputs: 3. Size (per manufacturer): 6.15" L x 5.875" W x 3.125" H. Weight: ~3 lbs. ProIsoCharge delivers digitally controlled alternator output distribution while protecting engine start batteries. It provides intelligent, zero voltage loss isolation and charges up to three battery banks off a single alternator (model specific). For dual engine applications, ProIsoCharge offers a 2-alternator input model supporting up to 4 battery banks. The system provides priority charging to battery banks under load by taking fully charged batteries offline, eliminating the typical 0.6VDC alternator voltage loss associated with diode-based isolators. Features include real-time LED status indicators (alternator power present, bank charging status, fault LEDs for high/low alternator output and over-voltage), ignition-controlled Distributed On Demand™ activation, advance regulator remote sense connection, modular design for easy installation with terminal stud insulator boots and protective snap-on safety cover, ignition protected and waterproof to IP66. Includes safety and installation components. Five-year warranty information and Proposition 65 warning may apply.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Color | Beige |
| Included Components | Great Product |
| Material | Plastic |
| Model Name | 23124 |
| Number of Items | 1 |
| Size | One Size |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 0.04 inches |
| Item Dimensions Lx Wx H | 6.15 x 5.88 x 0.04 inches |
| Item Package Dimensions L x W x H | 8.1 x 7 x 5 inches |
| Length | 6.15 inches |
| Product Dimensions | 6.15 x 5.88 x 0.04 inches |
| Weight | 2.6 pounds |
| Width | 5.88 inches |
| Technical Specifications | |
| Item Package Dimensions L x W x H | 8.1 x 7 x 5 inches |
| Model Number | 23124 |
| UPC | 066510857640 031669231245 059485388561 |
