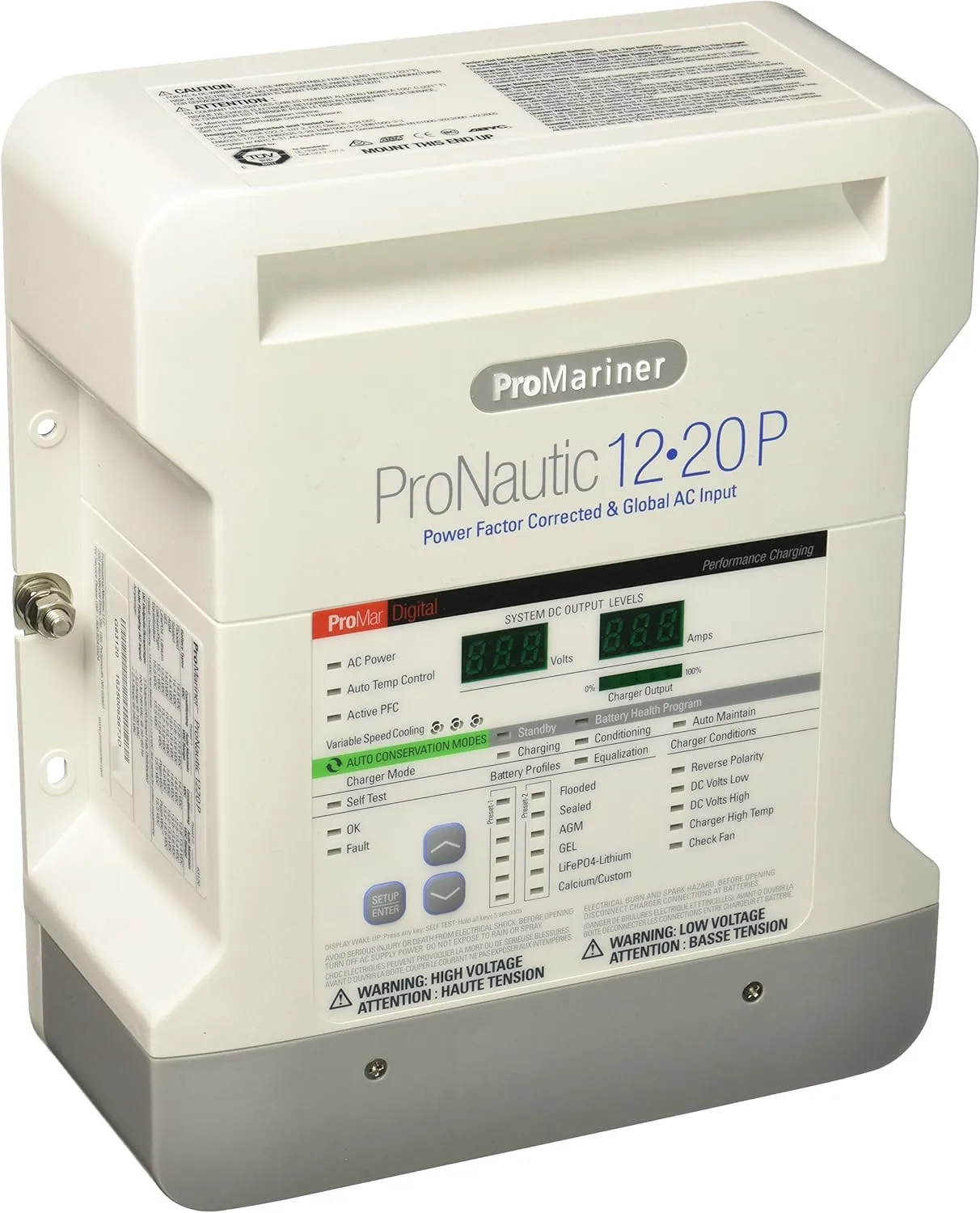

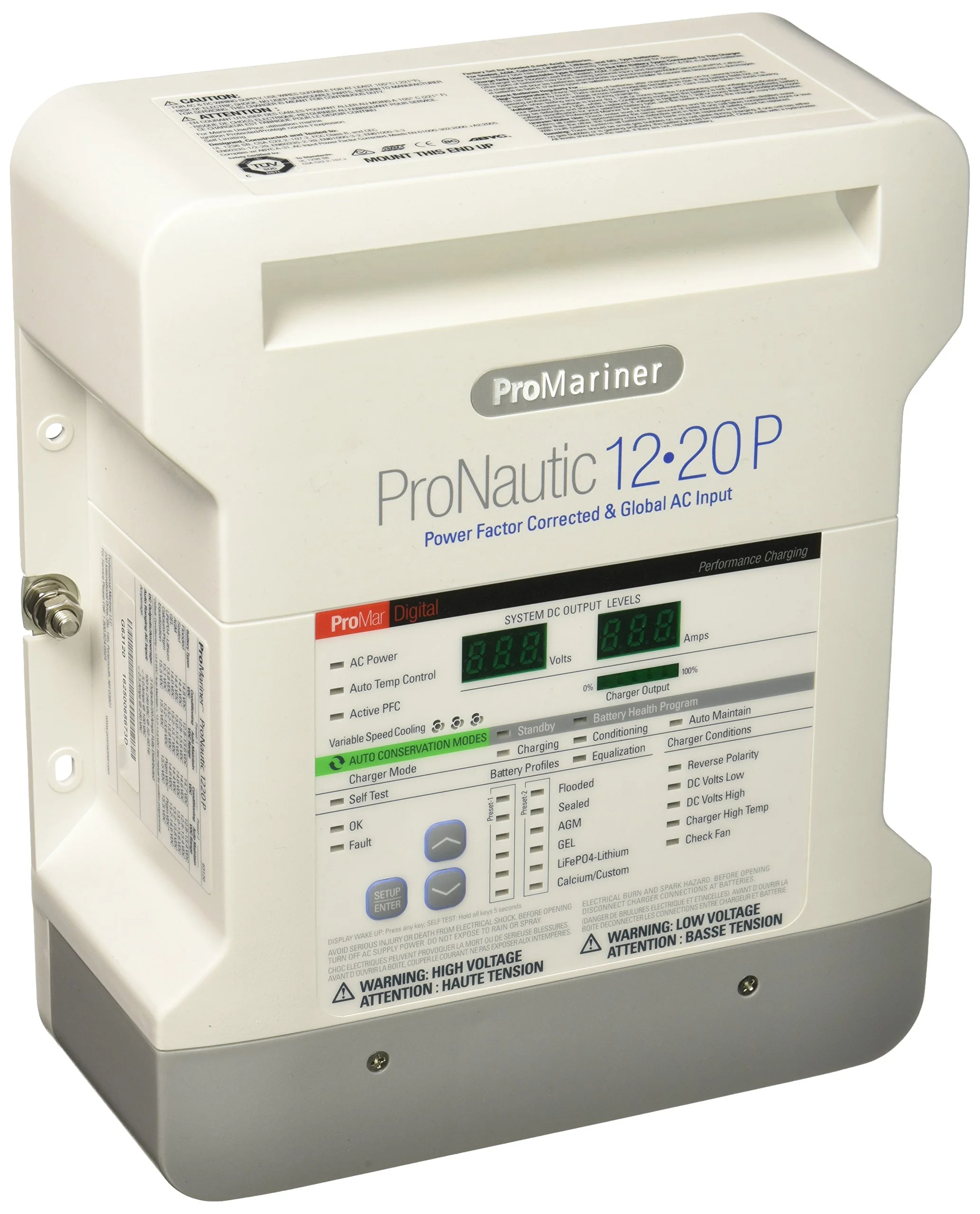

ProMariner 63120 ProNauticP Series 1220P - 12 Volt, 20 Amp Battery Charger Standard Packaging
Customize
Package Contents: All Digital Electronic Charging Industry recognized with the 2010 IBEX Innovation Award, ProNauticP employs our ProMar Digital Performance Charging Platform which combines all digital control and software-based power conversion technology with global energy management features. ProNauticP addresses the trend of incorporating and using more 12-volt electronics on-board today's power, sail, cruising and sport fishing boats. Boasting twelve digitally-controlled performance charging profiles with finger tip selection, ProNauticP fully charges, conditions, maintains and re-conditions batteries while extending battery life and maximizing battery reserve power performance. ProNauticP is Power Factor Corrected with auto-ranging global AC input allowing all models to operate off a standard household power connection. Featuring dual digital displays for real-time display of actual charging voltage and amperage and AC power-on diagnostics with pass or fail status in addition to discreet fault indication for mis-wiring or adverse battery bank conditions. Designed to provide more time on the water enjoying what you like most... boating. ProMar Digital Performance Charging. ProMar Digital Charging Performance - 12 Selectable Profiles. Up to 12 performance & precision 4-stage charging profiles: Charge, Condition, Maintain and Re-condition. Automatic dockside power mode for 12 Volt DC lighting and appliances. Factory set for Flooded (Lead Acid) batteries. AGM, GEL selectable. Power Factor Correction - Global AC Input. Auto-ranging (100-250VAC/50-60Hz) global AC input with reduced harmonic distortion allowing all models to operate off a household power outlet connection. ProNauticP consumes less power so more AC power is available on board. Distributed On Demand Technology automatically senses and distributes 100% of available charging amps to any one bank or combination of all banks. Digital Self-Calculating Absorption and Battery Health Re-Conditioning Mode automatically programs conditioning time based on discharge state of batteries and de-sulfates batteries after extended maintain mode. Conservation Energy Saver Mode lowers float voltage after extended low-load storage. Service and Fault Mode LED Indicators provide real-time wiring and fault diagnostics. Automatic Fan Speed Control and Automatic Temperature Compensation provided; remote temperature probe included. Designed and constructed to Marine ULc 1236, CE, CTick and FCC Class B. Package Contents: ProNautic Charger Parts package including: a. Owners/Installation Manual b. Warranty Card c. Temperature Probe.
- After 72 hours of not seeing a load greater than 5 amps, float voltage will be lowered consuming less energy during storage periods. (for flooded & sealed charge profiles)
- Real time indication of wiring faults or adverse conditions that may impact the operation of a boat's charging system.
- Automatically programs conditioning time based on discharge state of batteries. Automatically de-sulfates batteries after 21 days in the maintain mode, improving reserve power performance & extending battery life.
- Auto-ranging (100-250VAC/50-60Hz) global AC input with reduced harmonic distortion allowing all models to operate off a household power outlet connection. ProNauticP consumes less power so more AC power is available on board.
- Up to 12 performance & precision 4-stage charging profiles: Charge, Condition, Maintain and Re-condition. Automatic dockside power mode for 12 Volt DC lighting and appliances. Factory set for Flooded (Lead Acid) batteries. AGM, GEL selectable.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Charger Input - Voltage | 120/240v |
| Charger Output - Amps | 20a |
| Charger Output Voltage | 12v |
| Charging Banks | 3 |
| Output Voltage | 12 Volts |
| Portable | No |
| Whats in the box | ProMariner ProNautic 1220P 20 Amp 3 Bank Battery Charger |
| Sizing & Dimensions | |
| Height | 5.75 inches |
| Length | 10.5 inches |
| Product Dimensions | 12.63 x 10.5 x 5.75 inches |
| Weight | 5.35 pounds |
| Width | 12.63 inches |
