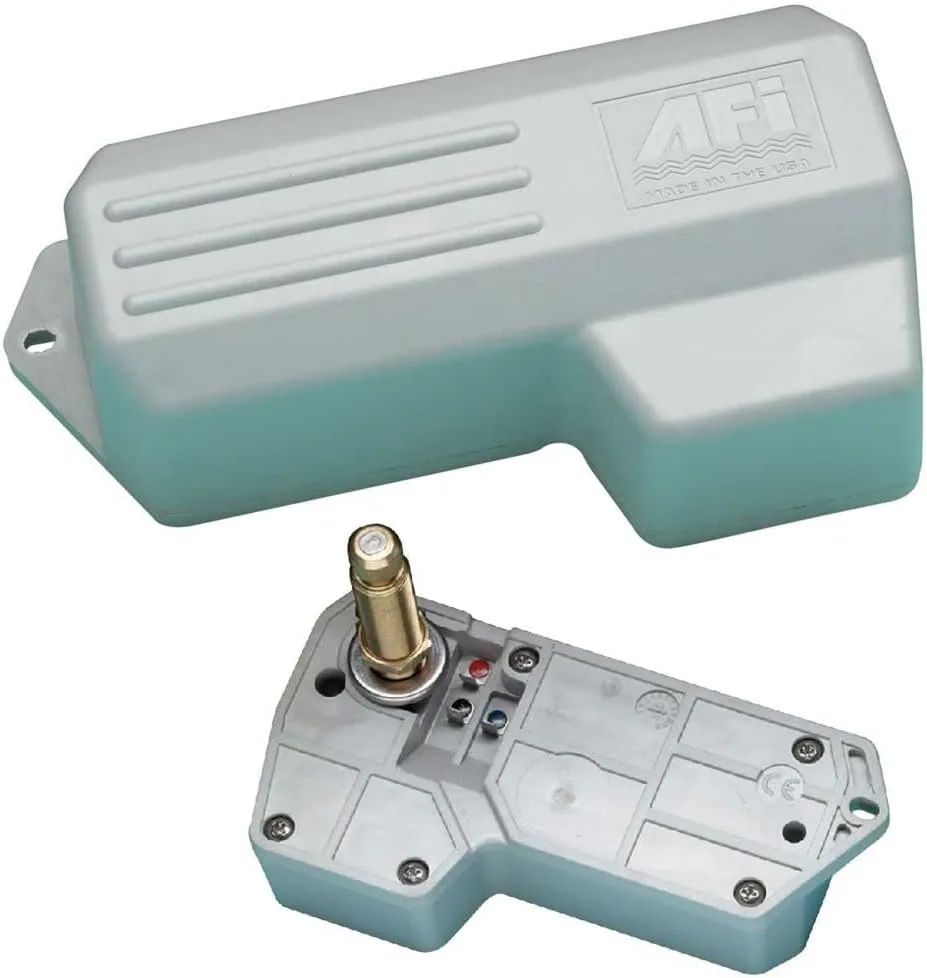

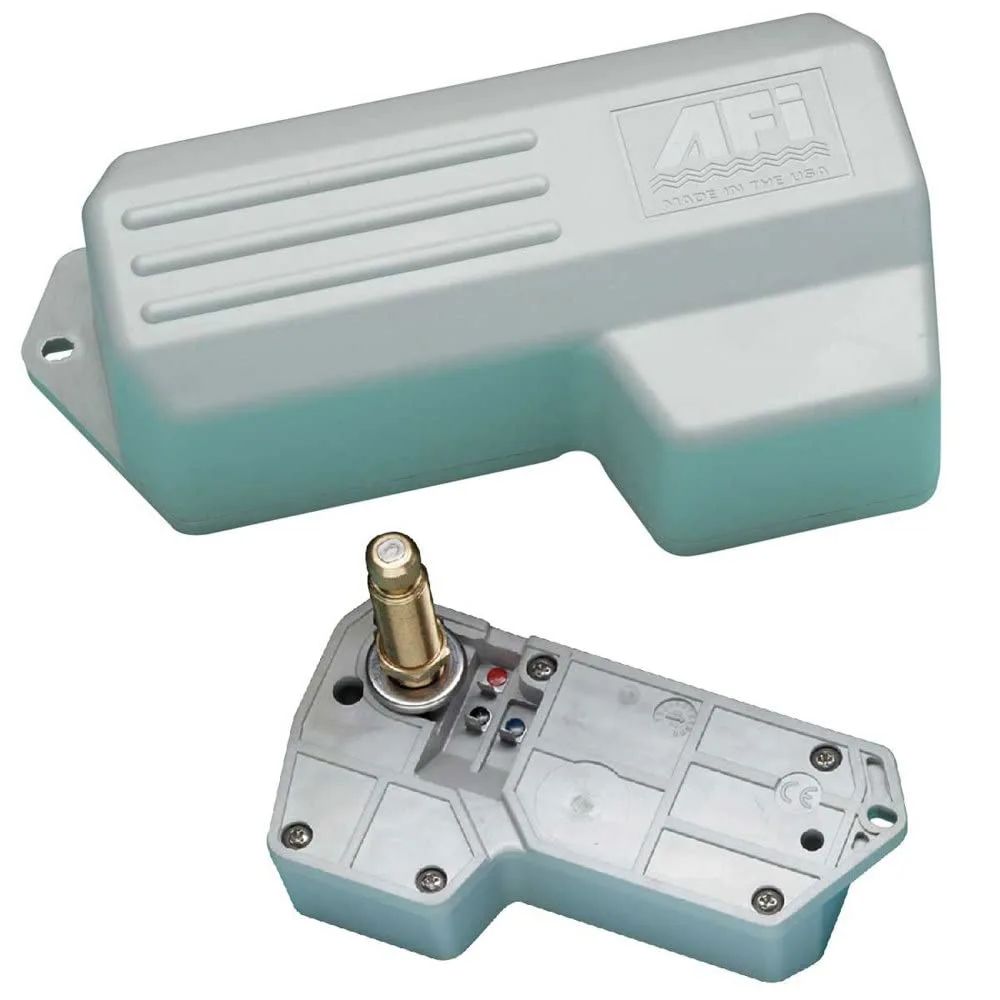

Marinco 37110 Wiper Motor, 1000 Series, 12V, 2.5" Shaft, 110 Degree
Customize
The 1000 Waterproof Wiper Motor (Marinco 37110) is a heavy-duty, fully sealed marine wiper motor built with a UV-stabilized, high-temperature, high-impact thermoplastic housing. It powers 18" Deluxe arm/blade combinations at sweep sets of 80° or less, or 16" arms/blades at 110°. Factory pre-set sweeps include 50°, 65°, 80° or 110°. Features include a 0.625" (16 mm) knurled drive shaft with solid brass arm drive nut, anti-rotation drive shaft, coast-to-park with adjustable right or left self-parking, RF shielded circuitry, and a retail version that includes a 5 amp fuse and holder. Available in 1.5" and 2.5" shaft lengths (includes 0.5" of knurled arm fitting). Stall torque is 55 in-lbs with stall current 9.8–10.0 A and no-load current 0.8–1.2 A. Approximate product dimensions: 9.2 x 6.1 x 5.9 inches. Ideal for marine boating replacement and retrofit applications; designed for quick and simple installation.
- Coast to park with adjustable right or left self parking
- Knurled drive shaft and solid brass arm drive nut
- 12 volt heavy-duty motor with anti-rotation drive shaft
- 0. 625" diameter shaft (16 mm)
- Factory pre-set sweep of 80 or 110
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Country of Origin | China |
| Global Trade Identification Number | 00035028371108 |
| Included Components | Marinco 37110 1000 Waterproof Wiper Motor - 2.5" Shaft, 110° Sweep |
| Material | Plastic |
| Model Name | 37110 |
| Size | Standard |
| Sport Type | Boating |
| Voltage | 12 Volts |
| Sizing & Dimensions | |
| Height | 5.9 inches |
| Length | 9.2 inches |
| Product Dimensions | 9.2 x 6.1 x 5.9 inches |
| Size | Standard |
| Weight | 1.75 pounds |
| Width | 6.1 inches |
| Technical Specifications | |
| No load current | 0.8-1.2 amps |
| Stall current | 9.8-10.0 amps |
| Stall torque | 55 in-lbs |
| Voltage | 12 Volts |
