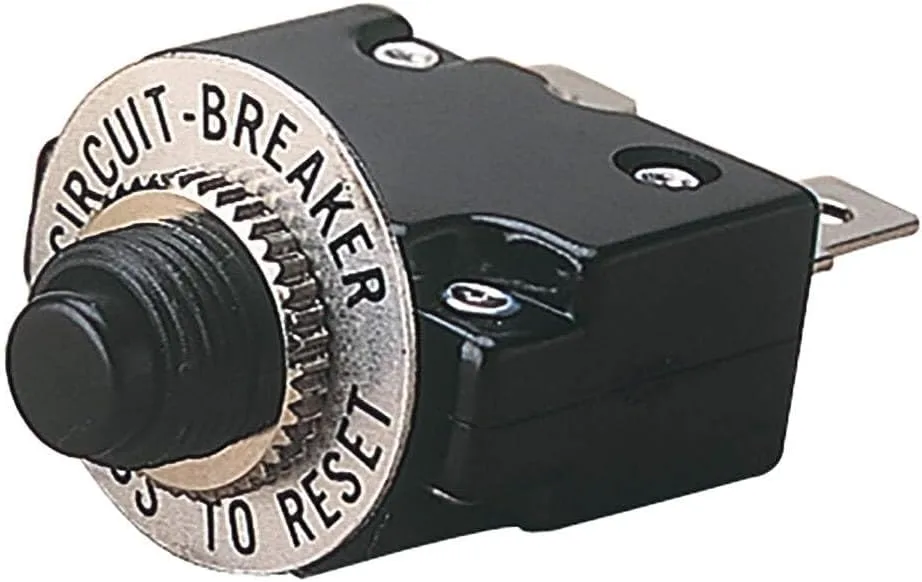

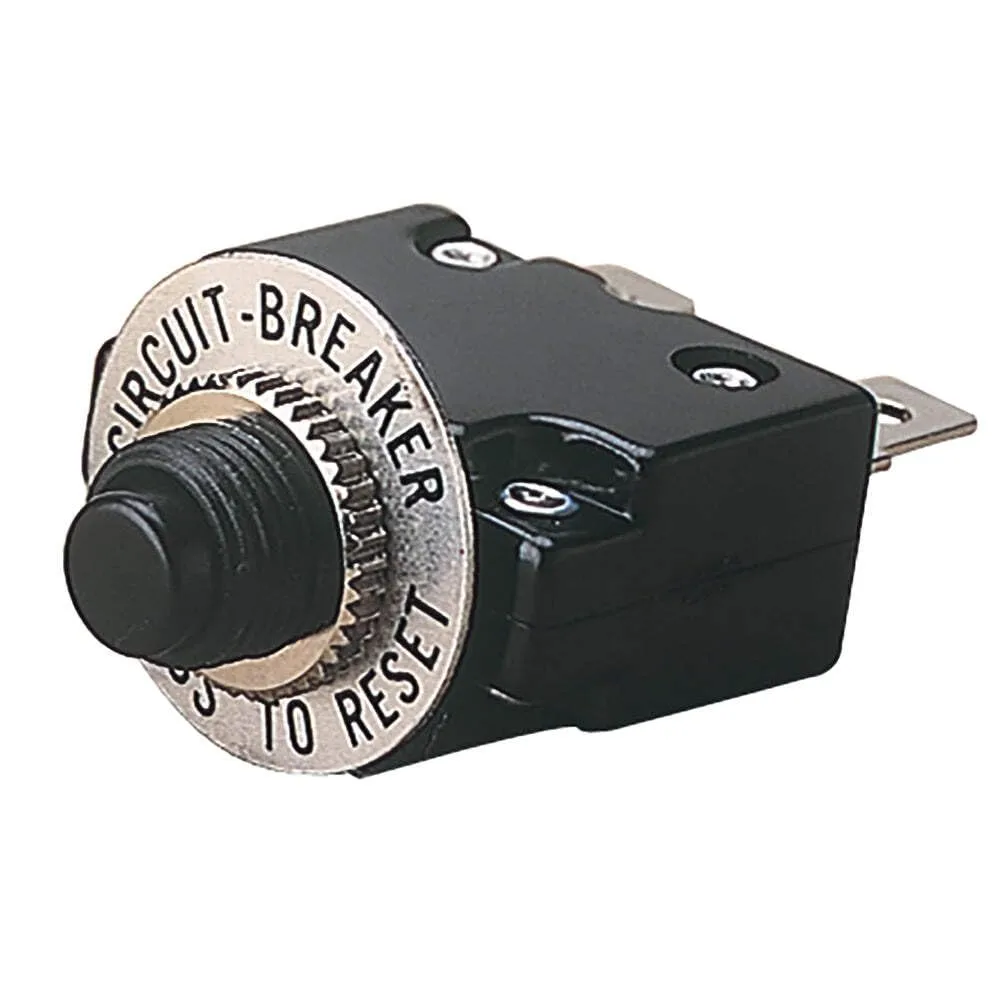

Thermal AC/DC Circuit Breaker - 30 Amp. Thermal AC/DC circuit breakers are designed to protect electrical circuits from damage caused by excess current. These push-to-reset breakers are vibration- and shock-resistant and are an economical alternative to magnetic breakers. Unlike sacrificial fuses they can be reset after tripping. Panel-mounted compact design constructed of molded Bakelite with quick-connect terminal style and stamped brass contacts. Optional thermal breaker boot (420839) provides additional protection in wet environments. Ratings: 5–30A @ 125–250VAC and 32VDC. Features include panel depth 3/16", push-to-reset actuator, and 30A current rating. Package and item weights / dimensions: item weight ~1.28 ounces; package weight ~2.4 ounces; item package dimensions 6 x 4 x 2 inches. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Materials & Construction | |
| Color | Black |
| Connectivity Protocol | X-10 |
| Product Details | |
| Actuator Type | Push Button |
| Controller Type | Push Button |
| Current Rating | 30 Amps |
| Included Components | Great Product |
| Model Name | 420830-1 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operation Mode | Manual |
| Size | One Size |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 4 x 2 inches |
| Size | One Size |
| Weight | 1.28 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Controller Type | Push Button |
| Current Rating | 30 Amps |
| Mounting Type | Panel Mount |
| Operation Mode | Manual |
