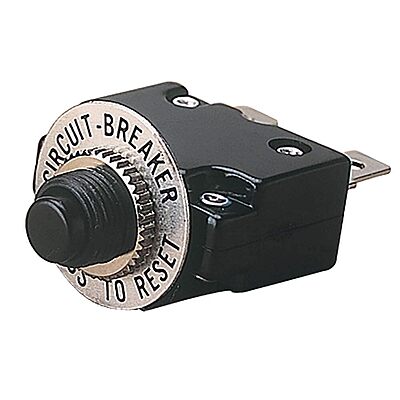

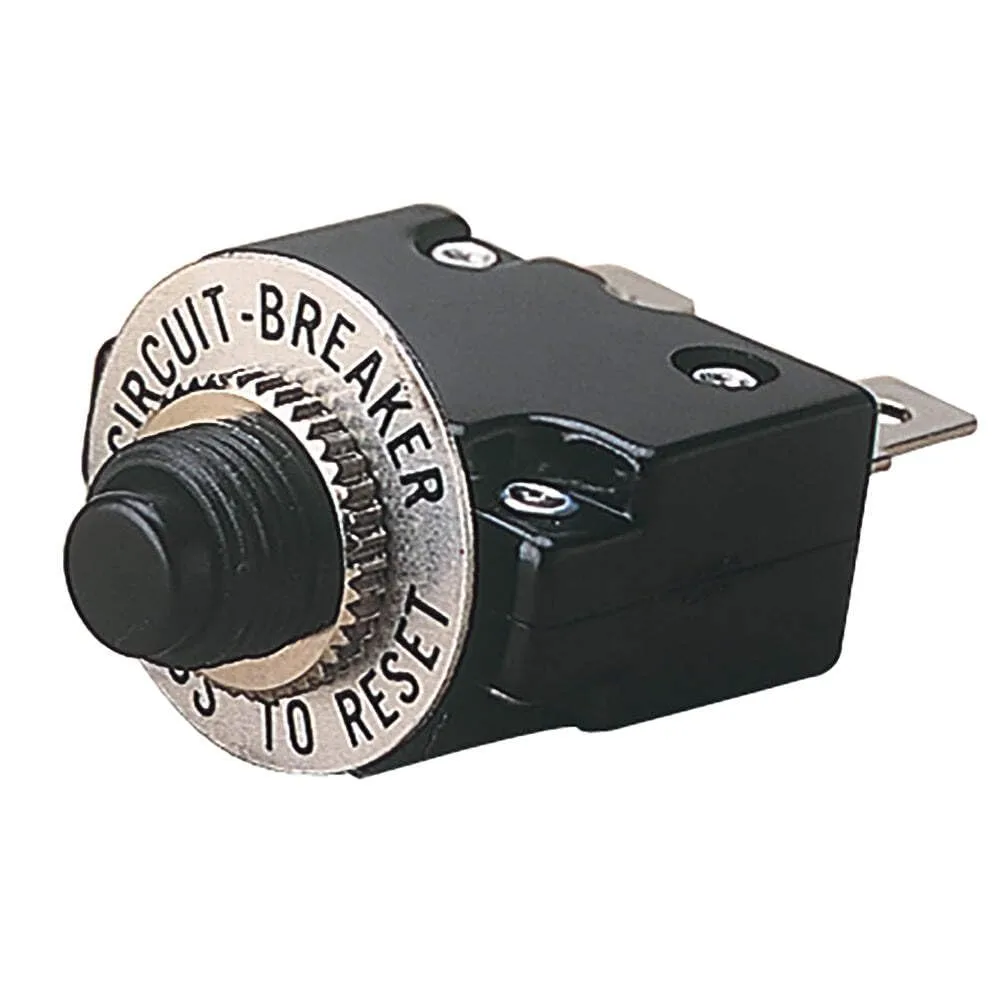

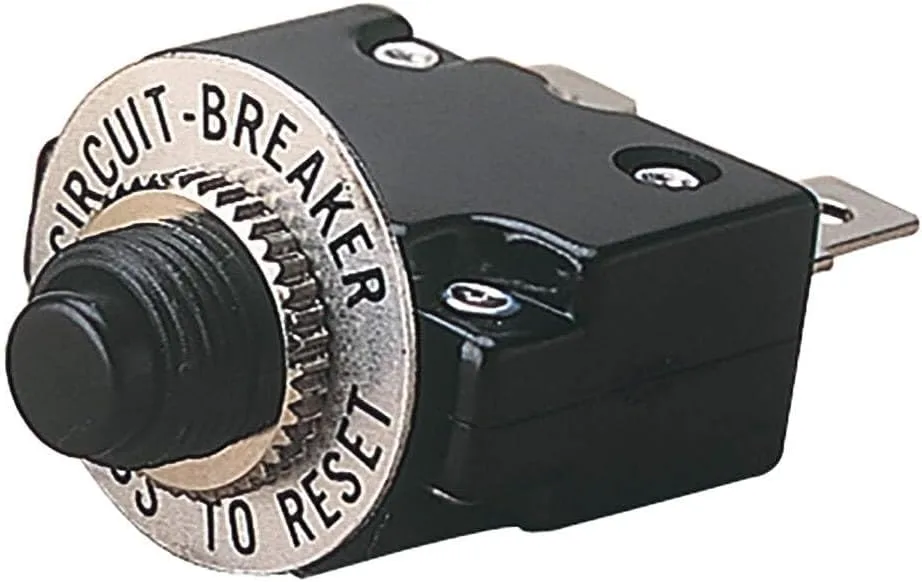

Sea Dog 420820-1 Thermal AC/DC Circuit Breaker, 20 Amp
Customize
Thermal AC/DC Circuit Breaker - 20 Amp. Thermal AC/DC Circuit Breakers are designed to protect an electrical circuit from damage caused by excess current. Vibration and shock resistant these push-to-reset circuit breakers are an economical alternative to magnetic breakers. Unlike sacrificial fuses they have the advantage of being resettable after tripping. Panel mounted compact design. Constructed of molded Bakelite with quick connect, terminal style, stamped brass contacts. Optional Thermal Breaker Boot (420839) provides additional protection in wet environments. 5-30A @ 125-250VAC. 32VDC. Features include UL listing, stamped brass contacts, molded Bakelite housing, and 20 Amp current rating. Ideal for marine, automotive, and general marine electrical systems requiring compact, resettable circuit protection.
- Stamped brass/molded bakelite
- Amperage: 20 Amps
- UL Listed: A-0701
Specifications:
| Materials & Construction | |
| Material | Stamped Brass |
| Outer Material | Molded Bakelite |
| Product Details | |
| Circuit Breaker Type | Standard |
| Country of Origin | Taiwan |
| Current Rating | 20 Amps |
| Item model number | 3004.4624 |
| Manufacturer Part No | 3004.4624 |
| Model | 420820-1 |
| Mounting Type | Stamped brass |
| Number Of Poles | 1 |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 5.81 inches |
| Product Dimensions | 1.25 x 3.88 x 5.81 inches |
| Weight | 1.28 ounces |
| Width | 3.88 inches |
| Technical Specifications | |
| Amperage | 20a |
| Number Of Poles | 1 |
| UL Listed | A-0701 |
