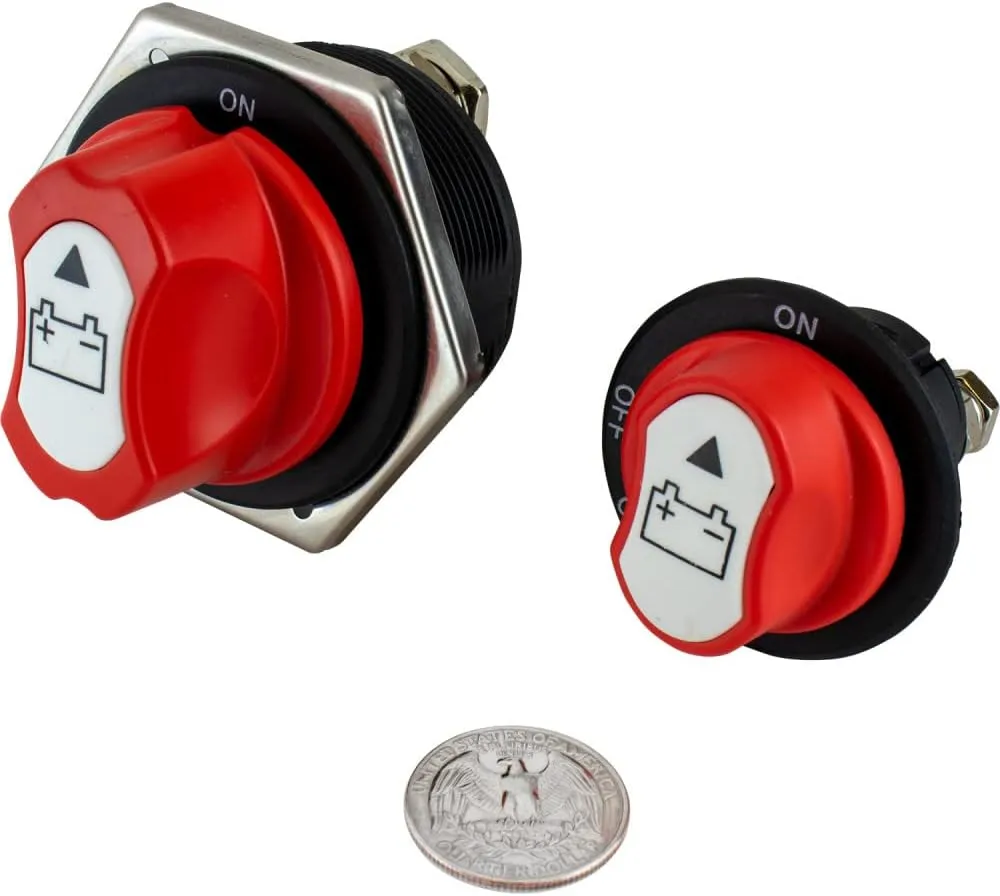

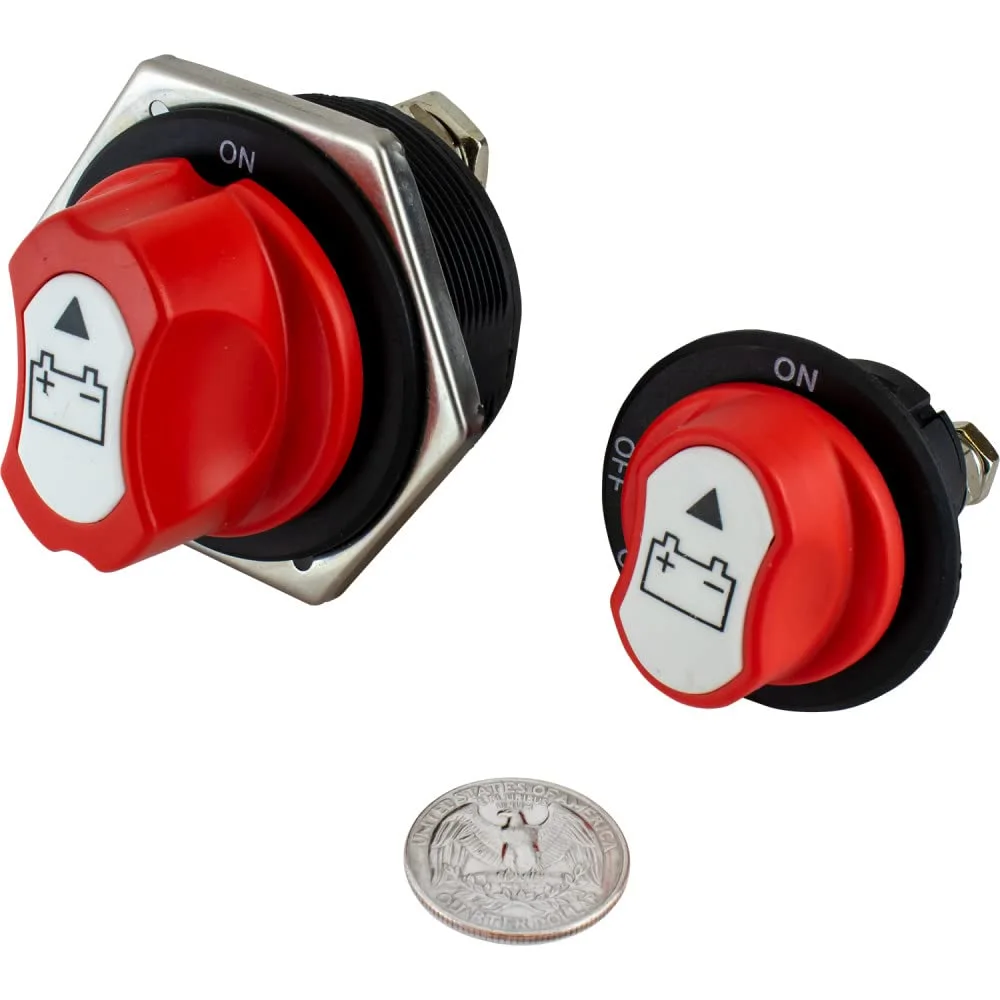

Mini Battery Switch Key with Removable Knob - 32V & 300A. These Mini Battery Switches feature a removable knob for extra security. To remove, simply twist the cap to the OUT position and pull. Mini footprint makes it ideal for close quarters. The 422730-1 is rated at 300A continuous and 1000A cranking amps. Installation is as easy as drilling a 2-1/16" hole for the 422730-1, inserting the socket body, tightening the locking nut, and connecting the wires. Features: 3 Switch positions: On, off, and out. Constructed of machined brass and injection molded nylon. Specifications: Switch Face Width: (inch) 2-1/16". Volts: 32. Amps: 300. Stud Diameter: (inch) 5/16". WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Additional marketing and technical notes: Great Product. Made in the USA. Plastic. Package: Item Package Dimensions L x W x H: 7 x 4 x 3 inches; Package Weight: 6.4 ounces.
| Materials & Construction | |
| Color | Black |
| Material | Brass |
| Outer Material | Brass |
| Product Details | |
| Actuator Type | Rotary |
| Connectivity Protocol | X-10 |
| Contact Material | Brass |
| Contact Type | Normally Open |
| Continuous Amperage | 300 |
| Current Rating | 300 Amps |
| Model Number | 422730-1 |
| Number of Positions | 3 |
| Operating Voltage | 32 Volts |
| Operation Mode | ON-OFF |
| Part Number | 422730-1 |
| Style | Sea-Dog 422730-1 Mini Single Battery Switch/Key On/Off/Out (Remove) 32V 300A |
| Terminal | Screw |
| Sizing & Dimensions | |
| Package Weight | 6.4 ounces |
| Size | Standard |
| Technical Specifications | |
| Included Components | Great Product |
| Item Package Dimensions | 7 x 4 x 3 inches |
| Warranty | Warranty |
