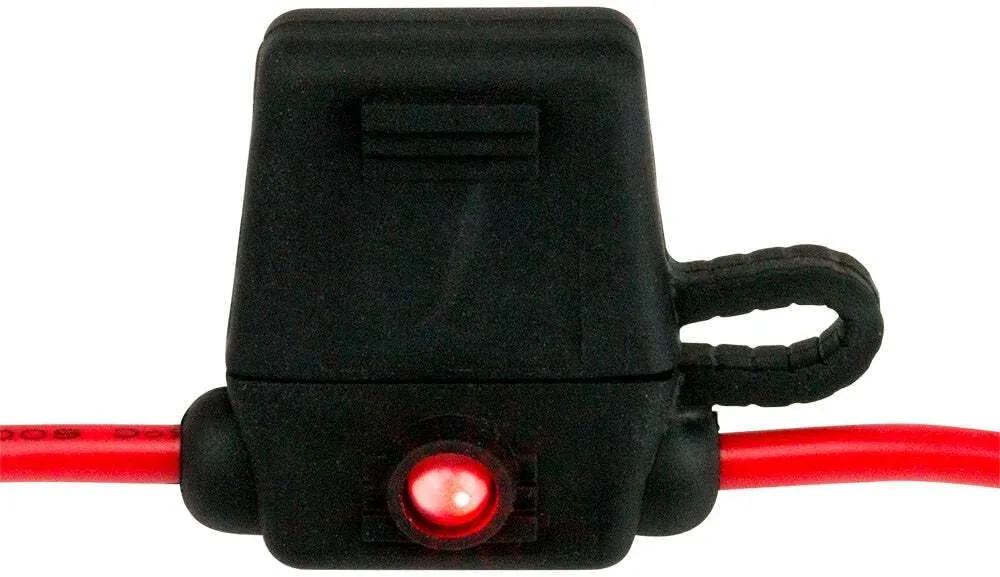

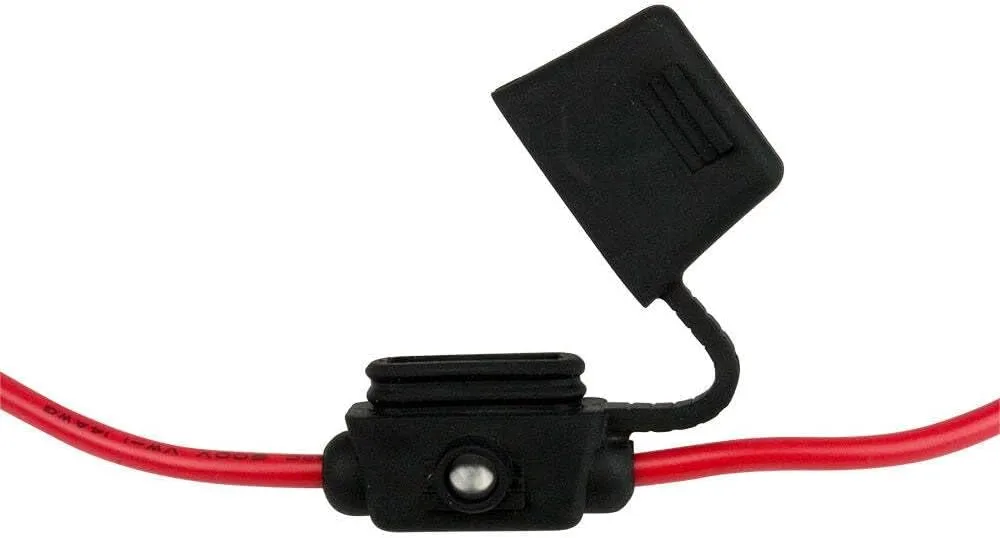

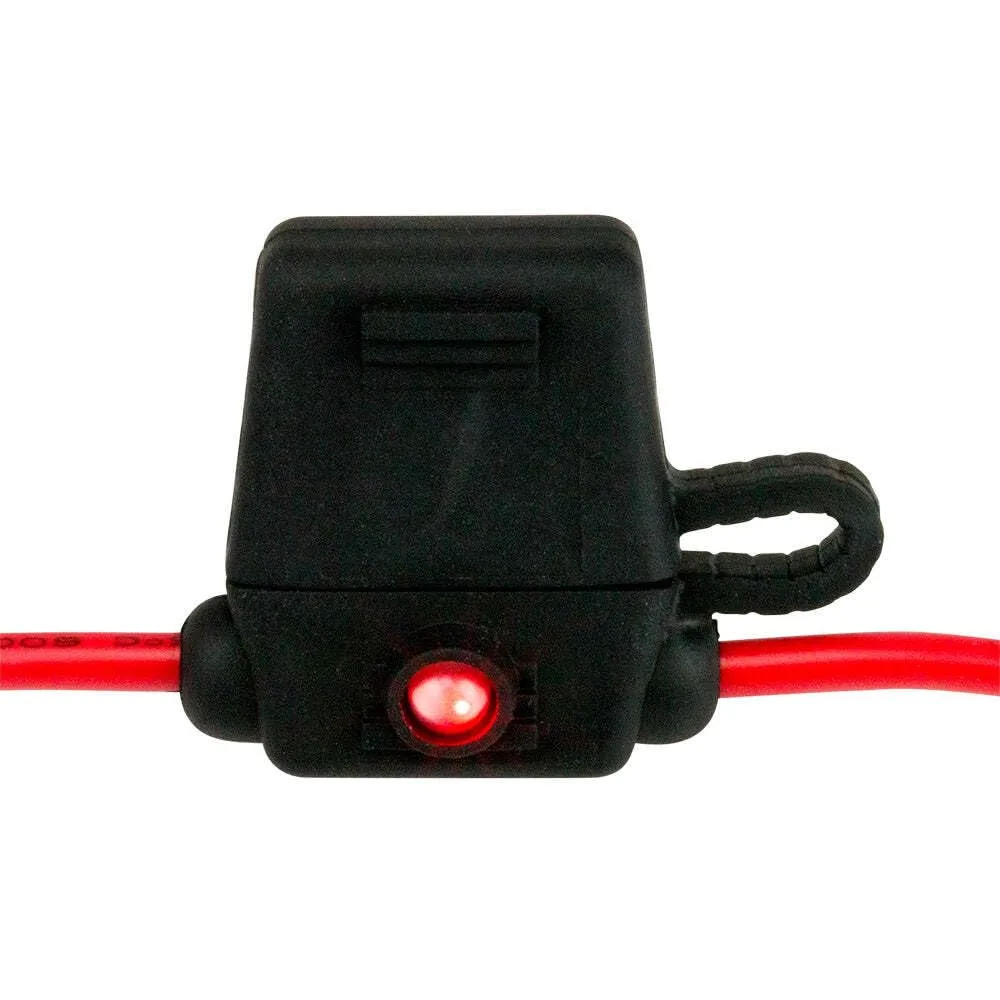

ATO/ATC Style Inline LED Fuse Holder - Up to 30A. This Sea-Dog LED inline mini fuse holder is meant for ATO/ATC style fuses. Features: LED indicator which lights up when the fuse is blown. Designed to accept ATO/ATC automotive-style spade terminal fuses. For use with Sea-Dog ATO or ATC Style Fuses 445101-445130, 445190, 445156, and 445157 (sold separately). 12 gauge 6” AWM wire lead. IP67 waterproof rating. Specifications: Max Amps: 30. Fuse Holder Length: 1-1/4 in. Fuse Holder Width: 1 in. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
| Materials & Construction |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details |
| AC Adapter Current | 30 Amps |
| Fuse Type | Ato/Atc |
| Included Components | Great Product |
| Mounting Type | Holder |
| Number of Items | 1 |
| Type | Fuse Holders |
| Warranty | Warranty |
| Sizing & Dimensions |
| Height | 0.5 inches |
| Length | 3 inches |
| Package Dimensions | 5 x 3 x 1 inches |
| Product Dimensions | 3 x 0.5 x 0.5 inches |
| Weight | 0.8 ounces |
| Width | 0.5 inches |
| Technical Specifications |
| Fuse Holder Length | 1-1/4 in. |
| Fuse Holder Width | 1 in. |
| IP Rating | IP67 |
| Max Amps | 30 |
| Wire Lead | 12 gauge 6" AWM |
